Ltech

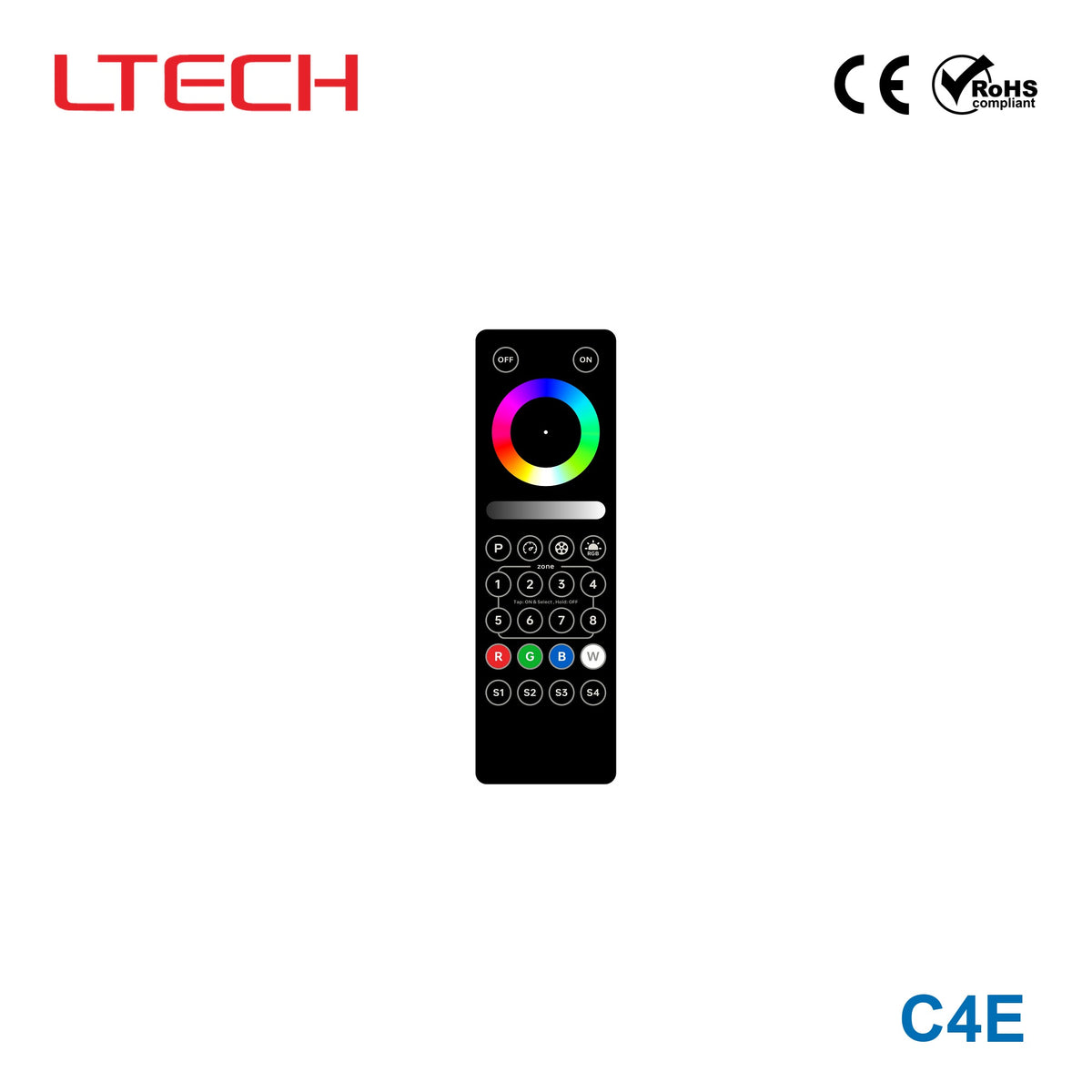

Ltech C4E LED Controller

LED controller
SKU C4E
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

Features

  • Featuring a streamlined design with magnetic attachment, it is powered by two AAA batteries ;
  • Features 2.4 GHz RF wireless transmission with stable signal transmission and strong anti-interference capabilities, supporting multi-zone synchronized dimming;
  • Compatible with P-series controllers;
  • Supports zone control with two options: 4-zone and 8-zone configurations;
  • Equipped with a dedicated on/off button for one-touch control of the lights;
  • Quick color adjustment via touch color ring, with independent R/G/B/W channel control for precise color tuning.
  • Pre-stored 9 dynamic and 7 static lighting modes, supporting customized programming of dynamic modes.
  • Comes with 4 preset scene modes that can be quickly accessed; you can also save custom scenes by holding down the button;
  • A single remote control can be used with multiple controllers, and a single controller can be paired with up to 10 remote controls;
  • Supports synchronized dimming across controller groups.

Specifications

C4ESpecifications from the official datasheetDownload datasheet PDF

Technical Specifications

Model
C4E
Area Control
Zone 8
Dimming Type
RGB/RGBW
Wireless Type
RF 2.4GHz
Operating Voltage
3Vdc, AAA batteries Γ— 2 (Batteries are sold separately)
Standby Current
＜5uA
Compatible Controllers
P3 / P4 / P5
Operating Temperature
-25℃~50℃
Product Weight
Remote control: 62 g; Mount: 12 g
Dimensions
Remote control: L150 Γ— W48 Γ— H15.5 mm; Mount: L85 Γ— W35 Γ— H20 mm

Certifications & ratings

Certification marks
CE, FCC, RoHS

Technical drawings

C4E Dimensions
Dimensions
C4E Functions of the 4-Zone Buttons
Functions of the 4-Zone Buttons
C4E Functions of the 8-Zone Buttons
Functions of the 8-Zone Buttons
C4E Wiring Diagram for the 4-Zone Remote Control
Wiring Diagram for the 4-Zone Remote Control
C4E Wiring Diagram for the 8-Zone Remote Control
Wiring Diagram for the 8-Zone Remote Control
C4E For use with P-series Controllers
For use with P-series Controllers
C4E Use the Remote Controls Together
Use the Remote Controls Together

Downloads

FAQ

What is the Ltech C4E used for?

The C4E is a wireless remote controller for RGB and RGBW LED systems, allowing you to control lighting zones via RF 2.4GHz.

Which controllers does the C4E work with?

It is compatible with the P3, P4, and P5 controllers.

How is the remote powered?

It operates on 3Vdc using two AAA batteries. Batteries are sold separately.

What kind of control does it offer?

It provides RGB/RGBW dimming control for Zone 8.

What is the operating temperature range?

The remote operates in temperatures from -25Β°C to 50Β°C.

Is the C4E certified?

Yes, it carries CE, FCC, and RoHS certification marks.
