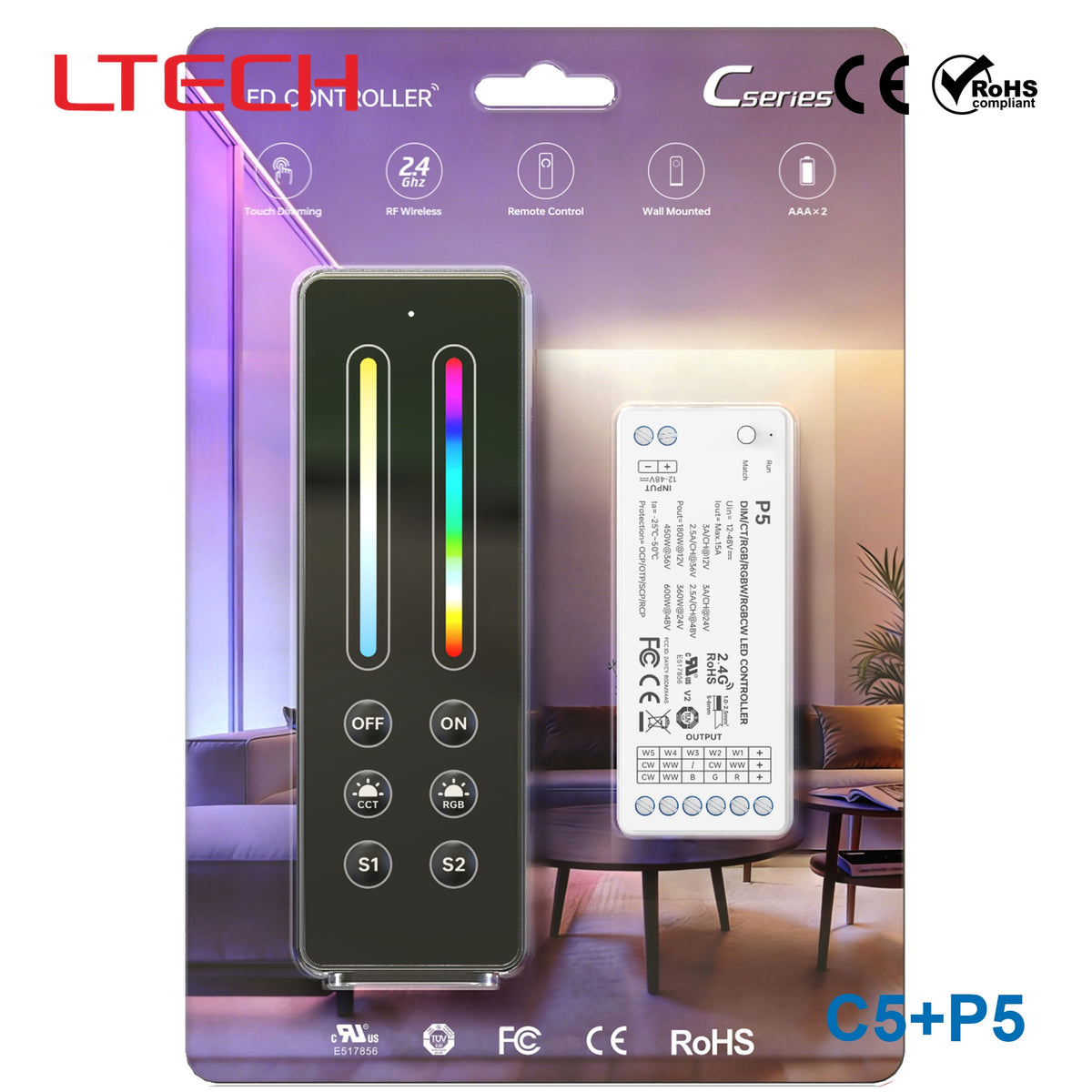

Ltech C5+P5 LED Controller

LED controller

SKU C5+P5

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

Features

Featuring a streamlined design and magnetic attachment, it is powered by two AAA batteries ;
Utilizes 2.4 GHz RF wireless transmission for stable signals and strong interference resistance;
Compatible with P-series and F-series controllers;
Equipped with a dedicated on/off button for one-touch lighting control;
Quickly adjust color temperature and color using the color temperature and color touch sliders;
CCT and RGB brightness are controlled via dedicated buttons, supporting short presses to toggle on/off and long presses to adjust, ensuring intuitive and convenient operation;
Pre-programmed with 2 scene modes for quick access, and custom scenes can be saved by holding down the button;
A single controller can be paired with up to 10 remotes, and a single remote control can be used with multiple controllers;
Supports synchronized dimming for controller groups.

Specifications

C5+P5Specifications from the official datasheetDownload datasheet PDF

Technical Specifications

Model: C5
Area Control: Single zone
Dimming Type: RGBCW
Wireless Type: RF 2.4GHz
Power Supply: 3Vdc (AAA batteries × 2) Note: Batteries must be purchased separately.
Standby Current: ＜5uA
Compatible Controllers: P5 / F5-DMX-4A
Operating Temperature: -25℃~50℃
Product Weight: Remote control: 62 g; Mount: 12 g

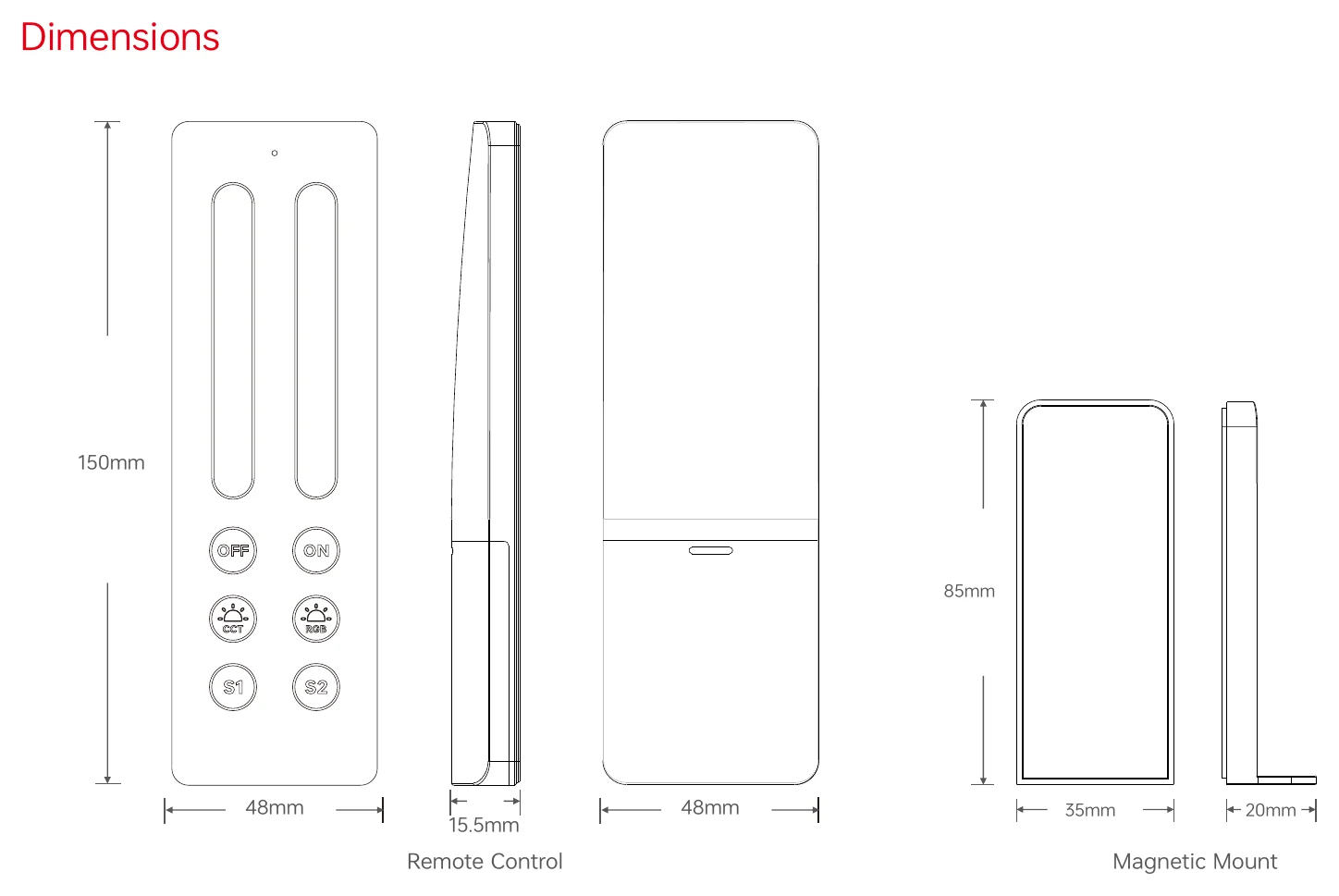

Dimensions: Remote control: L150 × W48 × H15.5 mm; Mount: L85 × W35 × H20 mm

Others

Warranty periods: 5 years

Certifications & ratings

Certification marks: CE, FCC, RoHS

Technical drawings

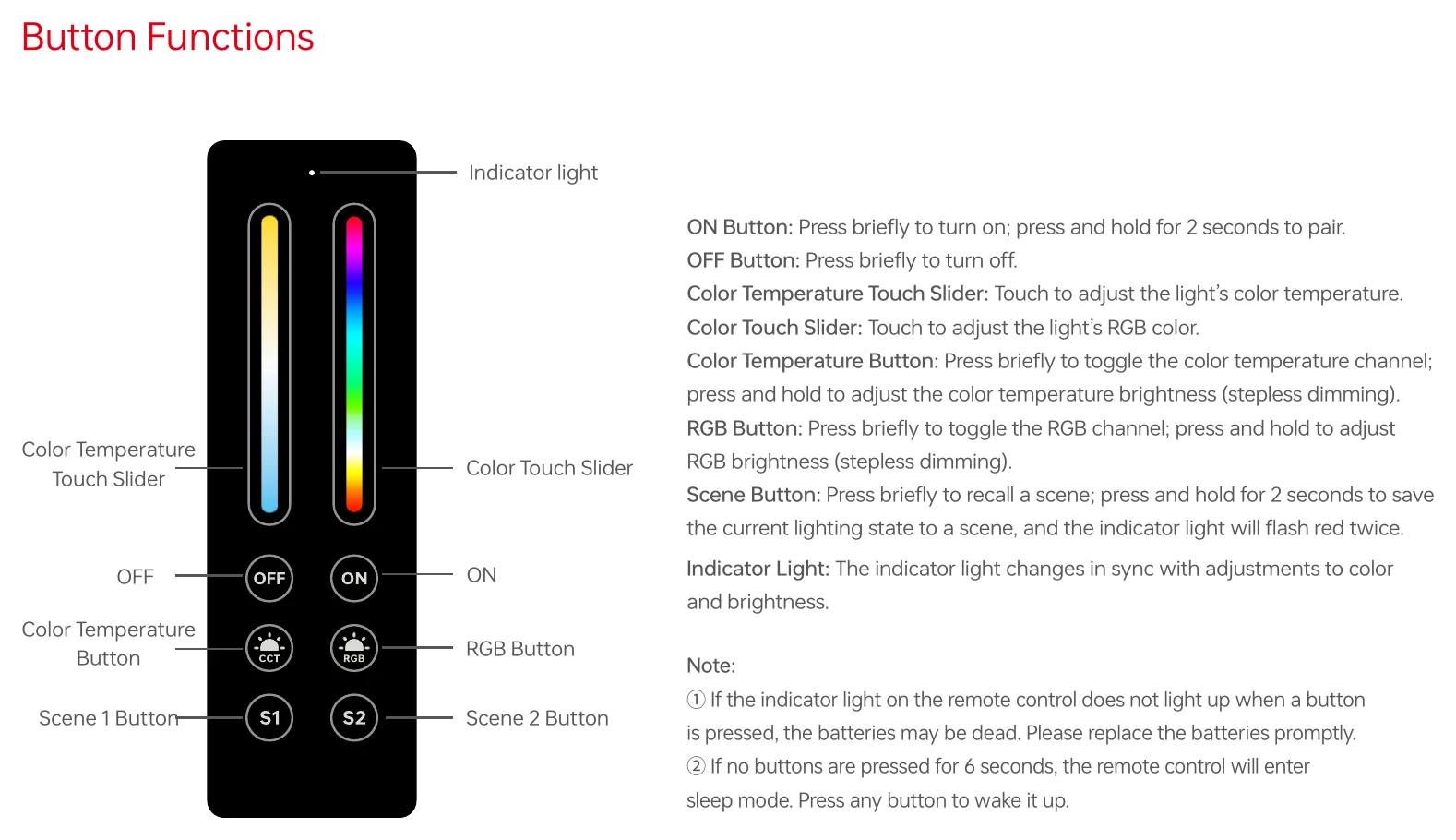

C5+P5 Button Functions — Button Functions

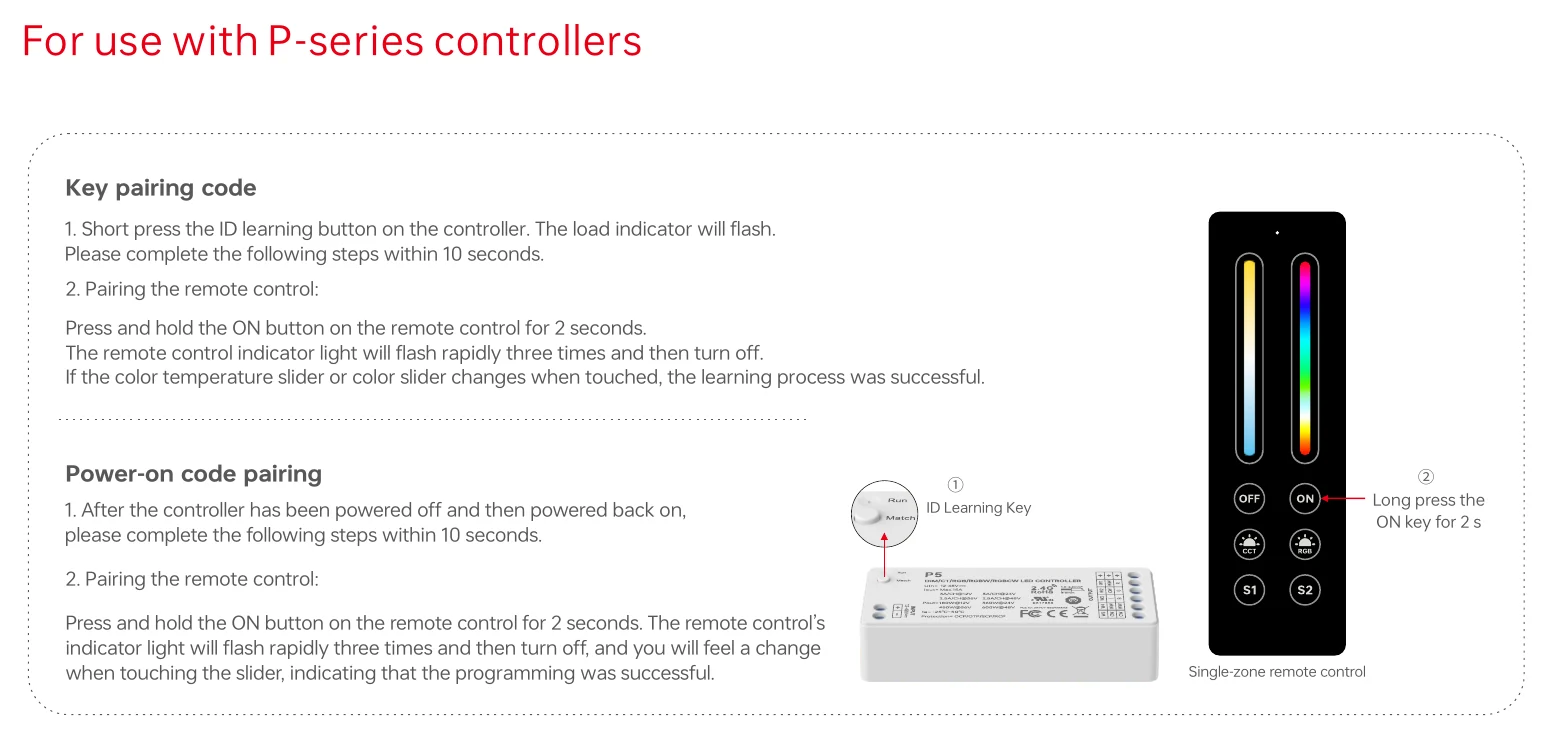

C5+P5 For use with P-series controllers — For use with P-series controllers

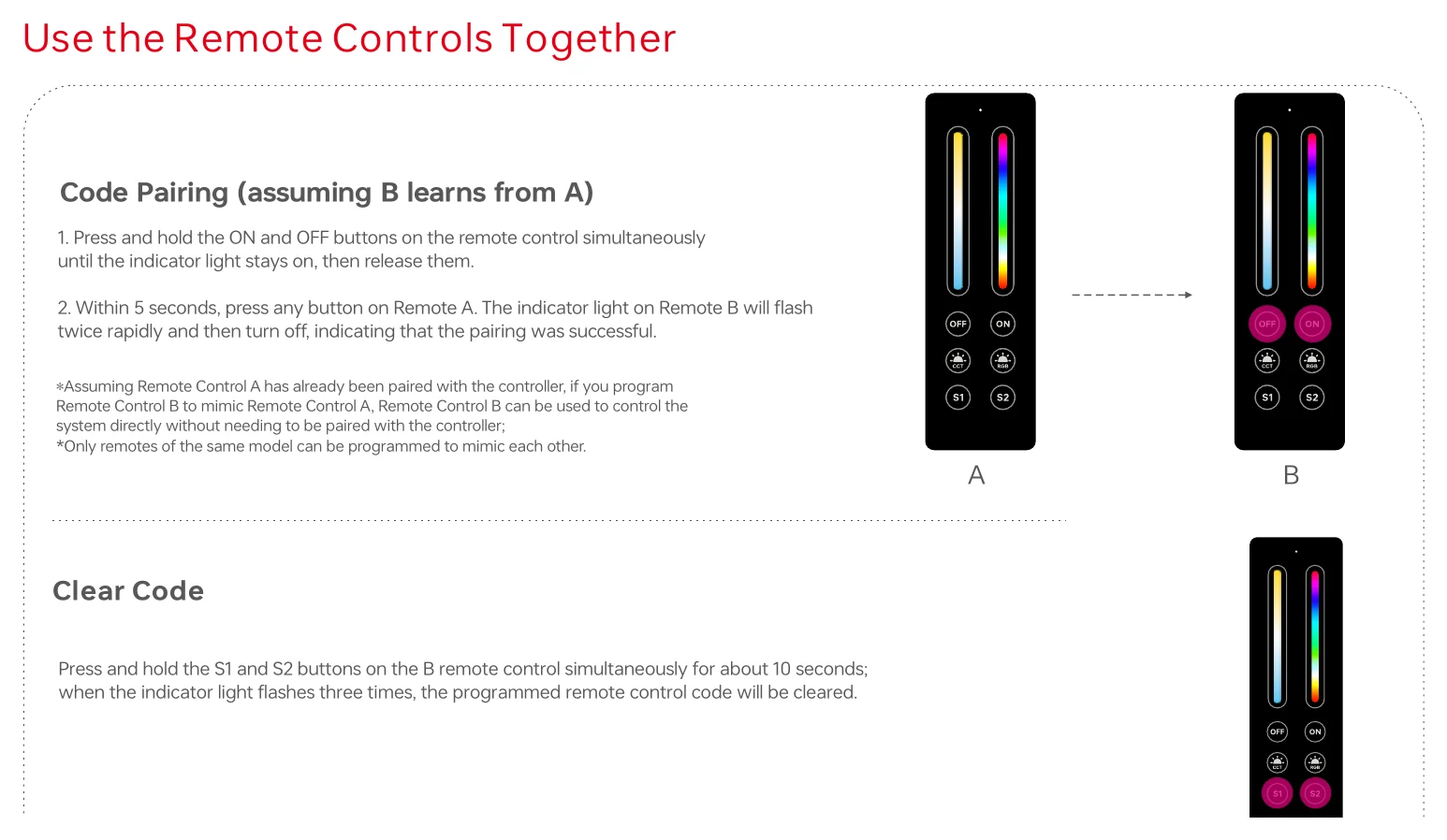

C5+P5 Use the Remote Controls Together — Use the Remote Controls Together

Downloads

Datasheet1

C5+P5 datasheetC5_P5.pdf PDF Download

FAQ

What is the C5+P5 used for?

It is a wireless remote control and mount set for single-zone RGBCW LED controllers, allowing you to adjust color and brightness.

Which controllers does the C5 remote work with?

The C5 remote is compatible with the P5 and F5-DMX-4A controllers.

How is the remote powered?

It operates on 3Vdc using two AAA batteries, which must be purchased separately.

What type of dimming and control does it offer?

It provides RGBCW dimming control via RF 2.4GHz wireless technology for single-zone applications.

What is the operating temperature range?

The device operates in temperatures ranging from -25°C to 50°C.

Does the product have any certifications?

Yes, the product carries CE, FCC, and RoHS certification marks.

What is the warranty period?

The product comes with a 5-year warranty.
