Ltech

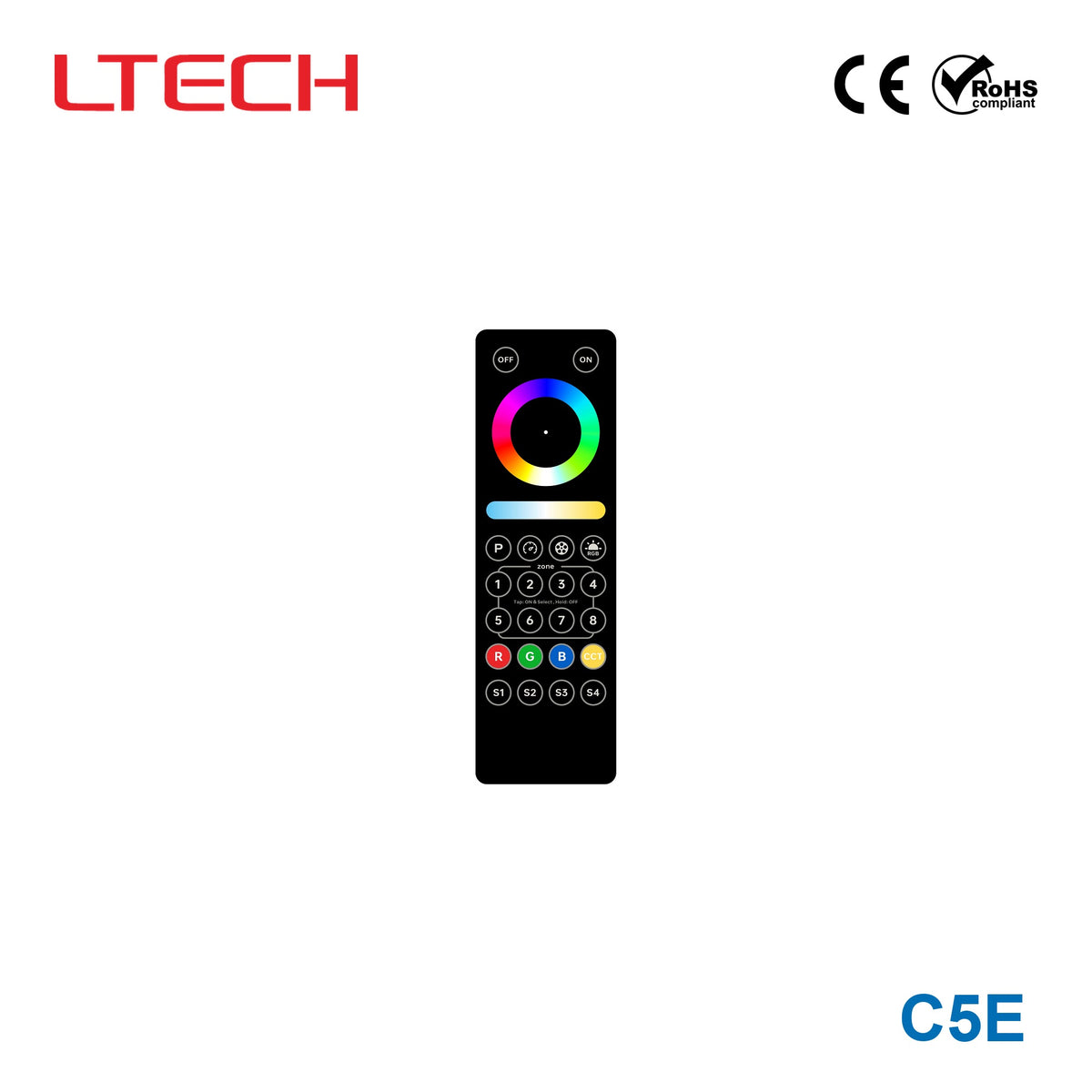

Ltech C5E LED Controller

LED controller
SKU C5E
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

Features

  • Featuring a streamlined design with magnetic attachment, it is powered by two AAA batteries;
  • Features 2.4 GHz RF wireless transmission with stable signal transmission and strong anti-interference capabilities, supporting multi-zone synchronized dimming;
  • Compatible with P-series controllers;
  • Supports zone control with two options: 4-zone and 8-zone configurations;
  • Equipped with a dedicated on/off button for one-touch control of the lights;
  • Quick color adjustment via touch color ring, with independent R/G/B/CCT channel control for precise color tuning.
  • Pre-stored 9 dynamic and 7 static lighting modes, supporting customized programming of dynamic modes.
  • Comes with 4 preset scene modes that can be quickly accessed; you can also save custom scenes by holding down the button;
  • A single remote control can be used with multiple controllers, and a single controller can be paired with up to 10 remote controls;
  • Supports synchronized dimming across controller groups.

Specifications

C5ESpecifications from the official datasheetDownload datasheet PDF

Technical Specifications

Model
C5E
Area Control
Zone 8
Dimming Type
RGBCW
Wireless Type
RF 2.4GHz
Operating Voltage
3Vdc, AAA batteries Γ— 2 (Batteries sold separately)
Standby Current
＜5uA
Compatible Controllers
P5
Operating Temperature
-25℃~50℃
Product Weight
Remote control: 62 g; Mount: 12 g
Dimensions
Remote control: L150 Γ— W48 Γ— H15.5 mm; Mount: L85 Γ— W35 Γ— H20 mm

Certifications & ratings

Certification marks
CE, FCC, RoHS

Technical drawings

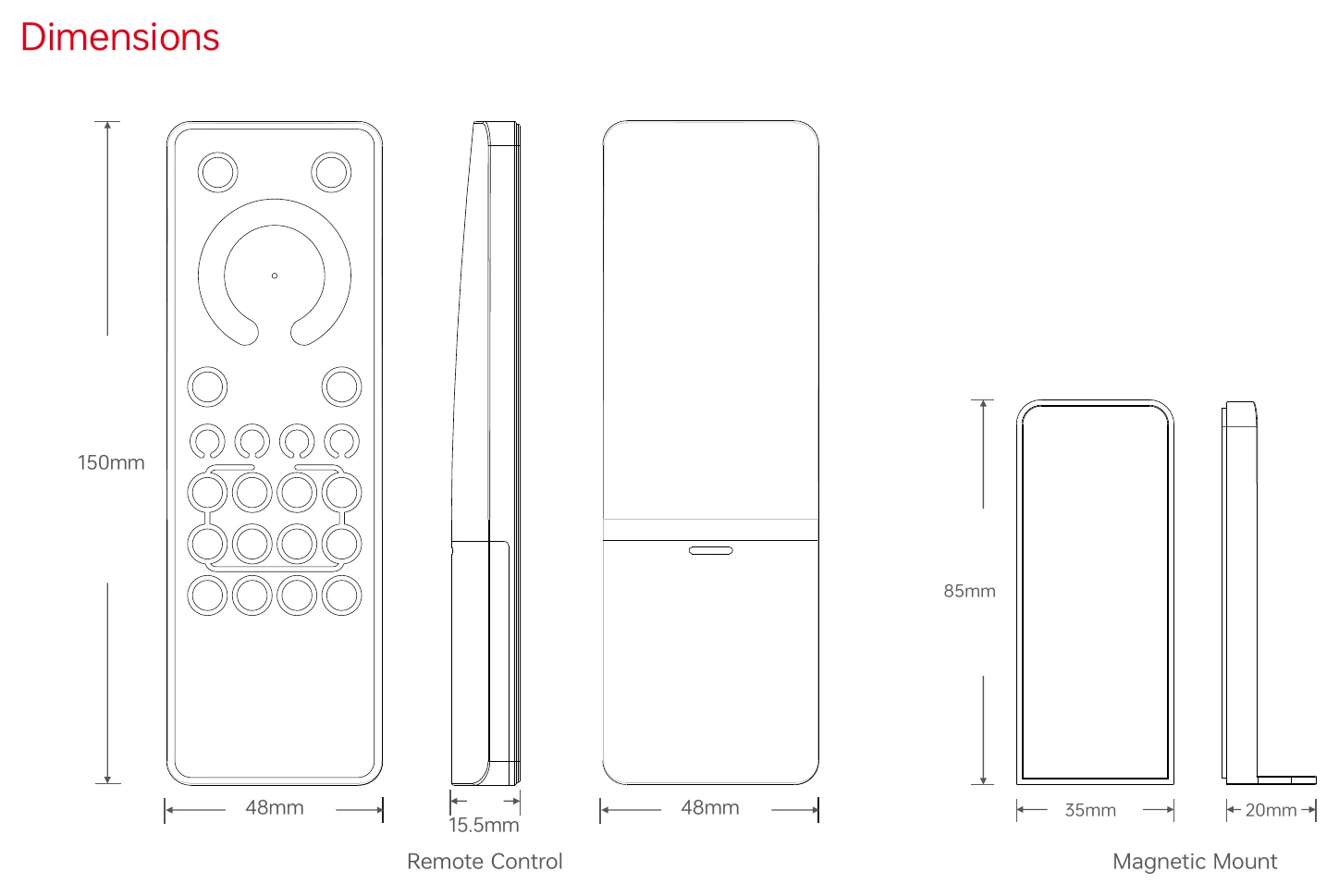

C5E Dimensions
Dimensions

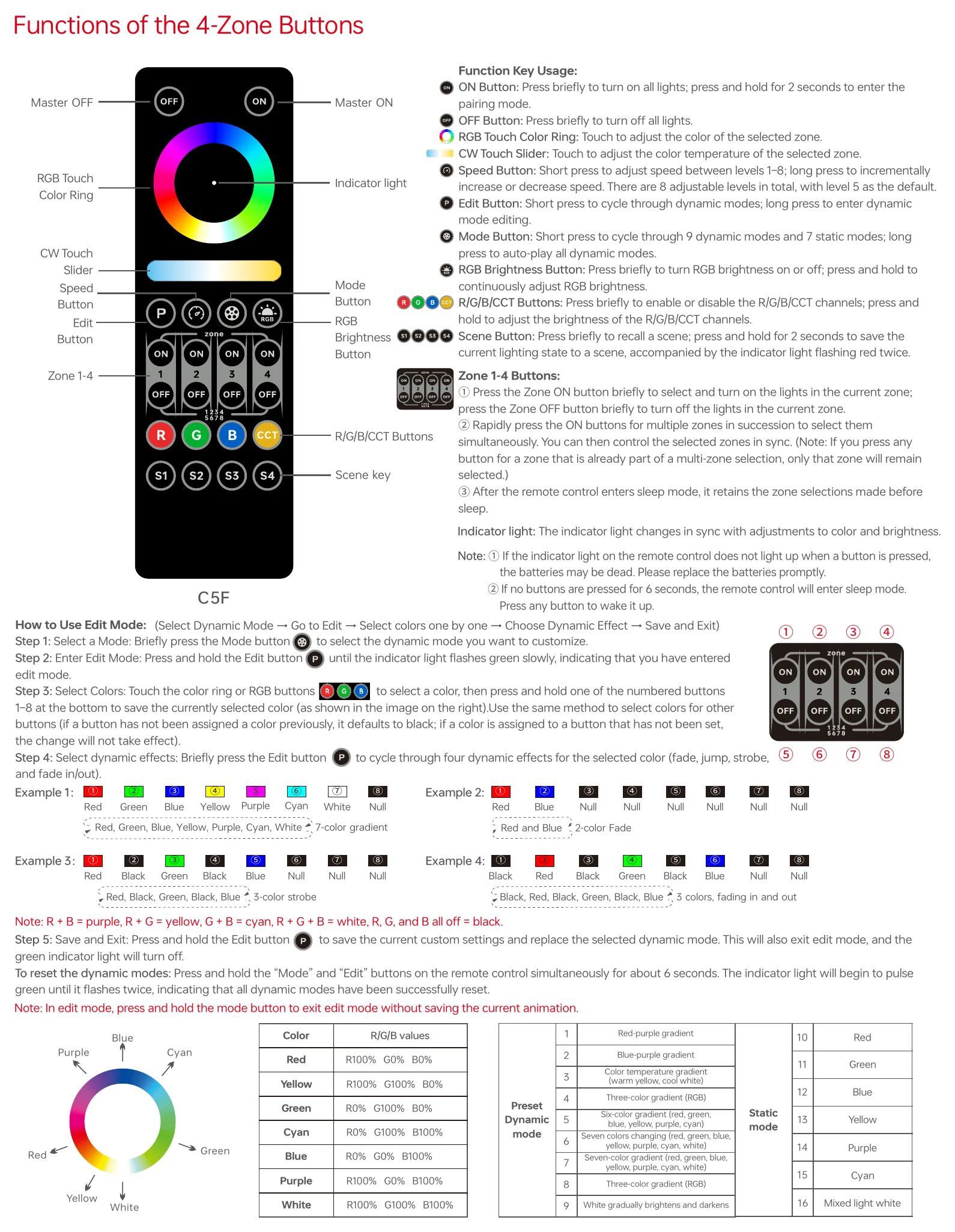

C5E Functions of the 4-Zone Buttons
Functions of the 4-Zone Buttons

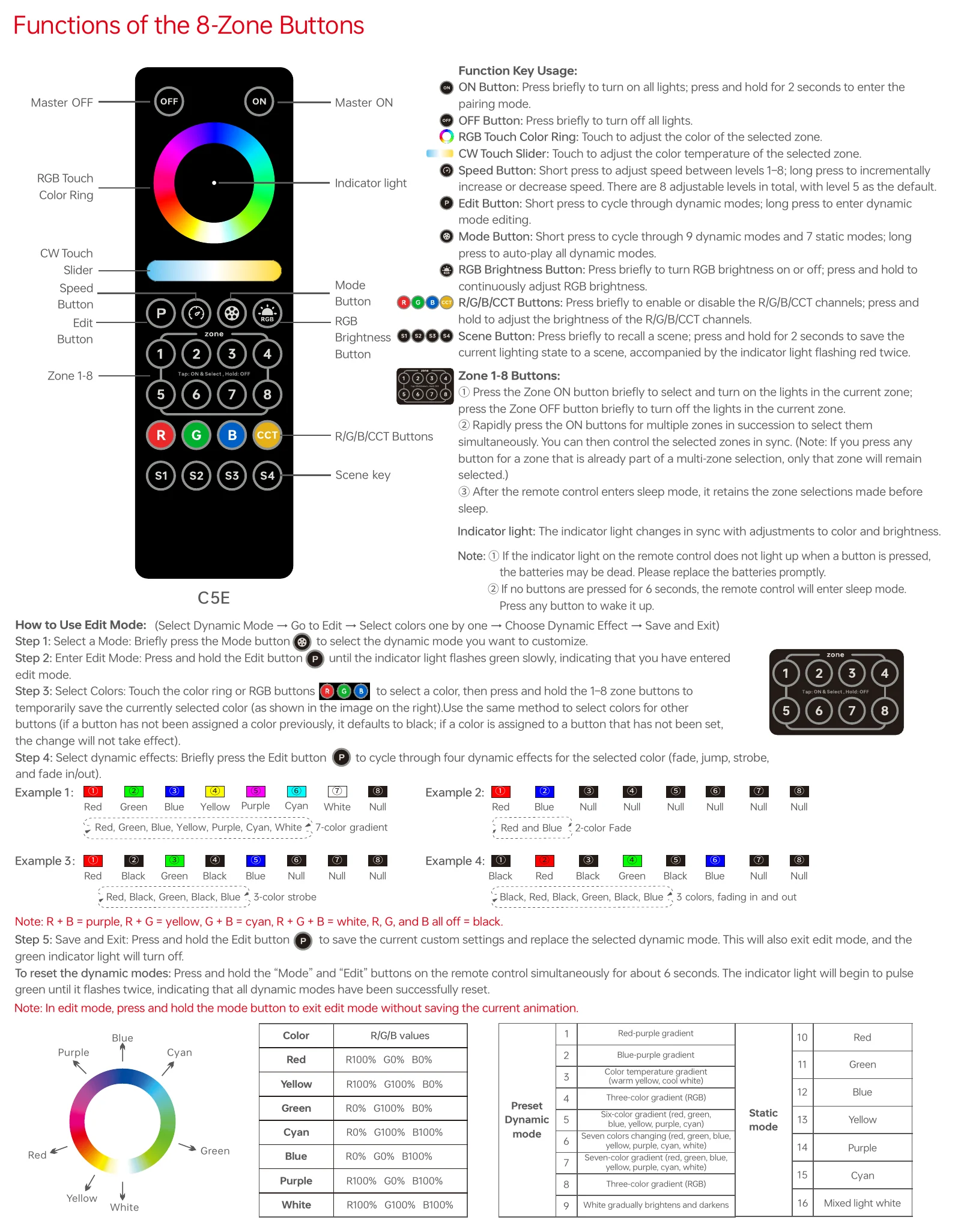

C5E Functions of the 8-Zone Buttons
Functions of the 8-Zone Buttons

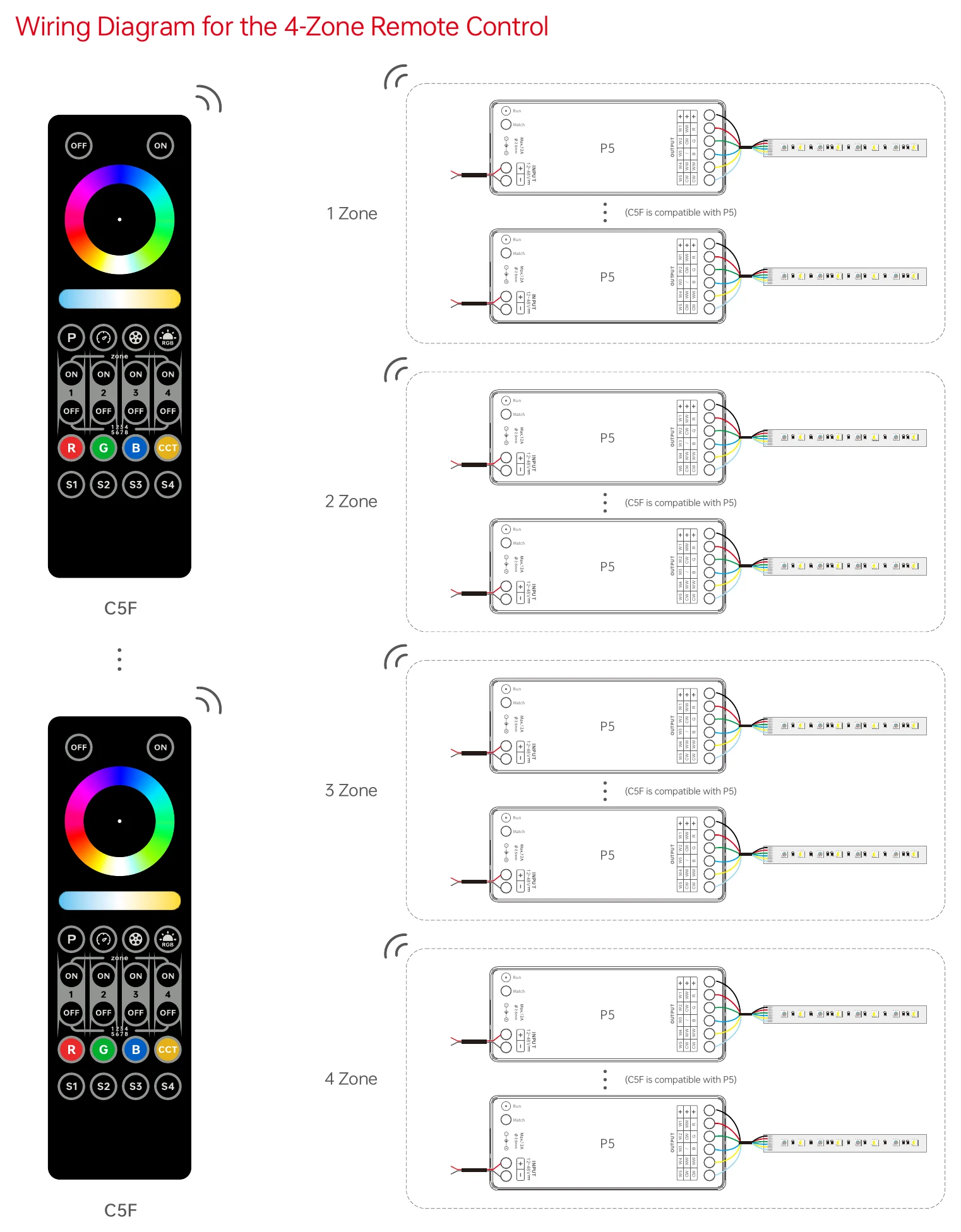

C5E Wiring Diagram for the 4-Zone Remote Control
Wiring Diagram for the 4-Zone Remote Control
C5E Wiring Diagram for the 8-Zone Remote Control
Wiring Diagram for the 8-Zone Remote Control

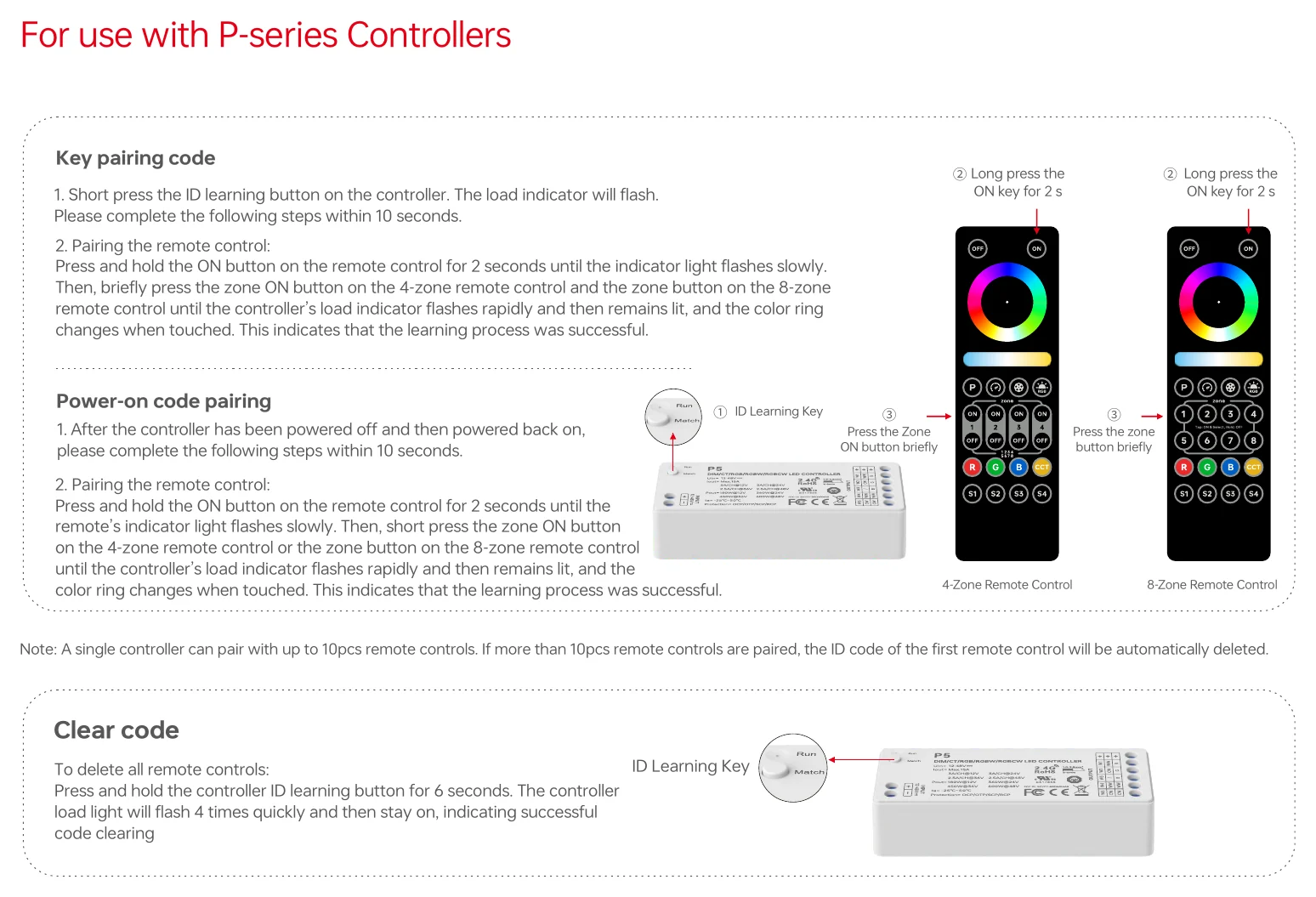

C5E For use with P-series Controllers
For use with P-series Controllers

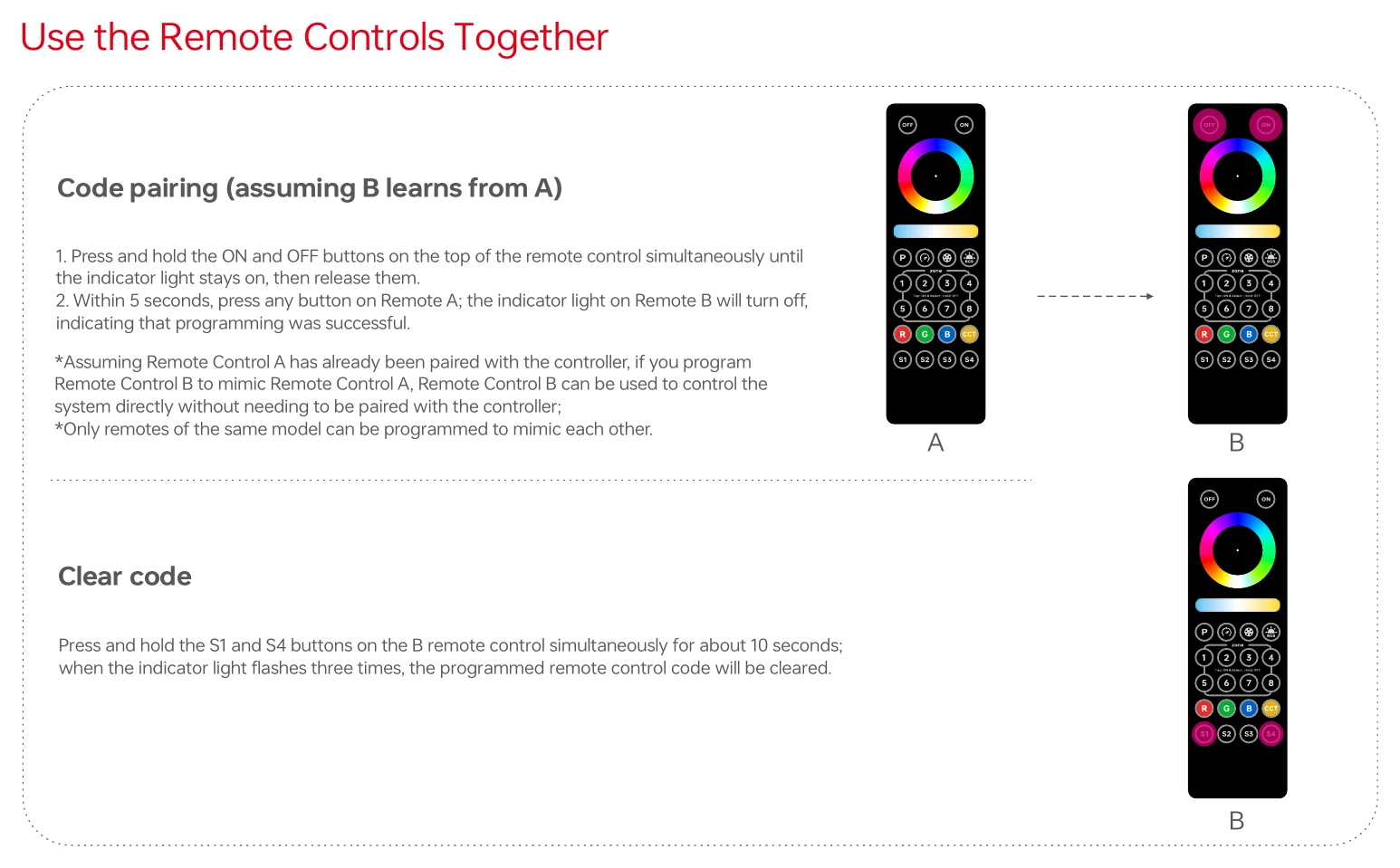

C5E Use the Remote Controls Together
Use the Remote Controls Together

Downloads

FAQ

What is the Ltech C5E used for?

It is a wireless remote control for RGBCW LED controllers, specifically compatible with the P5 controller model.

What power source does the remote require?

It operates on 3Vdc using two AAA batteries, which are sold separately.

How does the remote communicate with the controller?

It uses RF 2.4GHz wireless technology to send commands to the compatible P5 controller.

What is the operating temperature range?

The remote is designed to operate in temperatures ranging from -25Β°C to 50Β°C.

Does the remote have any safety certifications?

Yes, the C5E remote carries CE, FCC, and RoHS certification marks.

What are the physical dimensions of the remote?

The remote control measures 150mm in length, 48mm in width, and 15.5mm in height.
