Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

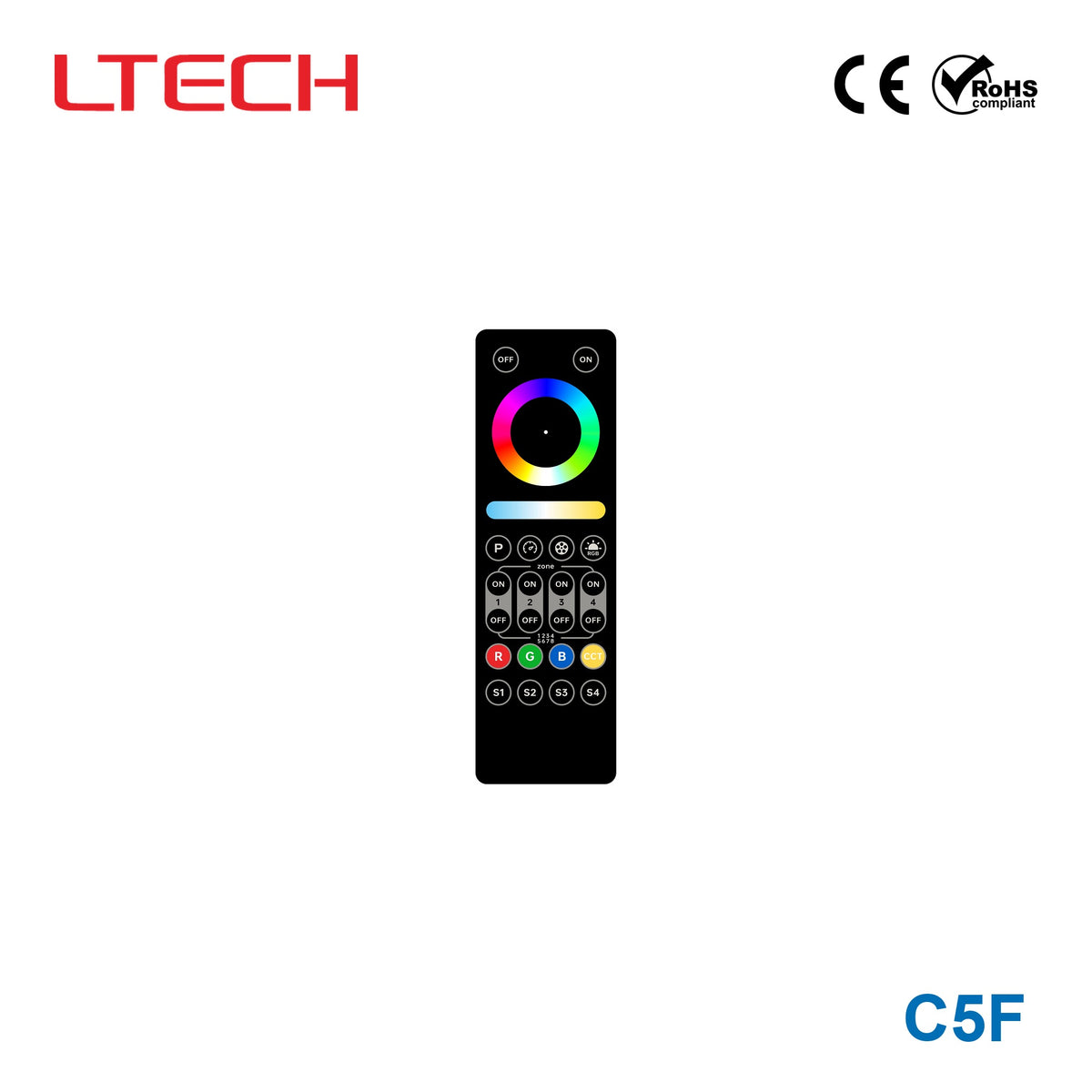

Ltech C5F LED Controller

LED controller

SKU C5F

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

Features

Featuring a streamlined design with magnetic attachment, it is powered by two AAA batteries;
Features 2.4 GHz RF wireless transmission with stable signal transmission and strong anti-interference capabilities, supporting multi-zone synchronized dimming;
Compatible with P-series controllers;
Supports zone control with two options: 4-zone and 8-zone configurations;
Equipped with a dedicated on/off button for one-touch control of the lights;
Quick color adjustment via touch color ring, with independent R/G/B/CCT channel control for precise color tuning.
Pre-stored 9 dynamic and 7 static lighting modes, supporting customized programming of dynamic modes.
Comes with 4 preset scene modes that can be quickly accessed; you can also save custom scenes by holding down the button;
A single remote control can be used with multiple controllers, and a single controller can be paired with up to 10 remote controls;
Supports synchronized dimming across controller groups.

Specifications

C5FSpecifications from the official datasheetDownload datasheet PDF

Technical Specifications

Model: C5F
Area Control: Zone 4
Dimming Type: RGBCW
Wireless Type: RF 2.4GHz
Operating Voltage: 3Vdc, AAA batteries × 2 (Batteries are sold separately)
Standby Current: ＜5uA
Compatible Controllers: P5
Operating Temperature: -25℃~50℃
Product Weight: Remote control: 62 g; Mount: 12 g
Dimensions: Remote control: L150 × W48 × H15.5 mm; Mount: L85 × W35 × H20 mm

Certifications & ratings

Certification marks: CE, FCC, RoHS

Technical drawings

C5F Functions of the 4-Zone Buttons — Functions of the 4-Zone Buttons

C5F Functions of the 8-Zone Buttons — Functions of the 8-Zone Buttons

C5F Wiring Diagram for the 4-Zone Remote Control — Wiring Diagram for the 4-Zone Remote Control

C5F Wiring Diagram for the 8-Zone Remote Control — Wiring Diagram for the 8-Zone Remote Control

C5F For use with P-series Controllers — For use with P-series Controllers

C5F Use the Remote Controls Together — Use the Remote Controls Together

Downloads

Datasheet1

C5F datasheetC5F.pdf PDF Download

FAQ

What is the Ltech C5F?

The C5F is a wireless remote control for RGBCW LED controllers, specifically compatible with the P5 controller model.

Which controllers does the C5F work with?

It is designed to work with the P5 controller for Zone 4 area control.

How is the remote powered?

It operates on 3Vdc using two AAA batteries, which are sold separately.

What wireless technology does it use?

The remote uses RF 2.4GHz wireless technology to communicate with the controller.

What is the operating temperature range?

The device functions in temperatures ranging from -25°C to 50°C.

Does the C5F have any certifications?

Yes, it carries CE, FCC, and RoHS certification marks.
