Ltech

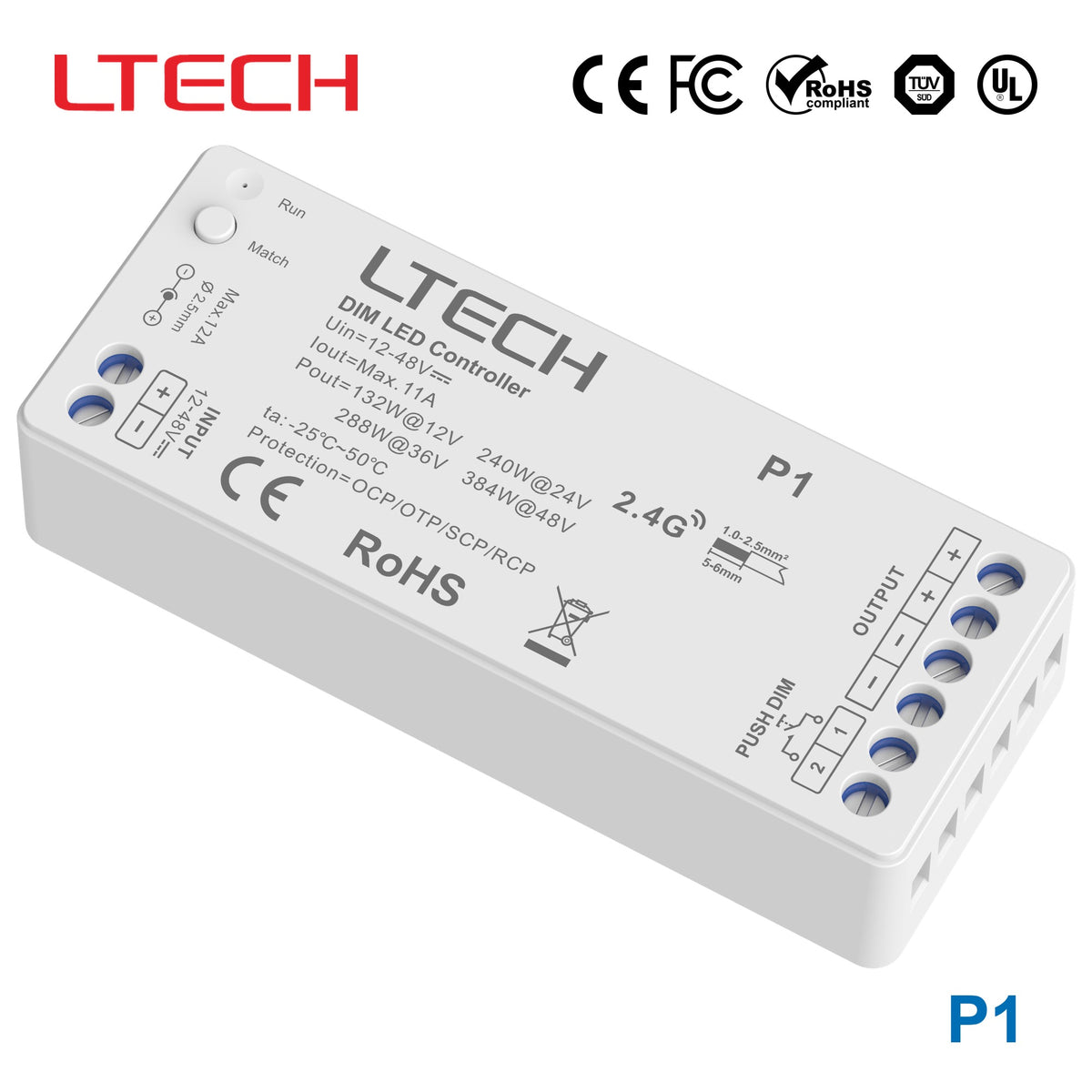

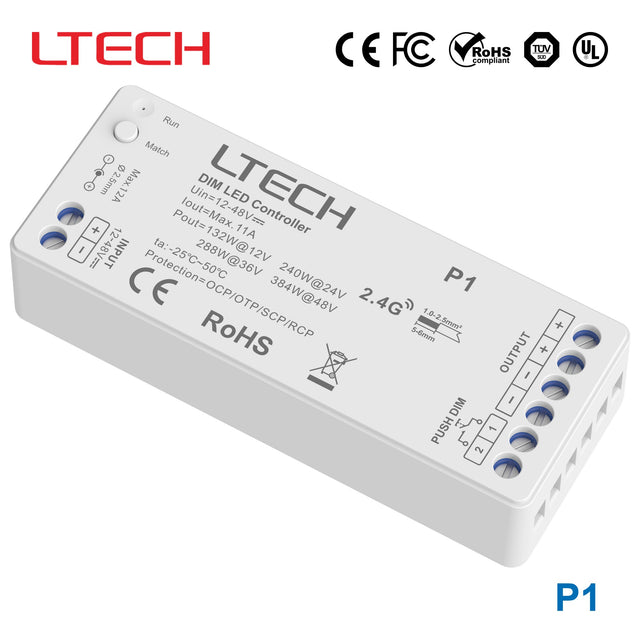

Ltech P1 384W LED Controller

12-48VDC11A384W
SKU P1
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

P1 is the 12-48V output model of this series.

Features

  • Small size and light weight. The housing is made from V0 flame retardant PC materials from SAMSUNG/COVESTRO.
  • Soft-on and fade-in dimming function enhances your visual comfort.
  • 2.4GHz wireless signal , eliminating the need for signal wiring.
  • 1-5 channel constant voltage output.
  • Control DIM, CT, RGB, RGBW, RGBCW light.
  • Compatible with RF 2.4 GHz Mini Pro series remote controllers.
  • P3/P4/P5 have 9 built-in dynamic modes and 7 static modes.
  • One controller can be paired up with 10 remotes .
  • Controllers in the same group or partition can dynamically synchronize with each other.

Specifications

P1Specifications from the official datasheetDownload datasheet PDF

Technical Specs

Input Signal
RF2.4GHz
Input Voltage
12-48V
Output Voltage
12-48V
Channels
1 CH
Reset Switch
Yes
Load Current
Max. 11A
Load Power
132W@12V 240W@24V 288W@36V 384W@48V
Compatible Remote Control Models
Single-zone: M1A/M1B Multi-zone: M1C/M1D Programmable: M9
Protection
Short circuit protection, over-temperature protection, over-current protection, and reverse connection prevention protection
Working Temp.
-25Β°C ~ 50Β°C
Dimension
L91Γ—W37Γ—H21(mm)
Package Size
L94Γ—W39Γ—H22(mm)
Weight(G.W.)
46g

Certifications & ratings

Certification marks
CE, FCC, cULus, TÜV SÜD, RoHS

Technical drawings

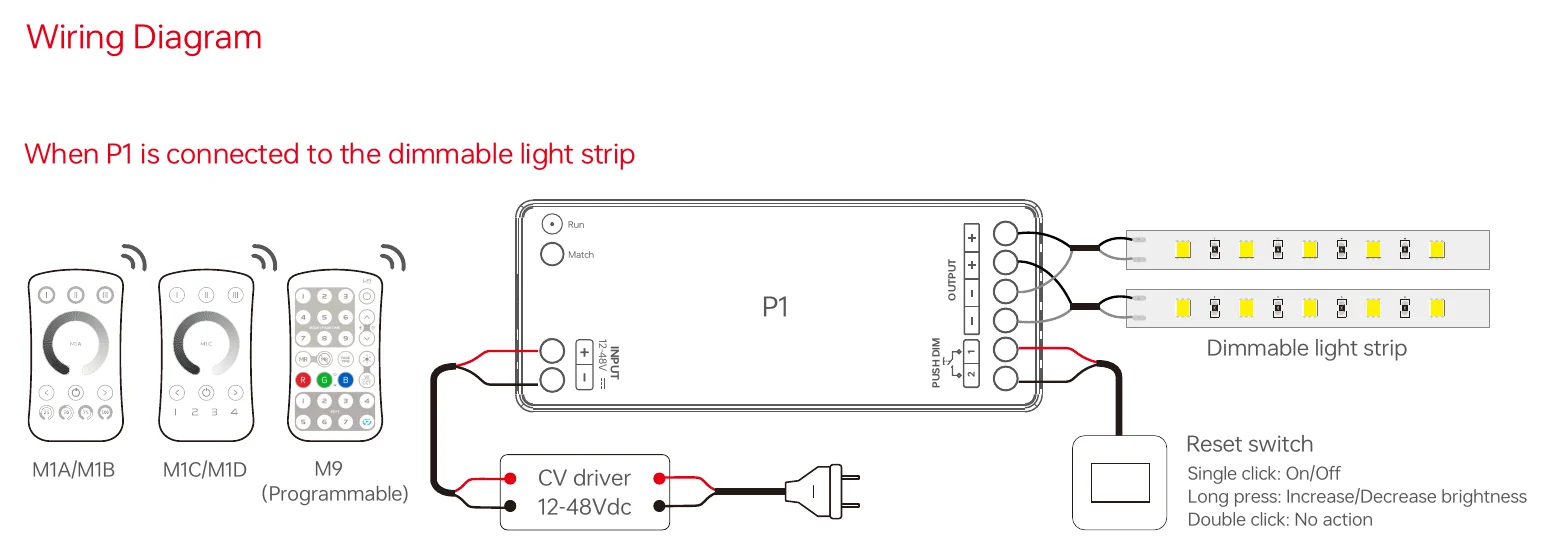

P1 Wiring Diagram
Wiring Diagram

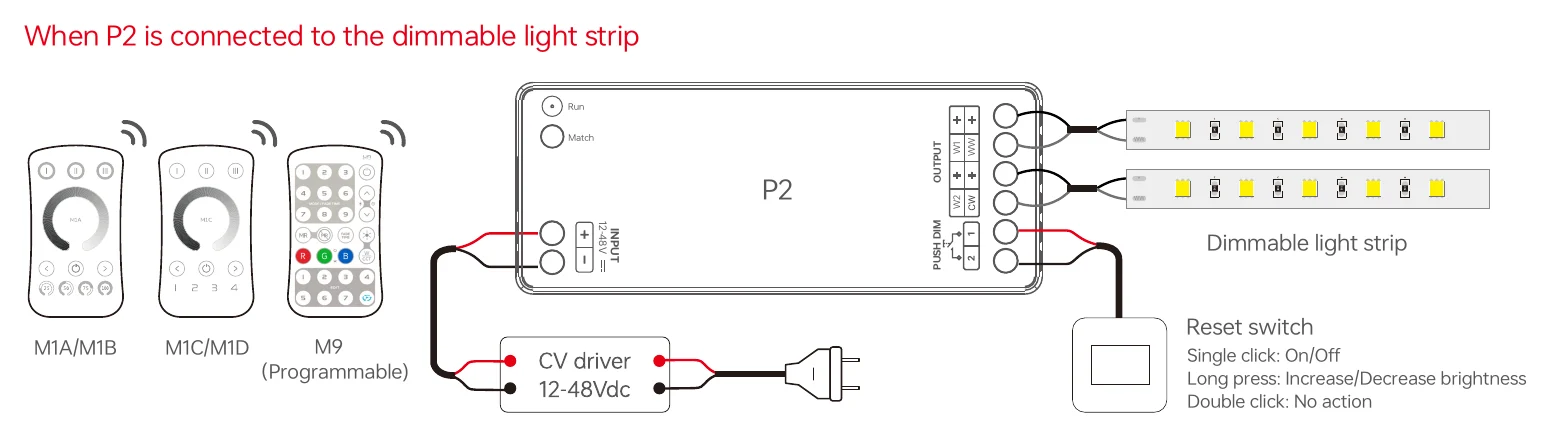

P1 When P2 is connected to the dimmable light strip
When P2 is connected to the dimmable light strip

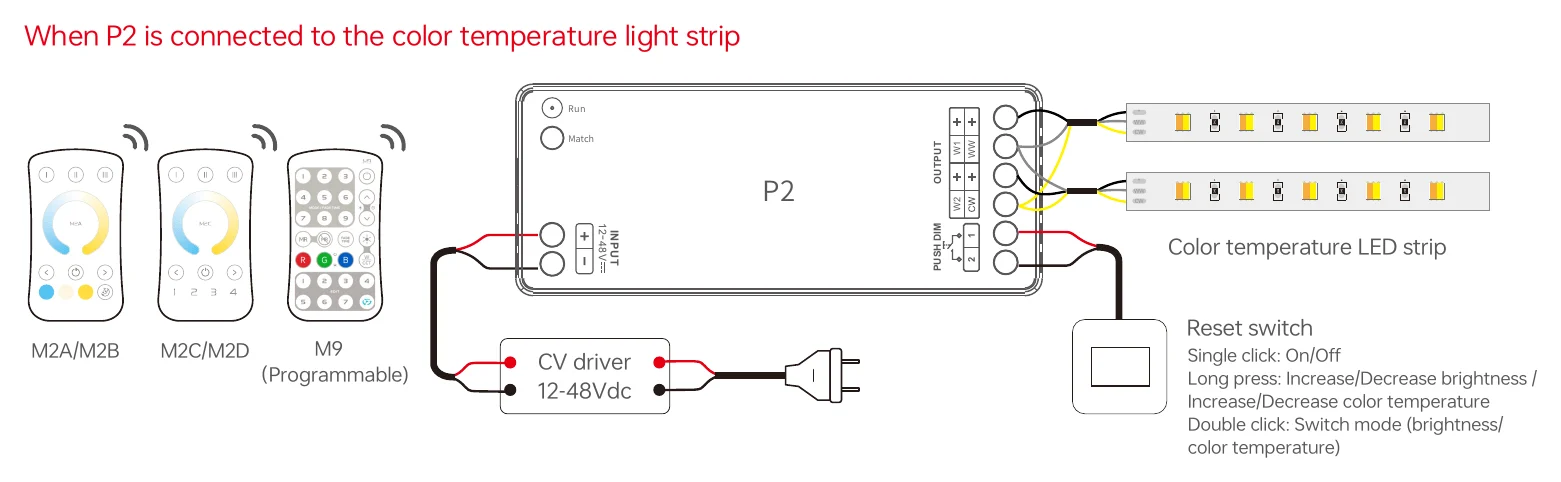

P1 When P2 is connected to the color temperature light strip
When P2 is connected to the color temperature light strip

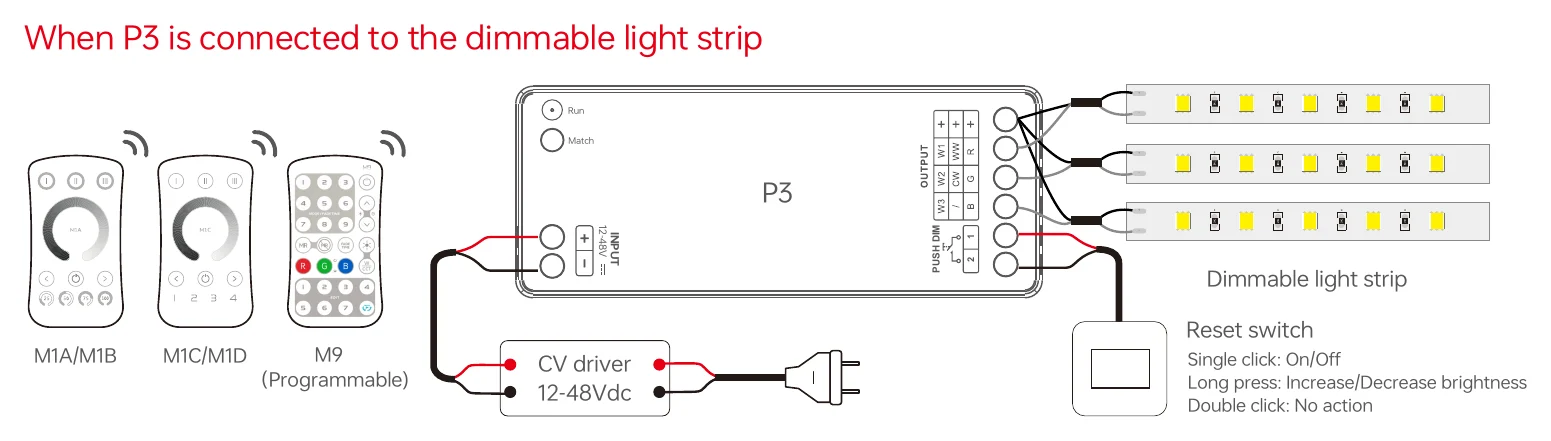

P1 When P3 is connected to the dimmable light strip
When P3 is connected to the dimmable light strip

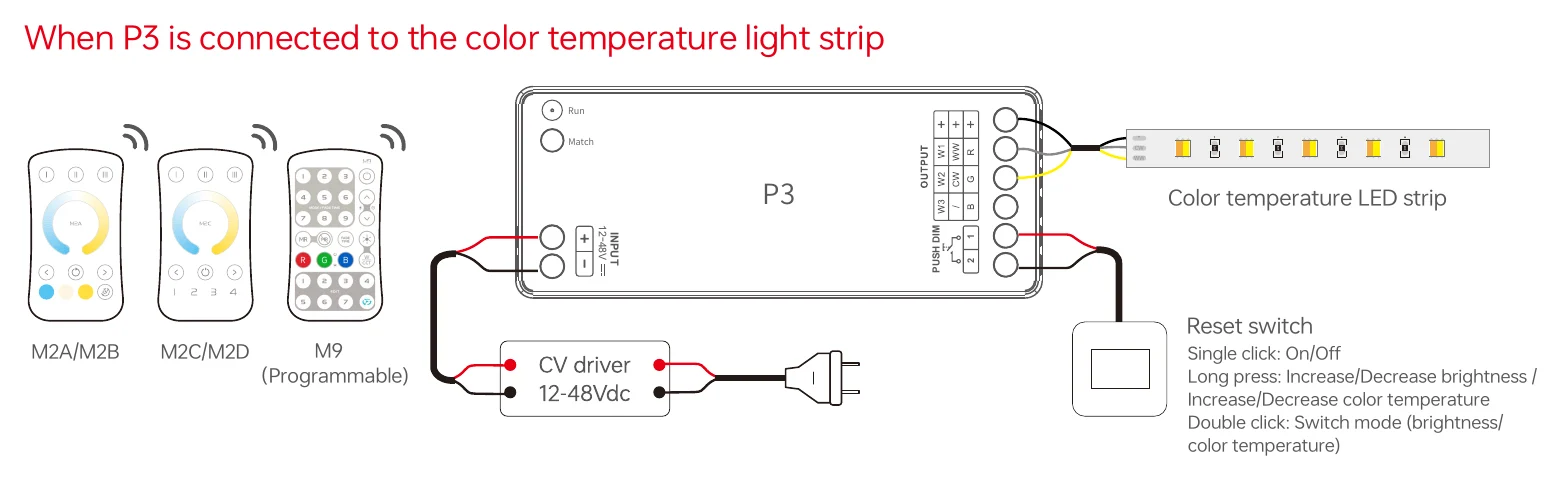

P1 When P3 is connected to the color temperature light strip
When P3 is connected to the color temperature light strip

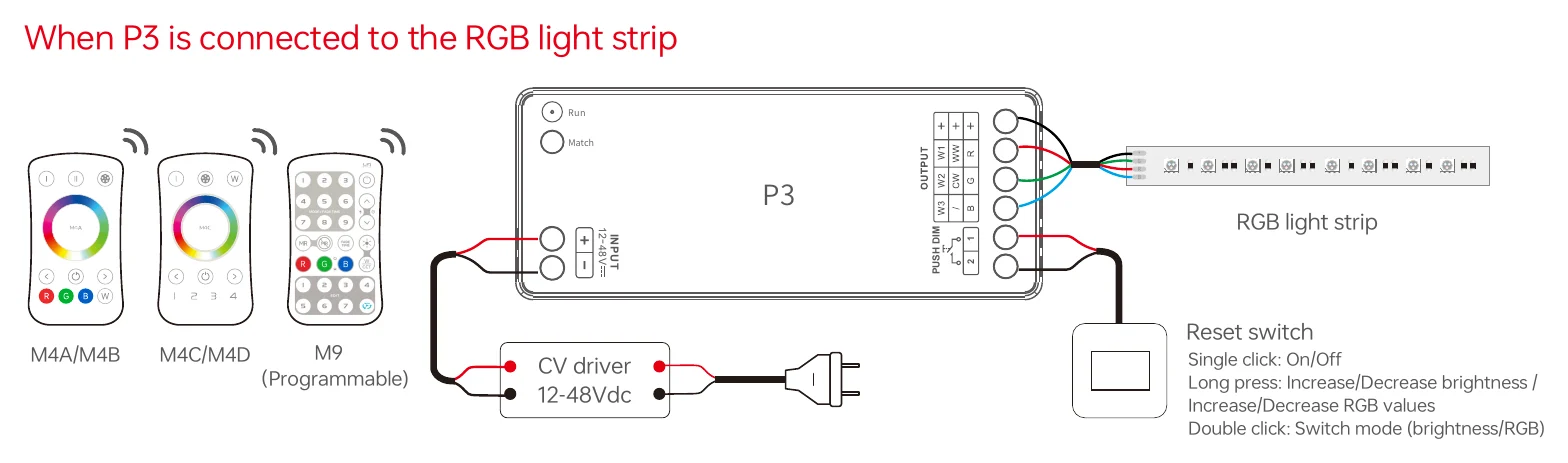

P1 When P3 is connected to the RGB light strip
When P3 is connected to the RGB light strip

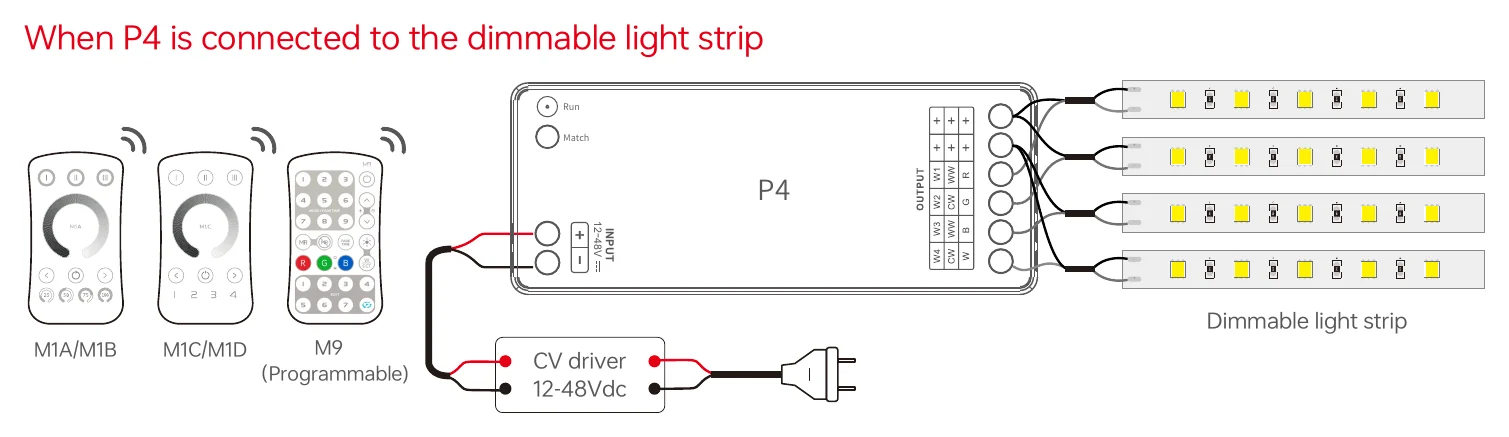

P1 When P4 is connected to the dimmable light strip
When P4 is connected to the dimmable light strip

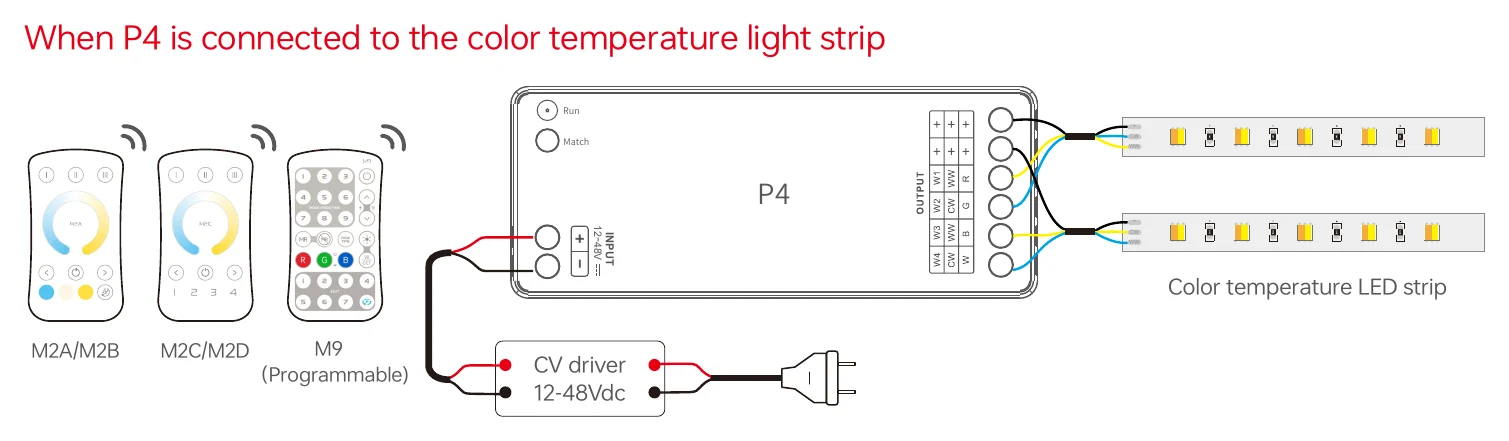

P1 When P4 is connected to the color temperature light strip
When P4 is connected to the color temperature light strip

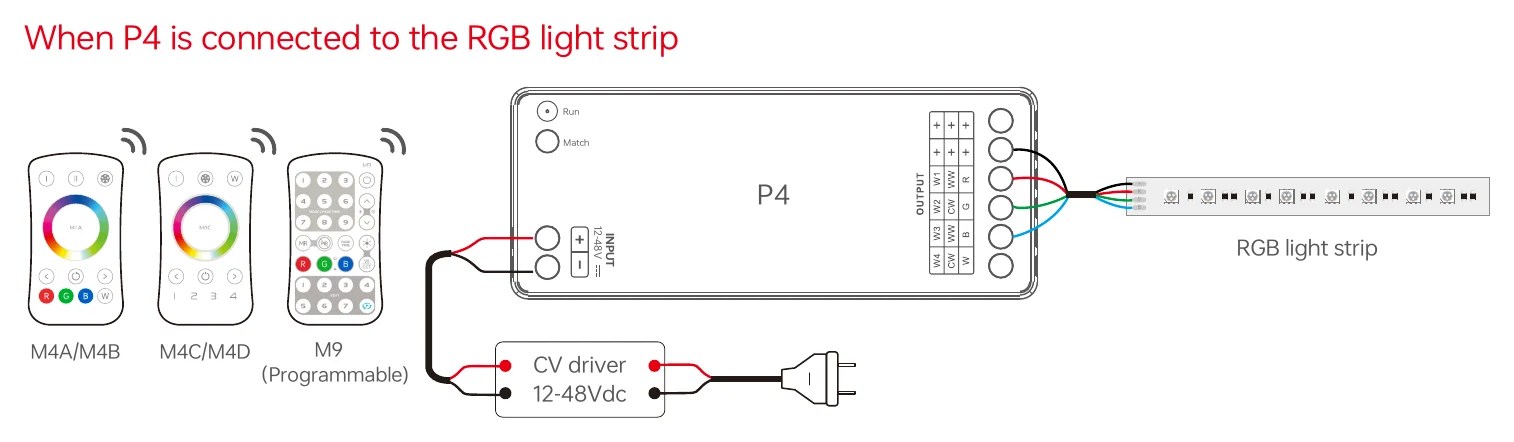

P1 When P4 is connected to the RGB light strip
When P4 is connected to the RGB light strip

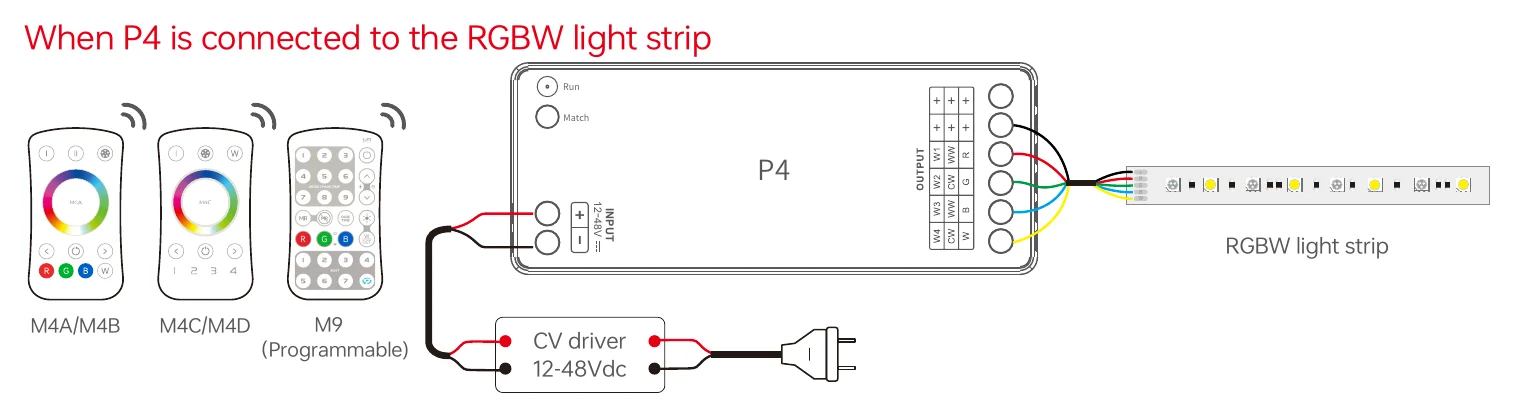

P1 When P4 is connected to the RGBW light strip
When P4 is connected to the RGBW light strip

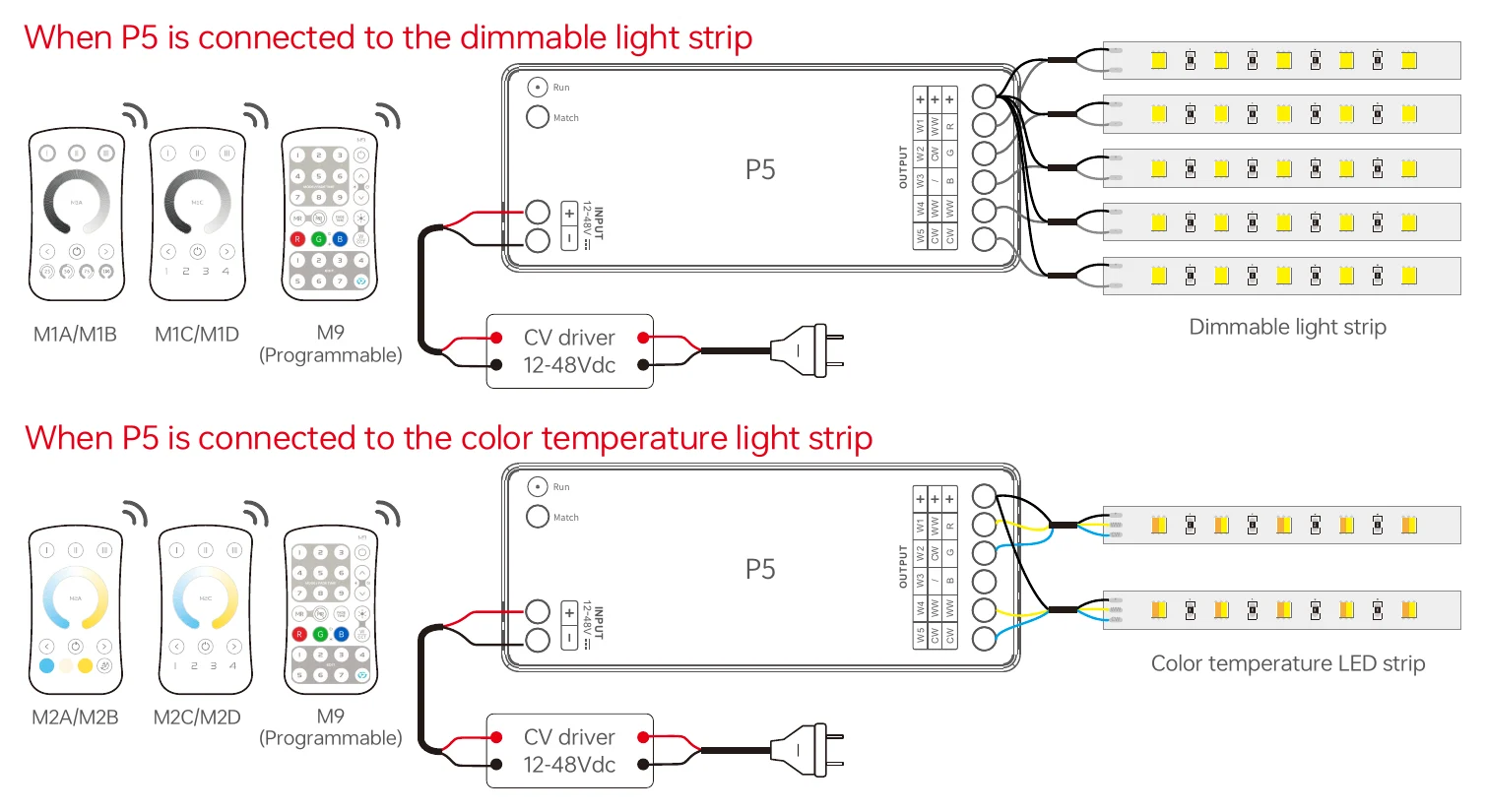

P1 When P5 is connected to the dimmable light strip
When P5 is connected to the dimmable light strip

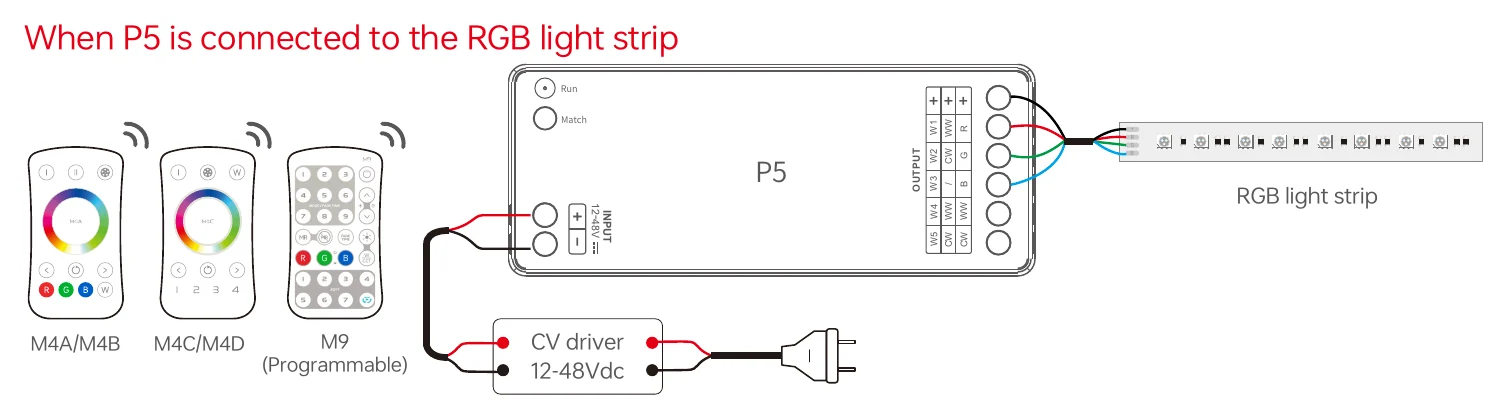

P1 When P5 is connected to the RGB light strip
When P5 is connected to the RGB light strip

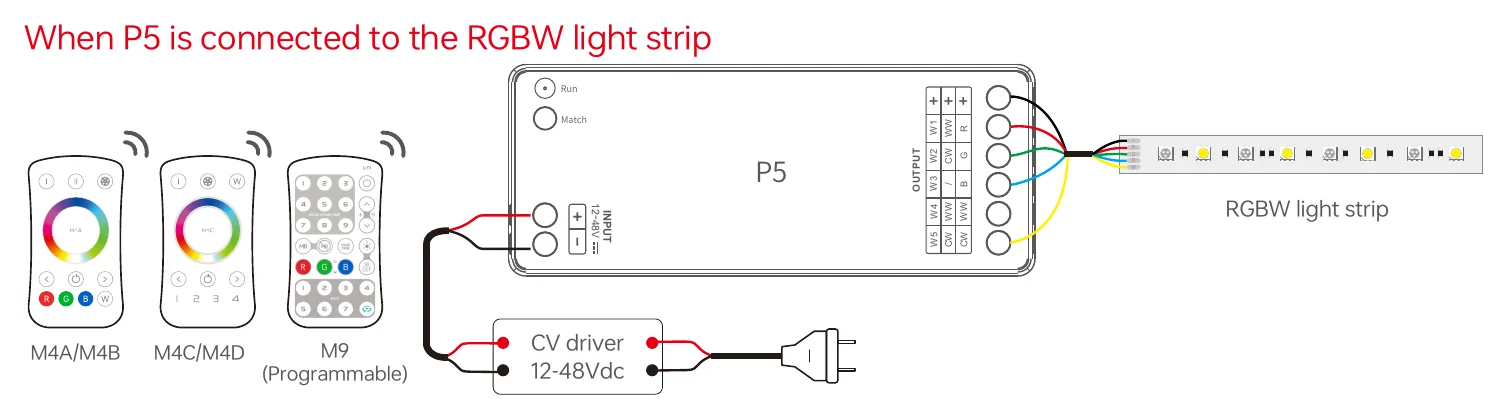

P1 When P5 is connected to the RGBW light strip
When P5 is connected to the RGBW light strip

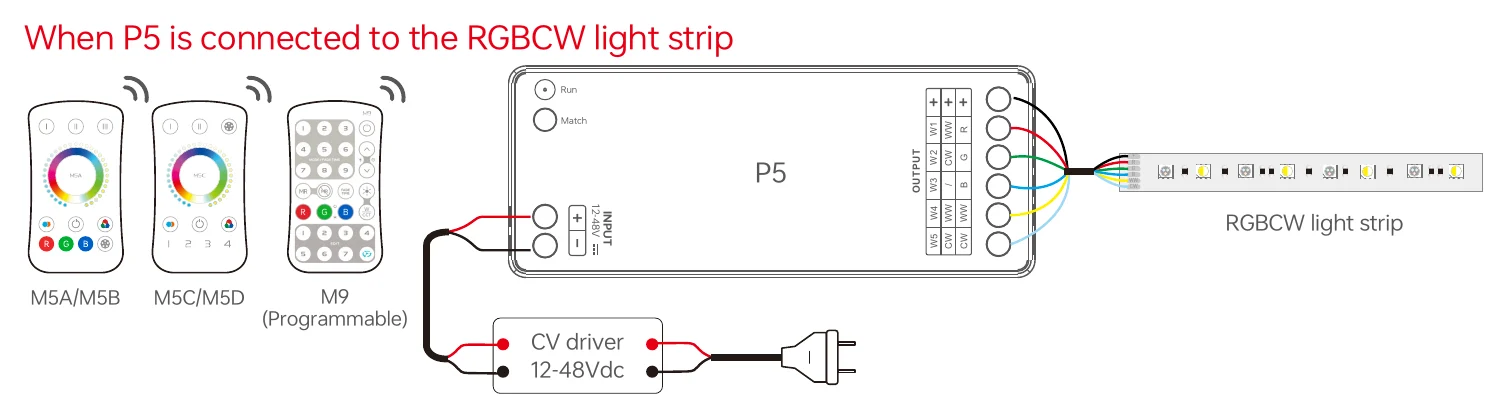

P1 When P5 is connected to the RGBCW light strip
When P5 is connected to the RGBCW light strip

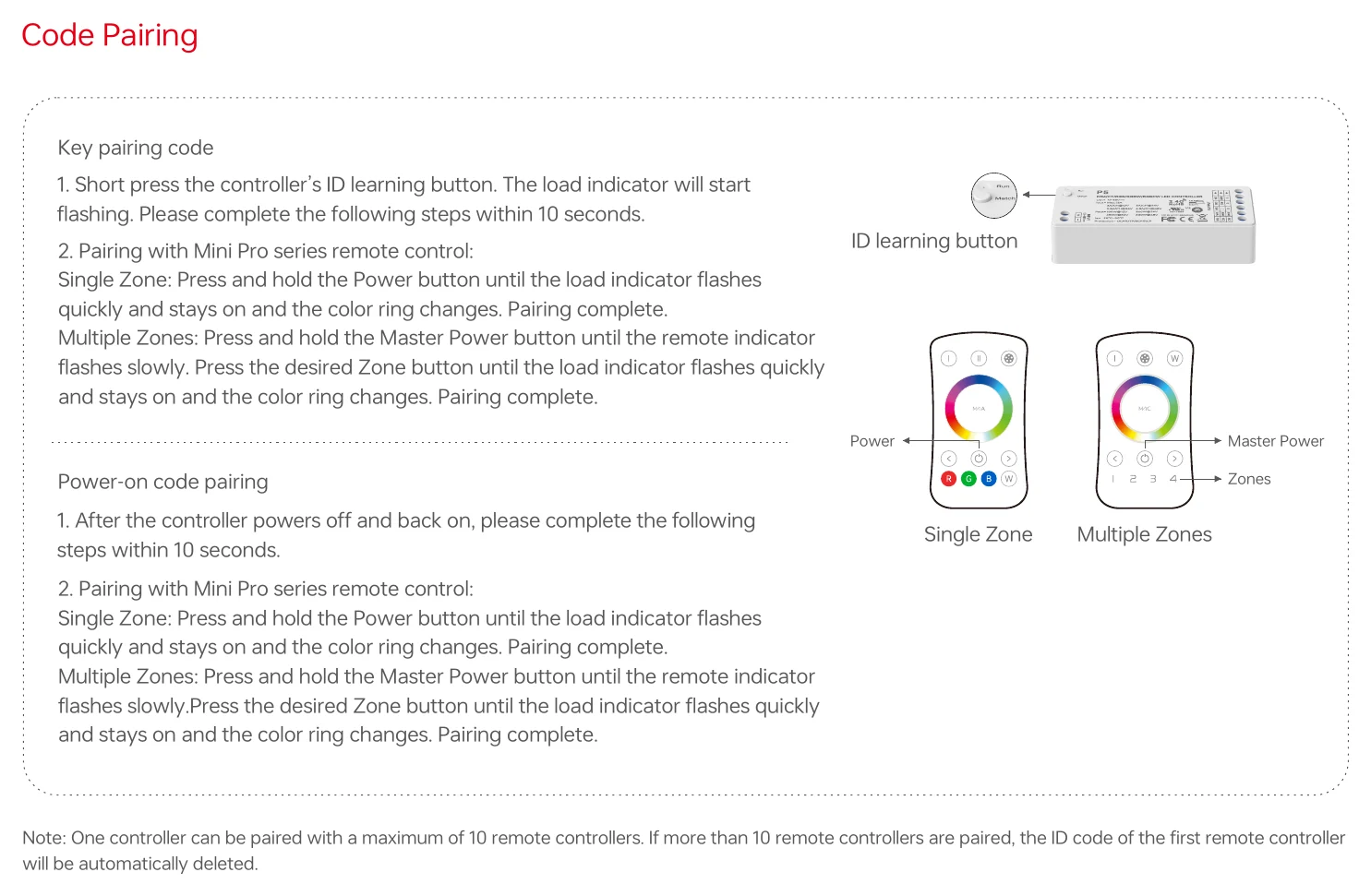

P1 Code Pairing
Code Pairing

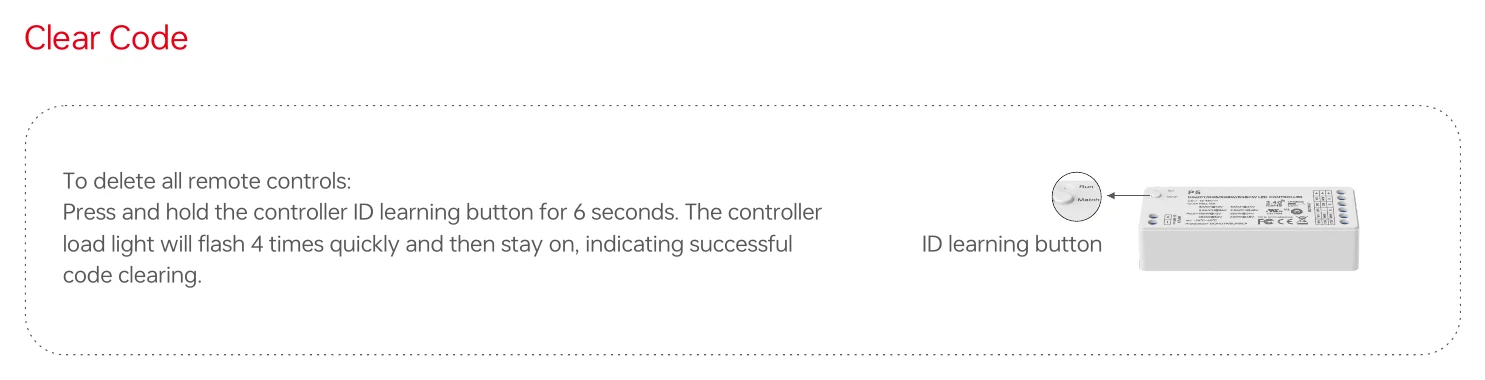

P1 Clear Code
Clear Code

Downloads

FAQ

What is the Ltech P1 used for?

It is a single-channel RF2.4GHz LED controller for dimming and controlling LED loads from 12V to 48V.

What is the maximum load capacity?

The maximum load current is 11A. The maximum power is 132W at 12V, 240W at 24V, 288W at 36V, and 384W at 48V.

Which remote controls are compatible?

It works with single-zone remotes M1A/M1B, multi-zone remotes M1C/M1D, and programmable remote M9.

What safety protections are included?

It includes short circuit, over-temperature, over-current, and reverse connection prevention protections.

What is the operating temperature range?

The unit operates in temperatures from -25Β°C to 50Β°C.

Is the controller certified?

Yes, it carries CE, FCC, cULus, TÜV SÜD, and RoHS certification marks.
