Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

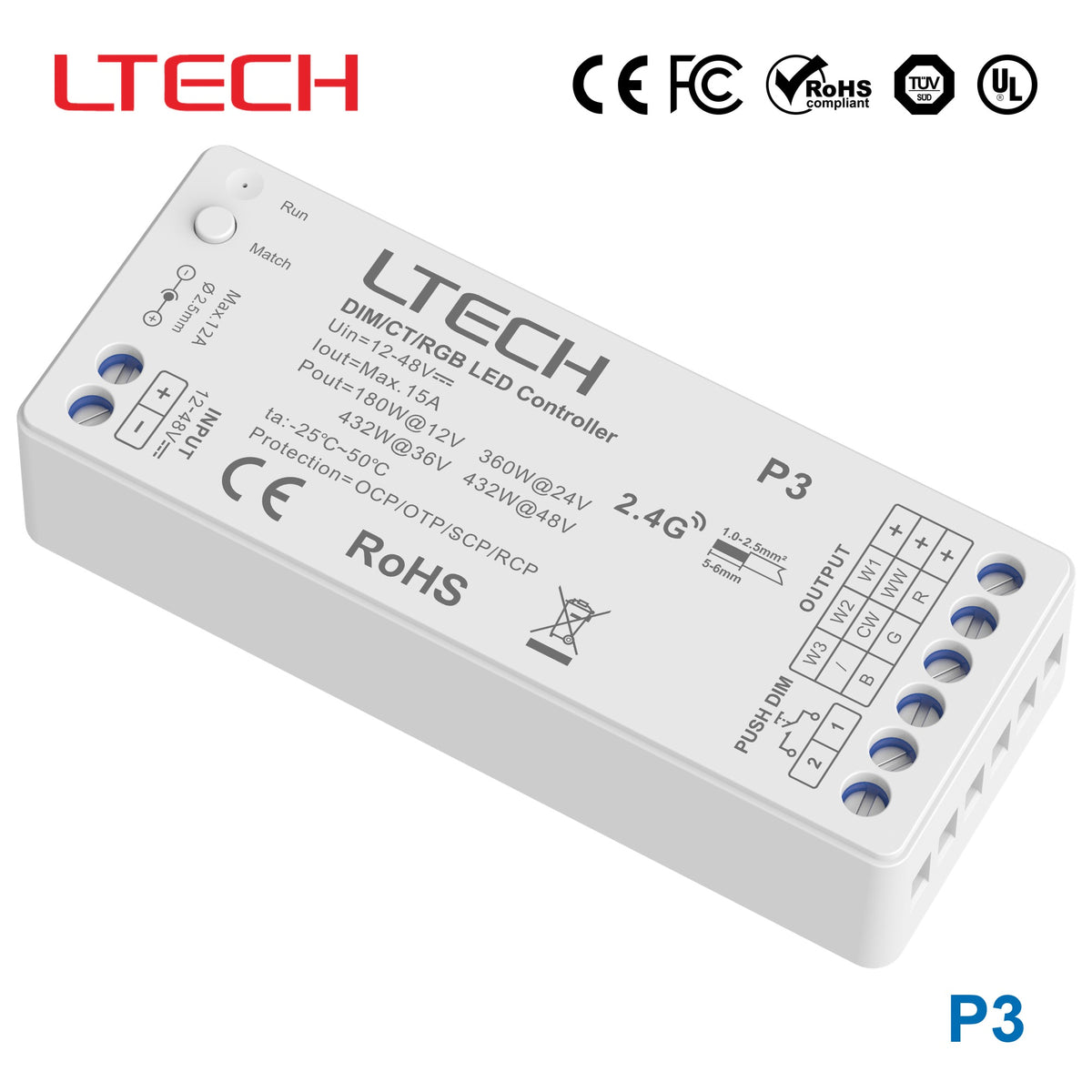

Ltech P3 432W LED Controller

12-48VDC15A432W

SKU P3

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

P3 is the 12-48V output model of this series.

Features

Small size and light weight. The housing is made from V0 flame retardant PC materials from SAMSUNG/COVESTRO.
Soft-on and fade-in dimming function enhances your visual comfort.
2.4GHz wireless signal , eliminating the need for signal wiring.
1-5 channel constant voltage output.
Control DIM, CT, RGB, RGBW, RGBCW light.
Compatible with RF 2.4 GHz Mini Pro series remote controllers.
P3/P4/P5 have 9 built-in dynamic modes and 7 static modes.
One controller can be paired up with 10 remotes .
Controllers in the same group or partition can dynamically synchronize with each other.

Specifications

P3Specifications from the official datasheetDownload datasheet PDF

Technical Specs

Input Signal: RF2.4GHz
Input Voltage: 12-48V
Output Voltage: 12-48V
Channels: 3 CH
Reset Switch: Yes
Load Current: Max. 15A
Load Power: 180W@12V 360W@24V 432W@36V 432W@48V
Compatible Remote Control Models: Single-zone: M1A/M1B/M2A/M2B/ M4A/M4B Multi-zone: M1C/M1D/M2C/M2D/ M4C/M4D Programmable: M9
Protection: Short circuit protection, over-temperature protection, over-current protection, and reverse connection prevention protection
Working Temp.: -25°C ~ 50°C
Dimension: L91×W37×H21(mm)
Package Size: L94×W39×H22(mm)
Weight(G.W.): 46g

Certifications & ratings

Certification marks: CE, FCC, cULus, TÜV SÜD, RoHS

Technical drawings

P3 When P2 is connected to the dimmable light strip — When P2 is connected to the dimmable light strip

P3 When P2 is connected to the color temperature light strip — When P2 is connected to the color temperature light strip

P3 When P3 is connected to the dimmable light strip — When P3 is connected to the dimmable light strip

P3 When P3 is connected to the color temperature light strip — When P3 is connected to the color temperature light strip

P3 When P3 is connected to the RGB light strip — When P3 is connected to the RGB light strip

P3 When P4 is connected to the dimmable light strip — When P4 is connected to the dimmable light strip

P3 When P4 is connected to the color temperature light strip — When P4 is connected to the color temperature light strip

P3 When P4 is connected to the RGB light strip — When P4 is connected to the RGB light strip

P3 When P4 is connected to the RGBW light strip — When P4 is connected to the RGBW light strip

P3 When P5 is connected to the dimmable light strip — When P5 is connected to the dimmable light strip

P3 When P5 is connected to the RGB light strip — When P5 is connected to the RGB light strip

P3 When P5 is connected to the RGBW light strip — When P5 is connected to the RGBW light strip

P3 When P5 is connected to the RGBCW light strip — When P5 is connected to the RGBCW light strip

Downloads

Datasheet1

P3 datasheetP3.pdf PDF Download

FAQ

What is the Ltech P3 LED controller?

The Ltech P3 is a 3-channel RF2.4GHz LED controller designed for dimming and controlling LED loads. It supports input and output voltages from 12V to 48V.

What is the maximum power capacity?

The maximum load power is 180W at 12V, 360W at 24V, and 432W at both 36V and 48V. The maximum load current is 15A.

Which remote controls are compatible?

It works with single-zone remotes (M1A/M1B/M2A/M2B/M4A/M4B), multi-zone remotes (M1C/M1D/M2C/M2D/M4C/M4D), and the programmable M9 remote.

What safety protections are included?

The controller includes short circuit protection, over-temperature protection, over-current protection, and reverse connection prevention.

What is the operating temperature range?

The Ltech P3 operates in temperatures ranging from -25°C to 50°C.

What are the physical dimensions?

The unit measures 91mm in length, 37mm in width, and 21mm in height. It weighs 46g.

Is the controller certified?

Yes, the Ltech P3 carries CE, FCC, cULus, TÜV SÜD, and RoHS certification marks.
