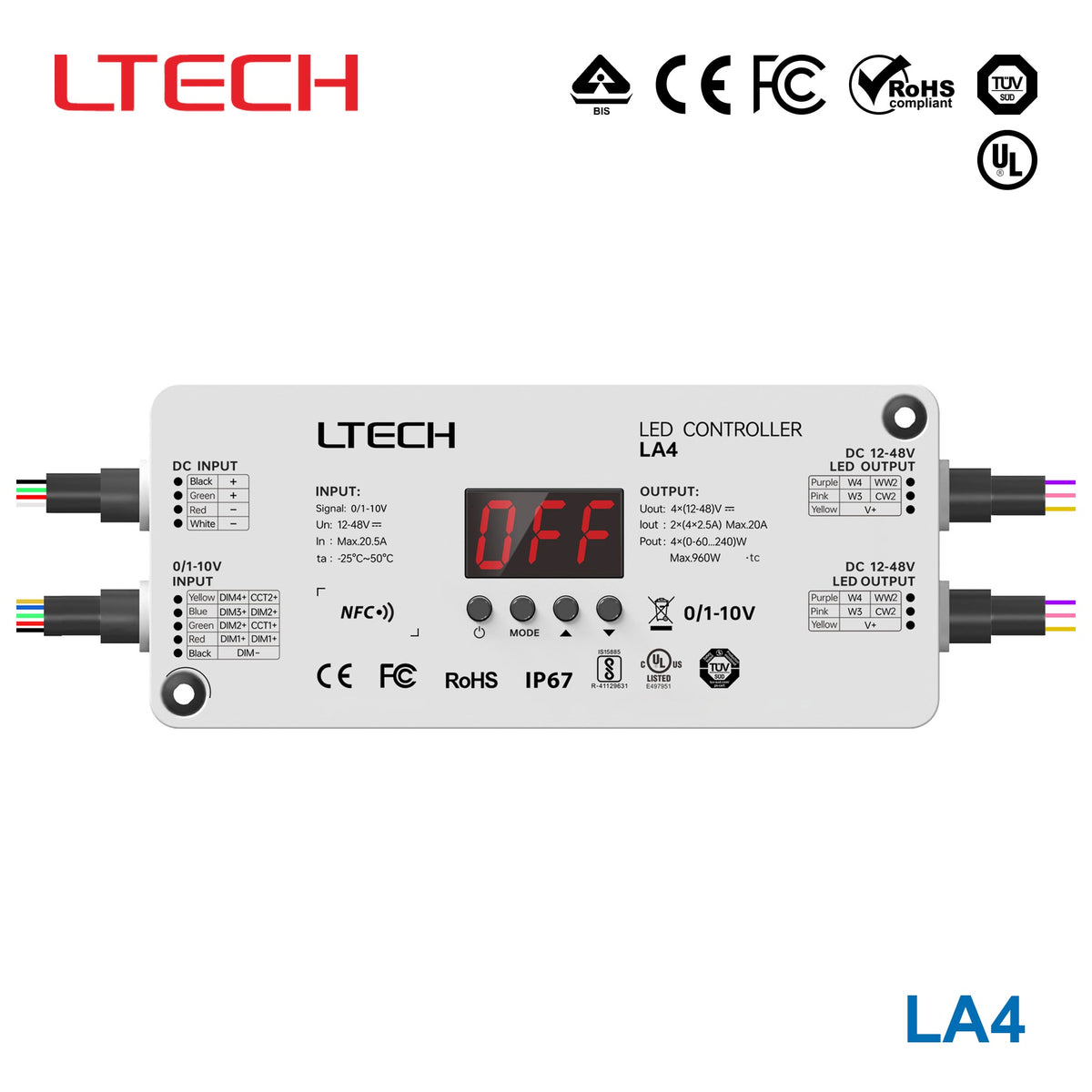

Ltech LA4 960W 1-10V LED Controller

1-10V1-10VDC20.5A960W
SKU LA4
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

LA4 is the 4×(12-48)V ⎓ output model of this series.

The LA4 is a high-performance 0/1-10V signal LED constant-voltage controller with IP67 waterproof rating, specifically designed for precise control of LED lighting fixtures. Supporting standard 0/1-10V dimming signal input, it features 4 signal input channels and 4 PWM load output channels to effortlessly meet diverse control scenarios. With robust output performance—delivering up to 20A maximum output current and 960W maximum output power—it reliably drives various LED constant-voltage fixtures. By connecting 0/1-10V dimmers to channels 1-4, it flexibly enables dimming, color temperature adjustment, and full-color RGB/RGBW control for diverse lighting requirements. For user convenience, it supports both quick on/off, dimming, and color adjustment via button-operated digital displays, as well as advanced customization through the NFC Lighting app. This app allows configuration of dimming modes, fade times, dimming curves, PWM frequencies, and dimming ranges, balancing intuitive operation with deep customization. Boasting IP67 waterproof performance and stable operation, the LA4 is suitable for diverse indoor and outdoor environments. It reliably functions even in humid conditions, delivering an efficient and flexible control solution for lighting systems.

Specifications

LA4Specifications from the official datasheetDownload datasheet PDF

Technical Specifications

Input signal
0/1-10V
Input Voltage
12-48V ⎓
Input current
Max. 20.5A
Output Voltage
4×(12-48)V ⎓
Output Current
2×(4CH×2.5A) Max. 20A
Output Power
4CH×(0-60...240)W Max. 960W
Operating temperature
-25℃-50℃
Product Weight
670g
Product dimensions
L164×W70×H36mm
Package dimensions
L230×W95×H47mm
Waterproof rating
IP67
Protect
Short-circuit, over-temperature, and over-current protection with automatic reset capability

Others

Warranty periods from the date of delivery
5 years

Certifications & ratings

Marked features
NFC
Certification marks
CE, RoHS, cRUus

Technical drawings

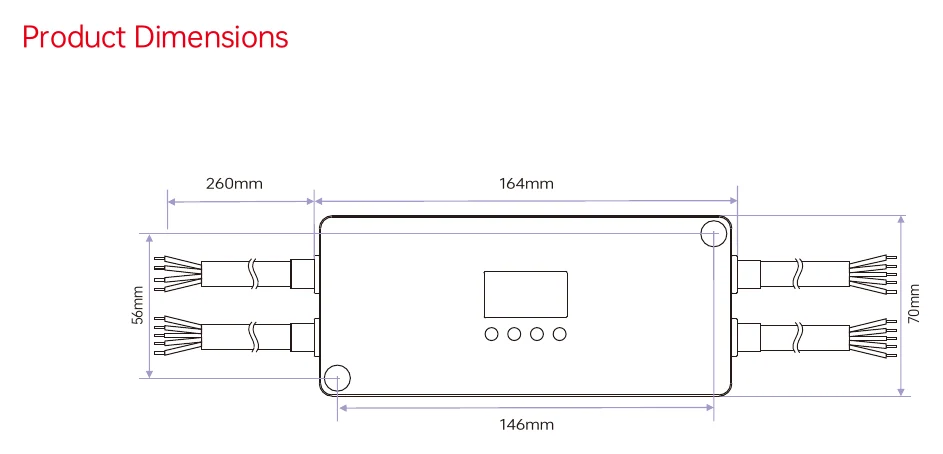

LA4 Product Dimensions
Product Dimensions

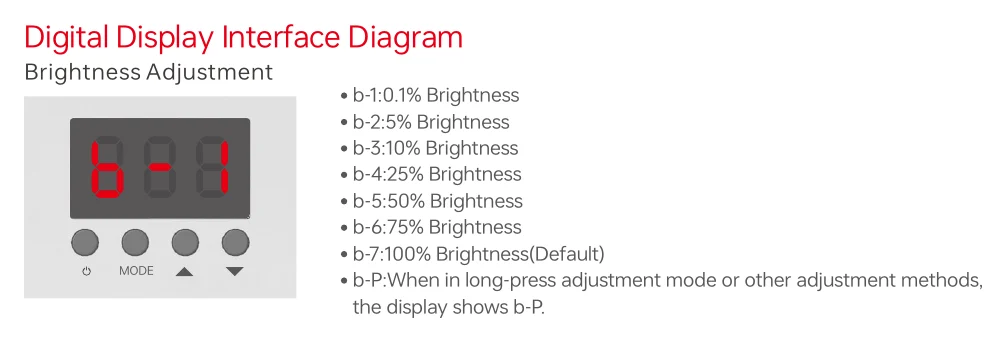

LA4 Digital Display Interface Diagram
Digital Display Interface Diagram

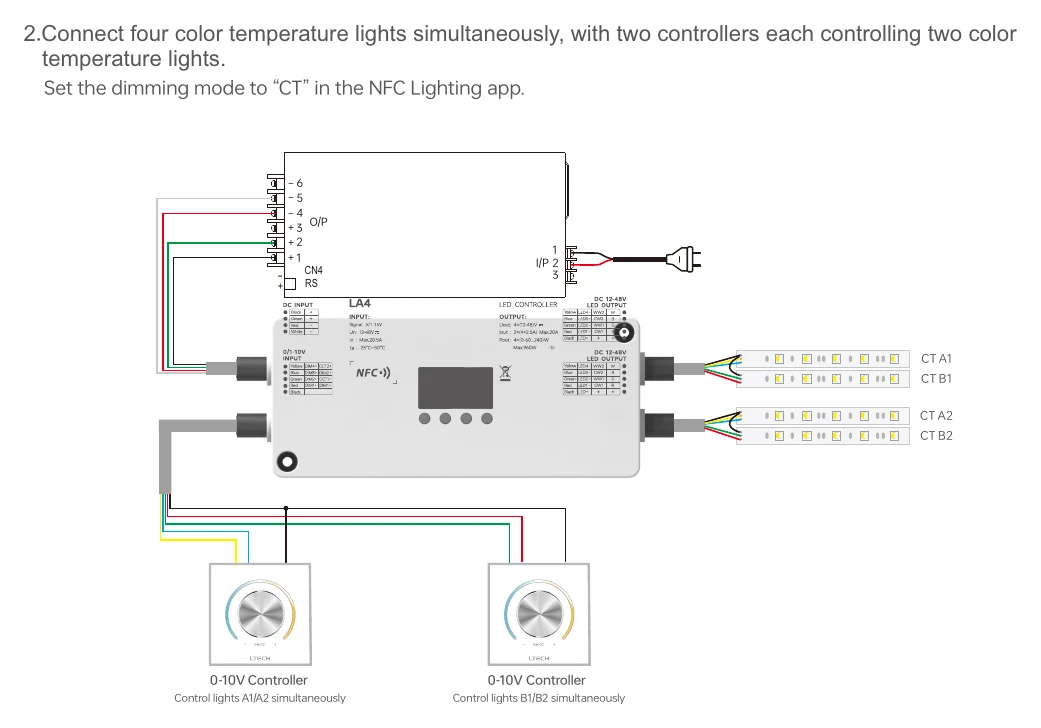

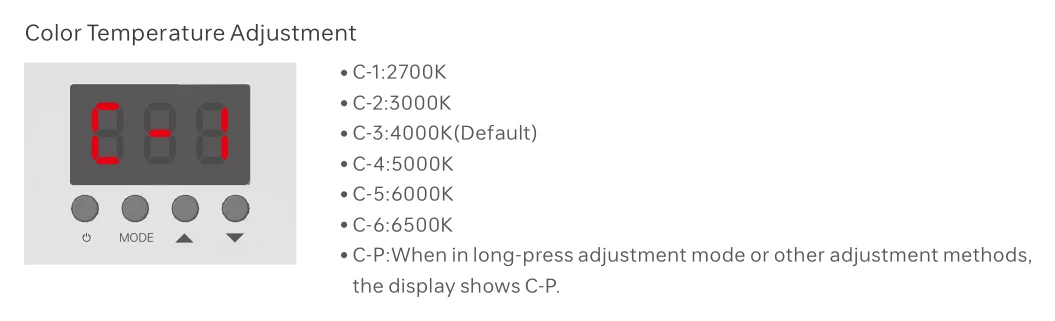

LA4 Color Temperature Adjustment
Color Temperature Adjustment

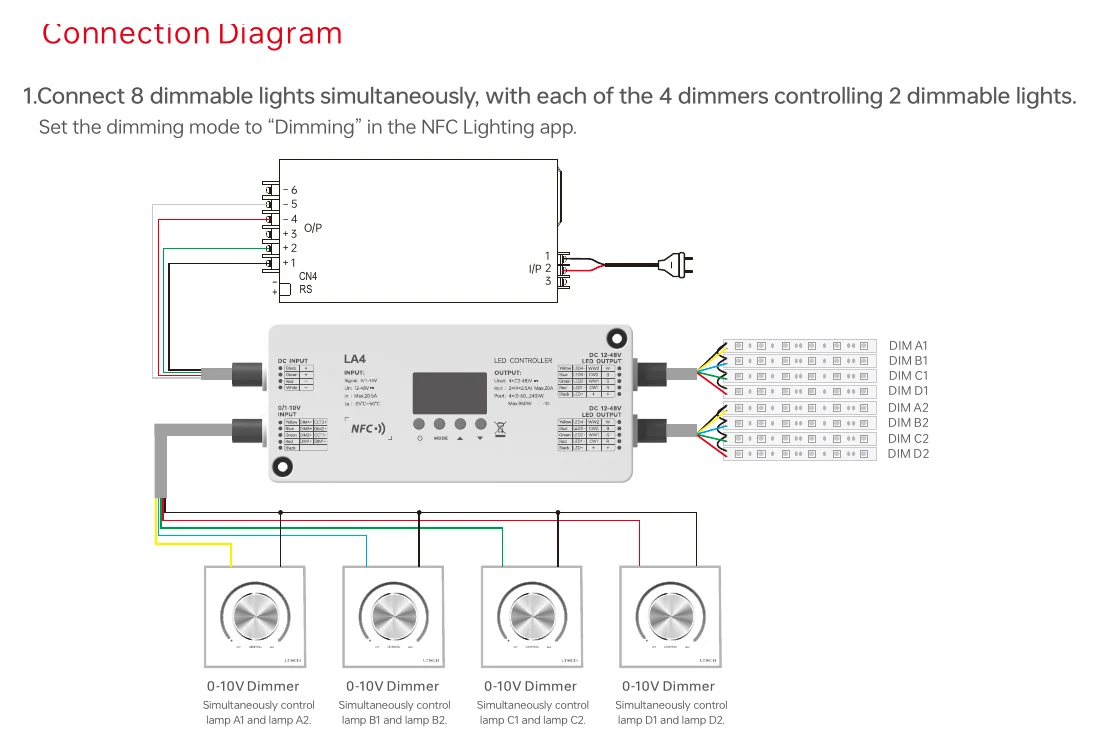

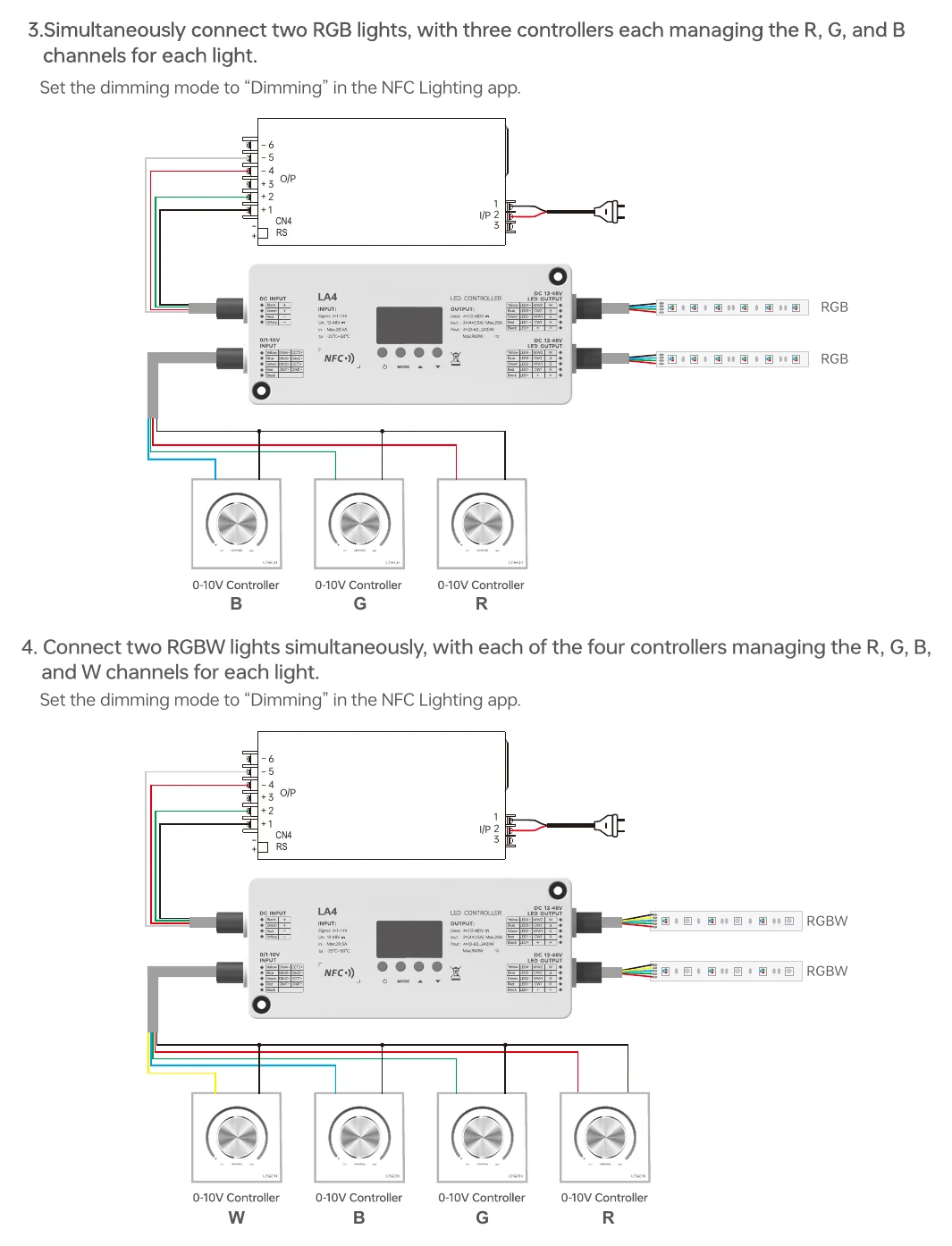

LA4 Connection Diagram
Connection Diagram
LA4 temperature lights.
temperature lights.
LA4 Set the dimming mode to “Dimming” in the NFC Lighting app.
Set the dimming mode to “Dimming” in the NFC Lighting app.

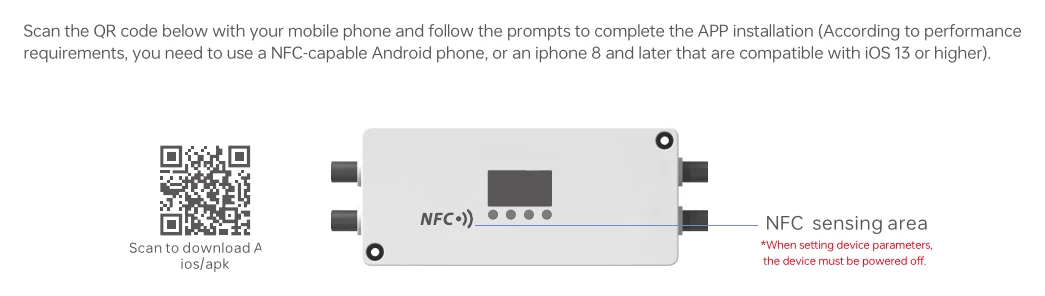

LA4 Use the NFC Lighting APP
Use the NFC Lighting APP

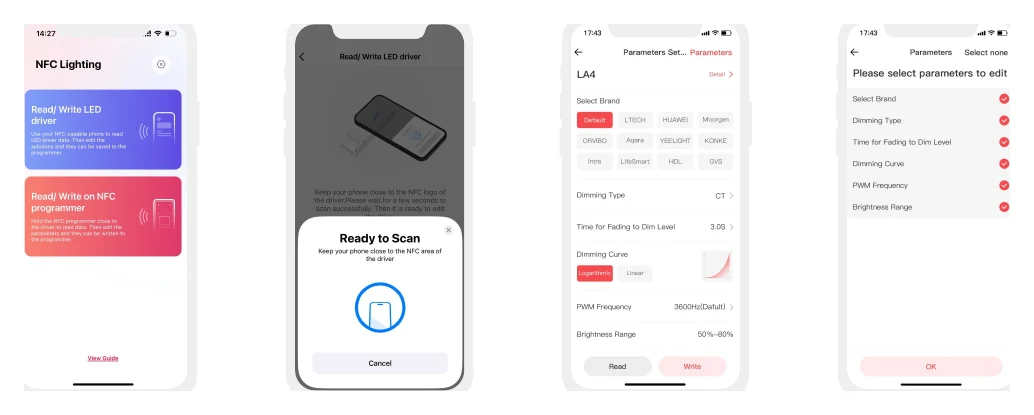

LA4 1.Read the LED driver
1.Read the LED driver

Downloads

FAQ

What is the Ltech LA4 used for?

It is a 4-channel LED controller that accepts 0/1-10V input signals to control LED lighting systems.

What are the input and output specifications?

It operates on 12-48V DC input with a max current of 20.5A. It provides 4 output channels, each supporting 12-48V DC at up to 2.5A, for a total max power of 960W.

How is the controller controlled?

It uses a 0/1-10V input signal for dimming and control. It also features NFC for configuration.

What protection features does it have?

It includes short-circuit, over-temperature, and over-current protection with automatic reset capability.

Is it suitable for outdoor use?

Yes, it has an IP67 waterproof rating and operates in temperatures from -25°C to 50°C.

What are the physical dimensions?

The unit measures L164 x W70 x H36mm and weighs 670g.

What is the warranty period?

It comes with a 5-year warranty from the date of delivery.
