Ltech

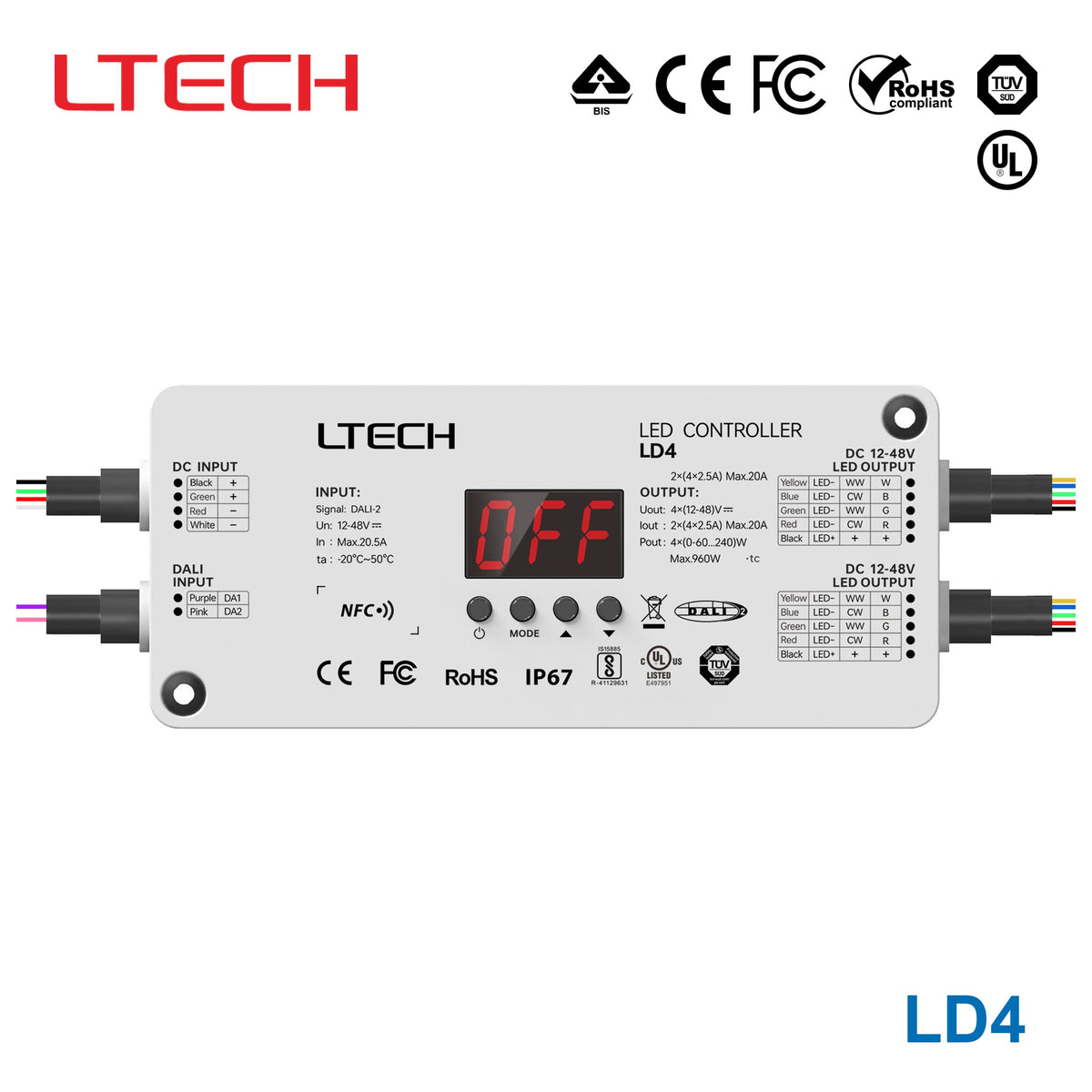

Ltech LD4 960W DALI LED Controller

DALI12-48VDC20.5A960W
SKU LD4
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

LD4 is the 4Γ—(12-48)VβŽ“ output model of this series.

The LD4 is a high-performance LED constant-voltage controller with IP67 waterproof rating. It receives standard DALI protocol signals and is compatible with all DALI systems on the market, specifically designed for precise control of LED lighting fixtures. Featuring 4 channels, it delivers a maximum output current of 20A and a maximum output power of 960W, enabling stable operation of various LED constant-voltage fixtures. Parameters such as DALI address, dimming curve, dimming range, dimming ramp time, color temperature range, power-on status, system failure status, and DALI templates can be quickly configured via the DALI master controller or NFC Lighting app. The DALI address can also be manually set via buttons and displayed on the digital tube. Basic operations like quick switching, dimming, and color adjustment are supported through the button-operated digital tube, balancing intuitive operation with deep customization. The LD4 flexibly enables dimming, color temperature adjustment, and full-color RGB/RGBW control for diverse lighting needs, integrating 8 DT6/DT8 device types: RGBW, RGB+W, XY+W, RGB, XY, 2*CT (synchronous control), 2*CT (asynchronous control), and 4*W. Device types can be switched via the NFC Lighting app. With IP67 waterproofing and stable performance, the LD4 is suitable for diverse indoor and outdoor environments, reliably operating even in humid conditions to deliver efficient, flexible control solutions for lighting systems.

Specifications

LD4Specifications from the official datasheetDownload datasheet PDF

Technical Specifications

Input signal
DALI-2
Operating temperature
-25℃-50℃
Input Voltage
12-48VβŽ“
Product Weight
670g
Input current
Max. 20.5A
Product dimensions
L164Γ—W70Γ—H36mm
Output Voltage
4Γ—(12-48)VβŽ“
Package dimensions
L230Γ—W95Γ—H47mm
Output Current
2Γ—(4CHΓ—2.5A) Max. 20A
Waterproof rating
IP67
Output Power
4CHΓ—(0-60...240)W Max. 960W
Protect
Short-circuit, over-temperature, and over-current protection with automatic reset capability

Others

Warranty periods from the date of delivery
5 years

Certifications & ratings

Marked features
NFC
Certification marks
CE, FCC, RoHS, DALI-2

Technical drawings

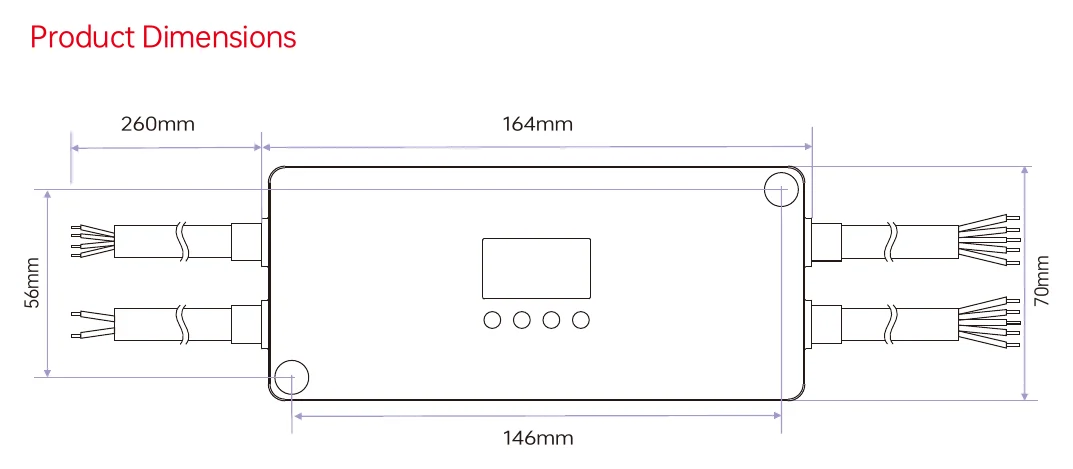

LD4 Product Dimensions
Product Dimensions
LD4 On/Off Switch MODE
On/Off Switch MODE

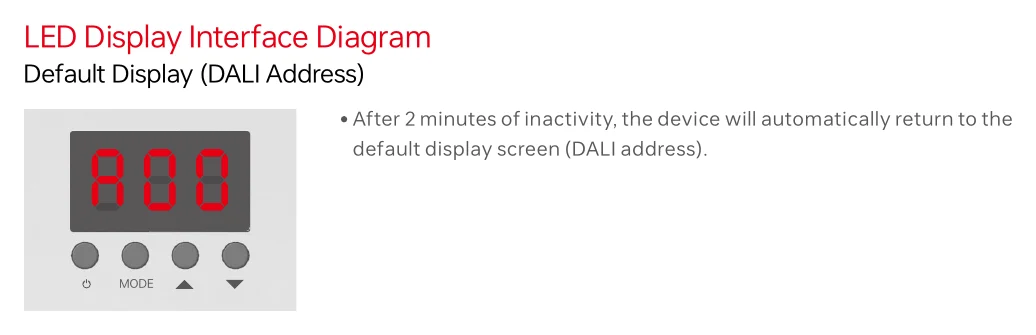

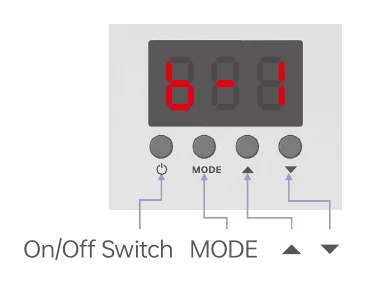

LD4 LED Display Interface Diagram
LED Display Interface Diagram

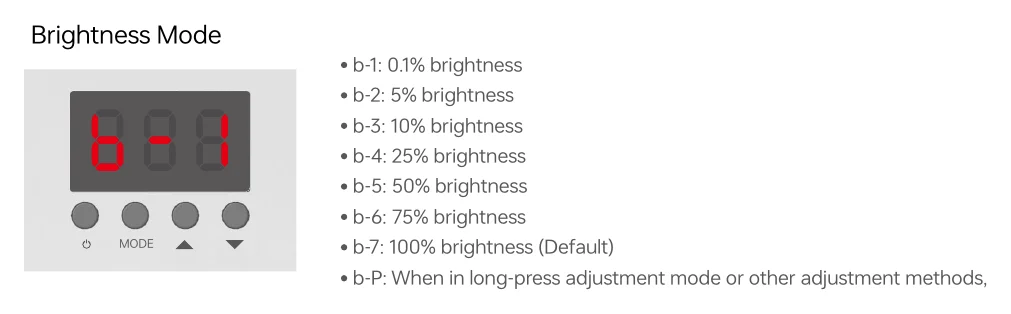

LD4 Brightness Mode
Brightness Mode

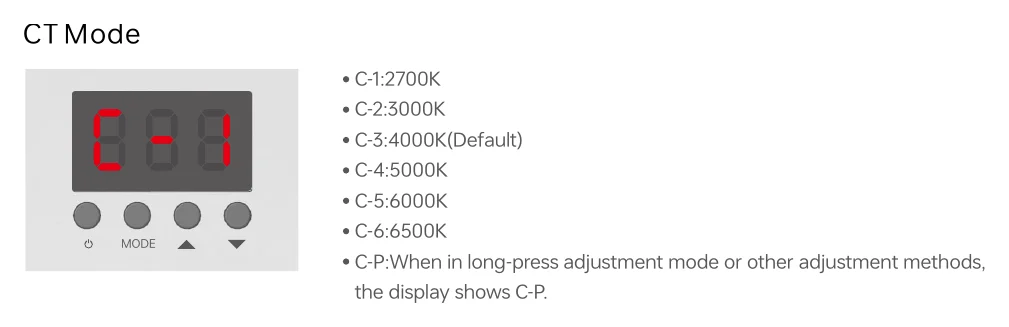

LD4 CT Mode
CT Mode

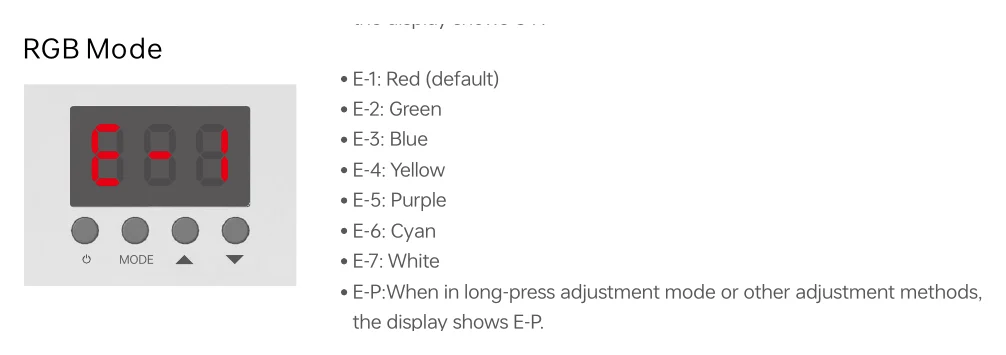

LD4 RGB Mode
RGB Mode

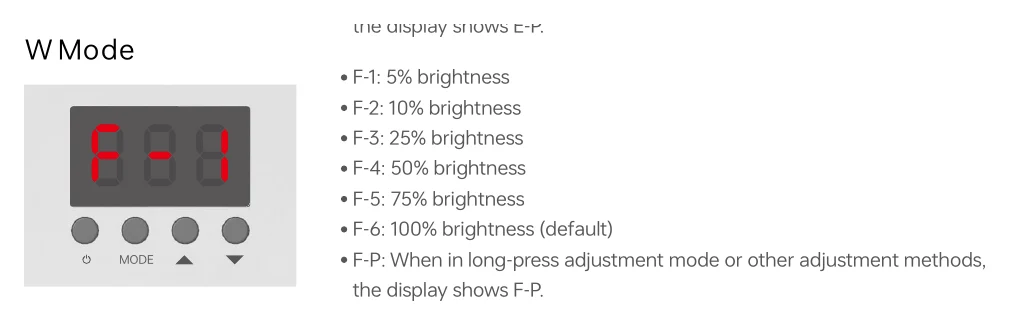

LD4 W Mode
W Mode

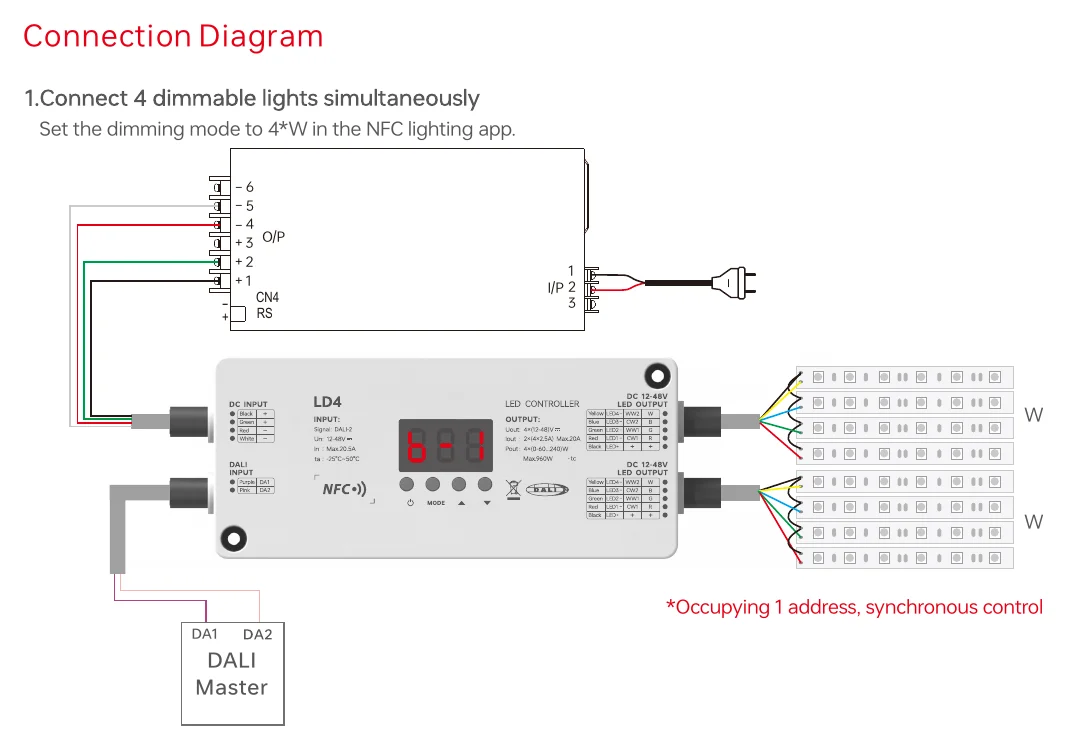

LD4 Connection Diagram
Connection Diagram

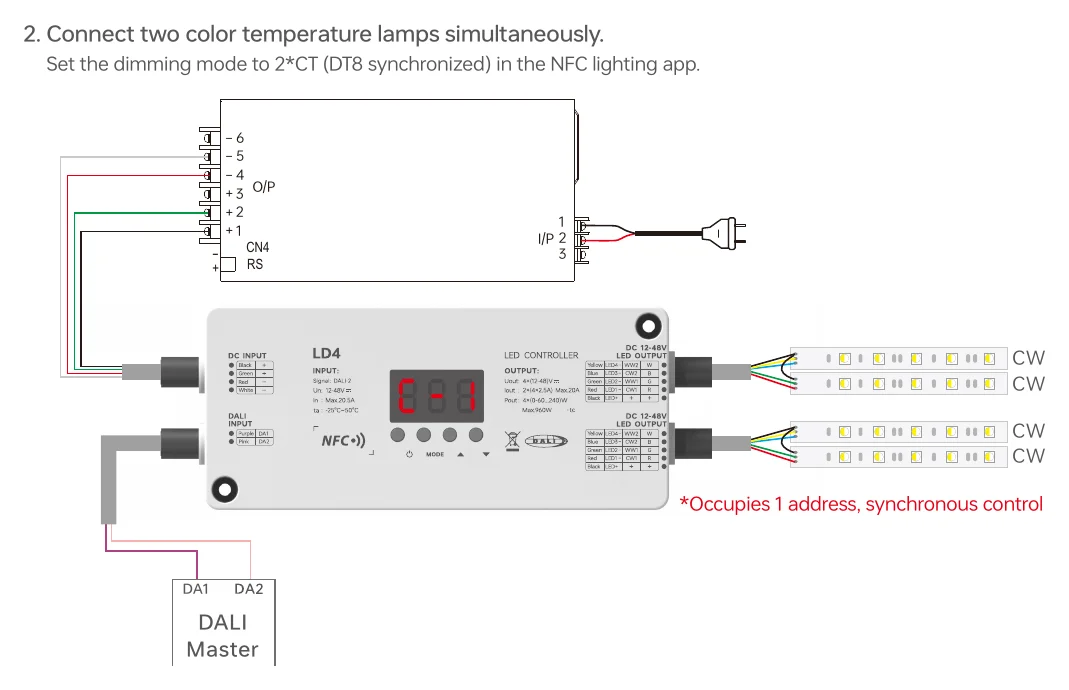

LD4 2. Connect two color temperature lamps simultaneously.
2. Connect two color temperature lamps simultaneously.

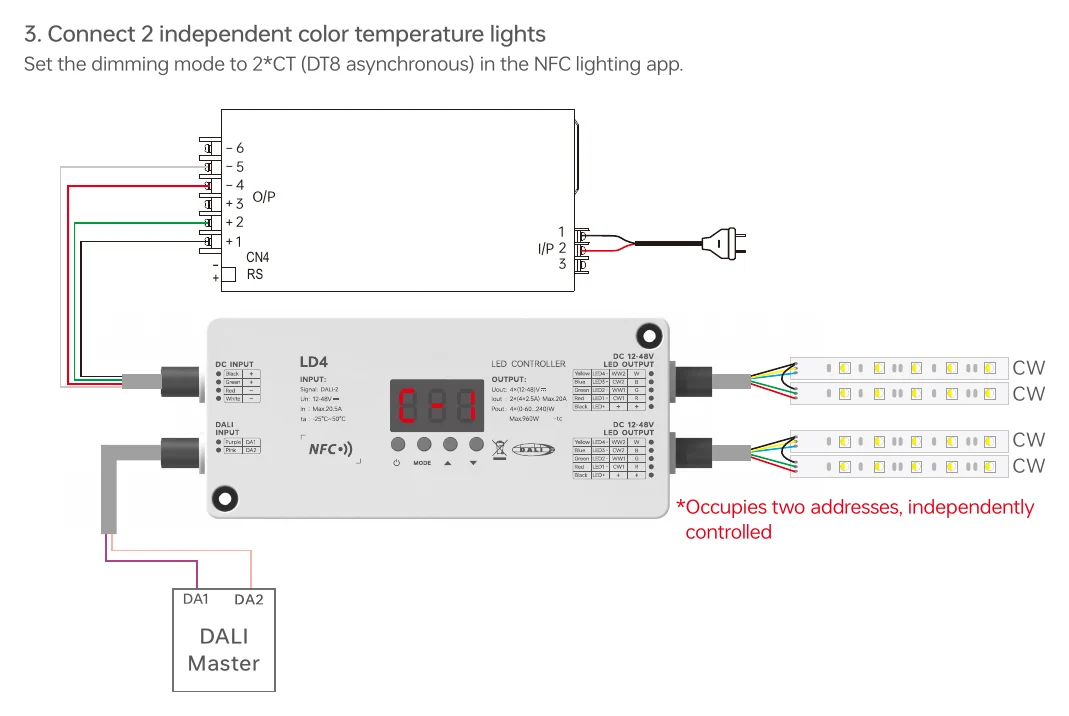

LD4 3. Connect 2 independent color temperature lights
3. Connect 2 independent color temperature lights

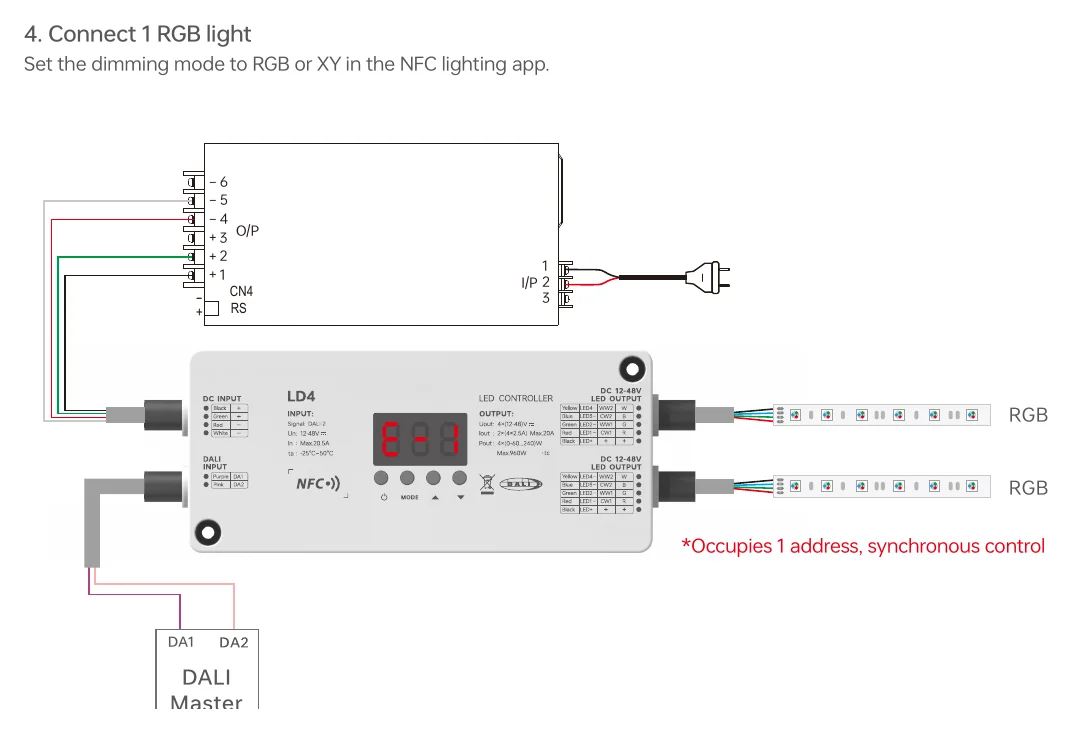

LD4 4. Connect 1 RGB light
4. Connect 1 RGB light

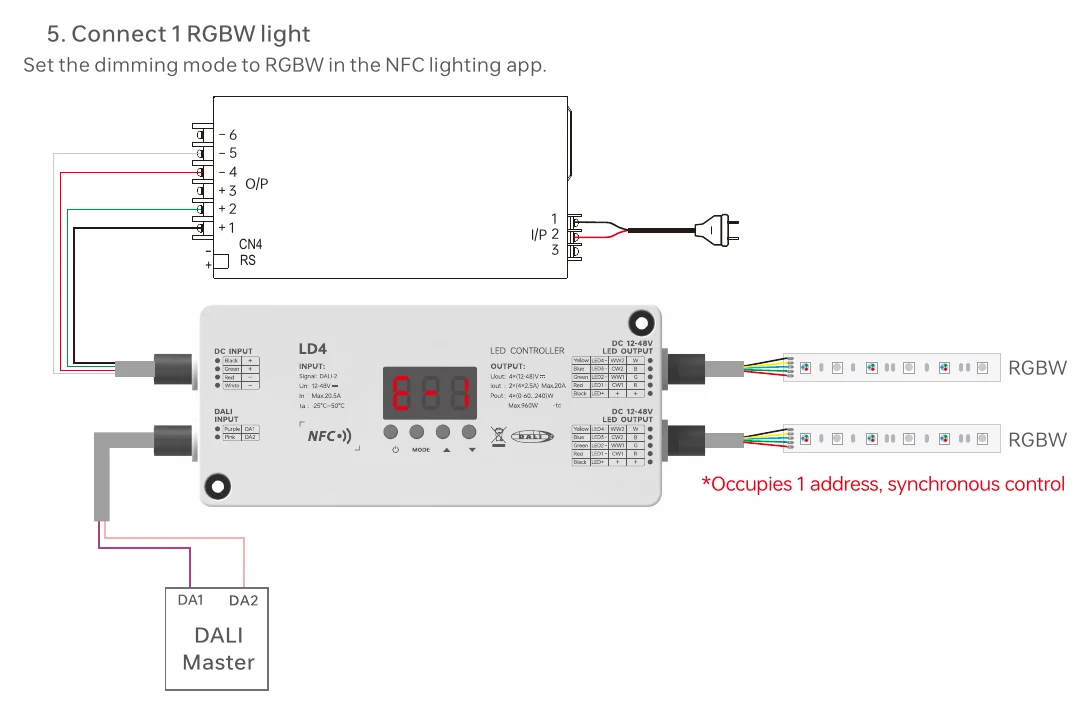

LD4 5. Connect 1 RGBW light
5. Connect 1 RGBW light

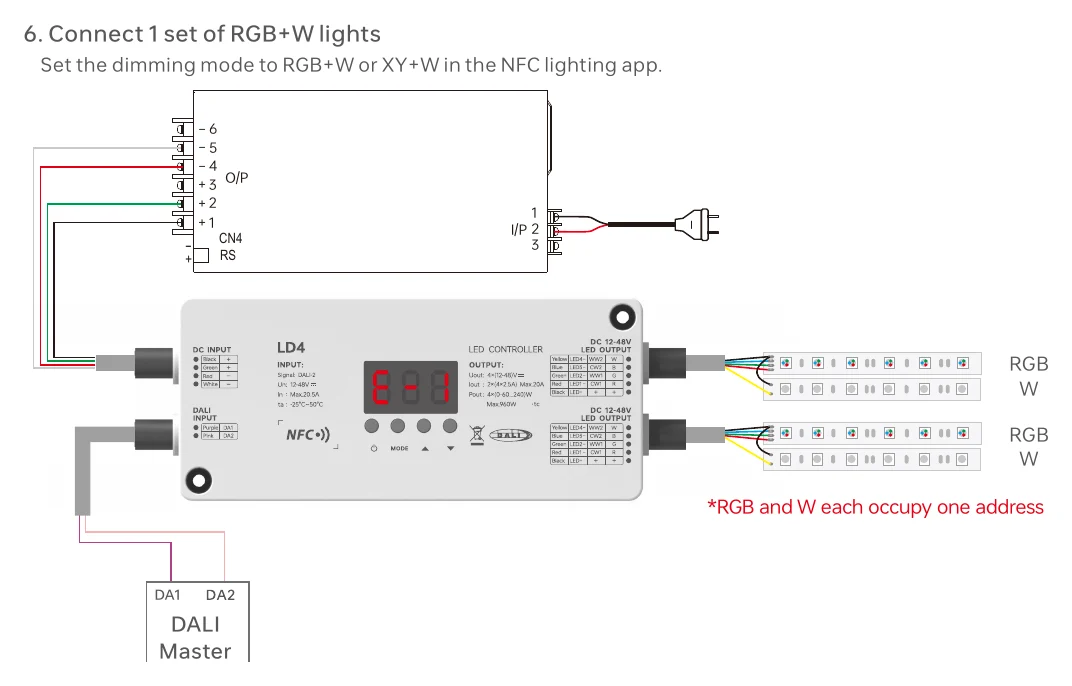

LD4 6. Connect 1 set of RGB+W lights
6. Connect 1 set of RGB+W lights

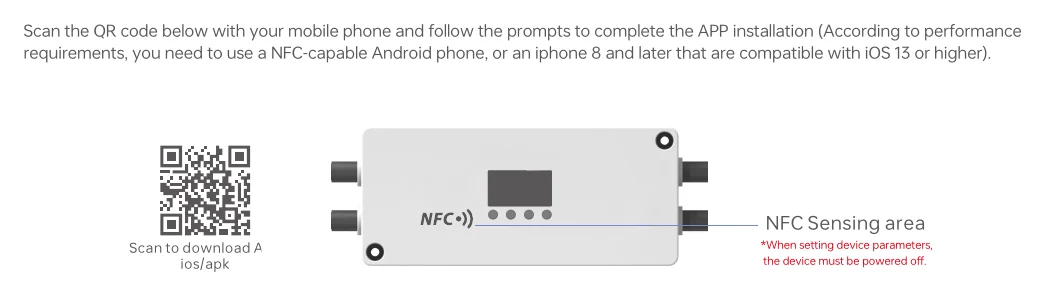

LD4 Use the NFC Lighting APP
Use the NFC Lighting APP

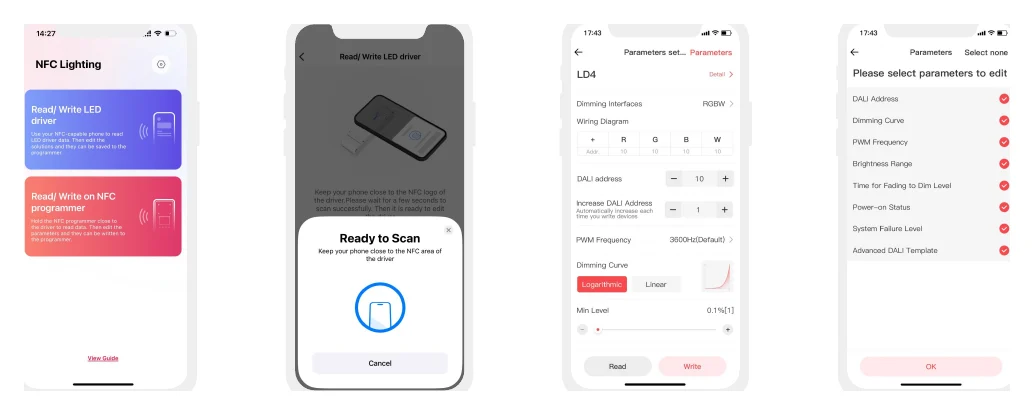

LD4 1.Read the LED driver
1.Read the LED driver

Downloads

FAQ

What is the Ltech LD4?

The Ltech LD4 is a DALI-2 LED controller with four output channels, designed for controlling LED lighting systems.

What are the input and output specifications?

It accepts a 12-48V DC input with a maximum current of 20.5A. The output provides four channels, each supporting 12-48V DC at up to 2.5A, for a total maximum power of 960W.

How is the controller controlled?

The LD4 uses the DALI-2 protocol for control and features NFC for configuration.

What protection features are included?

It includes short-circuit, over-temperature, and over-current protection, all with automatic reset capability.

What is the IP rating and operating temperature?

The unit has an IP67 waterproof rating and operates in temperatures ranging from -25Β°C to 50Β°C.

What are the physical dimensions?

The controller measures 164mm in length, 70mm in width, and 36mm in height, weighing 670g.

Which certifications does it hold?

The LD4 is certified with CE, FCC, RoHS, and DALI-2 marks.

What is the warranty period?

The product comes with a 5-year warranty from the date of delivery.
