Ltech

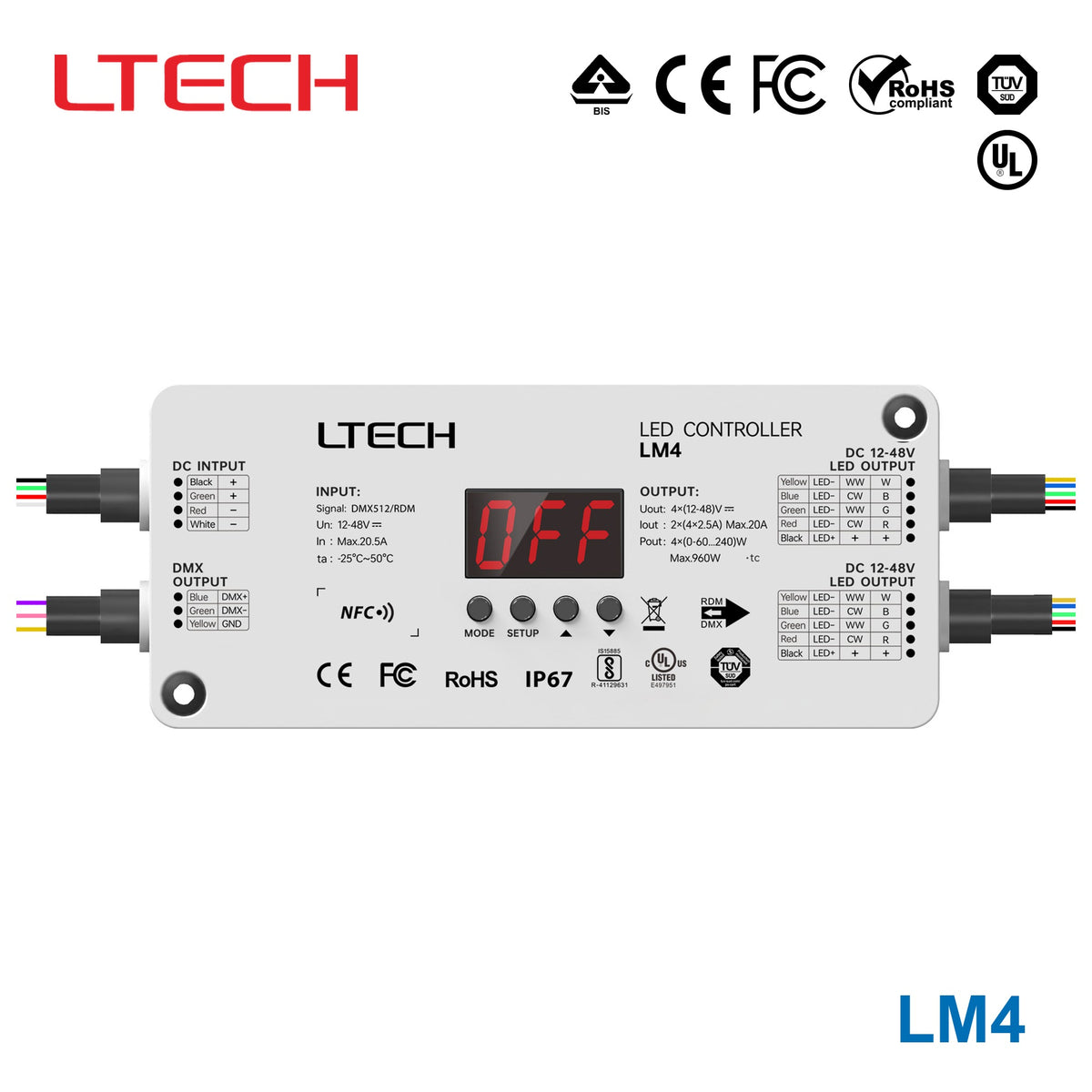

Ltech LM4 960W DMX512 LED Controller

DMX51212-48VDC20.5A960W
SKU LM4
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

LM4 is the 4Γ—(12-48)V βŽ“ output model of this series.

The LM4 is a high-performance LED constant-voltage controller with an IP67 waterproof rating, designed for precise control of LED lighting fixtures. It receives standard DMX/RDM protocol signals and features 4 channels with a maximum output current of 20A and maximum output power of 960W, enabling stable operation of various LED constant-voltage lighting fixtures. The LM4 offers flexible dimming, color temperature adjustment, and RGB and RGBW full-color control to meet diverse lighting needs. It has both DMX decoder mode and DMX master mode. In DMX decoder mode, you can set parameters such as DMX address, resolution, PWM frequency, dimming fade time, and dimming mode. The DMX master mode can set 33 lighting effects, speed, brightness and other parameters. You can switch modes and configure various parameters within each mode via three methods: the NFC Lighting app, the RDM-WIFI app, or the pushbutton, balancing intuitive operation with deep customization. With IP67-level waterproof performance and stable operation, LM4 can be widely used in various indoor and outdoor environments. It can work reliably even in humid scenes, providing efficient and flexible control solutions for lighting systems.

Specifications

LM4Specifications from the official datasheetDownload datasheet PDF

Technical Specifications

Input signal
DMX512, RDM
Input Voltage
12-48V βŽ“
Input current
Max. 20.5A
Output Voltage
4Γ—(12-48)V βŽ“
Output Current
2Γ—(4CHΓ—2.5A) Max. 20A
Output Power
4CHΓ—(0-60...240)W Max. 960W
Operating temperature
-25℃-50℃
Product Weight
670g
Product dimensions
L164Γ—W70Γ—H36mm
Package dimensions
L230Γ—W95Γ—H47mm
Waterproof rating
IP67
Protect
Short-circuit, over-temperature, and over-current protection with automatic reset capability

Certifications & ratings

Marked features
NFC
Certification marks
CE, FCC, RoHS

Technical drawings

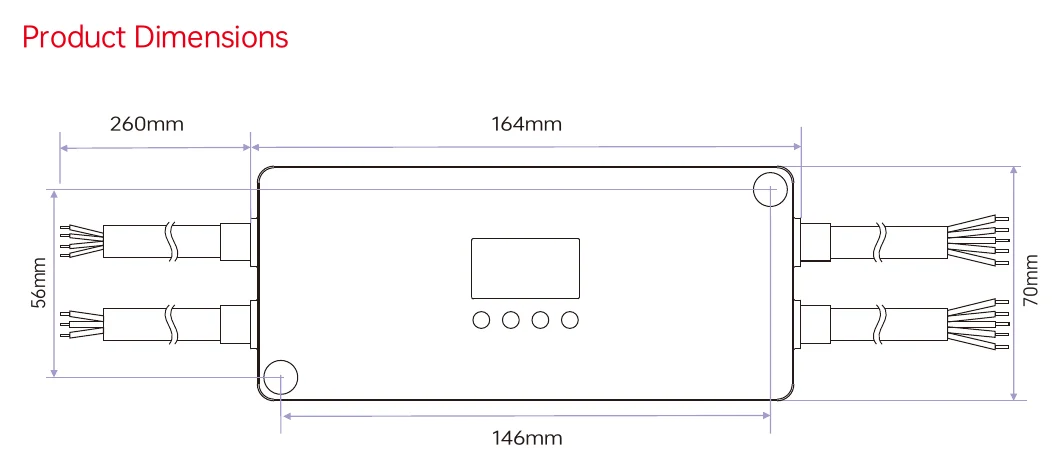

LM4 Product Dimensions
Product Dimensions

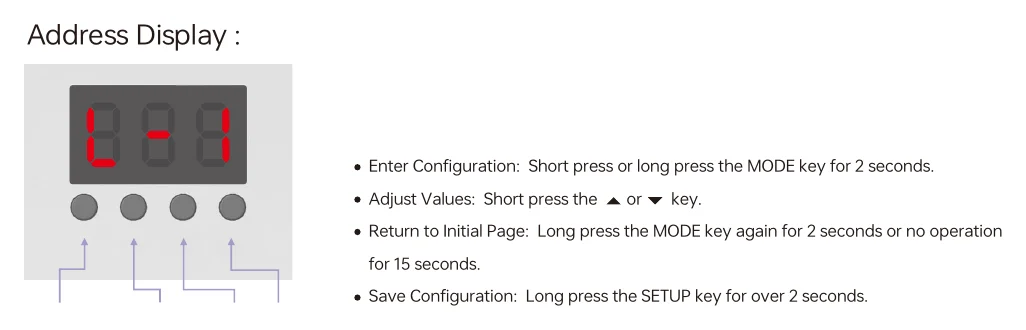

LM4 Address Display
Address Display

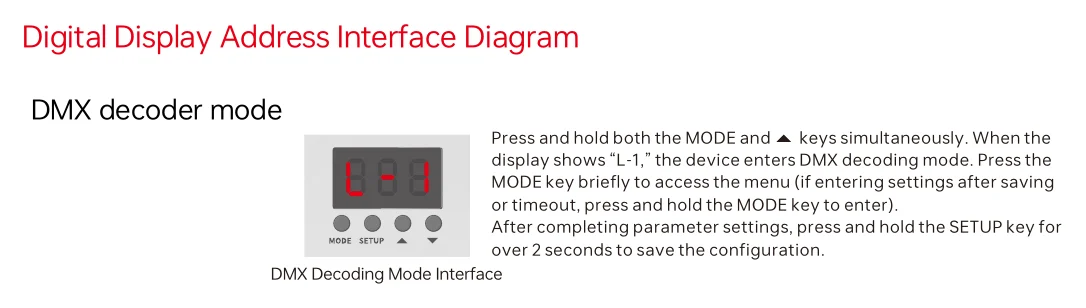

LM4 Digital Display Address Interface Diagram
Digital Display Address Interface Diagram

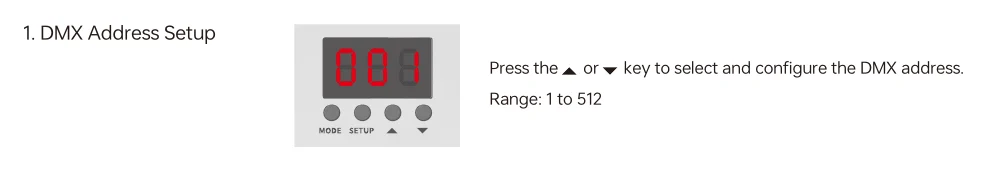

LM4 1. DMX Address Setup
1. DMX Address Setup

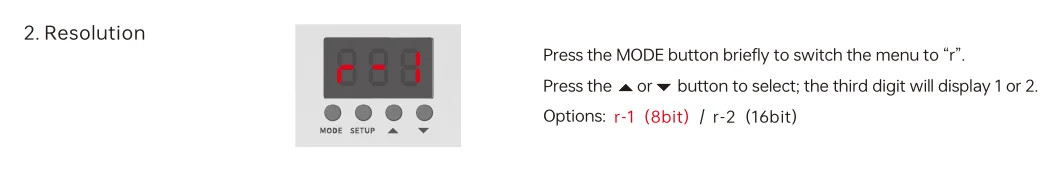

LM4 2. Resolution
2. Resolution

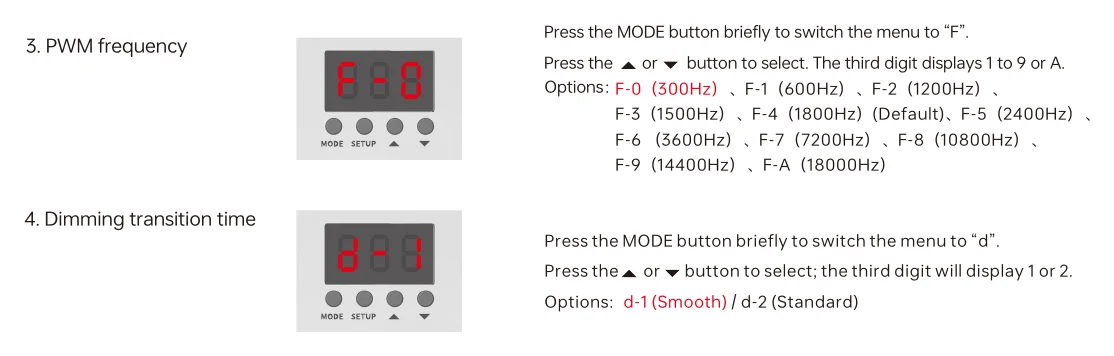

LM4 3. PWM frequency
3. PWM frequency

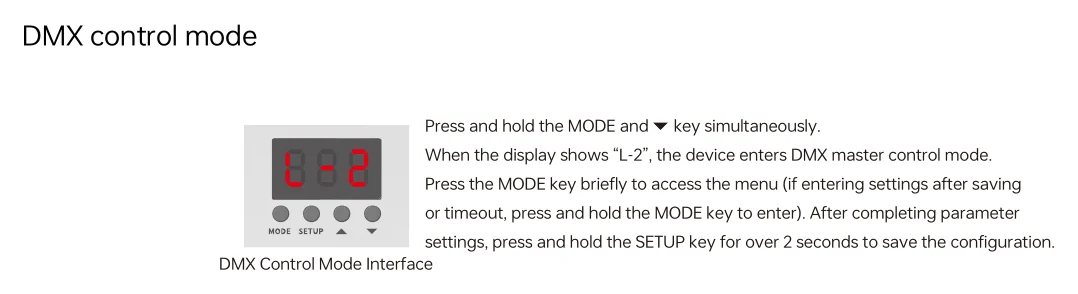

LM4 DMX control mode
DMX control mode

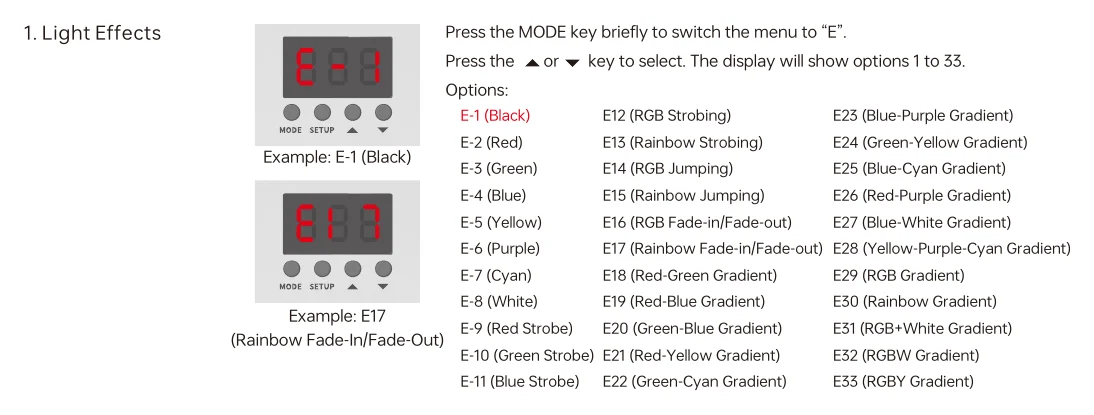

LM4 1. Light Effects
1. Light Effects

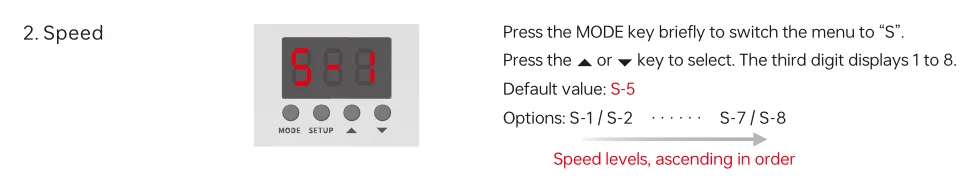

LM4 2. Speed
2. Speed

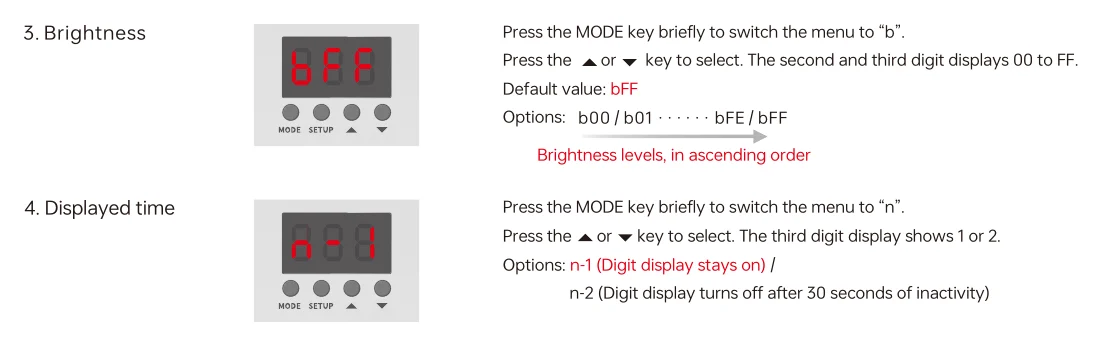

LM4 3. Brightness
3. Brightness

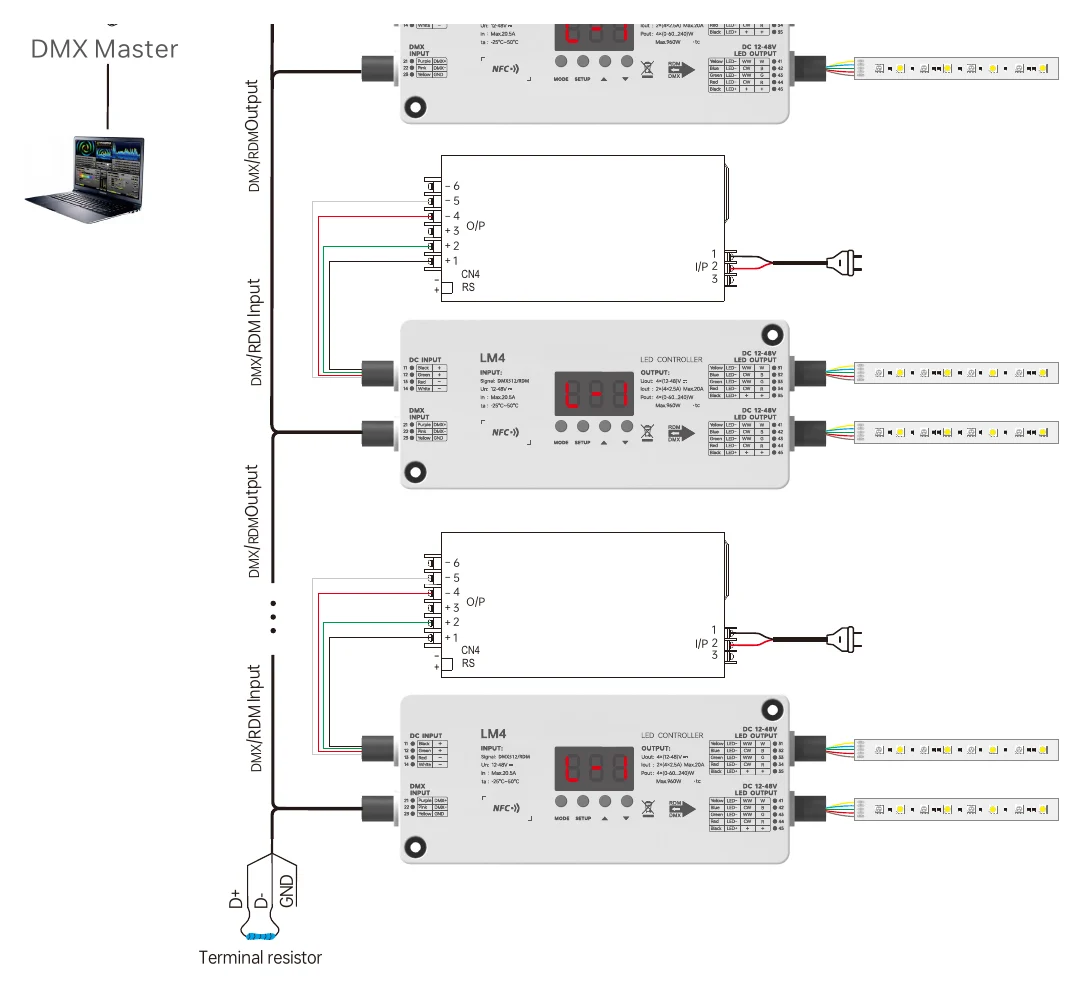

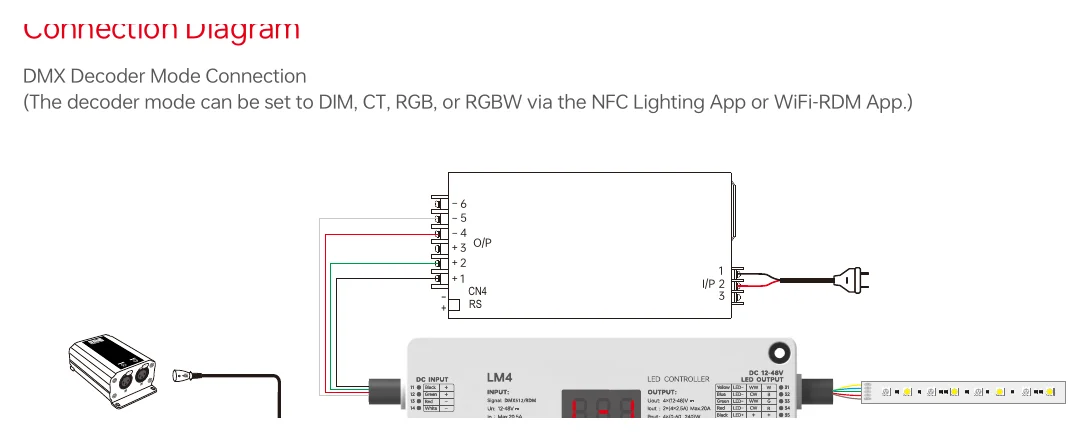

LM4 DMX Decoder Mode Connection
DMX Decoder Mode Connection
LM4 DMX Master
DMX Master

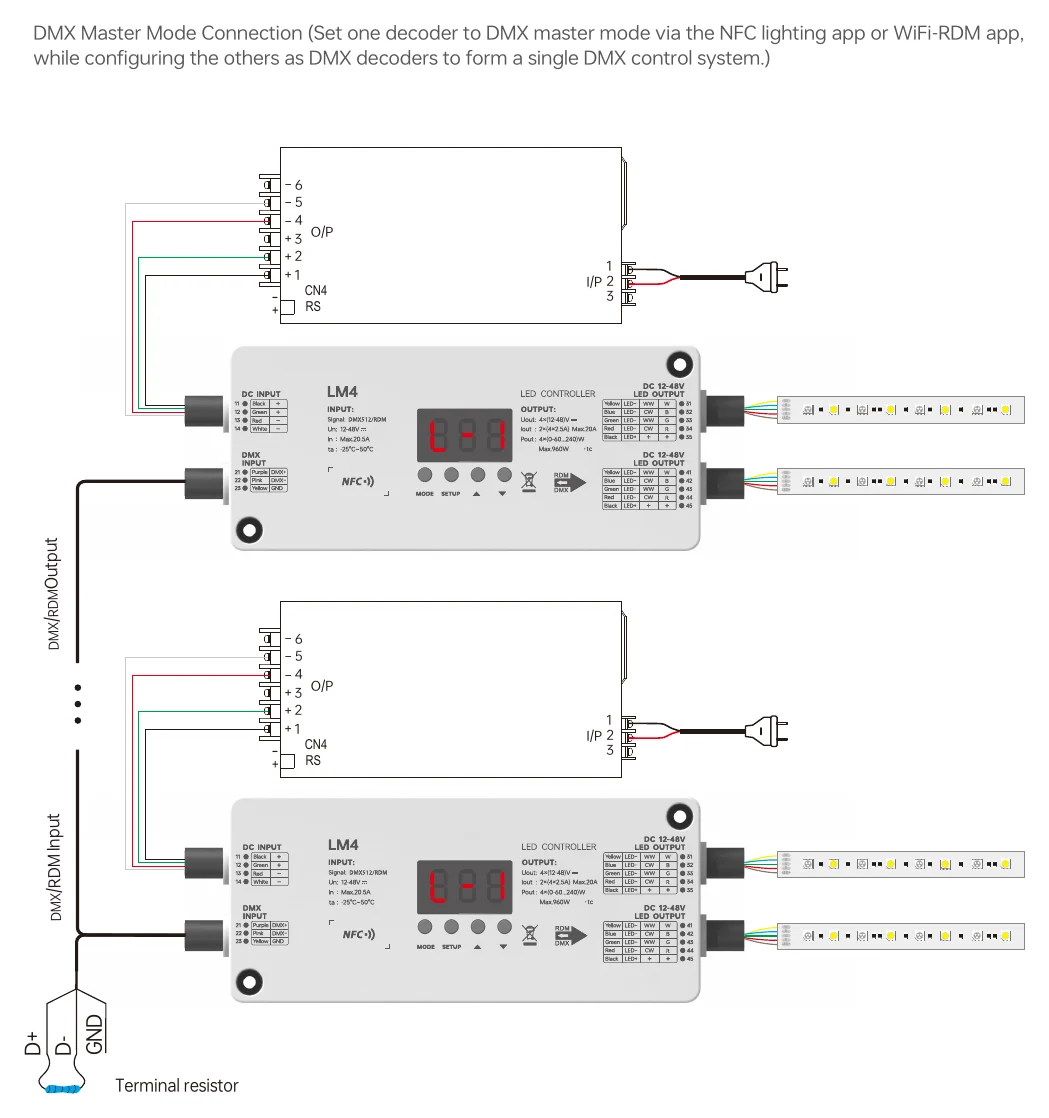

LM4 DMX Master Mode Connection (Set one decoder to DMX…
DMX Master Mode Connection (Set one decoder to DMX…

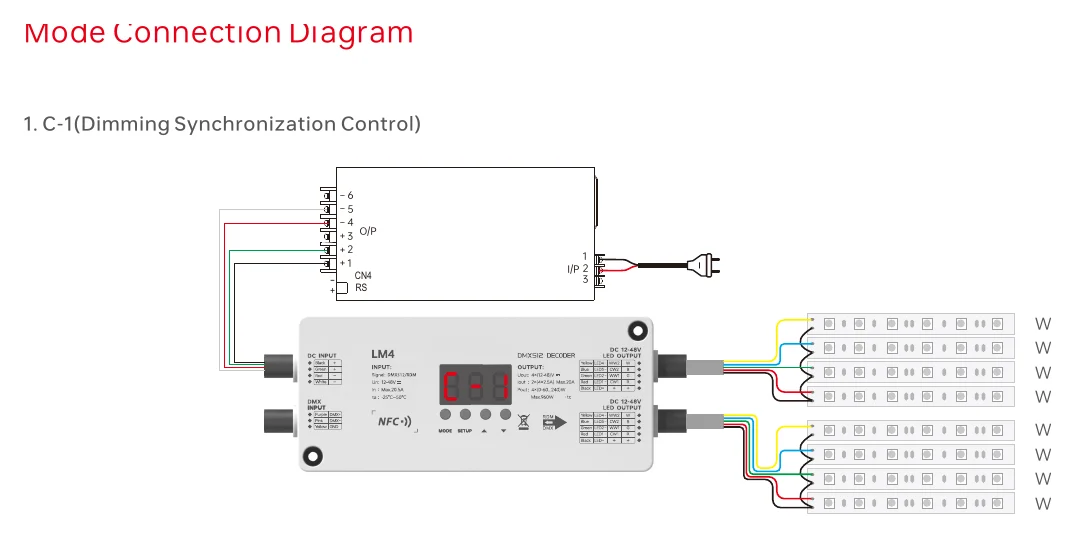

LM4 Mode Connection Diagram
Mode Connection Diagram

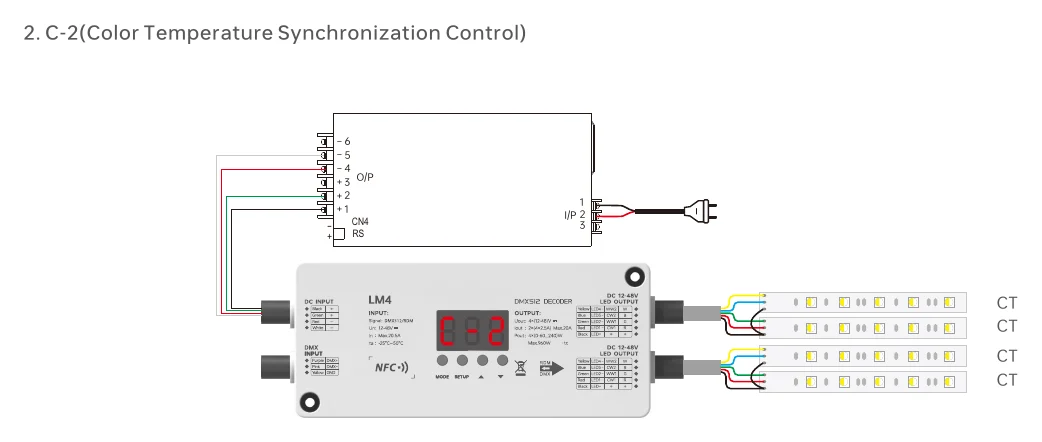

LM4 2. C-2(Color Temperature Synchronization Control)
2. C-2(Color Temperature Synchronization Control)

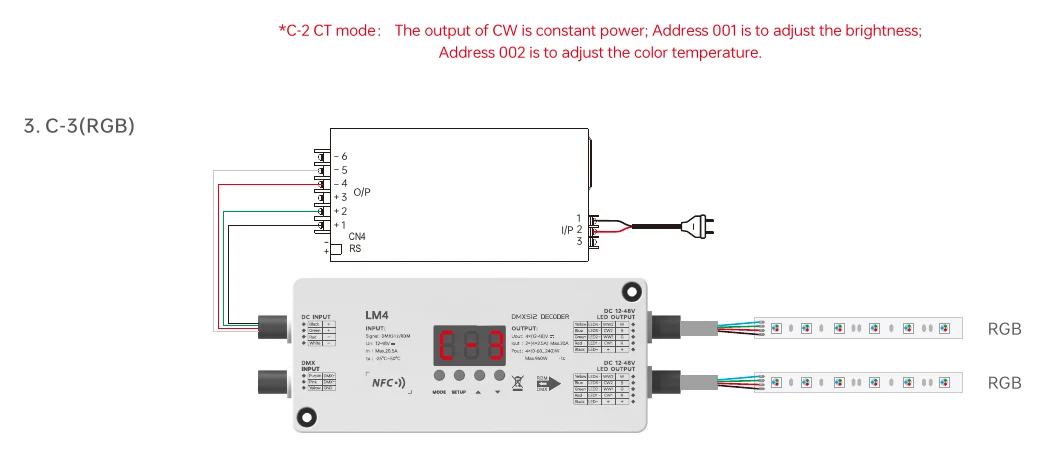

LM4 Address002is to adjust the color temperature.
Address002is to adjust the color temperature.

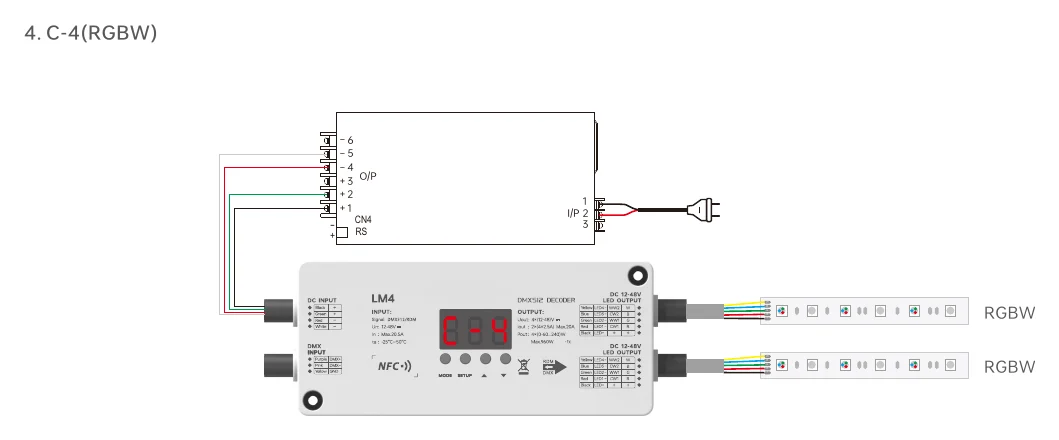

LM4 4. C-4(RGBW)
4. C-4(RGBW)

Downloads

FAQ

What is the Ltech LM4 used for?

It is a DMX512 LED controller designed to manage four channels of LED lighting, supporting up to 960W total output power.

What are the input and output voltage ranges?

The unit accepts a DC input voltage of 12-48V. It provides four output channels, each supporting 12-48V DC.

How is the controller configured and controlled?

It supports DMX512 and RDM protocols for control. It also features NFC for configuration.

What safety protections are included?

The LM4 includes short-circuit, over-temperature, and over-current protection, all with automatic reset capability.

Is the controller suitable for outdoor use?

Yes, it has an IP67 waterproof rating, making it suitable for outdoor environments. The operating temperature range is -25Β°C to 50Β°C.

What certifications does the LM4 have?

The controller is certified with CE, FCC, and RoHS marks.
