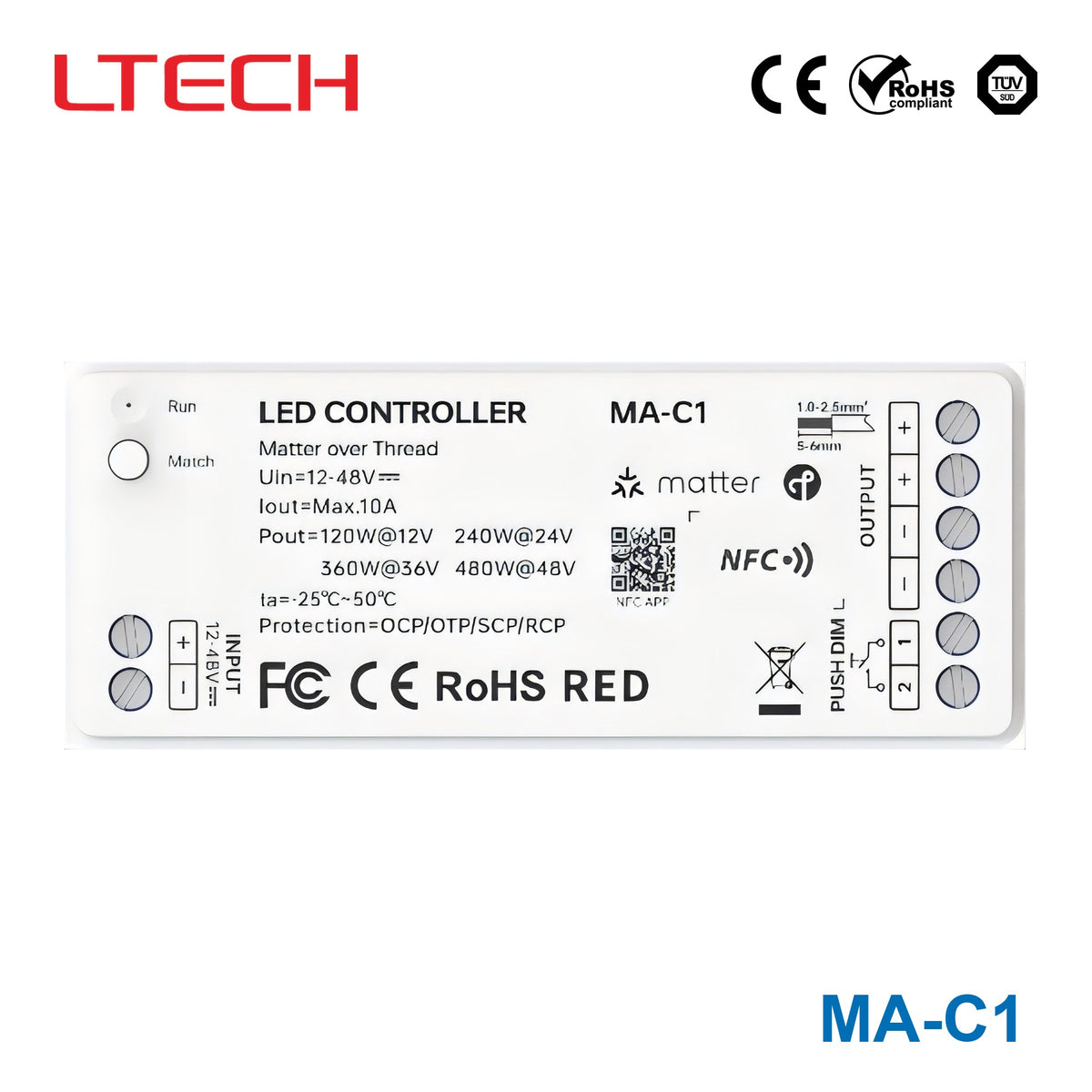

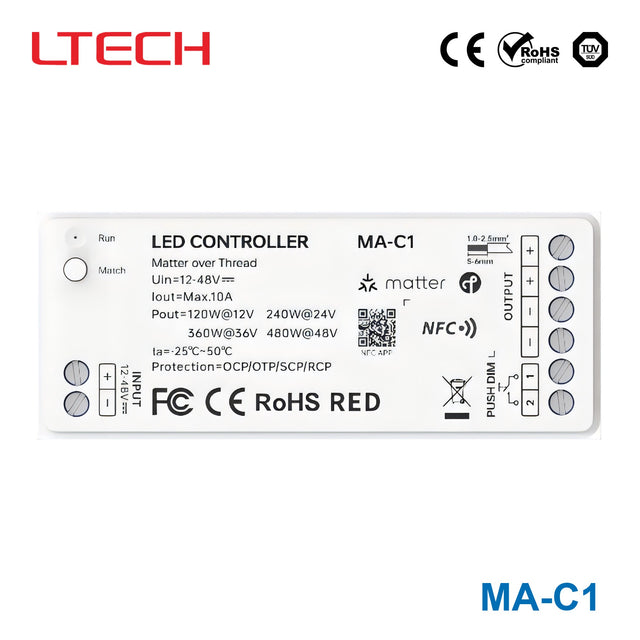

Ltech MA-C1 480W Bluetooth LED Controller

Bluetooth12-48VDC10A480W

SKU MA-C1

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

MA-C1 is the 12-48V ⎓ output model of this series.

Features

Matter over Thread certified devices require pairing with a Matter hub featuring Thread border router functionality;
Supports control via major smart home platforms including Apple Home, Google Home, Amazon Alexa, SmartThings, etc.;
Supports voice control via Apple Siri, Google Assistant, Amazon Alexa, Samsung Bixby, etc.;
Can be networked by scanning a QR code or via NFC one-touch pairing without scanning;
Supports Matter standard OTA updates;
Features NFC quick programming, allowing adjustment of on/off fade times, brightness ranges, and other parameters via smartphone app using NFC;
Compact and lightweight design with housing made from Covestro/ Samsung V0-rated flame-retardant PC material;
Includes soft-start gradual brightening for enhanced visual comfort;
IP20 protection rating.

Specifications

MA-C1Specifications from the official datasheetDownload datasheet PDF

Technical Specifications

Dimming Type: DIM
Input Signal: Matter over Thread
Input Voltage: 12-48V ⎓
Output Voltage: 12-48V ⎓
Channels: 1CH
Push Dim: Yes
Load Current: 10A@12V 10A@24V 10A@36V 10A@48V
Load Power: 120W@12V 240W@24V 360W@36V 480W@48V
Service Life: 100000 Hours
Protection Type: Short-circuit, over-temperature, over-current protection, reverse polarity protection
Supported Platform: Apple Home, Google Home, Amazon Alexa, SmartThings, All smart home platforms supporting the standard Matter protocol
Working Temperature: -25°C ~ 50°C
Product Dimensions: L91×W37×H21(mm)
Package Dimensions: L94×W39×H22(mm)
Weight (Gross Weight): 46g

Others

Warranty periods: 5 years

Certifications & ratings

Marked features: NFC
Certification marks: Matter, Thread, CE, FCC, RED, RoHS

Technical drawings

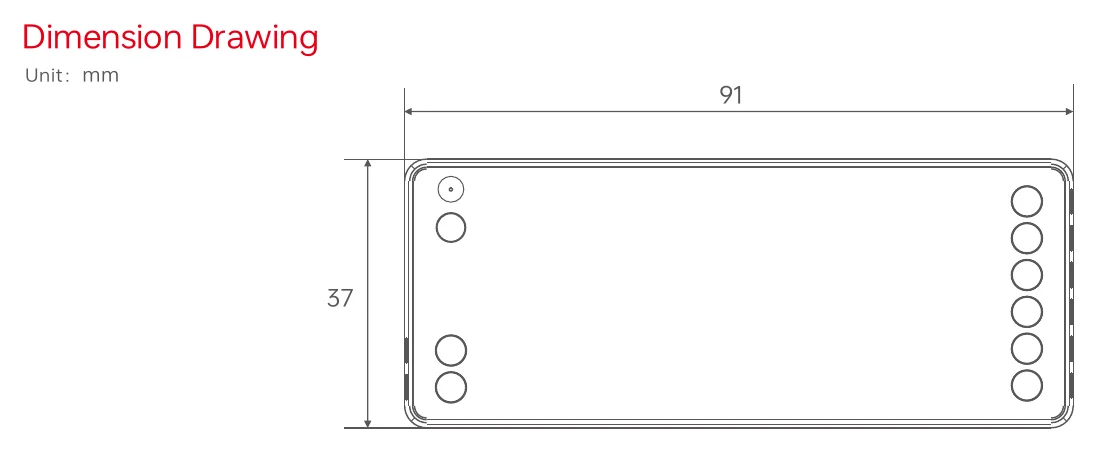

MA-C1 Dimension Drawing — Dimension Drawing

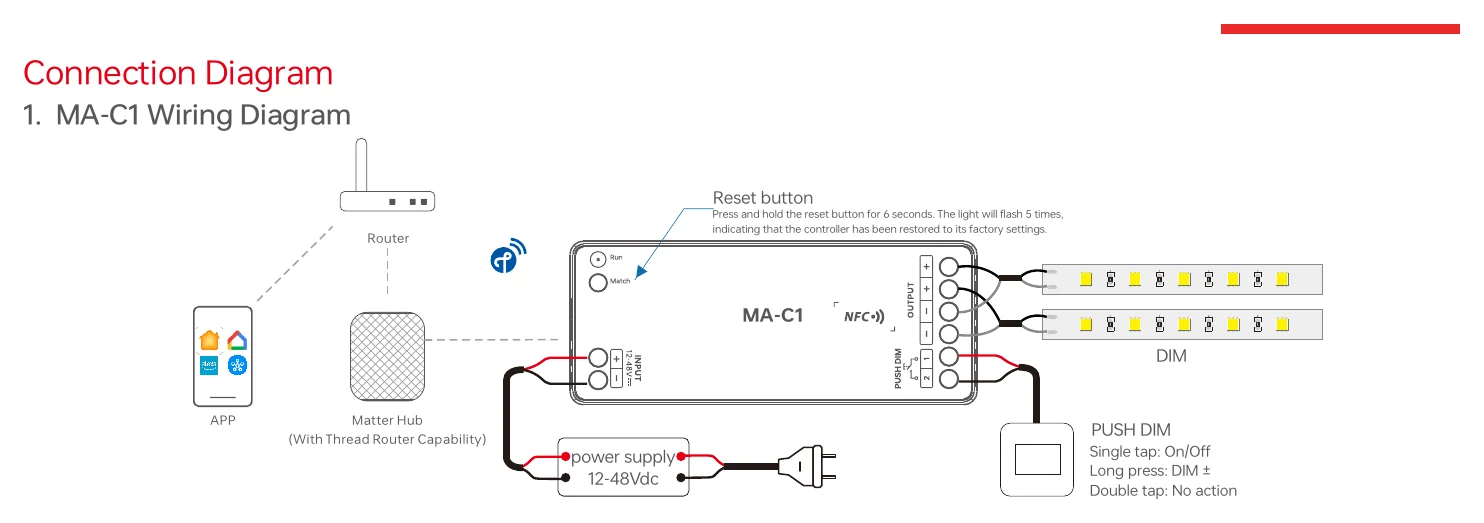

MA-C1 Connection Diagram — Connection Diagram

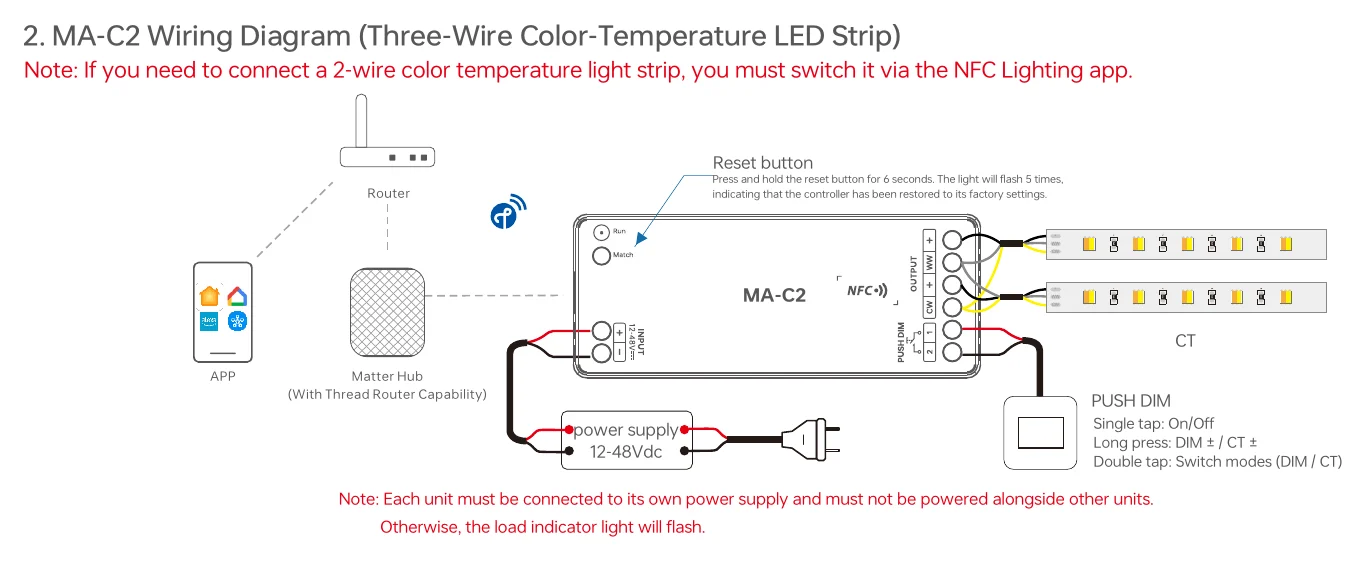

MA-C1 2. MA-C2 Wiring Diagram (Three-Wire Color-Temperature… — 2. MA-C2 Wiring Diagram (Three-Wire Color-Temperature…

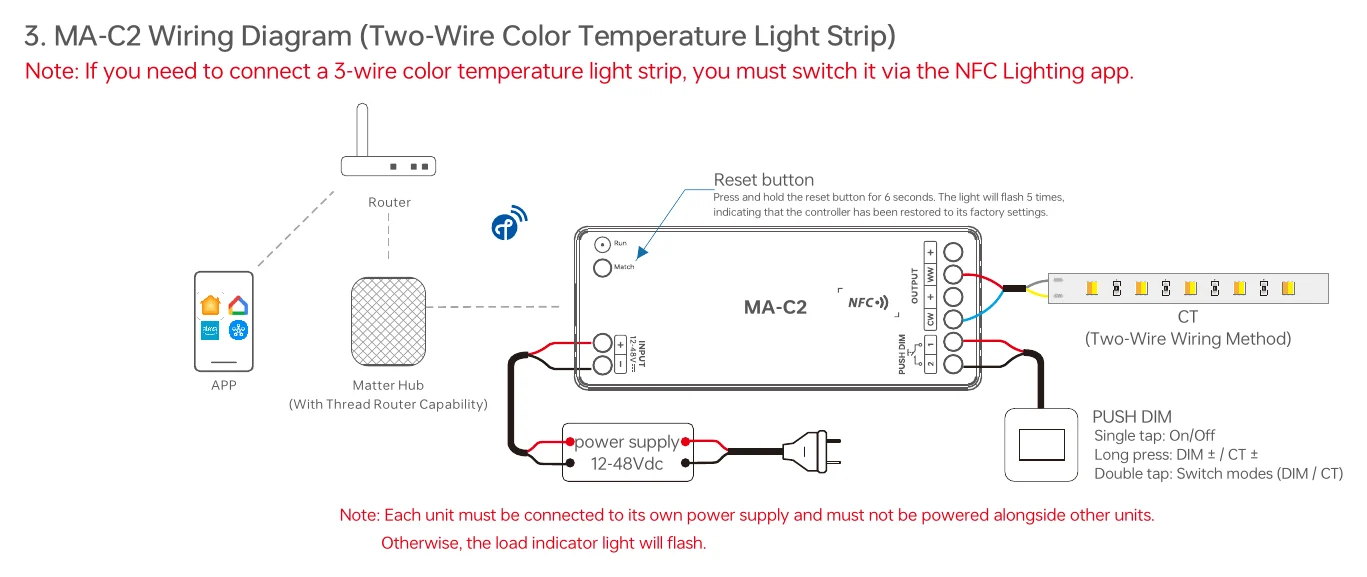

MA-C1 3. MA-C2 Wiring Diagram (Two-Wire Color Temperature… — 3. MA-C2 Wiring Diagram (Two-Wire Color Temperature…

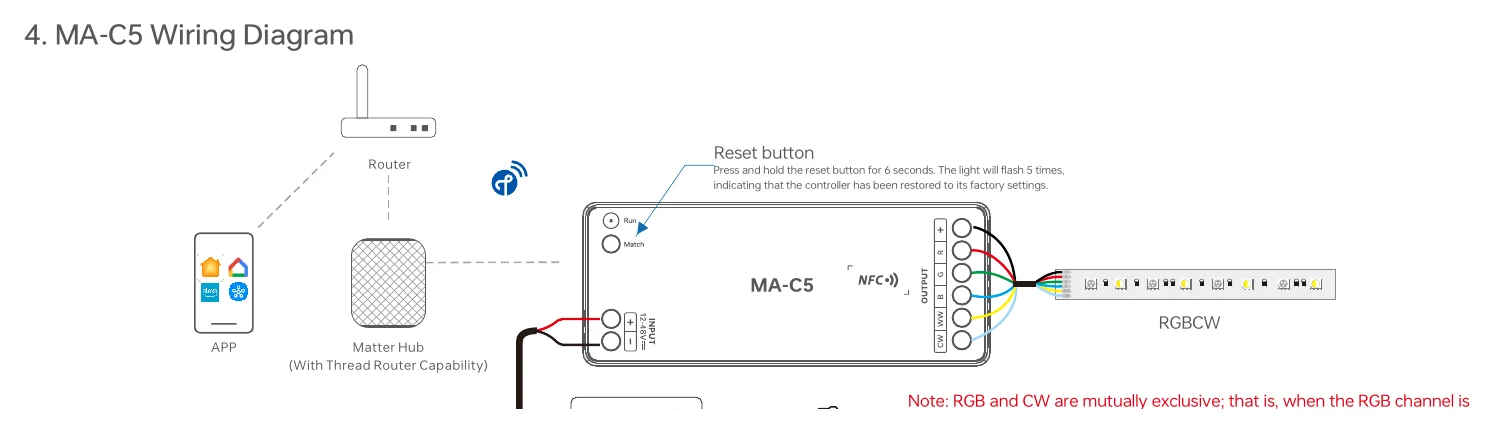

MA-C1 4. MA-C5 Wiring Diagram — 4. MA-C5 Wiring Diagram

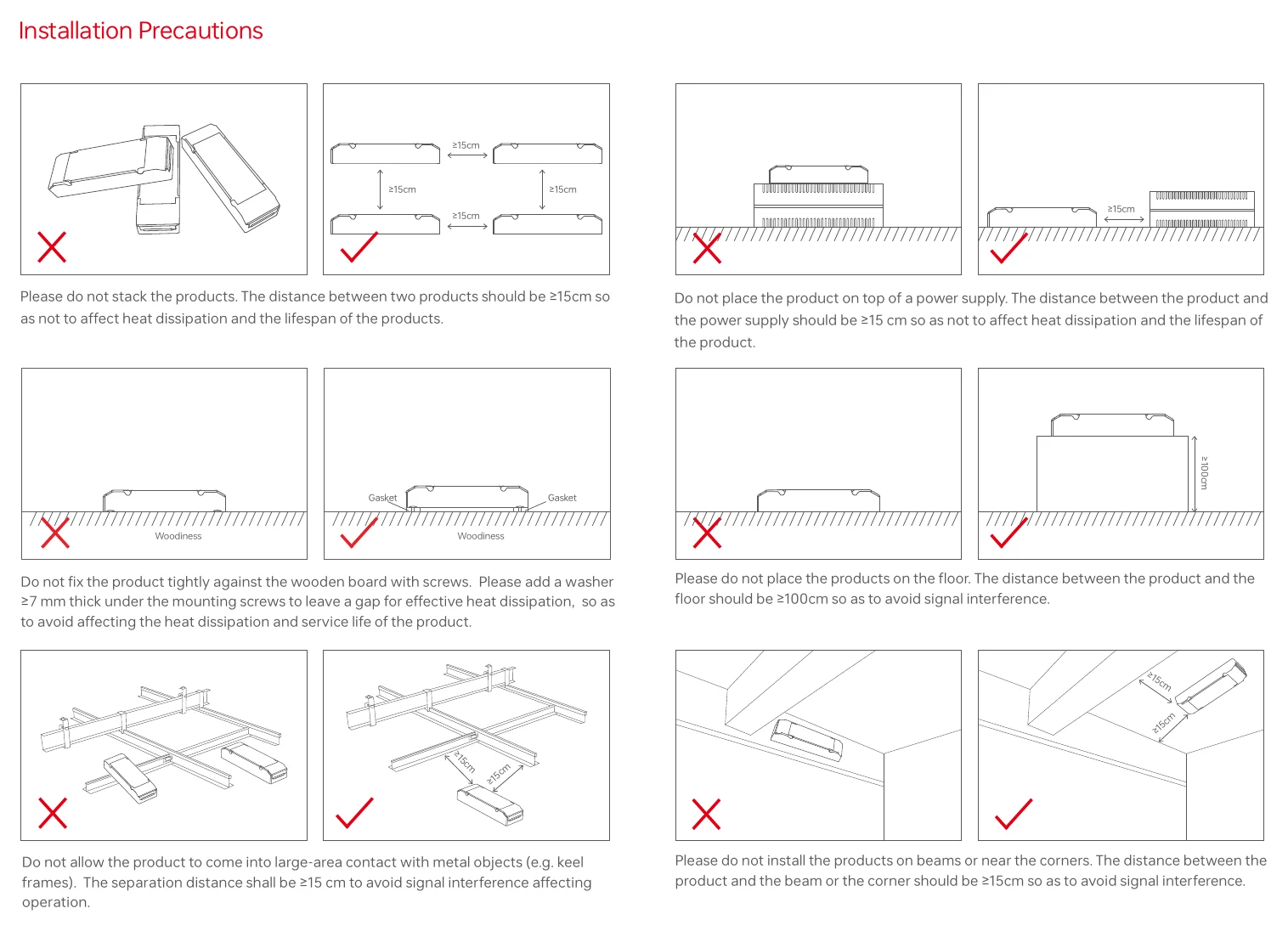

MA-C1 Installation Precautions — Installation Precautions

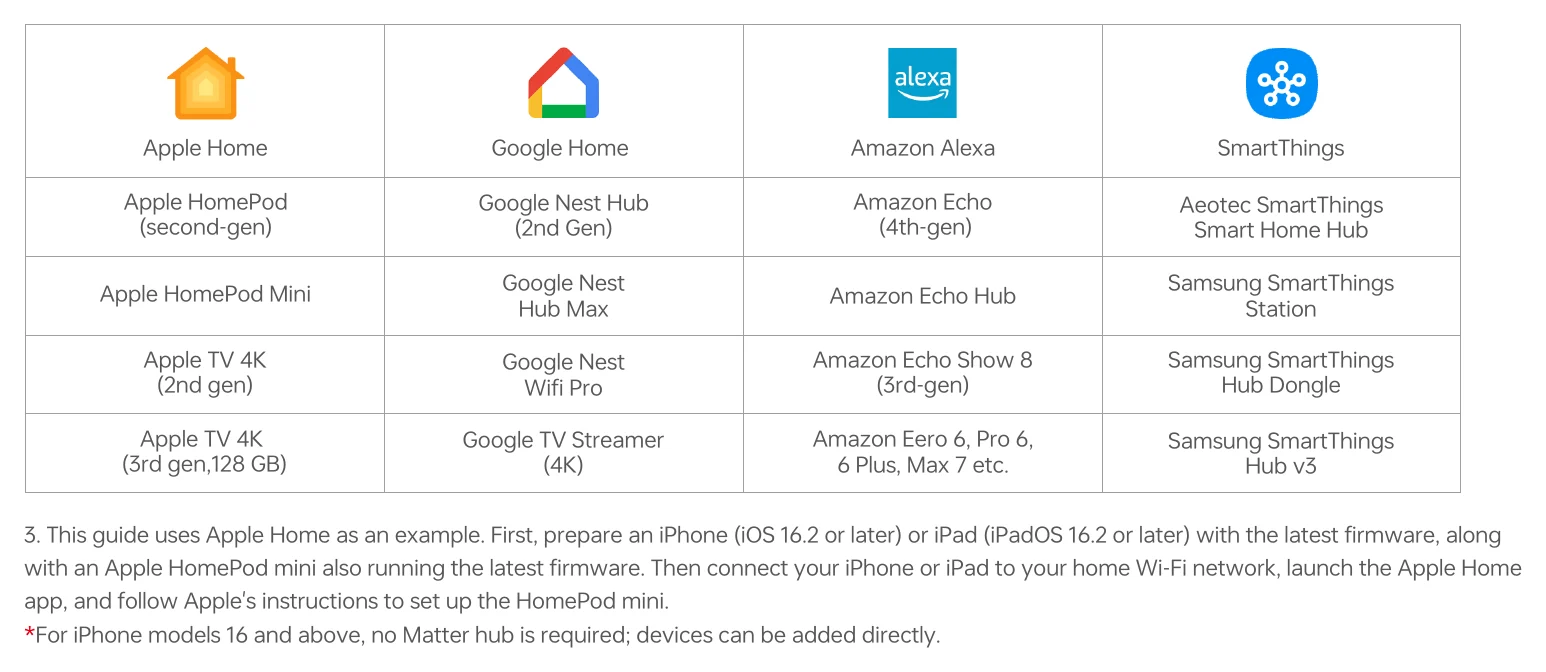

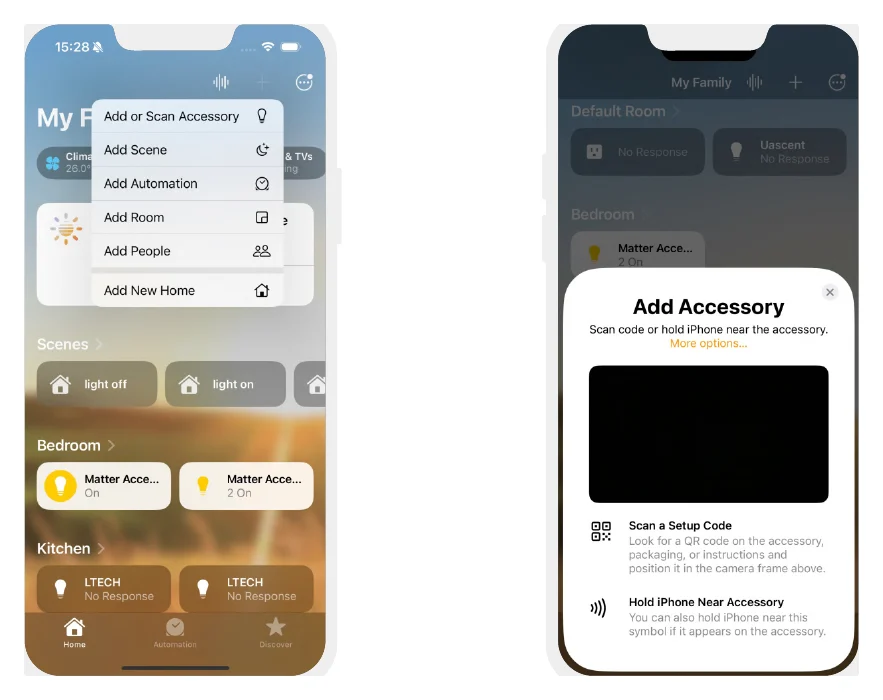

MA-C1 Add to Matter Platform Instructions — Add to Matter Platform Instructions

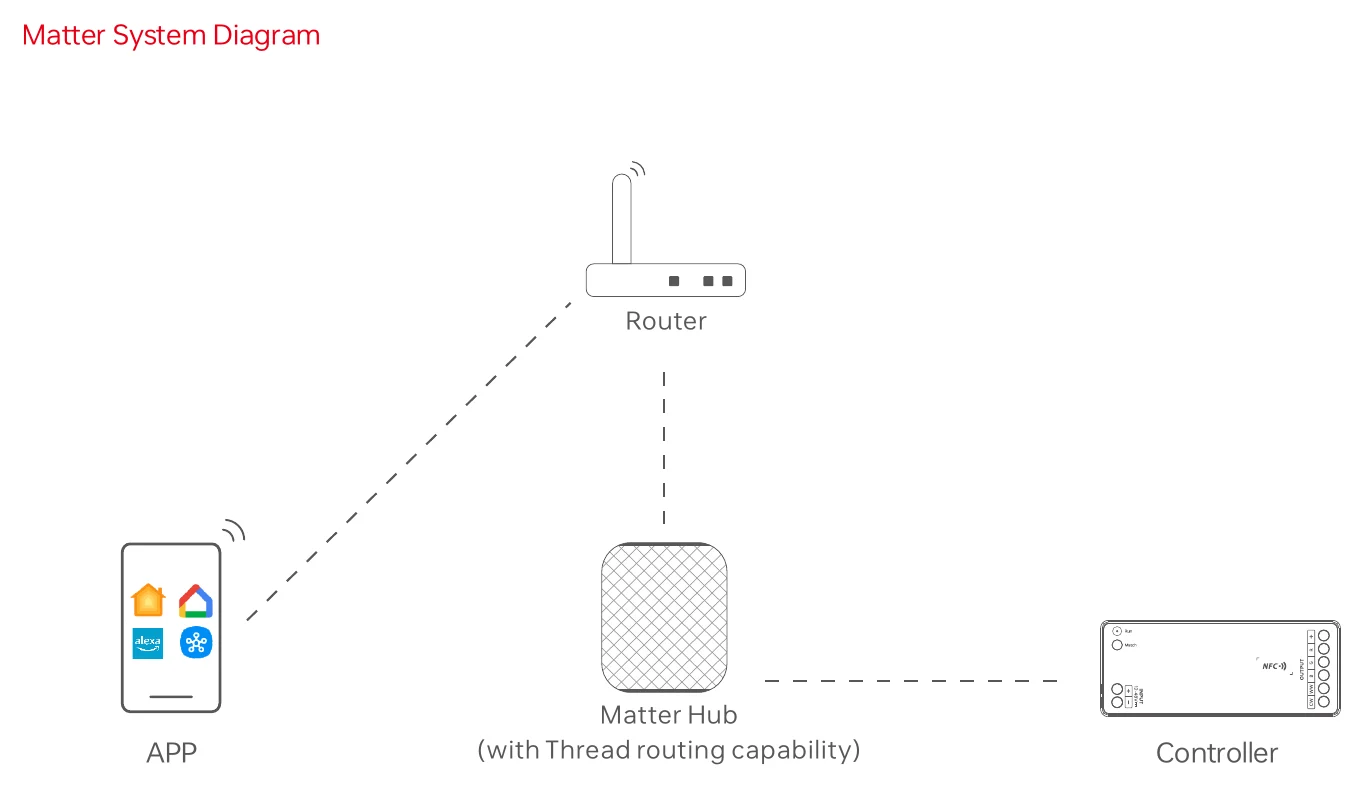

MA-C1 Matter System Diagram — Matter System Diagram

MA-C1 Illustration (page 4) — Illustration (page 4)

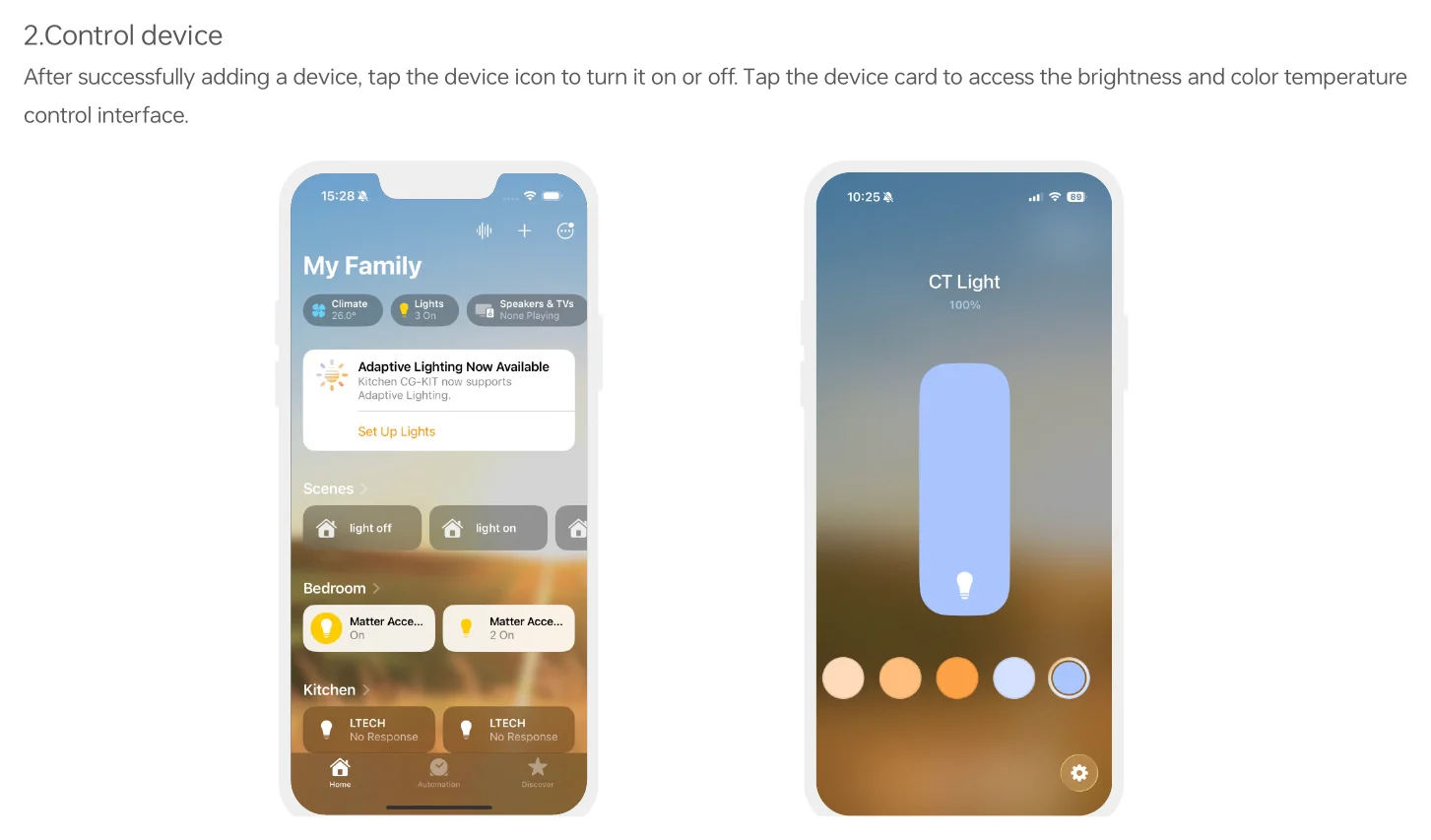

MA-C1 2.Control device — 2.Control device

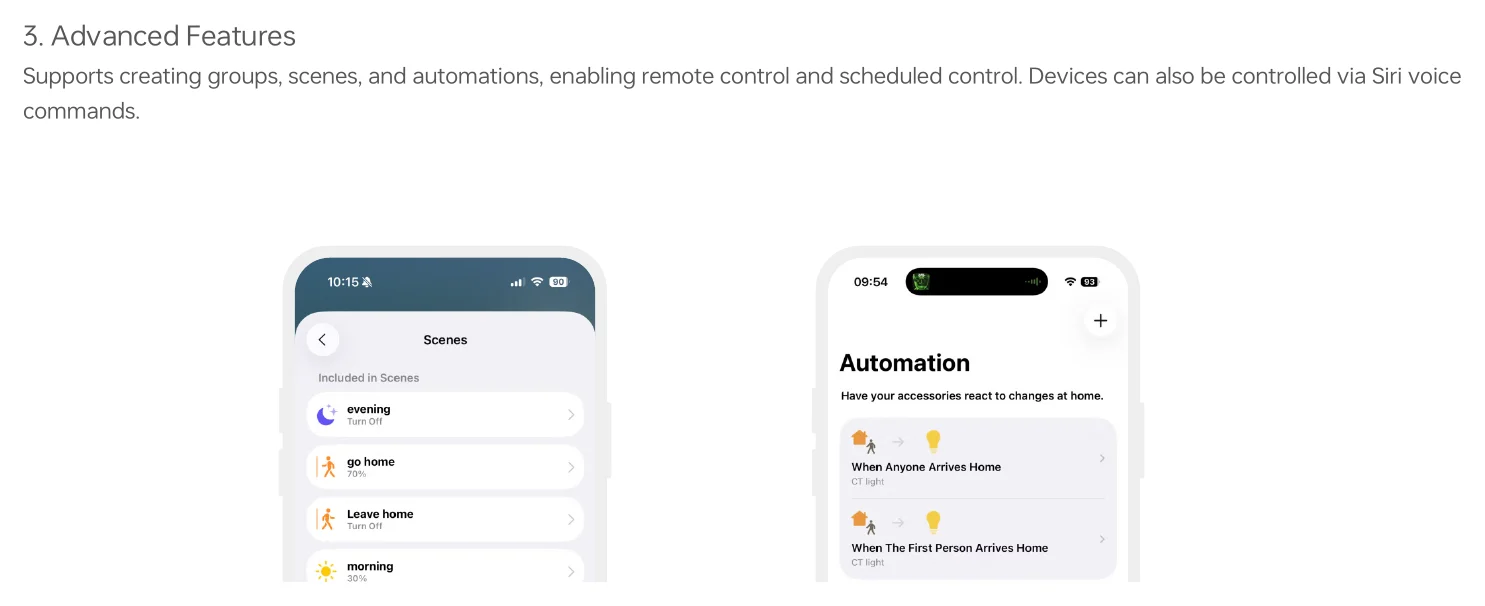

MA-C1 3. Advanced Features — 3. Advanced Features

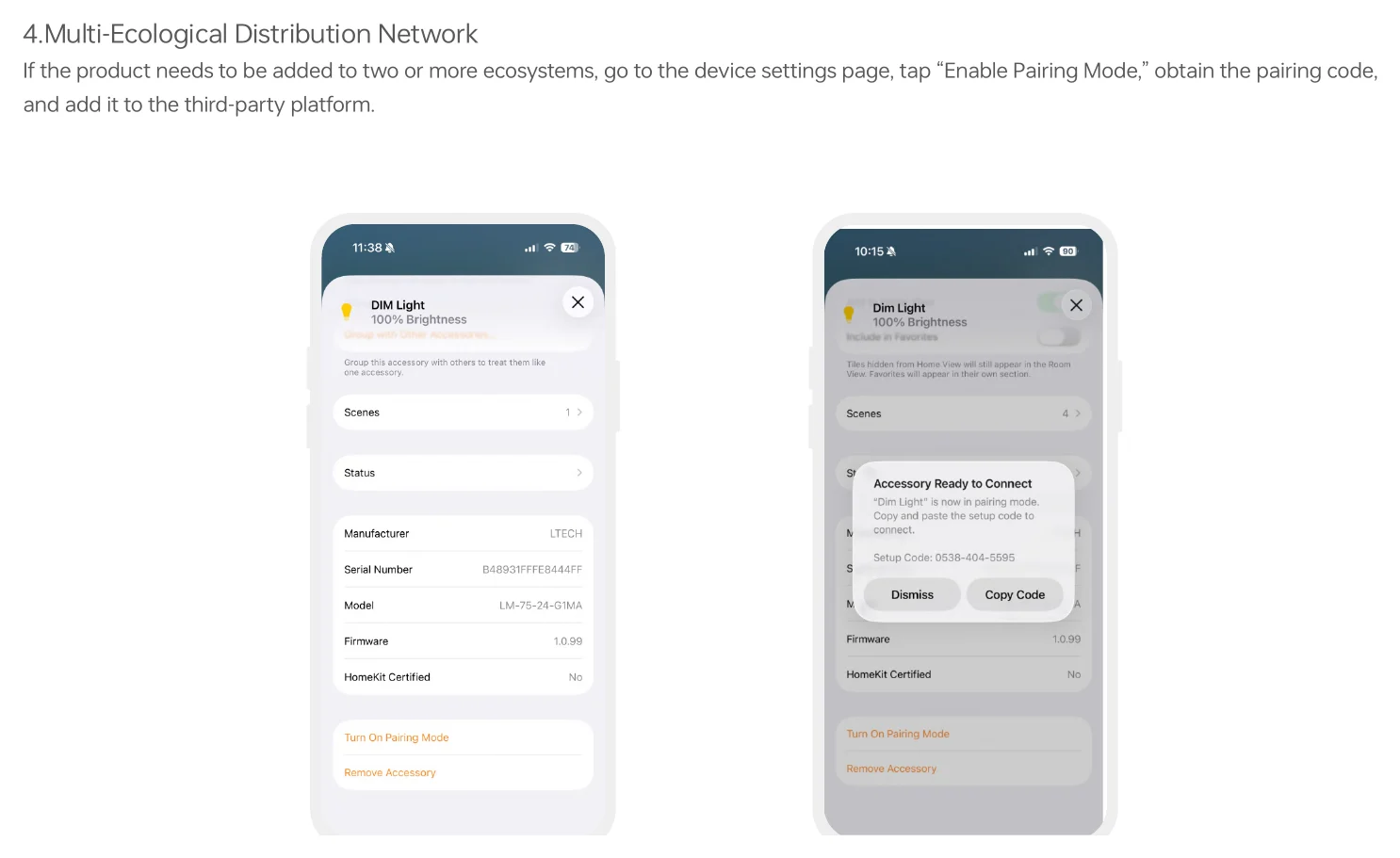

MA-C1 4.Multi-Ecological Distribution Network — 4.Multi-Ecological Distribution Network

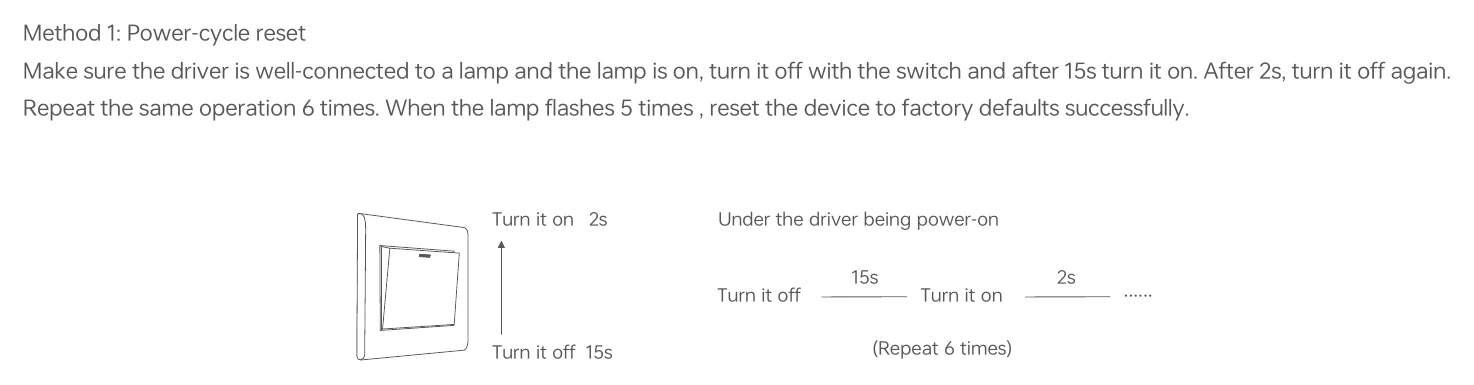

MA-C1 Method 1: Power-cycle reset — Method 1: Power-cycle reset

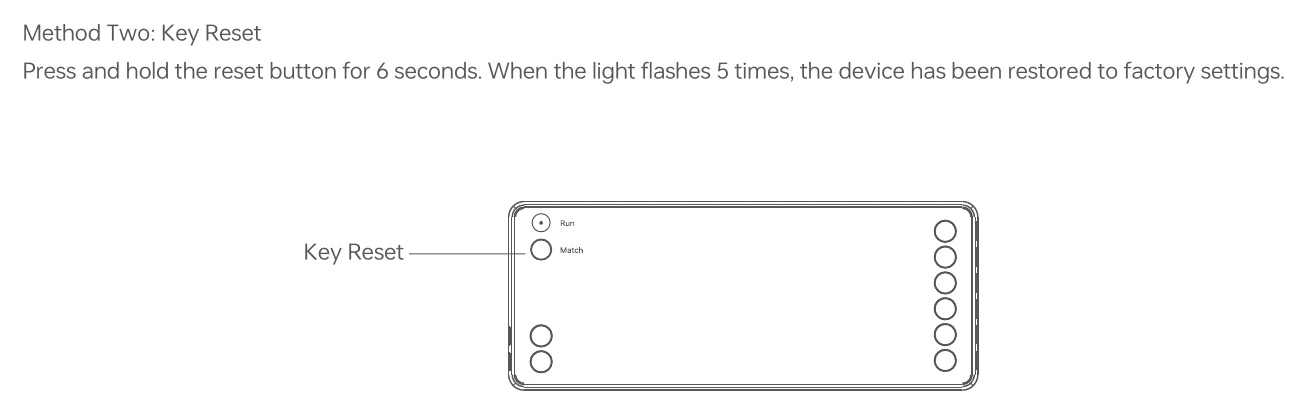

MA-C1 Method Two: Key Reset — Method Two: Key Reset

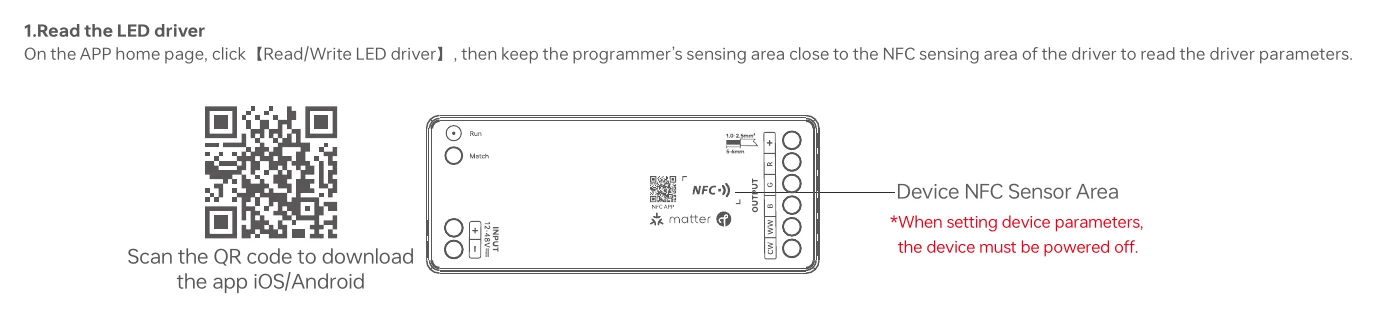

MA-C1 1.Read the LED driver — 1.Read the LED driver

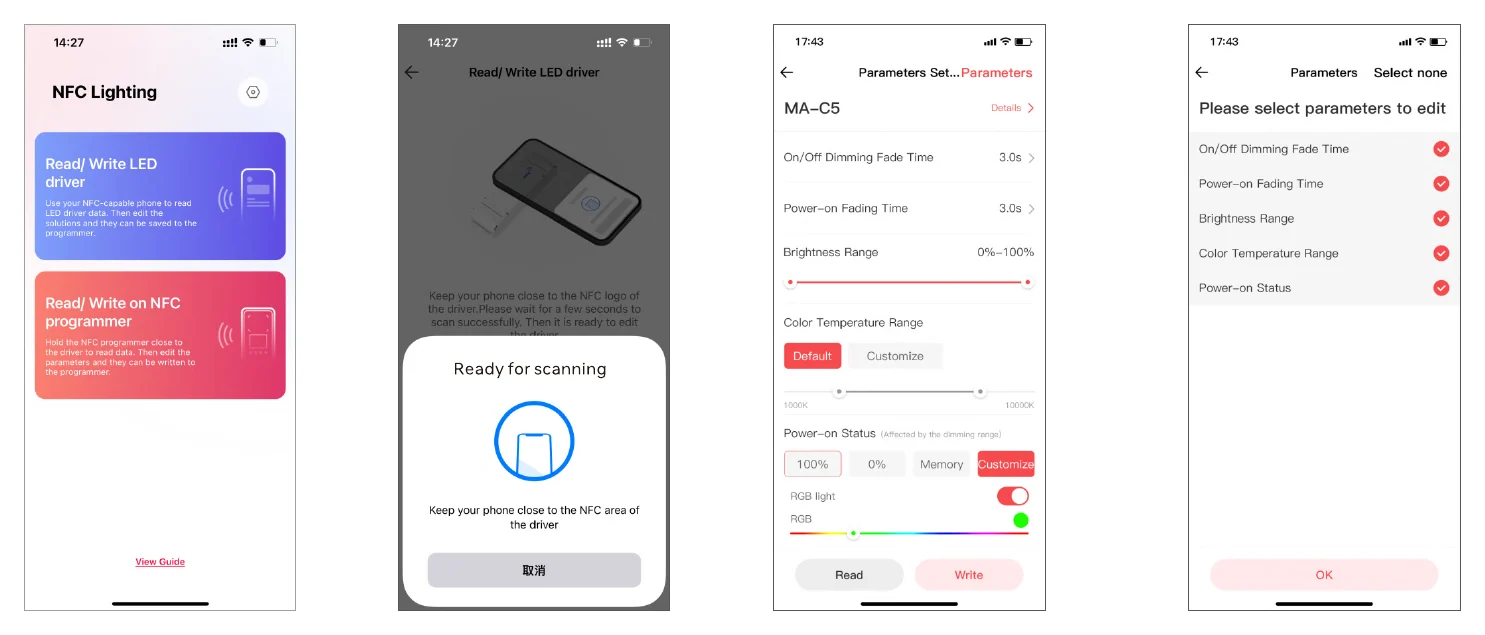

MA-C1 Use the NFC Lighting APP — Use the NFC Lighting APP

Downloads

Datasheet1

MA-C1 datasheetMA_C1.pdf PDF Download

FAQ

What is the Ltech MA-C1?

The MA-C1 is a single-channel LED controller that supports dimming via Matter over Thread. It is compatible with Apple Home, Google Home, Amazon Alexa, SmartThings, and other platforms supporting the Matter protocol.

What are the input and output voltage ranges?

The controller operates with an input and output voltage range of 12-48V DC. It supports a maximum load current of 10A, allowing for load powers up to 480W at 48V, 360W at 36V, 240W at 24V, or 120W at 12V.

How do I control the lighting?

Control is achieved through Matter over Thread, allowing integration with major smart home ecosystems. It also features push dimming capability for local control.

What are the physical dimensions and weight?

The unit measures 91mm in length, 37mm in width, and 21mm in height, with a gross weight of 46g. It includes NFC for easy setup.

What is the operating temperature range?

The MA-C1 is designed to operate in temperatures ranging from -25°C to 50°C.

What safety protections are included?

The controller includes short-circuit, over-temperature, over-current, and reverse polarity protection to ensure safe operation.

What is the warranty period?

The Ltech MA-C1 comes with a 5-year warranty and has a rated service life of 100,000 hours.
