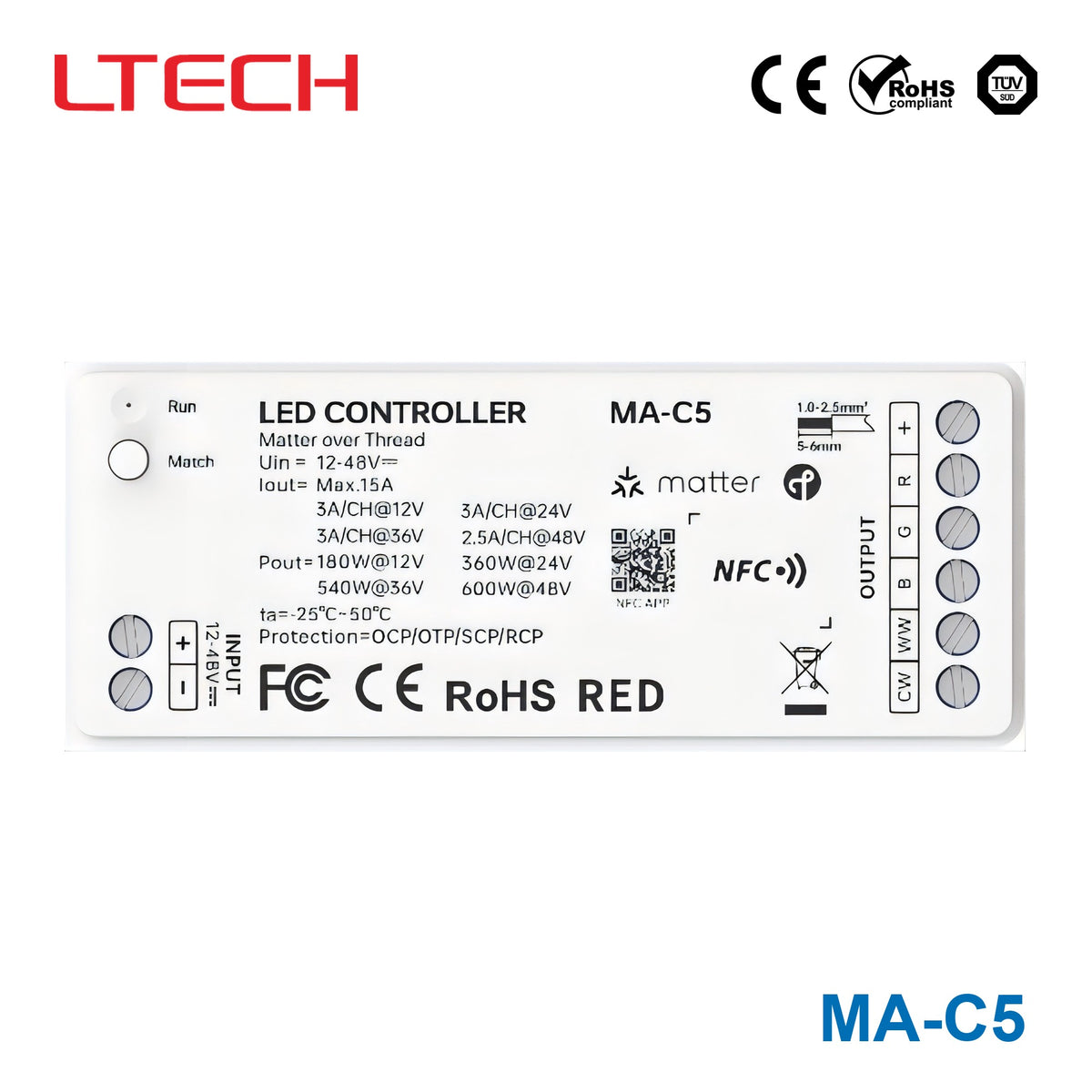

Ltech MA-C5 600W Bluetooth LED Controller

Bluetooth12-48VDC3A600W

SKU MA-C5

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

MA-C5 is the 12-48V ⎓ output model of this series.

Features

Matter over Thread certified devices require pairing with a Matter hub featuring Thread border router functionality;
Supports control via major smart home platforms including Apple Home, Google Home, Amazon Alexa, SmartThings, etc.;
Supports voice control via Apple Siri, Google Assistant, Amazon Alexa, Samsung Bixby, etc.;
Can be networked by scanning a QR code or via NFC one-touch pairing without scanning;
Supports Matter standard OTA updates;
Features NFC quick programming, allowing adjustment of on/off fade times, brightness ranges, and other parameters via smartphone app using NFC;
Compact and lightweight design with housing made from Covestro/ Samsung V0-rated flame-retardant PC material;
Includes soft-start gradual brightening for enhanced visual comfort;
IP20 protection rating.

Specifications

MA-C5Specifications from the official datasheetDownload datasheet PDF

Technical Specifications

Dimming Type: RGB+CCT
Input Signal: Matter over Thread
Input Voltage: 12-48V ⎓
Output Voltage: 12-48V ⎓
Channels: 5CH
Push Dim: No
Load Current: RGB Max. 15A (5A/CH), CW Max. 10A
Load Power: 180W@12V 360W@24V 540W@36V 720W@48V
Service Life: 100000 Hours
Protection Type: Short-circuit, over-temperature, over-current protection, reverse polarity protection
Supported Platform: Apple Home, Google Home, Amazon Alexa, SmartThings, All smart home platforms supporting the standard Matter protocol
Working Temperature: -25°C ~ 50°C
Product Dimensions: L91×W37×H21(mm)
Package Dimensions: L94×W39×H22(mm)
Weight (Gross Weight): 46g

Others

Warranty periods from the date of delivery: 5 years

Certifications & ratings

Marked features: NFC
Certification marks: Matter, Thread, CE, FCC, RED, RoHS

Technical drawings

MA-C5 Dimension Drawing — Dimension Drawing

MA-C5 Connection Diagram — Connection Diagram

MA-C5 2. MA-C2 Wiring Diagram (Three-Wire Color-Temperature… — 2. MA-C2 Wiring Diagram (Three-Wire Color-Temperature…

MA-C5 3. MA-C2 Wiring Diagram (Two-Wire Color Temperature… — 3. MA-C2 Wiring Diagram (Two-Wire Color Temperature…

MA-C5 4. MA-C5 Wiring Diagram — 4. MA-C5 Wiring Diagram

MA-C5 Installation Precautions — Installation Precautions

MA-C5 Add to Matter Platform Instructions — Add to Matter Platform Instructions

MA-C5 Matter System Diagram — Matter System Diagram

MA-C5 Illustration (page 4) — Illustration (page 4)

MA-C5 2.Control device — 2.Control device

MA-C5 3. Advanced Features — 3. Advanced Features

MA-C5 4.Multi-Ecological Distribution Network — 4.Multi-Ecological Distribution Network

MA-C5 Method 1: Power-cycle reset — Method 1: Power-cycle reset

MA-C5 Method Two: Key Reset — Method Two: Key Reset

MA-C5 1.Read the LED driver — 1.Read the LED driver

MA-C5 Use the NFC Lighting APP — Use the NFC Lighting APP

Downloads

Datasheet1

MA-C5 datasheetMA_C5.pdf PDF Download

FAQ

What is the Ltech MA-C5?

It is a 5-channel RGB+CCT LED controller that supports Matter over Thread, allowing integration with Apple Home, Google Home, Amazon Alexa, and SmartThings.

What are the power and current limits?

It supports 12-48V DC input and output. The maximum load power is 180W at 12V, 360W at 24V, 540W at 36V, and 720W at 48V. The RGB channels handle up to 15A total (5A per channel), and the CW channel handles up to 10A.

How do I control the lighting?

Control is via Matter over Thread. It supports RGB+CCT dimming and includes NFC for setup. It does not support push dimming.

What are the dimensions and mounting requirements?

The unit measures 91mm x 37mm x 21mm and weighs 46g. It operates in temperatures from -25°C to 50°C.

What safety features are included?

It includes short-circuit, over-temperature, over-current, and reverse polarity protection.

Is it certified for smart home use?

Yes, it carries Matter, Thread, CE, FCC, RED, and RoHS certifications.

What is the warranty period?

The product comes with a 5-year warranty from the date of delivery.
