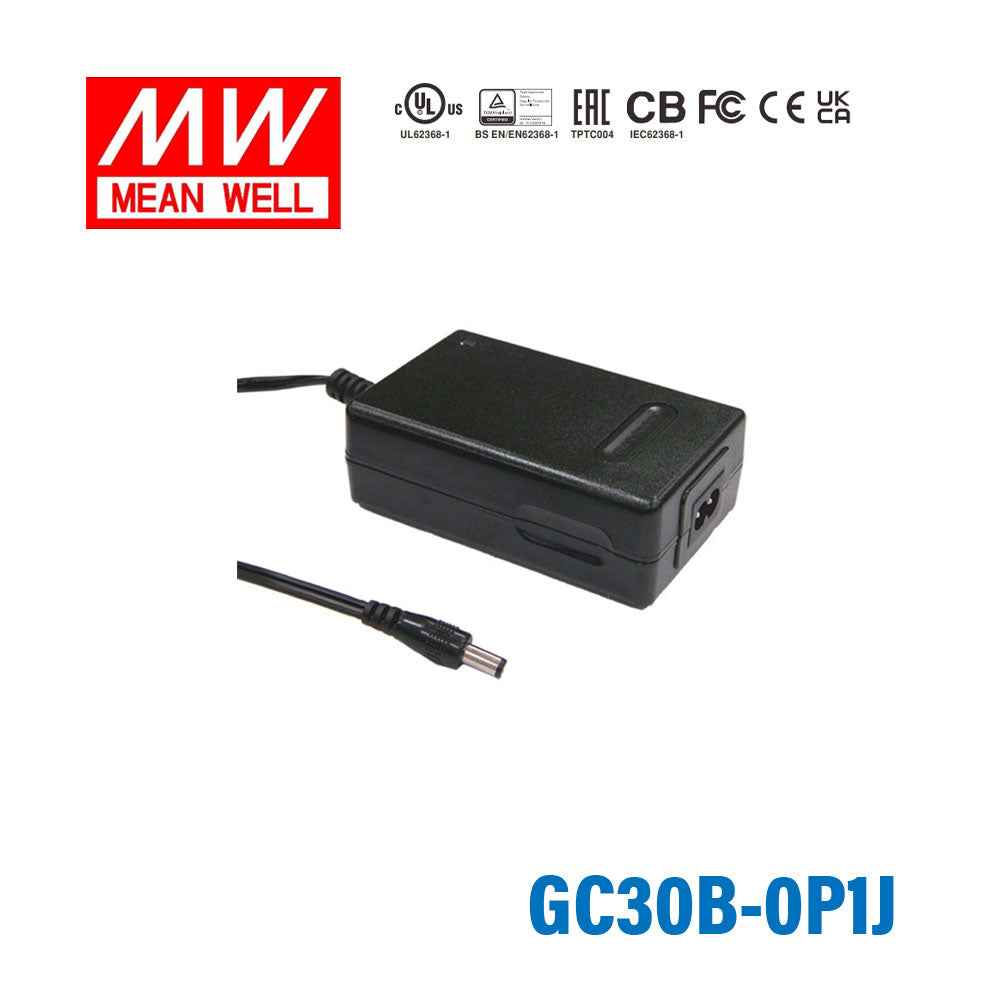

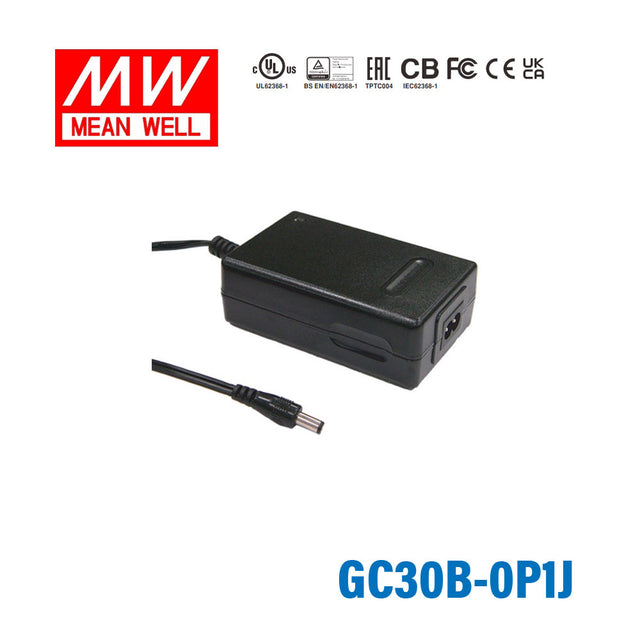

Mean Well GC30B-0P1J Portable Chargers 16.8W 4.2V 4A - Green Adaptor
Please Login for Pricing
Description
Description
The GC30B is a 30W Mean Well power converter (input range: 5~5.8V).
Key Features
- ✓ Input voltage range: 5~5.8V
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Safety approvals: UL60950-1, CSA22.2, EN60950-1
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesGC Series
-
Power Rating16.8 Watt
-
Output Voltage4.2 Volt
-
Rated Current4 Ampere
-
Input Voltage90V~264V
-
Standards MetCB,CE,cUL,EAC,FCC,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature0°C~50°C
-
Warranty2 Year
-
Length10.8 cm
-
Width6.7 cm
-
Height3.6 cm
-
Weight0.31 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What type of battery applications is the Mean Well GC30B-0P1J designed for?
The GC30B-0P1J is a portable charger intended for battery charging applications using a 4.2V, 4A output. The product description indicates suitability for lead-acid battery types such as flooded, gel, and AGM, as well as certain lithium-ion battery chemistries. Buyers should confirm their equipment matches the charger's 4.2V output specification.
What are the key electrical output specifications of the GC30B-0P1J?
This model is rated for 16.8W output with a nominal output of 4.2V DC at 4A. It uses constant current and constant voltage operation, noted as CC/CV mode in the product details. These specifications make it suitable for applications requiring a compact low-voltage portable charger in this exact output range.
Does the Mean Well GC30B-0P1J support worldwide AC input?
Yes. The listed input range is 90 to 264VAC, with an additional DC input range of 127 to 370VDC. That wide input range makes it appropriate for buyers sourcing equipment for different regions or variable mains conditions.
What protection features are included in the GC30B-0P1J?
This charger includes protection for short circuit, overload, over voltage, and over temperature. The over-voltage protection is specified as 110% to 135% with shut down and latch-off, requiring re-powering to recover. These built-in protections help support safer operation in demanding commercial environments.
Can the GC30B-0P1J be used continuously in operating equipment?
The product details state that it is suitable for continued load. It also notes support for high surge current equipment, which can be useful in applications with variable demand. Buyers should still ensure the load remains within the 4.2V, 4A, and 16.8W ratings of this model.
What environmental and physical limits should buyers know for this model?
The specified operating temperature range is 0°C to 50°C, with reference to a derating curve. The unit dimensions are 108 x 67 x 36 mm, and the listed weight is 309 g. These details are useful when evaluating fit, portability, and ambient operating conditions.
What certifications and warranty come with the Mean Well GC30B-0P1J?
The product listing cites approvals including TUV, UL, CUL, CB, FCC, and CE, and the general specification lists safety approvals such as UL62368-1, CSA22.2, and EAC TP TC 004. EMC compliance includes EN55022 Class B and FCC Part 15 Class B among others. This model is backed by a 2-year warranty.
