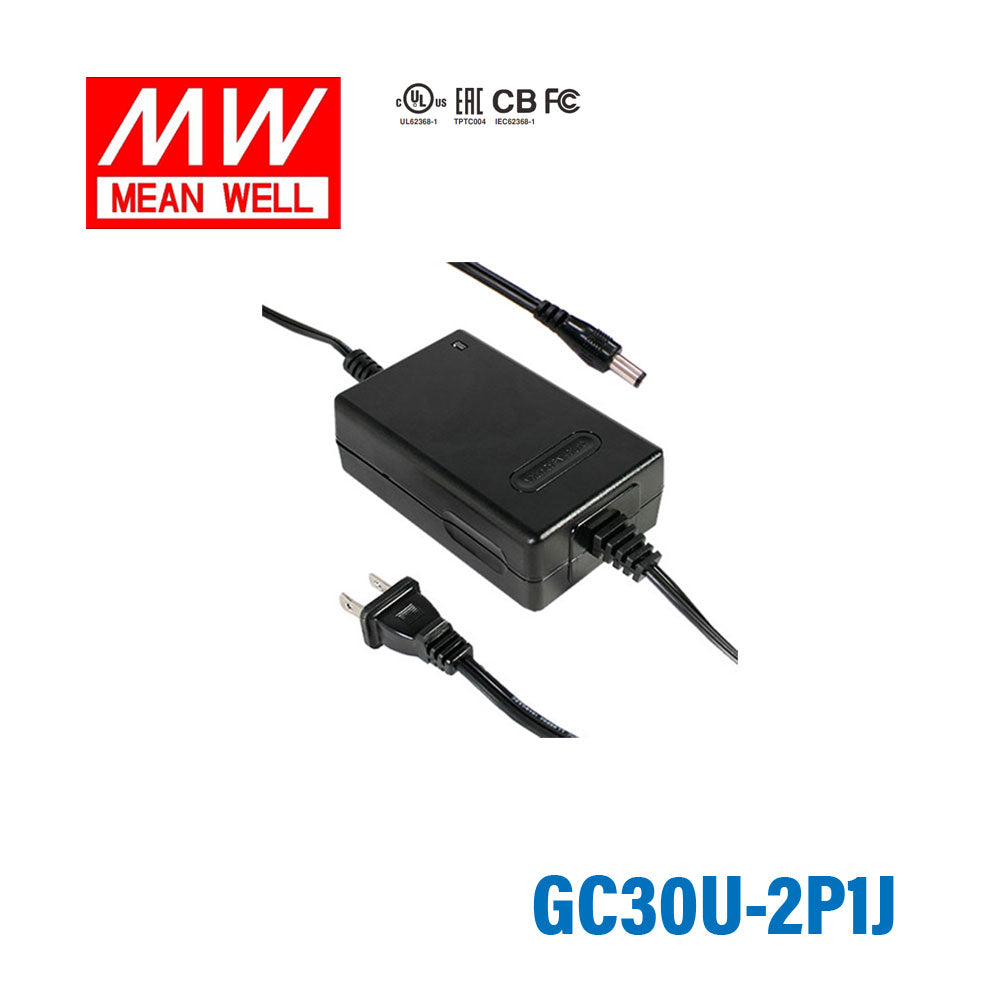

Mean Well GC30U-2P1J Portable Chargers 25.2W 8.4V 3A - Green Adaptor
Please Login for Pricing
Description
Description
The GC30U is a 30W Mean Well power converter (input range: 3.6~4.4V).
Key Features
- ✓ Input voltage range: 3.6~4.4V
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesGC Series
-
Power Rating25.2 Watt
-
Output Voltage8.4 Volt
-
Rated Current3 Ampere
-
Input Voltage90V~264V
-
Standards MetCB,CE,cUL,EAC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature0°C~50°C
-
Warranty2 Year
-
Length10.8 cm
-
Width6.7 cm
-
Height3.6 cm
-
Weight0.41 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Mean Well GC30U-2P1J designed for?
The GC30U-2P1J is a portable charger and AC/DC power supply rated at 25.2W with an 8.4V output and 3A rated current. It is intended for lead-acid batteries including flooded, gel, and AGM types, as well as certain lithium-ion battery chemistries listed by the manufacturer.
What are the main electrical ratings of the GC30U-2P1J?
This model provides 8.4V output at up to 3A, for a total power rating of 25.2W. Its input range is universal at 90 to 264VAC or 127 to 370VDC, which supports use across a wide range of AC power sources.
Can the GC30U-2P1J be used as both a charger and a power supply?
Yes. Mean Well lists this model as both a portable charger and a power supply, and it operates in constant current and constant voltage modes. It is also described as suitable for continued load and for equipment with high surge current demand.
What protection and status features does the GC30U-2P1J include?
The GC30U-2P1J includes protection for short circuit, overload, over voltage, and over temperature conditions. It also has a 2-color LED indicator that shows charging status.
Is the GC30U-2P1J suitable for demanding operating environments?
This model is rated for operation from 0°C to 50°C, subject to the manufacturer's derating guidance. It also features a fully enclosed plastic case, Class II construction, and approvals including TUV, UL, CUL, CB, FCC, and CE.
How portable is the Mean Well GC30U-2P1J?
The unit measures 108 x 67 x 36 mm and has a listed weight of 405 g. It also comes with a USA type 6-foot 2-pin power cord, which supports portable use in applications needing a compact external charger or power adapter.
