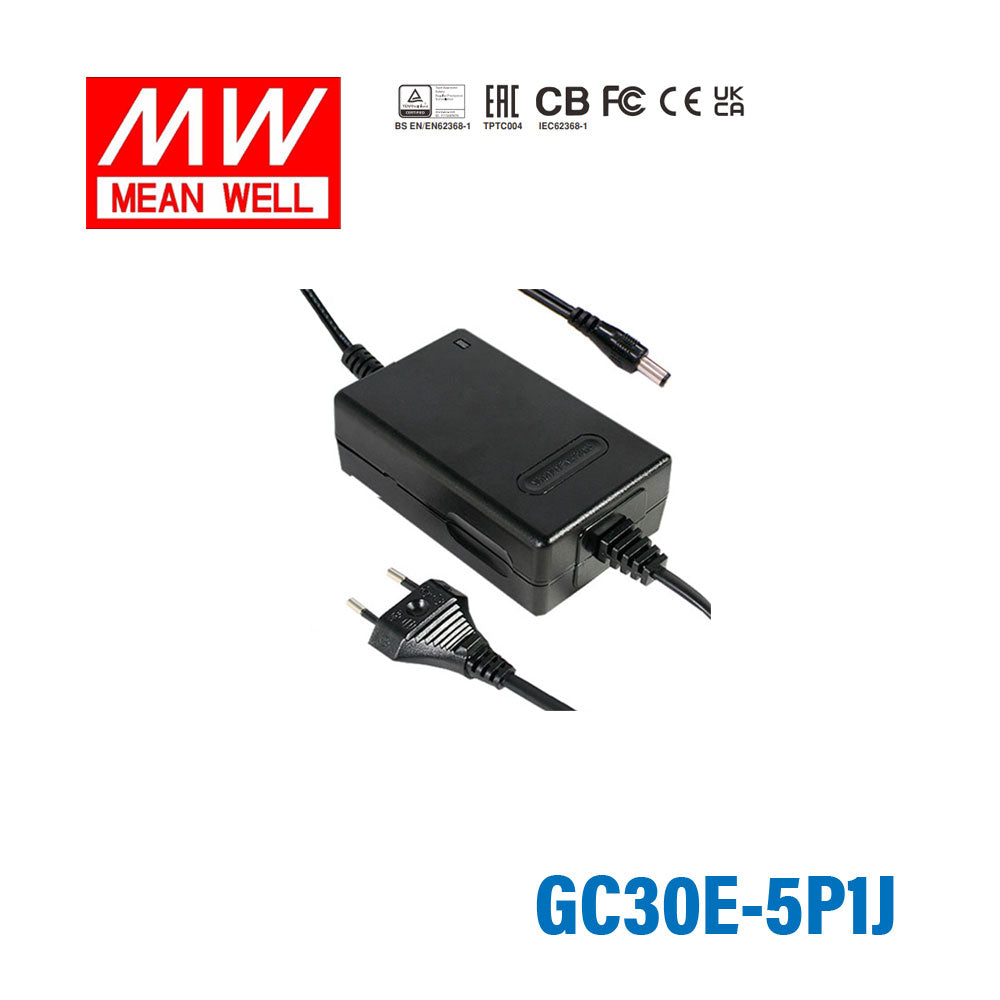

Mean Well GC30E-5P1J Portable Chargers 27W 16.8V 1.6A - Green Adaptor
Please Login for Pricing
Description
Description
The GC30E is a 30W Mean Well power converter (input range: 3.6~4.4V).
Key Features
- ✓ Input voltage range: 3.6~4.4V
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Safety approvals: EN60950-1
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesGC Series
-
Power Rating27 Watt
-
Output Voltage16.8 Volt
-
Rated Current1.6 Ampere
-
Input Voltage90V~264V
-
Standards MetCB,CE,EAC,FCC,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature0°C~50°C
-
Warranty2 Year
-
Length10.8 cm
-
Width6.7 cm
-
Height3.6 cm
-
Weight0.41 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Mean Well GC30E-5P1J designed for?
The GC30E-5P1J is a 27W portable charger/power adaptor from Mean Well. It is intended for battery-charging and power-supply applications where a 16.8V output and 1.6A rated current fit the equipment requirements.
What are the main electrical specifications of the GC30E-5P1J?
This model is rated at 27W with a 16.8V output and 1.6A rated current. It accepts universal input power across 90 to 264VAC or 127 to 370VDC, which makes it suitable for use across a wide input range.
What battery types does the GC30E-5P1J support?
According to the provided product information, this charger is suitable for lead-acid batteries including flooded, gel, and AGM types. It also supports listed lithium-ion chemistries including lithium iron and lithium manganese.
Can this charger be used in industrial or commercial environments?
Yes. The GC30E-5P1J includes protection features for short circuit, overload, over-voltage, and over-temperature, and it is described as suitable for continued load and high reliability. It also carries approvals including TUV, UL, CUL, CB, FCC, and CE.
What operating environment is this model rated for?
The specified working temperature range is 0 to 50 degrees C, with reference to the derating curve. The unit is housed in a fully enclosed plastic case and is a Class II power design without an earth pin.
How compact is the Mean Well GC30E-5P1J?
This charger measures 108 x 67 x 36 mm, so it is sized for portable applications. The listed packing weight is 405 g, which helps keep it manageable where a compact external charger is preferred.
