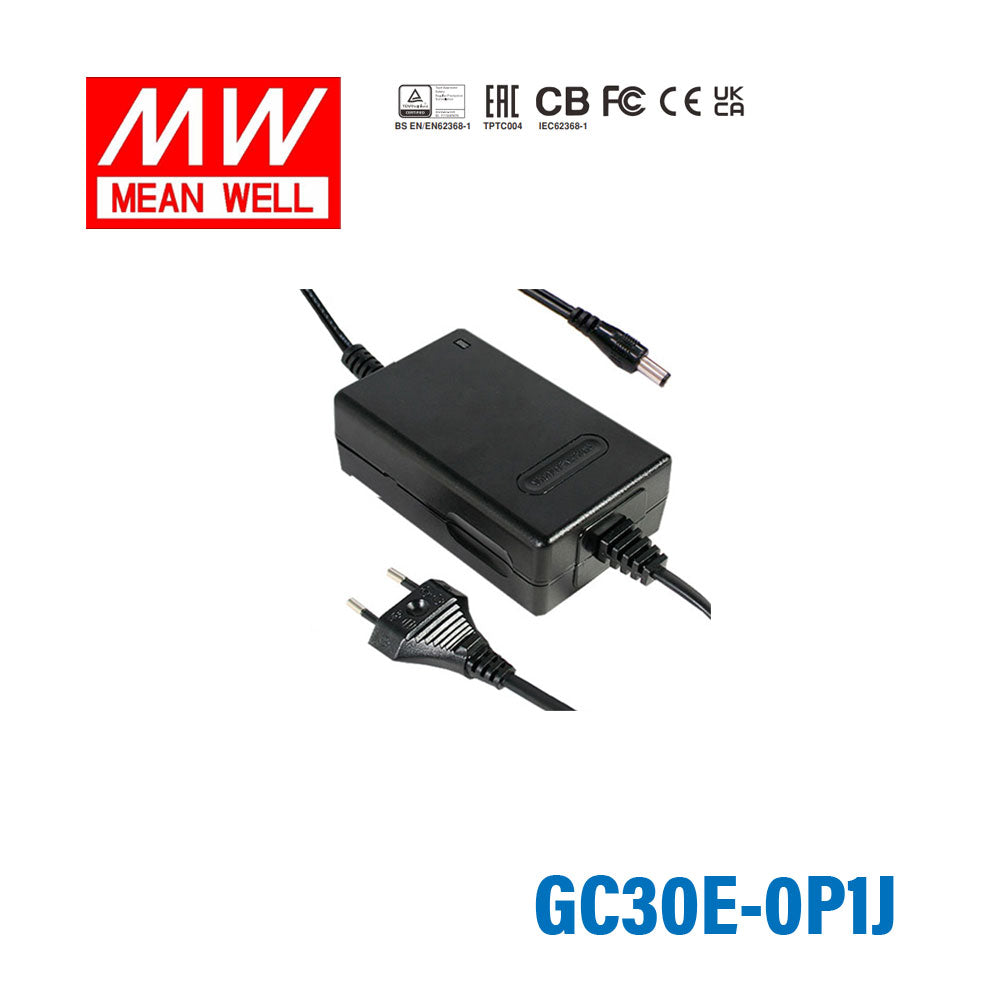

Mean Well GC30E-0P1J Portable Chargers 16.8W 4.2V 4A - Green Adaptor
Log in to see priceOverview
GC30E-0P1J is the model of this series: rated current 4A, rated power 16.8W, typical efficiency 55%.
Features
- Charger for lead-acid batteries (flooded, Gel and AGM) and li-ion batteries (lithium iron and lithium manganese) (Note.1)
- Universal AC input / Full range
- With EURO type 6 FT power cord(2pin)
- Class II power (without earth pin)
- No load power consumption <1.0W
- Constant current and voltage(CC,CV mode)
- Suitable for continue load
- For high surge current equipment
- Protections: Short circuit / Overload / Over voltage / Over temp.
- 2 colors LED indicate for loading status
- Fully enclosed plastic case
- High reliability
- Approvals: TUV / EAC / CB / FCC / CE / UKCA
- 2 years warranty
Specifications
OUTPUT
- SAFETY MODEL NO.
- GC30E-0
- DC VOLTAGE SET ATNote.3
- 4.2V
- RATED CURRENT
- 4A
- CURRENT RANGE
- 0 ~ 4A
- RATED POWER
- 16.8W
- RIPPLE & NOISE (max.)Note.4
- 50mVp-p
- CHARGING VOLTAGE RANGENote.5
- 3.6 ~ 4.4V
- LINE REGULATIONNote.6
- Β±1.0%
- LED INDICATOR
- Green LED ON < 100mA, Red LED ON > 250mA
- SETUP, RISE, HOLD UP TIME
- 200ms, 50ms, 16ms at full load
INPUT
- VOLTAGE RANGE
- 90 ~ 264VAC 127 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY (Typ.)
- 55%
- AC CURRENT
- 0.7A / 100VAC; 0.35A/ 230VAC
- INRUSH CURRENT (max.)
- 40A / 230VAC
- LEAKAGE CURRENT(max.)
- 0.25mA / 240VAC
PROTECTION
- OVERLOAD
- 90 ~ 110% Constant current mode and over 300% pulsing mode Protection type : Constant current limiting, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 110 ~ 135% rated output voltage Protection type : Clamp by zener diode
- OVER TEMPERATURE
- IC1_Tj > 130β Protection type : Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT
- WORKING TEMP.
- 0 ~ +50β(Refer to output load derating curve)
- WORKING HUMIDITY
- 20% ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -20 ~ +85β, 10 ~ 95% RH
- TEMP. COEFFICIENT
- Β±0.03% / β (0 ~ 50β)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- TUV BS EN/EN62368-1, EAC TP TC 004 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC
- ISOLATION RESISTANCE
- I/P-O/P:100M Ohms / 500VDC / 25β/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55014-1 class B, FCC part 15 Class B, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,11, light industry level, criteria A, EAC TP TC 020
OTHERS
- DIMENSION
- 108*67*36mm (L*W*H)
- PACKING
- 405g; 36pcs / 16.5kg / CARTON
CONNECTOR
- PLUG
- Standard type P1J: 2.1Ο * 5.5Ο * 11mm, tuning fork type center positive for stock ; Other type available by customer requested
- CABLE
- Standard type 18Awg UL1185 6ft and 4ft for 4.2V~8.4V output only for stock ; Other type available by customer requested
Test conditions and notes6
- 1.Modification for charger specification may be required for different battery specification. Please contact battery vendor and MEAN WELL for details.
- 2.All parameters are specified at 230VAC input, rated load, 25β 70% RH ambient.
- 3.DC voltage: The output voltage set at point measure by plug terminal & 0% load.
- 4.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.
- 5.Output charging voltage range is measured from 0% to 100% rated load.
- 6.Line regulation is measured from low line to high line at rated load.
Technical drawings
Downloads
Certificates8
Catalogues1
FAQ
What is the Mean Well GC30E-0P1J designed for?
The GC30E-0P1J is a portable 16.8W charger/power supply rated for 4.2V output at up to 4A. It is intended for battery charging applications and is described for use with lead-acid batteries including flooded, gel, and AGM types, as well as certain lithium-ion battery chemistries.
What are the main electrical ratings of the GC30E-0P1J?
This model is rated for 16.8W total output power with a 4.2V output and 4A rated current. It accepts a universal input range of 90 to 264VAC or 127 to 370VDC, which makes it suitable for use across a wide range of standard AC mains conditions.
Does the GC30E-0P1J include protection features?
Yes. Mean Well lists overload, over-voltage, and over-temperature protection for this model. The over-voltage protection clamps the output with a zener diode at 110% to 135% of rated voltage, while overload and over-temperature protection recover automatically.
Can this model be used in continuous-load applications?
The GC30E-0P1J is rated for 4A at 4.2V, with load derated at higher ambient temperatures according to the derating curve. It uses constant current and constant voltage charging, identified as CC and CV stages.
What operating environment is this charger rated for?
The specified working temperature range is 0 to 50 degrees C, with reference to the derating curve. Working humidity is 20% to 90% RH non-condensing, and storage is rated for -20 to +85 degrees C.
What certifications and compliance approvals does the GC30E-0P1J have?
The datasheet lists safety approval to TUV BS EN/EN62368-1 and EAC TP TC 004. It also lists EMC compliance to BS EN/EN55014-1 Class B, FCC Part 15 Class B, and EAC TP TC 020, with immunity to BS EN/EN61000-4-2,3,4,5,6,11.
What size and weight is the Mean Well GC30E-0P1J?
The housing dimensions are 108 x 67 x 36 mm. The listed weight is 405 g, which supports its positioning as a portable charger.
