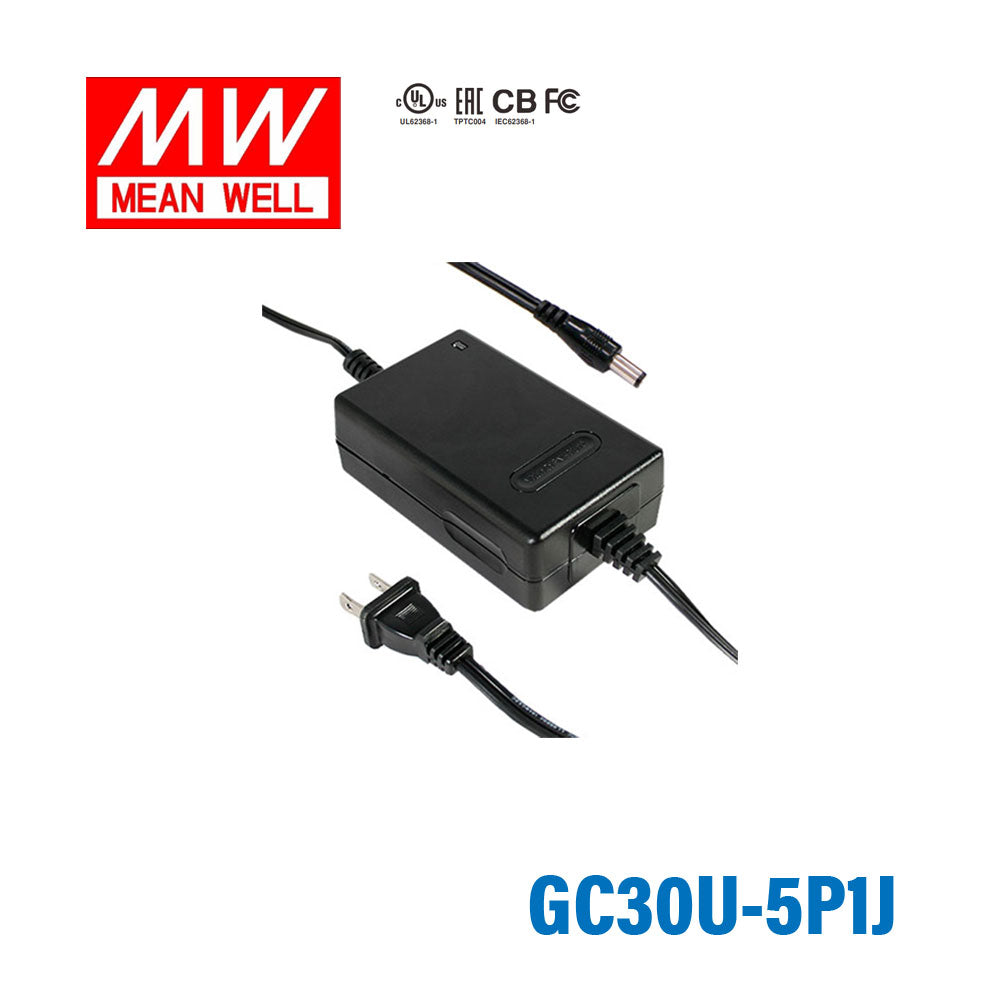

Mean Well GC30U-5P1J Portable Chargers 27W 16.8V 1.6A - Green Adaptor
Please Login for Pricing
Description
Description
The GC30U is a 30W Mean Well power converter (input range: 3.6~4.4V).
Key Features
- ✓ Input voltage range: 3.6~4.4V
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesGC Series
-
Power Rating27 Watt
-
Output Voltage16.8 Volt
-
Rated Current1.6 Ampere
-
Input Voltage90V~264V
-
Standards MetCB,CE,cUL,EAC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature0°C~50°C
-
Warranty2 Year
-
Length10.8 cm
-
Width6.7 cm
-
Height3.6 cm
-
Weight0.41 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What type of product is the Mean Well GC30U-5P1J?
The GC30U-5P1J is a portable AC/DC battery charger and power supply adapter from Mean Well. It is rated at 27W with a 16.8V output and 1.6A rated current, making it suitable for lower-power charging and power applications that match those specifications.
What battery chemistries is the GC30U-5P1J designed for?
This model is described as suitable for charging lead-acid batteries, including flooded, gel, and AGM types. It is also intended for certain lithium-ion battery types noted in the product data, specifically lithium iron and lithium manganese chemistries.
What are the output specifications of the GC30U-5P1J?
The GC30U-5P1J provides a 16.8V output at up to 1.6A, with a total power rating of 27W. It uses constant current and constant voltage operation, which is typical for controlled charging and stable DC output applications.
Is the GC30U-5P1J suitable for portable or field-use applications?
Yes, this model is positioned as a portable charger and uses a fully enclosed plastic case for durability in general-use environments. Its compact size of 108 x 67 x 36 mm and included 6 ft USA 2-pin power cord make it practical where a small external charger or adapter is preferred.
What operating environment is this charger rated for?
The specified working temperature range is 0°C to 50°C, with reference to the derating curve in the product documentation. That makes it appropriate for many indoor and light commercial environments, provided the application stays within the stated temperature limits.
What protection and safety features does the GC30U-5P1J include?
This model includes protection for short circuit, overload, over-voltage, and over-temperature conditions. It also carries approvals and standards listed in the product data, including UL62368-1, CSA22.2, EAC TP TC 004, FCC Class B, and CE-related EMC compliance.
How does the GC30U-5P1J compare with a general-purpose fixed power adapter?
Compared with a basic fixed-output adapter, the GC30U-5P1J is specifically described as a charger for supported battery chemistries and includes a 2-color LED charging status indicator. It also includes charging-oriented features such as CC/CV operation and multiple protection functions that are relevant for battery-charging use cases.
