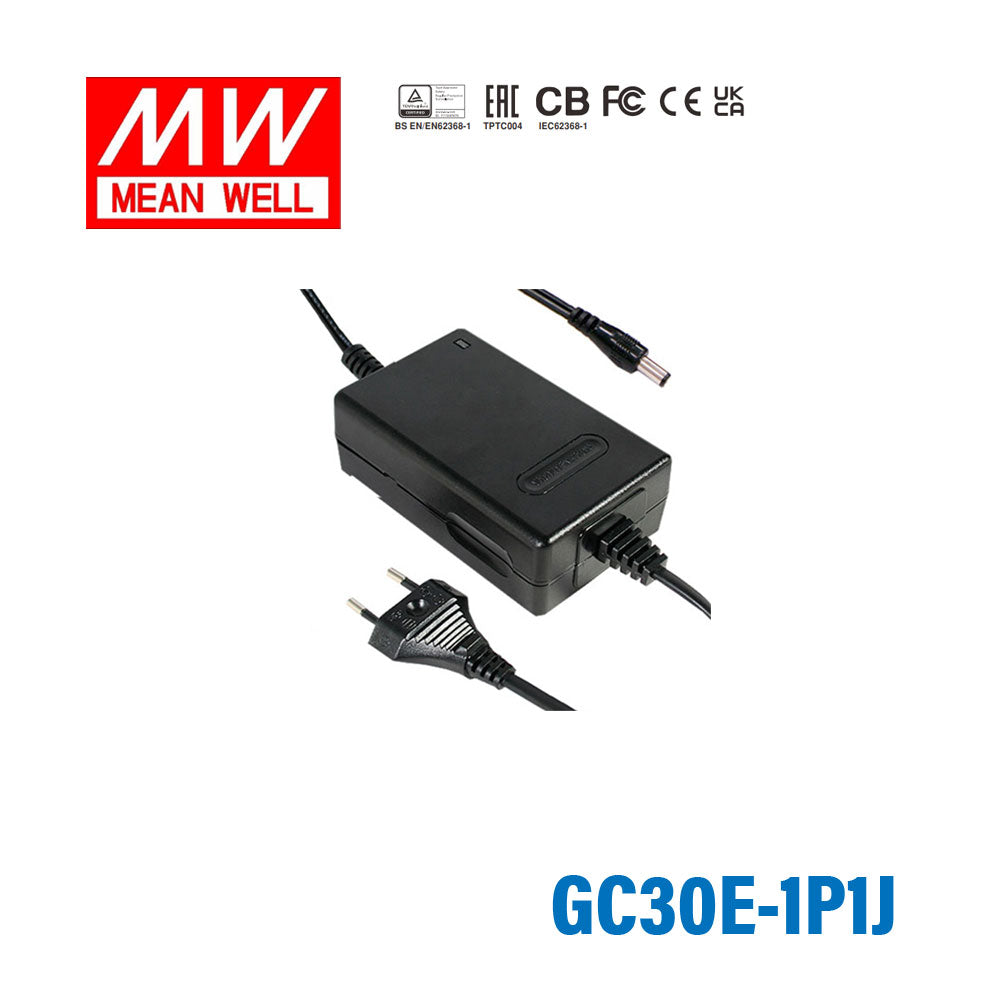

Mean Well GC30E-1P1J Portable Chargers 22.38W 5.6V 3.99A - Green Ad...
Please Login for Pricing
Description
Description
The GC30E is a 30W Mean Well power converter (input range: 3.6~4.4V).
Key Features
- ✓ Input voltage range: 3.6~4.4V
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Safety approvals: EN60950-1
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesGC Series
-
Power Rating22.38 Watt
-
Output Voltage5.6 Volt
-
Rated Current3.99 Ampere
-
Input Voltage90V~264V
-
Standards MetCB,CE,EAC,FCC,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature0°C~50°C
-
Warranty2 Year
-
Length10.8 cm
-
Width6.7 cm
-
Height3.6 cm
-
Weight0.41 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Mean Well GC30E-1P1J designed for?
The GC30E-1P1J is a portable charger and AC/DC adaptor rated at 22.38W with a 5.6V output and 3.99A rated current. It is intended for battery charging and power supply use in applications that need a compact enclosed unit with constant current and constant voltage operation.
Which battery chemistries is the GC30E-1P1J compatible with?
This model is described for use with lead-acid batteries including flooded, gel, and AGM types. It is also listed for Li-ion batteries including lithium iron and lithium manganese chemistries.
What are the main electrical specifications of the GC30E-1P1J?
This model provides 5.6V output at up to 3.99A, for a total power rating of 22.38W. It accepts a universal input range of 90 to 264VAC or 127 to 370VDC, which makes it suitable for broad AC input conditions.
Is the GC30E-1P1J suitable for portable or space-limited equipment?
Yes. The enclosure measures 108 x 67 x 36 mm and the unit weight is 0.405 kg, so it is relatively compact for portable charger applications. It also uses a fully enclosed plastic case and includes a 6FT Euro type 2-pin power cord.
What protection and safety features does the GC30E-1P1J include?
The GC30E-1P1J includes short circuit, overload, over-voltage, and over-temperature protection. It is also approved to standards including UL62368-1, CSA22.2, EAC TP TC 004, and lists EMC compliance including EN55022 Class B and FCC Part 15 Class B.
What operating environment is specified for the GC30E-1P1J?
The specified working temperature range is 0 to +50°C, with reference to the derating curve. This model is intended for use within that ambient range rather than extreme hot or sub-zero conditions.
How can buyers identify charging status on the GC30E-1P1J?
This model includes a 2-color LED indicator for charging status. That gives a simple visual status indication without requiring extra monitoring hardware on the charger itself.
