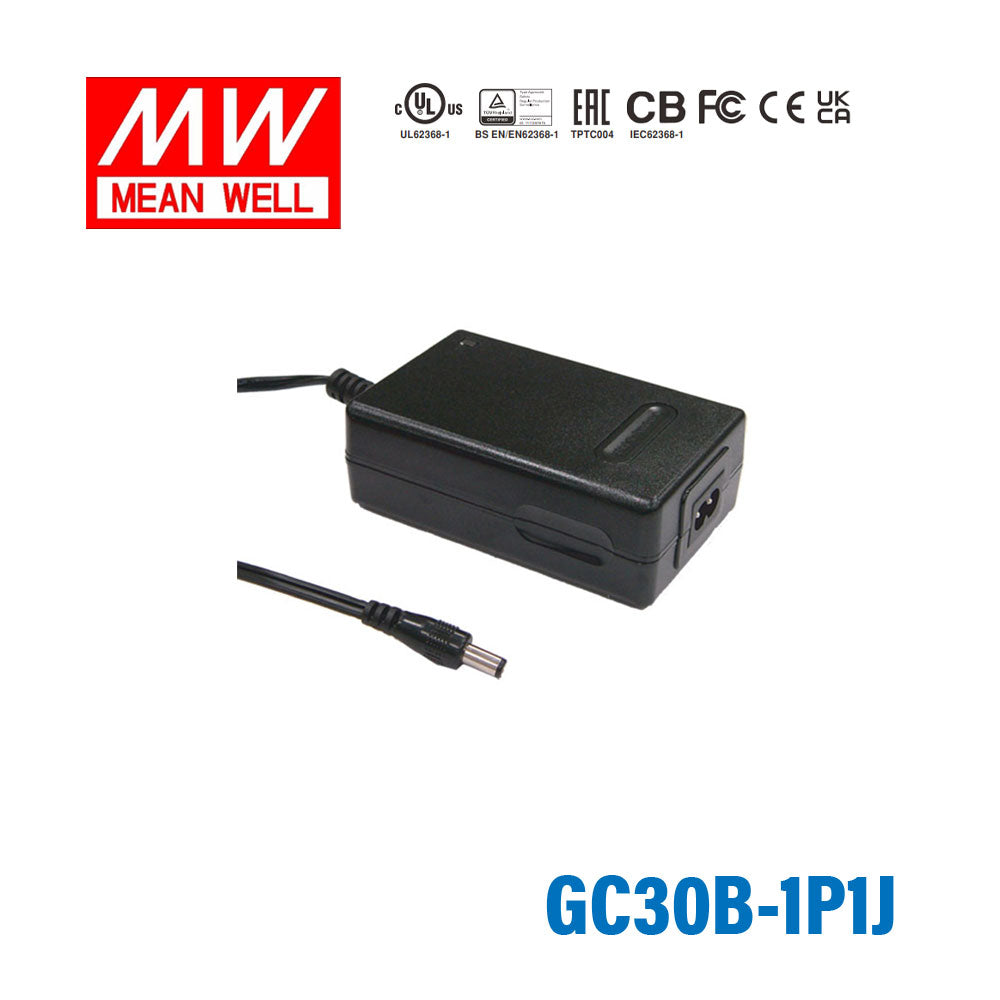

Mean Well GC30B-1P1J Portable Chargers 22.38W 5.6V 3.99A - Green Adaptor

The GC30B-1P1J is a portable charger and AC/DC power supply designed for charging lead-acid batteries, including flooded, gel, and AGM types, as well as certain lithium-ion battery chemistries noted by the manufacturer. It is intended for buyers who need a compact external power unit with constant current and constant voltage operation. Its 22.38W output is suited to lower-voltage applications requiring 5.6V and up to 3.99A.

This model is rated for 22.38W total output power. It provides 5.6V output and up to 3.99A rated current. These are the key electrical ratings to match against your equipment or charging requirements.

The GC30B-1P1J supports a universal input range of 90 to 264VAC, and it also accepts 127 to 370VDC. That wide range makes it suitable for use across many standard power environments. It is built for buyers who need flexibility across regions or facilities with varying input conditions.

Yes, the product description states that it is suitable for continued load. It also uses constant current and constant voltage operation, which is typical for stable charger and power supply performance. For industrial or commercial buyers, that makes it a practical option for ongoing operation within its rated limits.

The GC30B-1P1J includes protection for short circuit, overload, over voltage, and over temperature. The over-voltage protection is specified as 110% to 135%, with shut down and latch-off behavior until power is reapplied. These protections help support reliability in demanding operating environments.

This model is specified for operation from 0°C to 50°C, with reference to the manufacturer’s derating curve. That makes it appropriate for many indoor commercial and light industrial environments. Buyers should confirm the ambient conditions stay within that range for expected performance.

The listed dimensions are 108 x 67 x 36 mm, and the unit weight is 0.309 kg. Its enclosed plastic case and relatively light weight support portable use. This makes it easier to handle where space and mobility matter.

The product description lists approvals including TUV, UL, CUL, CB, FCC, and CE. The general specification also cites safety standards such as UL62368-1, CSA22.2, and EAC TP TC 004, along with EMC standards including EN55022 Class B and FCC Part 15 Class B. These certifications are relevant for buyers who need documented compliance for business or regulated purchasing.

The GC30B-1P1J includes a 2-year warranty. That provides a defined support period for buyers evaluating lifecycle and replacement planning. It is a straightforward option for organizations that want coverage from a recognized power supply brand.
