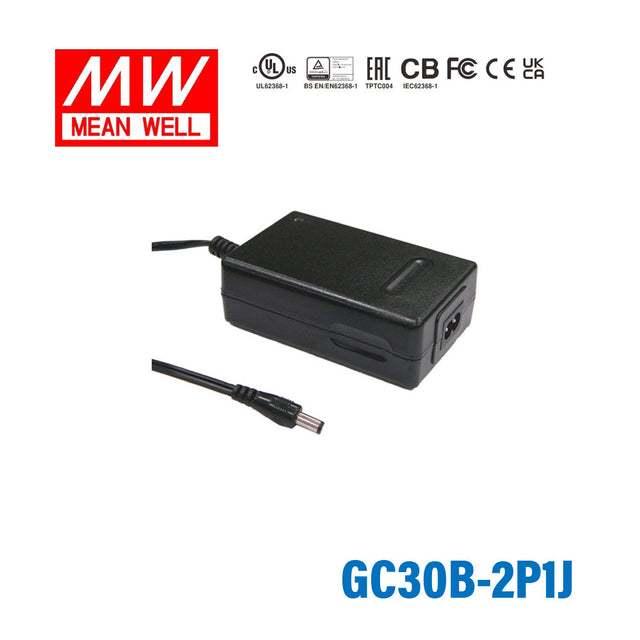

Mean Well GC30B-2P1J Portable Chargers 25.2W 8.4V 3A - Green Adaptor
Please Login for Pricing
Description
Description
The GC30B is a 30W Mean Well power converter (input range: 5~5.8V).
Key Features
- ✓ Input voltage range: 5~5.8V
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Safety approvals: UL60950-1, CSA22.2, EN60950-1
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesGC Series
-
Power Rating25.2 Watt
-
Output Voltage8.4 Volt
-
Rated Current3 Ampere
-
Input Voltage90V~264V
-
Standards MetCB,CE,cUL,EAC,FCC,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature0°C~50°C
-
Warranty2 Year
-
Length10.8 cm
-
Width6.7 cm
-
Height3.6 cm
-
Weight0.31 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What type of product is the Mean Well GC30B-2P1J?
The GC30B-2P1J is a portable AC/DC charger and power adaptor rated at 25.2W. It provides an 8.4V DC output at up to 3A in a compact enclosed plastic case.
What batteries or applications is the GC30B-2P1J intended for?
Mean Well lists this model for charging supported lead-acid batteries, including flooded, gel, and AGM types, as well as certain lithium-ion battery applications. Buyers should confirm that the battery system requires an 8.4V charger profile and matches this model's charging characteristics.
What are the key electrical specifications of the GC30B-2P1J?
This model is rated for 25.2W output with a nominal 8.4V DC output and 3A rated current. It accepts a universal input range of 90 to 264VAC or 127 to 370VDC and operates in constant current and constant voltage modes.
Is the GC30B-2P1J suitable for international AC input ranges?
Yes. Its universal AC input range of 90 to 264VAC makes it suitable for use across common global mains voltages, subject to local approvals and application requirements.
Can this charger be used in demanding operating environments?
The GC30B-2P1J is specified for operation from 0°C to 50°C, with derating referenced by the manufacturer. It also includes protection features for short circuit, overload, over-voltage, and over-temperature conditions.
What certifications and compliance approvals does this model have?
This charger includes approvals and compliance references such as TUV, UL, CUL, CB, FCC, and CE. The general specification also lists safety standards including UL62368-1 and CSA22.2, along with Class B EMC standards.
How compact is the Mean Well GC30B-2P1J for portable use?
The housing measures 108 x 67 x 36 mm and the unit weight is approximately 309 g. That makes it a compact option for portable charging applications where space and handling matter.
Does the GC30B-2P1J include a warranty and status indication?
Yes. Mean Well specifies a 2-year warranty for this model and includes a 2-color LED indicator to show charging status.
