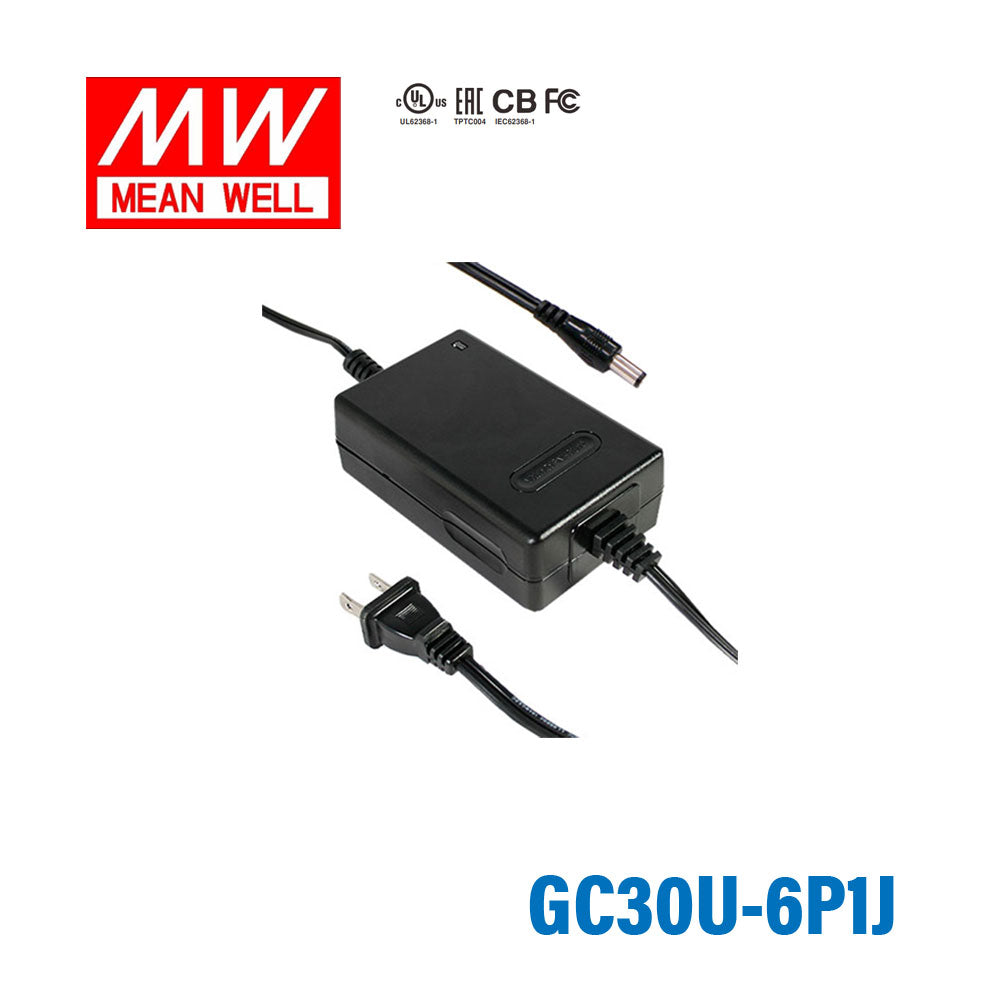

Mean Well GC30U-6P1J Portable Chargers 30W 28.6V 1.04A - Green Adaptor
Please Login for Pricing
Description
Description
The GC30U is a 30W Mean Well power converter (input range: 3.6~4.4V).
Key Features
- ✓ Input voltage range: 3.6~4.4V
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesGC Series
-
Power Rating30 Watt
-
Output Voltage28.6 Volt
-
Rated Current1.04 Ampere
-
Input Voltage90V~264V
-
Standards MetCB,CE,cUL,EAC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature0°C~50°C
-
Warranty2 Year
-
Length10.8 cm
-
Width6.7 cm
-
Height3.6 cm
-
Weight0.41 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Mean Well GC30U-6P1J designed for?
The GC30U-6P1J is a 30W portable charger and power supply intended for battery-charging applications. It is designed for lead-acid batteries, including flooded, gel, and AGM types, as well as certain lithium-ion battery chemistries noted in the product data.
What are the output voltage and rated current of this model?
This model provides a 28.6V output and a rated current of 1.04A. Its maximum power rating is 30W, which places it in the compact portable charger category.
What battery types is the GC30U-6P1J compatible with?
According to the product description, this charger supports lead-acid batteries such as flooded, gel, and AGM. It also supports specified lithium-ion battery types including lithium iron and lithium manganese chemistries.
Can this charger be used in different AC input environments?
Yes. The GC30U-6P1J has a universal AC input range of 90 to 264VAC, and it also supports 127 to 370VDC input. That makes it suitable for use across a wide range of standard power environments.
What protection features are included on the GC30U-6P1J?
This model includes short circuit, overload, over-voltage, and over-temperature protection. The over-voltage protection is specified as a shutdown with latch-off behavior, with recovery after power is reapplied.
Is this a good choice for portable or space-limited applications?
Yes. The GC30U-6P1J has a compact enclosure measuring 108 x 67 x 36 mm and weighs about 0.405 kg, which makes it practical for portable use. Its enclosed plastic case and Class II design also suit applications where a small external charger is preferred.
What operating conditions and approvals does this charger have?
The specified working temperature range is 0 to 50 degrees C, subject to the derating guidance in the product data. It also carries multiple approvals and standards coverage, including UL62368-1, CSA22.2, EAC TP TC 004, FCC, CE, and TUV-related approvals listed in the description.
How can I tell the charging status on this model?
The GC30U-6P1J includes a 2-color LED indicator for charging status. This gives a quick visual status reference without needing extra accessories or monitoring equipment.
