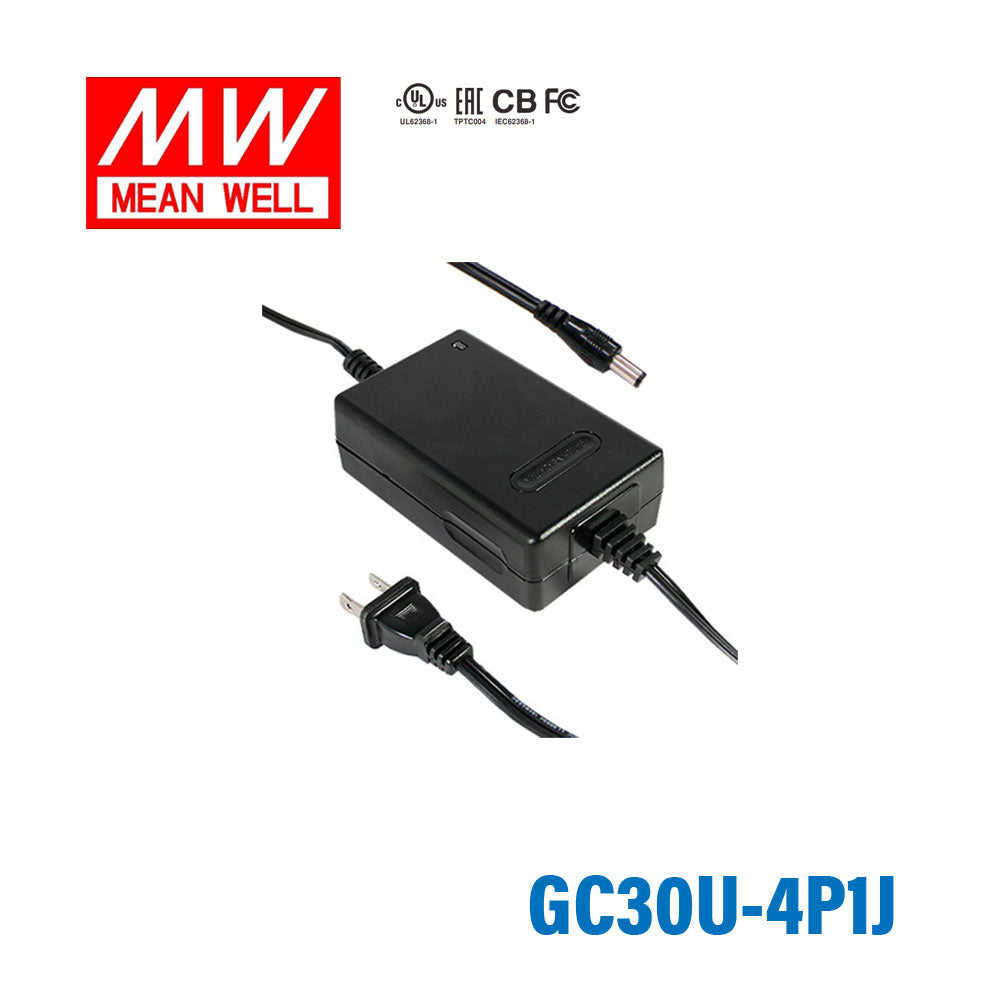

Mean Well GC30U-4P1J Portable Chargers 30W 14.3V 2.09A - Green Adaptor
Please Login for Pricing
Description
Description
The GC30U is a 30W Mean Well power converter (input range: 3.6~4.4V).
Key Features
- ✓ Input voltage range: 3.6~4.4V
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesGC Series
-
Power Rating30 Watt
-
Output Voltage14.3 Volt
-
Rated Current2.09 Ampere
-
Input Voltage90V~264V
-
Standards MetCB,CE,cUL,EAC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature0°C~50°C
-
Warranty2 Year
-
Length10.8 cm
-
Width6.7 cm
-
Height3.6 cm
-
Weight0.41 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What battery types is the Mean Well GC30U-4P1J designed for?
The GC30U-4P1J is designed for lead-acid batteries, including flooded, gel, and AGM types. It is also intended for certain lithium-ion battery chemistries listed by the manufacturer, including lithium iron and lithium manganese. Buyers should confirm the battery pack's required charging profile matches this model's 14.3V output.
What are the main electrical ratings of the GC30U-4P1J?
This model is rated at 30W with a 14.3V output and 2.09A rated current. It uses constant current and constant voltage charging behavior. The input range is universal at 90 to 264VAC, with 127 to 370VDC also supported.
Is the GC30U-4P1J suitable for portable or field use?
Yes, this is a portable charger in a compact enclosed plastic case measuring 108 x 67 x 36 mm. It weighs about 0.405 kg and includes a USA type 6-foot 2-pin power cord. Those features make it practical for mobile service kits, bench use, and portable charging applications.
Can this charger handle continuous use?
Yes, the manufacturer states that the GC30U-4P1J is suitable for continued load. It is also described as appropriate for high surge current equipment. That makes it a fit for applications where steady, reliable charger operation is important.
What protections and status indicators does the GC30U-4P1J include?
This model includes protection for short circuit, overload, over voltage, and over temperature. It also has a 2-color LED indicator for charging status. These features help support safer operation and quick visual status checks.
What operating environment is the GC30U-4P1J rated for?
The specified working temperature range is 0 to 50 degrees C. It is built as a Class II unit without an earth pin and has a fully enclosed plastic case. For compliance-sensitive environments, it also carries approvals including TUV, UL, CUL, CB, FCC, and CE.
