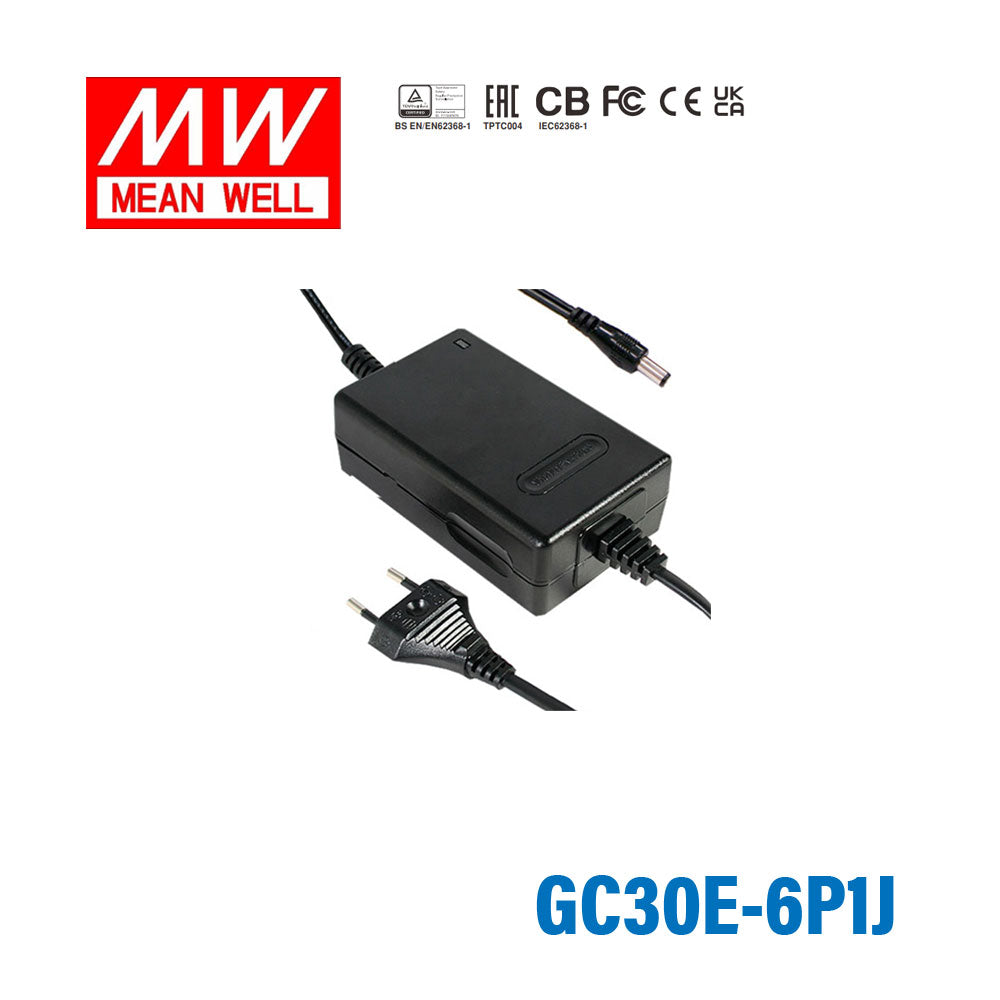

Mean Well GC30E-6P1J Portable Chargers 30W 28.6V 1.04A - Green Adaptor
Please Login for Pricing
Description
Description
The GC30E is a 30W Mean Well power converter (input range: 3.6~4.4V).
Key Features
- ✓ Input voltage range: 3.6~4.4V
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Safety approvals: EN60950-1
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesGC Series
-
Power Rating30 Watt
-
Output Voltage28.6 Volt
-
Rated Current1.04 Ampere
-
Input Voltage90V~264V
-
Standards MetCB,CE,EAC,FCC,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature0°C~50°C
-
Warranty2 Year
-
Length10.8 cm
-
Width6.7 cm
-
Height3.6 cm
-
Weight0.41 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Mean Well GC30E-6P1J designed for?
The GC30E-6P1J is a 30W portable charger and power adaptor intended for battery charging and related low-power DC applications. It is part of Mean Well's GC series and provides a regulated 28.6V DC output at up to 1.04A.
What battery types is the GC30E-6P1J suitable for?
This model is specified for charging lead-acid batteries including flooded, gel, and AGM types. It is also listed for certain lithium-ion battery chemistries, including lithium iron and lithium manganese.
What are the output ratings of the GC30E-6P1J?
The GC30E-6P1J is rated for 30W output power. Its nominal output is 28.6V DC with a rated current of 1.04A, making it suitable for applications that require that charging voltage and current level.
Is this charger suitable for portable or field use?
Yes, this model is built in a compact enclosed plastic case and weighs about 0.405 kg, which supports portable use. Its body size is 108 x 67 x 36 mm, so it is relatively easy to handle where a small charger is preferred.
What input range does the GC30E-6P1J support?
This charger accepts a universal AC input range of 90 to 264VAC, and it is also rated for 127 to 370VDC input. That wide input range makes it practical for use across different standard mains power environments.
What protection and compliance features does this model include?
The GC30E-6P1J includes protection for short circuit, overload, over-voltage, and over-temperature conditions. It is also listed with approvals including TUV, UL, CUL, CB, FCC, and CE, and the published safety standards include UL62368-1 and CSA22.2.
What operating environment is this charger rated for?
The specified working temperature range for the GC30E-6P1J is 0°C to 50°C, with reference to the derating curve. It is also designed with low no-load power consumption of less than 1.0W and a fully enclosed case for dependable operation.
