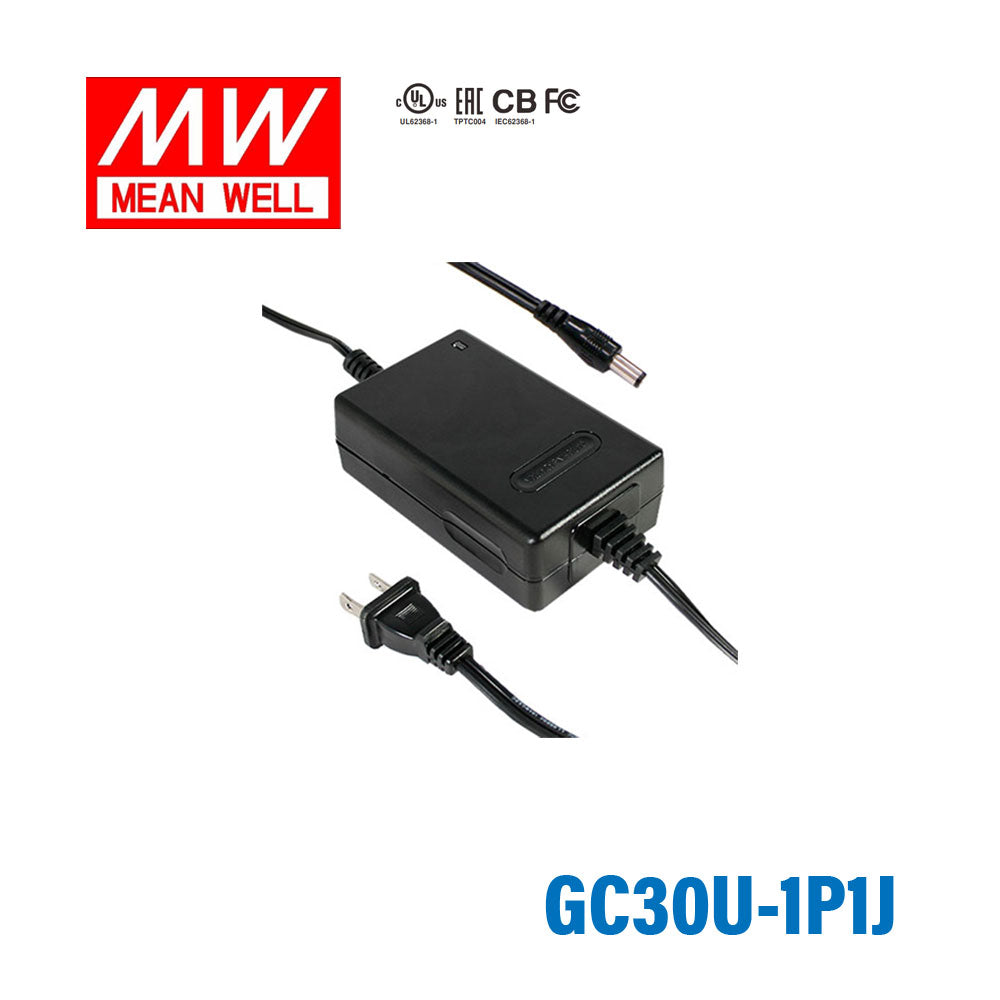

Mean Well GC30U-1P1J Portable Chargers 22.38W 5.6V 3.99A - Green Ad...
Please Login for Pricing
Description
Description
The GC30U is a 30W Mean Well power converter (input range: 3.6~4.4V).
Key Features
- ✓ Input voltage range: 3.6~4.4V
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesGC Series
-
Power Rating22.38 Watt
-
Output Voltage5.6 Volt
-
Rated Current3.99 Ampere
-
Input Voltage90V~264V
-
Standards MetCB,CE,cUL,EAC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature0°C~50°C
-
Warranty2 Year
-
Length10.8 cm
-
Width6.7 cm
-
Height3.6 cm
-
Weight0.41 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Mean Well GC30U-1P1J designed for?
The GC30U-1P1J is a portable charger and power adaptor designed for battery-charging and power-supply applications. Mean Well lists it for lead-acid batteries, including flooded, gel, and AGM types, and for certain lithium-ion battery chemistries noted in the product description. Its compact enclosed case and 22.38W output make it suited to light portable and bench-style use.
What are the output ratings of the GC30U-1P1J?
This model is rated for 5.6V output at up to 3.99A, with a total power rating of 22.38W. It also uses constant current and constant voltage operation, which is specified as CC/CV mode. Those ratings make it important to match against equipment or battery systems designed for this output level.
Does the GC30U-1P1J support global input power?
Yes. The unit has a universal AC input range of 90 to 264VAC and also supports 127 to 370VDC input. That wide input range makes it suitable for use across standard power systems in multiple regions.
What protections are included in the GC30U-1P1J?
The GC30U-1P1J includes short circuit, overload, over-voltage, and over-temperature protection. The over-voltage protection is specified as a shutdown and latch-off response, with recovery after re-powering the unit. These built-in safeguards help protect both the charger and connected equipment under fault conditions.
Can this charger be used continuously in normal operation?
Yes. Mean Well states that the GC30U-1P1J is suitable for continued load, and it is also described as appropriate for high surge current equipment. That makes it a practical option where steady operation and reliable output are important.
What operating environment is the GC30U-1P1J rated for?
This model is rated for a working temperature range of 0°C to 50°C, with reference to the derating curve. It is housed in a fully enclosed plastic case and is built as a Class II unit without an earth pin. Buyers using it in warmer environments should verify their application stays within the stated operating range.
What approvals and warranty does the GC30U-1P1J have?
The product description lists approvals including TUV, UL, CUL, CB, FCC, and CE, and the general specification also cites UL62368-1, CSA22.2, and EAC TP TC 004 approval. EMC compliance includes EN55022 Class B and FCC Part 15 Class B among other listed standards. Mean Well specifies a 2-year warranty for this model.
