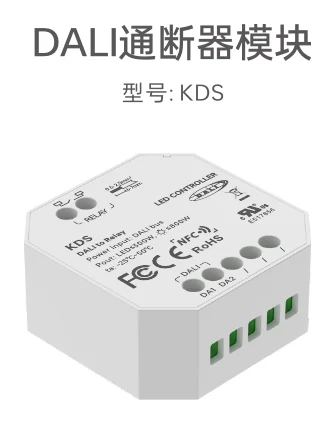

Ltech KDS 800W DALI-2 LED Controller

DALI-25A800W

SKU KDS

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

Features

Built-in Omron relay, stable and reliable, can be used as a switch to control lighting equipment.
Integrated design combines power supply and communication, making installation more convenient.
Compact size compatible with European, American, and Chinese standard junction boxes, offering flexible installation options for various scenarios.
NFC programming allows for easy setup of DALI addresses, power status, and advanced DALI template settings, with simple operation.
Can be quickly assigned an address via a DALI master controller.

Specifications

KDSSpecifications from the official datasheetDownload datasheet PDF

Technical Specs

Model: KDS
Peak current: 30mA@16V
Static current: 2.5mA@16V
Power supply mode: DALI Bus power supply
Input signal: DALI-2
Output signal: Relay
Max. load current of the relay: 5A
Max. load parameters of the relay: Resistive load: 800W@230Vac，400W@110Vac，200W@48Vdc Capacitive load: 300W@230Vac，150W@110Vac，100W@48Vdc
Switch maximum voltage: AC: 250V，DC: 48V
Relay surge current: 70A@10ms
Working temperature: -25°C~50°C

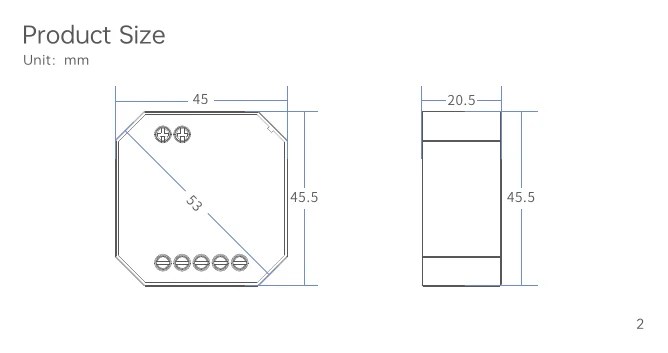

Product size: L45×W45.5×H20.5(mm)
Product weight: 30g
Standards: UL 8750、EN 61347-2-13:2014+A1:2017、EN 61347-1:2015+A1:2021、EN 62493:2015/A1:2022、 IEC62386-101、IEC62386-102、IEC62386-208

Protection

Protection: not lightningproof non-waterproof(special models excepted)

Others

Warranty periods: 5 years

Certifications & ratings

Certification marks: CE, RoHS, FCC, cRUus, DALI

Technical drawings

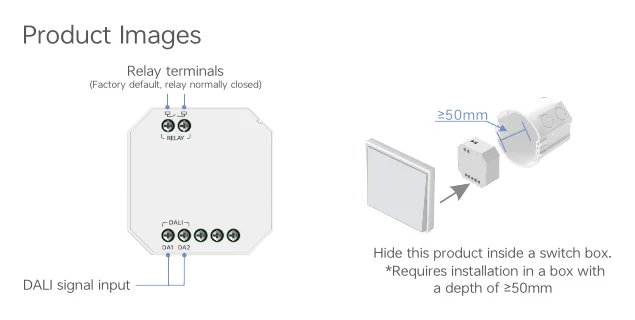

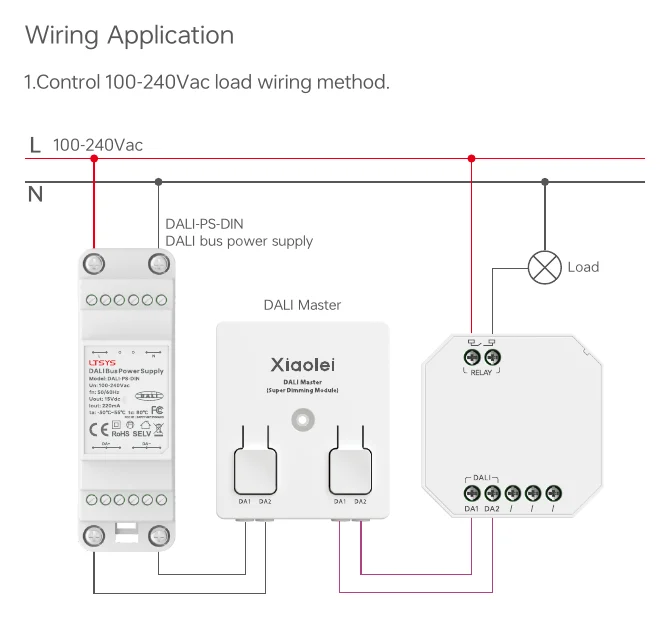

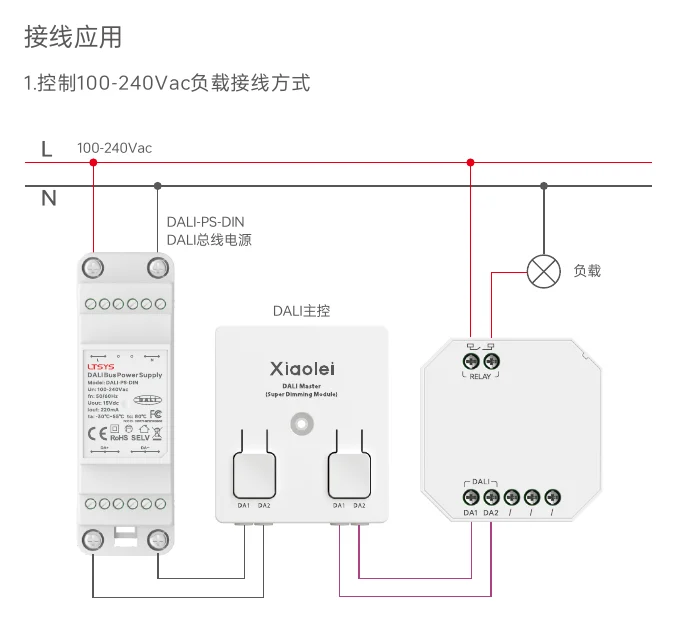

KDS Wiring Application — Wiring Application

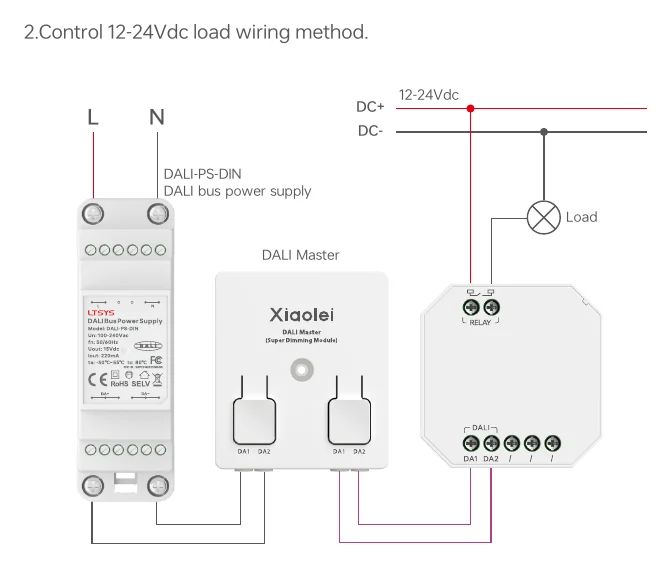

KDS 2.Control 12-24Vdc load wiring method. — 2.Control 12-24Vdc load wiring method.

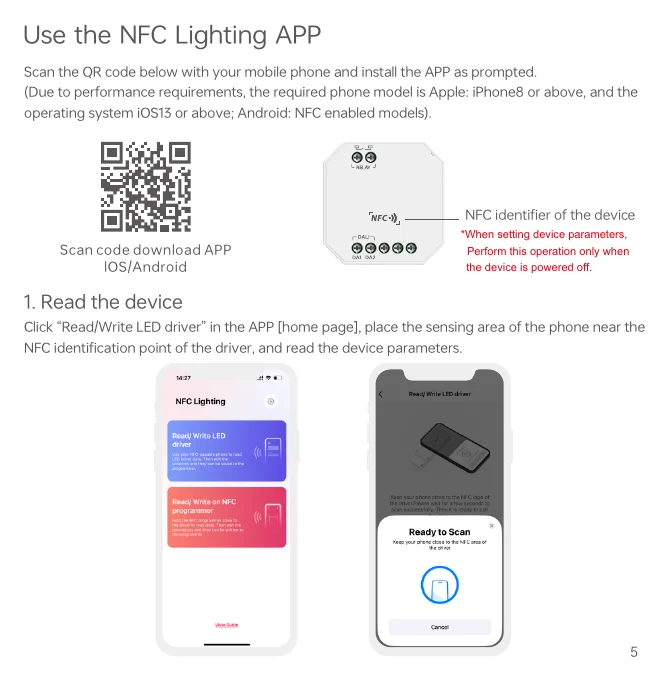

KDS Use the NFC Lighting APP — Use the NFC Lighting APP

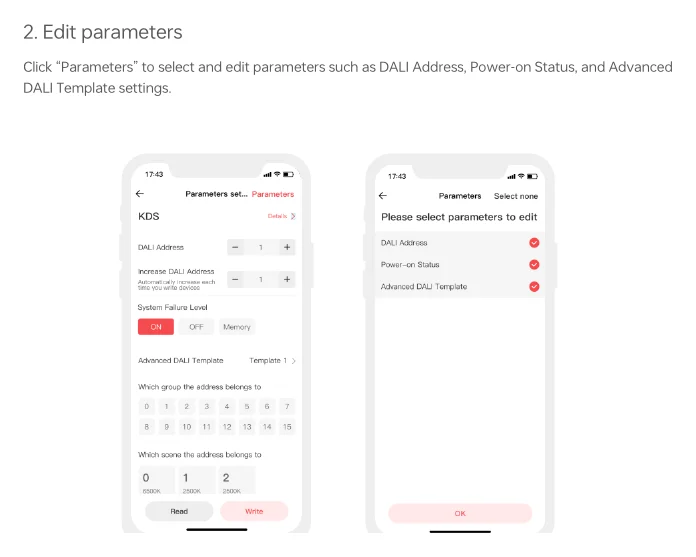

KDS 2. Edit parameters — 2. Edit parameters

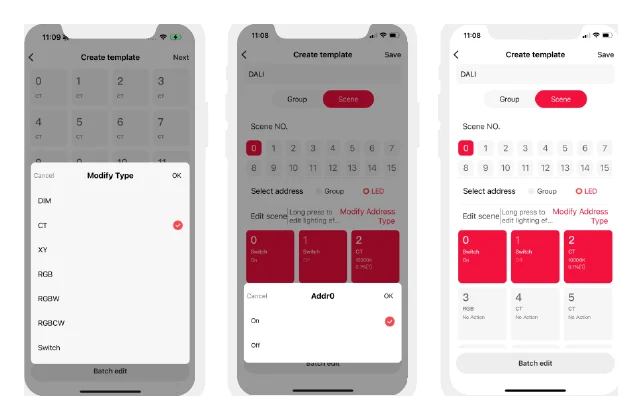

KDS 3. Advanced DALI template settings — 3. Advanced DALI template settings

KDS Illustration (page 12) — Illustration (page 12)

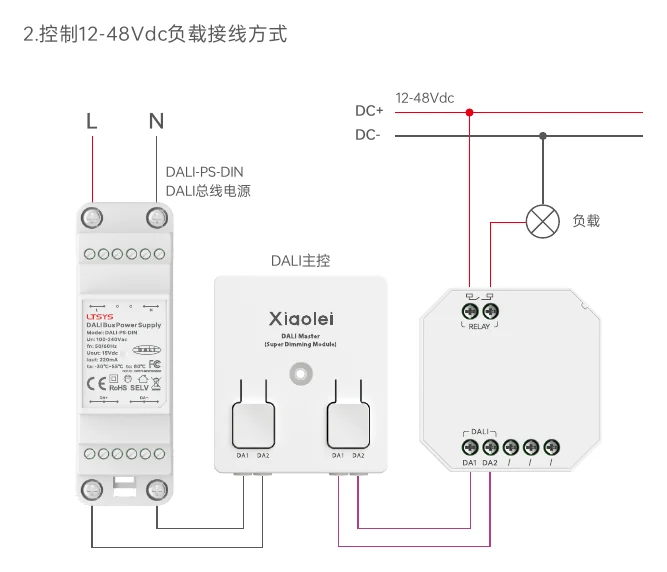

KDS 2.控制12-48Vdc负载接线方式 — 2.控制12-48Vdc负载接线方式

Downloads

Datasheet1

KDS datasheetKDS.pdf PDF Download

FAQ

What is the Ltech KDS?

The Ltech KDS is a DALI-2 LED controller that uses a relay output to switch loads. It is powered directly by the DALI bus.

What is the maximum load capacity?

The relay supports a maximum load current of 5A. For resistive loads, it handles up to 800W at 230Vac, 400W at 110Vac, or 200W at 48Vdc.

How is the device controlled?

It uses the DALI-2 input signal for control and is powered by the DALI bus. The output is a relay switch.

What are the operating conditions?

The working temperature range is -25°C to 50°C. The unit is not waterproof or lightningproof, so it must be installed in a protected indoor environment.

What are the physical dimensions?

The product size is L45 × W45.5 × H20.5 mm, and it weighs 30g.

Which certifications does it have?

It carries CE, RoHS, FCC, cRUus, and DALI certification marks, complying with standards such as IEC62386-101, IEC62386-102, and IEC62386-208.

What is the warranty period?

The Ltech KDS comes with a 5-year warranty.
