Ltech

Ltech KDS-C 800W DALI-2 LED Controller

DALI-25A800W
SKU KDS-C
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

Features

  • Built-in relay, stable and reliable, can be used as a switch to control lighting equipment.
  • Integrated design combines power supply and communication, making installation more convenient.
  • Compact size compatible with European, American, and Chinese standard junction boxes, offering flexible installation options for various scenarios.
  • NFC programming allows for easy setup of DALI addresses, power status, and advanced DALI template settings, with simple operation.
  • Can be quickly assigned an address via a DALI master controller.

Specifications

KDS-CSpecifications from the official datasheetDownload datasheet PDF

Technical Specs

Model
KDS-C
Peak current
30mA@16V
Static current
2.5mA@16V
Power supply mode
DALI Bus power supply
Input signal
DALI-2
Output signal
Relay
Max. load current of the relay
5A
Max. load parameters of the relay
Resistive load: 800W@230Vac，400W@110Vac，200W@48Vdc Capacitive load: 300W@230Vac，150W@110Vac，100W@48Vdc
Switch maximum voltage
Max.250Vac，Max.48Vdc
Relay surge current
70A@10ms
Working temperature
-25Β°C~50Β°C
Product size
L45Γ—W45.5Γ—H20.5(mm)
Product weight
30g
Standards
EN 61347-2-13:2014+A1:2017、EN 61347-1:2015+A1:2021、 EN 62493:2015/A1:2022、 IEC62386-101、IEC62386-102、IEC62386-208

Protection

Protection
not lightningproof non-waterproof(special models excepted)

Others

Warranty periods
5 years

Certifications & ratings

Certification marks
CE, RoHS, FCC, DALI

Technical drawings

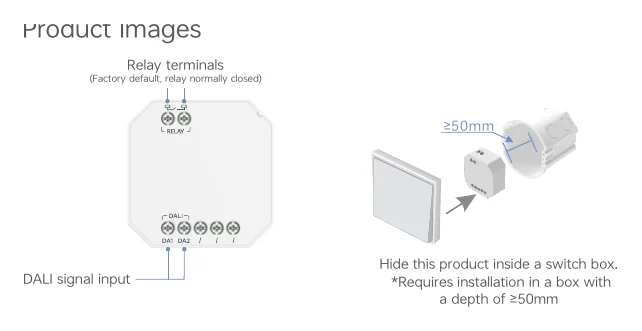

KDS-C Hide this product inside a switch box.
Hide this product inside a switch box.

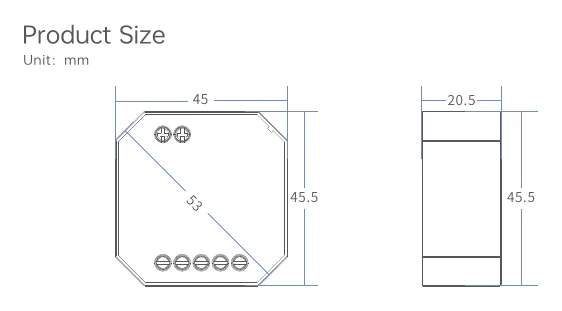

KDS-C Product Size
Product Size

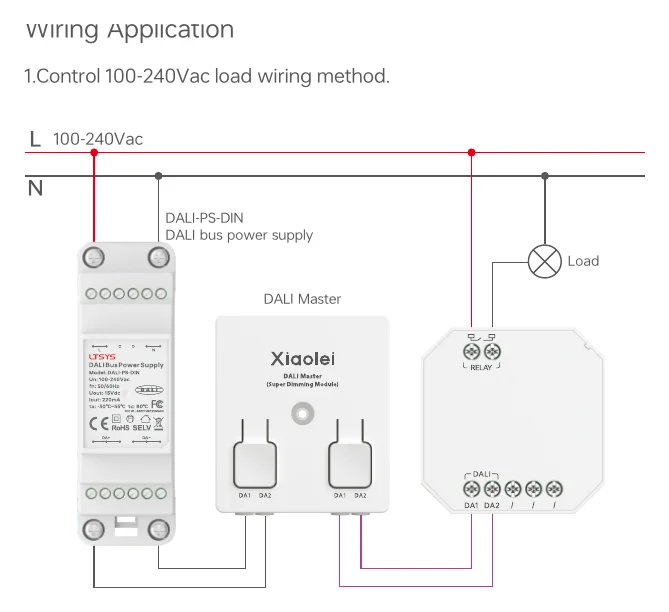

KDS-C Wiring Application
Wiring Application

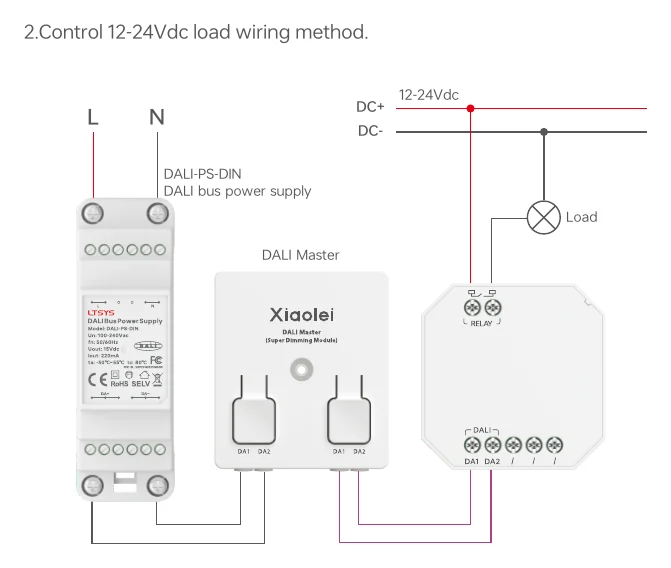

KDS-C 2.Control 12-24Vdc load wiring method.
2.Control 12-24Vdc load wiring method.

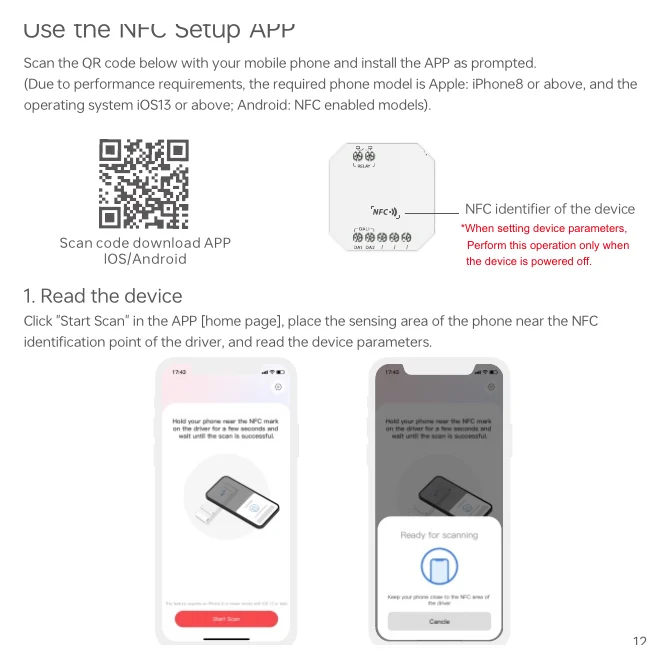

KDS-C 1. Read the device
1. Read the device

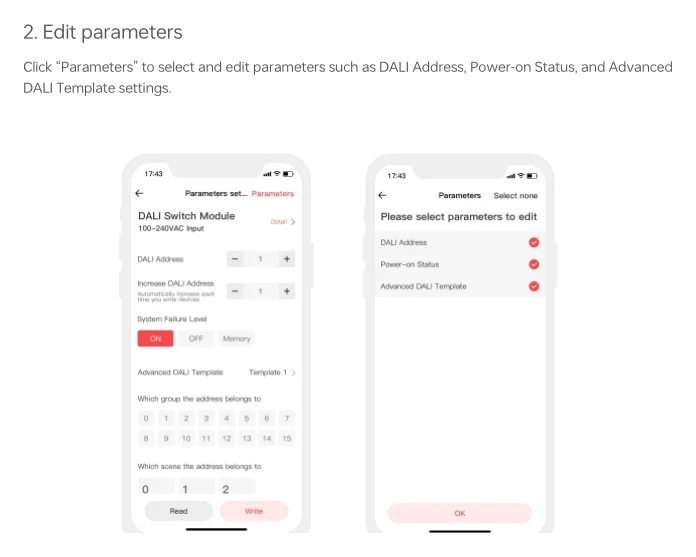

KDS-C 2. Edit parameters
2. Edit parameters

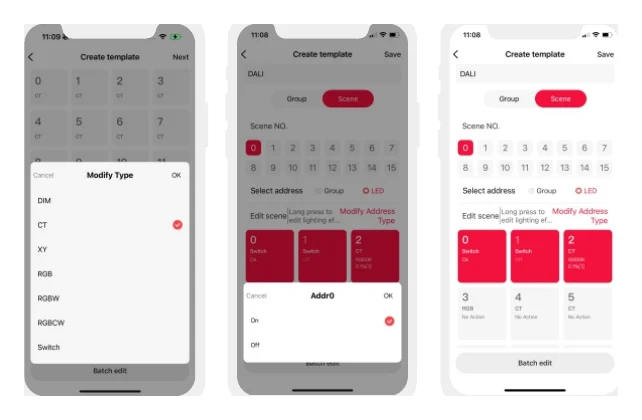

KDS-C 3. Advanced DALI template settings
3. Advanced DALI template settings

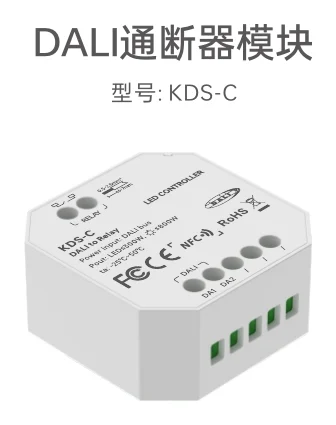

KDS-C DALIι€šζ–­ε™¨ζ¨‘ε—
DALIι€šζ–­ε™¨ζ¨‘ε—

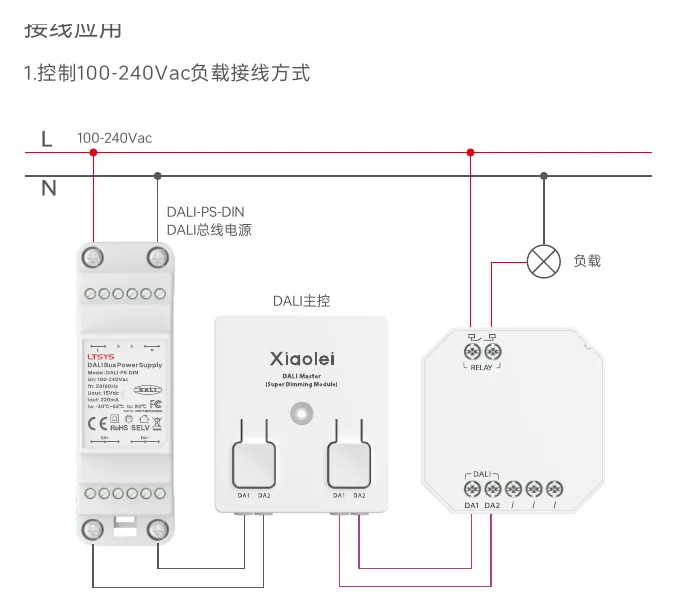

KDS-C 1.控刢100-240Vac负载ζŽ₯线方式
1.控刢100-240Vac负载ζŽ₯线方式

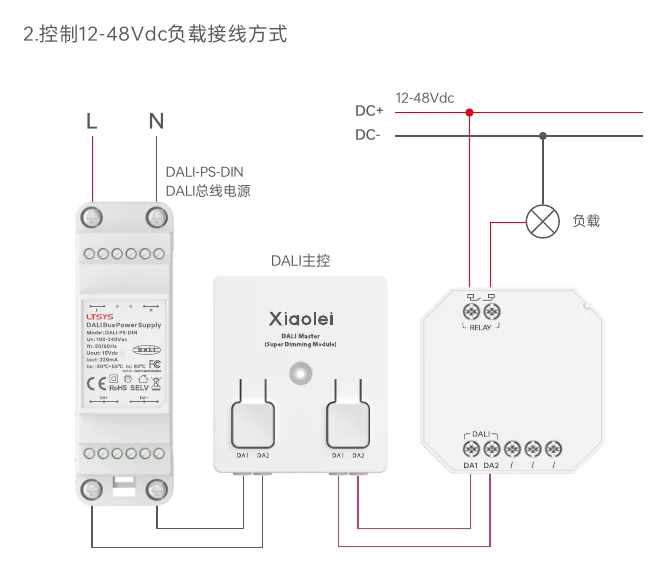

KDS-C 2.控刢12-48Vdc负载ζŽ₯线方式
2.控刢12-48Vdc负载ζŽ₯线方式

Downloads

FAQ

What is the KDS-C used for?

The KDS-C is a DALI-2 controller that receives digital signals and controls connected loads via a built-in relay output.

How is the KDS-C powered?

It is powered directly by the DALI bus, requiring no separate power supply connection.

What is the maximum load the relay can switch?

The relay supports a maximum load current of 5A. For resistive loads, it handles up to 800W at 230Vac, 400W at 110Vac, or 200W at 48Vdc.

What are the maximum switching voltages?

The relay can switch up to 250Vac or 48Vdc.

What is the operating temperature range?

The device operates reliably in temperatures ranging from -25Β°C to 50Β°C.

Is the KDS-C waterproof or lightning-proof?

No, the standard model is not waterproof or lightning-proof. It is designed for indoor use unless a special model is specified.

What is the warranty period?

The KDS-C comes with a 5-year warranty.
