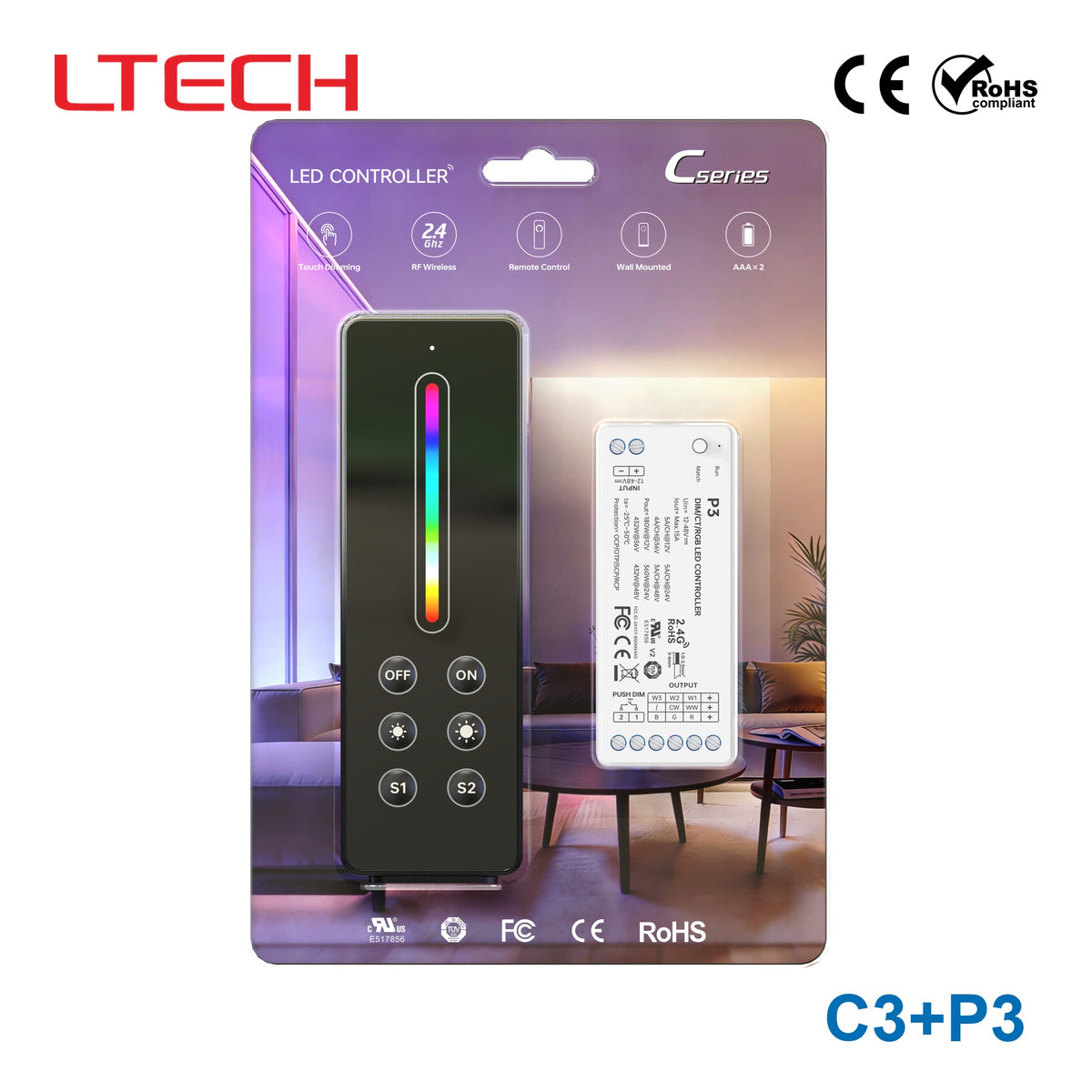

Ltech C3+P3 LED Controller

LED controller
SKU C3+P3
Log in to see price Trade pricing & online ordering for account holders

Request a quote for one or many products — we'll reply with pricing and availability.

Available to order
|

Overview

Features

  • Featuring a streamlined design and magnetic attachment, it is powered by two AAA batteries ;
  • Utilizes 2.4 GHz RF wireless transmission for stable signals and strong interference resistance;
  • Compatible with P-series and F-series controllers;
  • Equipped with a dedicated on/off button for one-touch lighting control;
  • Quickly adjust color using the color temperature and color touch sliders;
  • Press the brightness button briefly to adjust the brightness across 11 levels; press and hold for continuous dimming;
  • Pre-programmed with 2 scene modes for quick access, and custom scenes can be saved by holding down the button;
  • A single controller can be paired with up to 10 remotes, and a single remote control can be used with multiple controllers;
  • Supports synchronized dimming for controller groups.

Specifications

C3+P3Specifications from the official datasheetDownload datasheet PDF

Technical Specifications

Model
C3
Area Control
Single zone
Dimming Type
RGB
Wireless Type
RF 2.4GHz
Power Supply
3Vdc (AAA batteries × 2) Note: Batteries must be purchased separately.
Standby Current
<5uA
Compatible Controllers
P3 / P4 / P5/F4-3A / F4-5A / F4-DMX-5A / F5-DMX-4A
Operating Temperature
-25℃~50℃
Product Weight
Remote control: 62 g; Mount: 12 g
Dimensions
Remote control: L150 × W48 × H15.5 mm; Mount: L85 × W35 × H20 mm

Others

Warranty periods
5 years

Certifications & ratings

Certification marks
CE, FCC, RoHS

Technical drawings

C3+P3 Dimensions
Dimensions
C3+P3 Button Functions
Button Functions
C3+P3 Wiring Diagram
Wiring Diagram
C3+P3 For use with P-series controllers
For use with P-series controllers
C3+P3 Clear Code
Clear Code
C3+P3 Use the Remote Controls Together
Use the Remote Controls Together

Downloads

FAQ

What is the Ltech C3+P3 used for?

It is a wireless remote control and mount kit for single-zone RGB LED controllers, allowing you to adjust color and brightness via RF 2.4GHz.

Which controllers does the C3 remote work with?

It is compatible with P3, P4, P5/F4-3A, F4-5A, F4-DMX-5A, and F5-DMX-4A controllers.

How is the remote powered?

It uses 3Vdc from two AAA batteries. Please note that batteries are not included and must be purchased separately.

How do I mount the remote?

The kit includes a dedicated mount (L85 × W35 × H20 mm) for easy wall or surface installation, keeping the remote accessible.

What is the operating temperature range?

The device operates safely in temperatures ranging from -25°C to 50°C.

Does the C3+P3 have safety certifications?

Yes, it carries CE, FCC, and RoHS certification marks.

What is the warranty period?

The product comes with a 5-year warranty.
