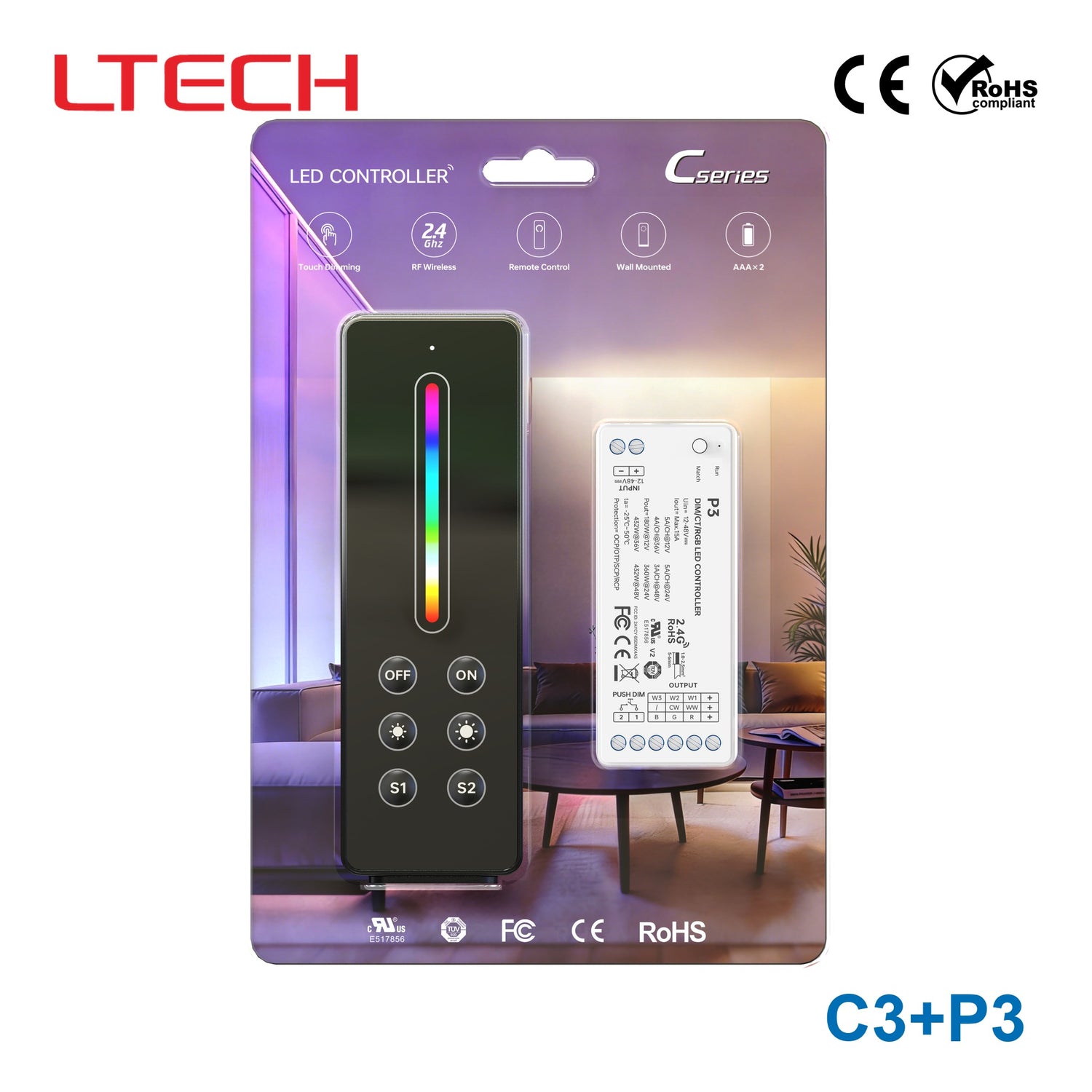

Ltech C3+P3 LED Controller

LED controller

SKU C3+P3

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

Features

Featuring a streamlined design and magnetic attachment, it is powered by two AAA batteries ;
Utilizes 2.4 GHz RF wireless transmission for stable signals and strong interference resistance;
Compatible with P-series and F-series controllers;
Equipped with a dedicated on/off button for one-touch lighting control;
Quickly adjust color using the color temperature and color touch sliders;
Press the brightness button briefly to adjust the brightness across 11 levels; press and hold for continuous dimming;
Pre-programmed with 2 scene modes for quick access, and custom scenes can be saved by holding down the button;
A single controller can be paired with up to 10 remotes, and a single remote control can be used with multiple controllers;
Supports synchronized dimming for controller groups.

Specifications

C3+P3Specifications from the official datasheetDownload datasheet PDF

Technical Specifications

Model: C3
Area Control: Single zone
Dimming Type: RGB
Wireless Type: RF 2.4GHz
Power Supply: 3Vdc (AAA batteries × 2) Note: Batteries must be purchased separately.
Standby Current: ＜5uA
Compatible Controllers: P3 / P4 / P5/F4-3A / F4-5A / F4-DMX-5A / F5-DMX-4A
Operating Temperature: -25℃~50℃
Product Weight: Remote control: 62 g; Mount: 12 g
Dimensions: Remote control: L150 × W48 × H15.5 mm; Mount: L85 × W35 × H20 mm

Others

Warranty periods: 5 years

Certifications & ratings

Certification marks: CE, FCC, RoHS

Technical drawings

C3+P3 Button Functions — Button Functions

C3+P3 For use with P-series controllers — For use with P-series controllers

C3+P3 Use the Remote Controls Together — Use the Remote Controls Together

Downloads

Datasheet1

C3+P3 datasheetC3_P3.pdf PDF Download

FAQ

What is the Ltech C3+P3 used for?

It is a wireless remote control and mount kit for single-zone RGB LED controllers, allowing you to adjust color and brightness via RF 2.4GHz.

Which controllers does the C3 remote work with?

It is compatible with P3, P4, P5/F4-3A, F4-5A, F4-DMX-5A, and F5-DMX-4A controllers.

How is the remote powered?

It uses 3Vdc from two AAA batteries. Please note that batteries are not included and must be purchased separately.

How do I mount the remote?

The kit includes a dedicated mount (L85 × W35 × H20 mm) for easy wall or surface installation, keeping the remote accessible.

What is the operating temperature range?

The device operates safely in temperatures ranging from -25°C to 50°C.

Does the C3+P3 have safety certifications?

Yes, it carries CE, FCC, and RoHS certification marks.

What is the warranty period?

The product comes with a 5-year warranty.
