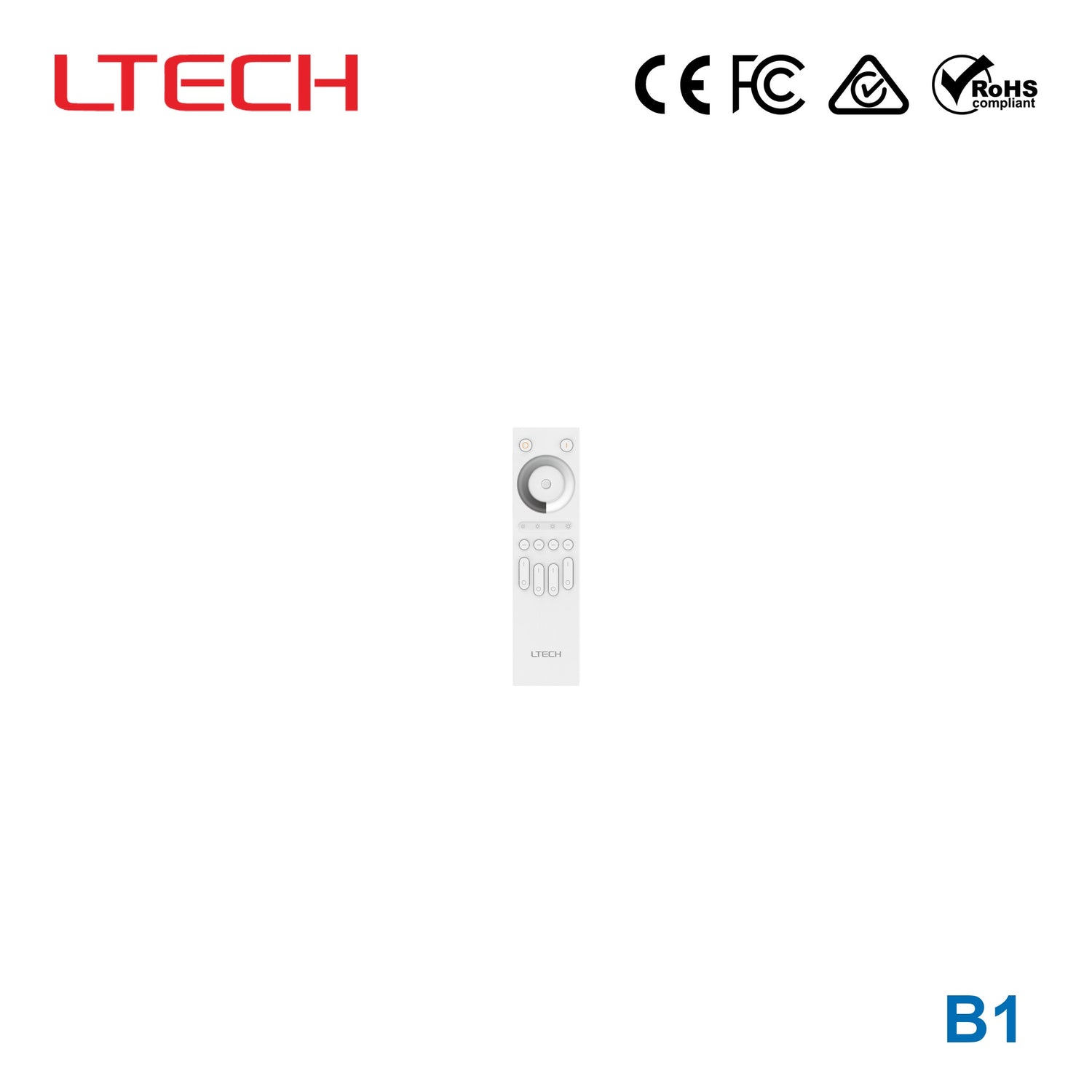

Ltech B1 Bluetooth LED Controller

Bluetooth

SKU B1

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

Features

Bluetooth 5.2 SIG Mesh communication protocol, with strong networking capabilities and reliable and stable local control;
Supports use with LED controller B5-3A and intelligent touch panels EB1/EB2/EB5 to achieve intelligent lighting control;
When paired with Bluetooth lighting fixtures, it enables control of light switching, dimming, and color adjustment;
Combined with a smart gateway, it can achieve local automation/cloud automation control methods;
Supports local scenes, operates without a gateway, and remains controllable during network outages, offering faster and more stable performance;
Supports battery level detection – when the remote control's battery is low, the indicator light flashes to remind users to replace the battery;
Equipped with a dedicated wall-mounted base, it allows flexible selection of wall-mounted or desktop use to meet diverse usage needs.

Specifications

B1Specifications from the official datasheet (2026-08-08 edition)Download datasheet PDF

Specification Parameters

Model: B1
Control Type: DIM
Working Voltage: 3Vdc(AAA×2)
Wireless Type: Bluetooth 5.2 SIG Mesh
Number of Zones: 4-zone control
Matching touch panel: EB1/EB6
Compatible Driver: B5-3A
Working Temperature: -10℃~50℃
Dimensions: 162×42×15mm(L×W×H)
Package Size: 166×47×22mm(L×W×H)
Product Weight: 55g ±10g

Certifications & ratings

Certification marks: CE, FCC, RoHS, SRRC, RED

Technical drawings

B1 Remote control button functions — Remote control button functions

B1 2. Network Configuration Operation — 2. Network Configuration Operation

B1 Restore to factory settings — Restore to factory settings

Downloads

Datasheet1

B1 datasheetB1.pdf · 2026-08-08 edition PDF Download

FAQ

What is the Ltech B1?

The Ltech B1 is a Bluetooth 5.2 SIG Mesh LED controller designed for 4-zone lighting control. It operates on 3Vdc using two AAA batteries.

Which drivers and panels work with the B1?

The B1 is compatible with the B5-3A driver. It pairs with the EB1 or EB6 touch panels for operation.

How many zones can the B1 control?

The B1 supports 4-zone control, allowing you to manage four separate lighting groups independently.

What power source does the B1 require?

The B1 operates on 3Vdc, powered by two AAA batteries.

What is the operating temperature range?

The B1 is rated for an operating temperature range of -10°C to 50°C.

What are the physical dimensions of the B1?

The B1 measures 162mm in length, 42mm in width, and 15mm in height, with a weight of approximately 55g.

Is the B1 certified?

Yes, the B1 carries CE, FCC, RoHS, SRRC, and RED certification marks.
