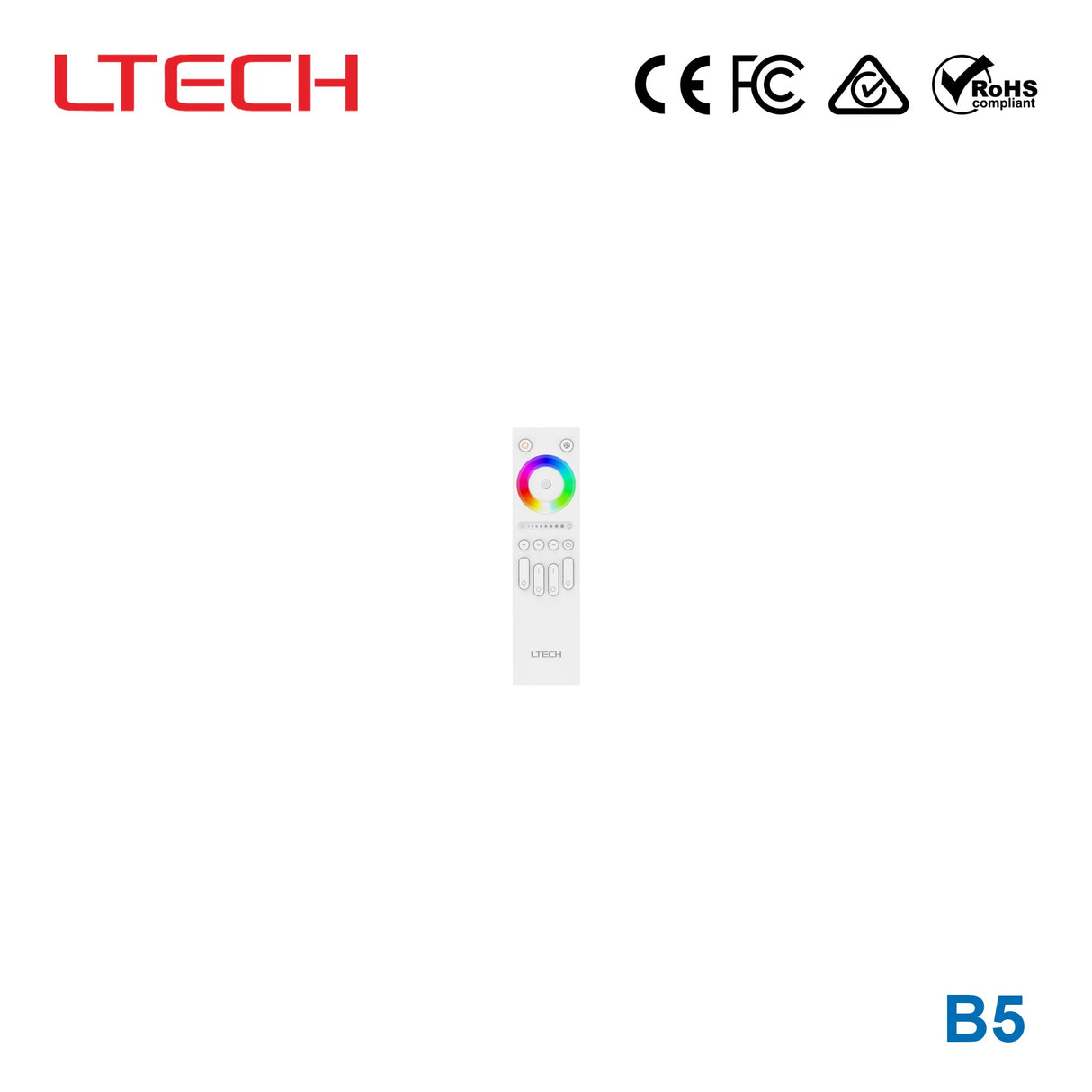

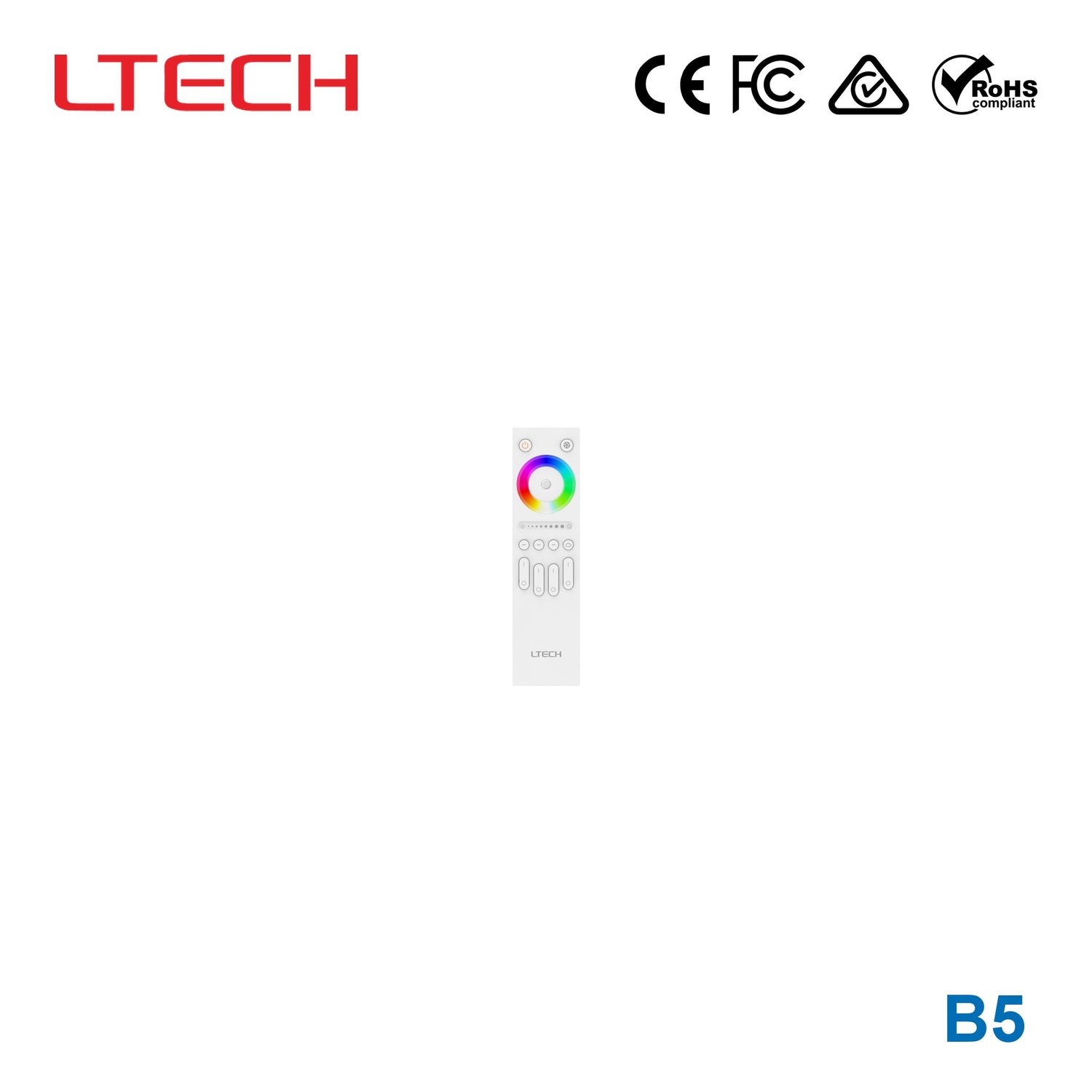

Ltech B5 Bluetooth LED Controller

Bluetooth

SKU B5

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

Features

Bluetooth 5.2 SIG Mesh communication protocol, with strong networking capabilities and reliable and stable local control;
Supports use with LED controller B5-3A and intelligent touch panels EB1/EB2/EB5 to achieve intelligent lighting control;
When paired with Bluetooth lighting fixtures, it enables control of light switching, dimming, and color adjustment;
Combined with a smart gateway, it can achieve local automation/cloud automation control methods;
Supports local scenes, operates without a gateway, and remains controllable during network outages, offering faster and more stable performance;
Supports battery level detection – when the remote control's battery is low, the indicator light flashes to remind users to replace the battery;
Equipped with a dedicated wall-mounted base, it allows flexible selection of wall-mounted or desktop use to meet diverse usage needs.

Specifications

B5Specifications from the official datasheet (2026-08-08 edition)Download datasheet PDF

Specification Parameters

Model: B5
Control Type: RGB/RGBW/RGBCW
Working Voltage: 3Vdc(AAA×2)
Wireless Type: Bluetooth 5.2 SIG Mesh
Number of Zones: 4-zone control
Matching touch panel: EB5/EB6
Compatible Driver: B5-3A
Working Temperature: -10℃~50℃
Dimensions: 162×42×15mm(L×W×H)
Package Size: 166×47×22mm(L×W×H)
Product Weight: 55g ±10g

Certifications & ratings

Certification marks: CE, FCC, RoHS, SRRC, RED

Technical drawings

B5 Remote control button functions — Remote control button functions

B5 2. Network Configuration Operation — 2. Network Configuration Operation

B5 Restore to factory settings — Restore to factory settings

Downloads

Datasheet1

B5 datasheetB5.pdf · 2026-08-08 edition PDF Download

FAQ

What is the Ltech B5 used for?

It is a wireless LED controller for RGB, RGBW, and RGBCW lighting systems, allowing you to control up to 4 zones via Bluetooth.

How is the controller powered?

The B5 operates on 3V DC, powered by two AAA batteries.

What wireless technology does it use?

It uses Bluetooth 5.2 SIG Mesh for wireless communication and control.

Which drivers and panels are compatible?

It is compatible with the B5-3A driver and works with the EB5 or EB6 touch panels.

What is the operating temperature range?

The controller is designed to operate in temperatures between -10°C and 50°C.

What are the physical dimensions?

The unit measures 162mm in length, 42mm in width, and 15mm in height, weighing approximately 55g.

Does it have any certifications?

Yes, the B5 controller carries CE, FCC, RoHS, SRRC, and RED certifications.
