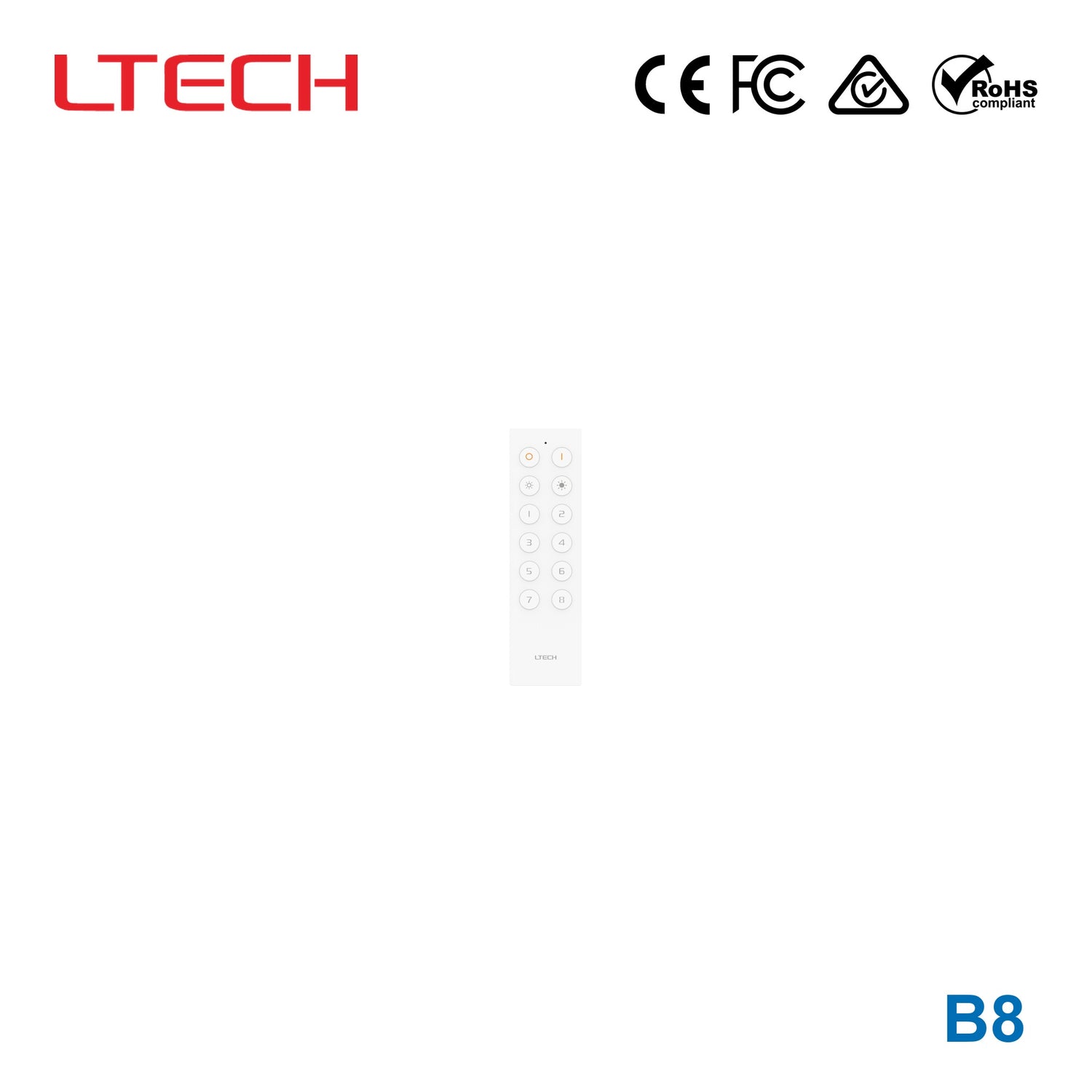

Ltech B8 Bluetooth LED Controller

Bluetooth

SKU B8

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

This product is an LED scene controller. It adopts the Bluetooth 5.2 SIG Mesh communication protocol, featuring strong networking capabilities and reliable and stable local control. Combined with the LED controller B5-3A and intelligent touch panels EB1/EB2/EB5/EB6, it realizes scene control of LED lighting fixtures. It supports APP settings for adjusting brightness in two ways: differential brightness adjustment and unified brightness adjustment. With a smart gateway, it can achieve local automation/cloud automation control modes. It supports battery level detection. When the remote control's battery is low, the indicator light will flash to remind you to replace the battery. Equipped with a dedicated wall-mounted base, it allows flexible selection of wall-mounted or desktop use to meet diverse usage needs.

Specifications

B8Specifications from the official datasheet (2026-08-08 edition)Download datasheet PDF

Specification Parameters

Model: B8
Control Type: Scene Control
Working Voltage: 3Vdc (1×CR2032 button battery)
Wireless Type: Bluetooth 5.2 SIG Mesh
Compatible Driver: B5-3A
Working Temperature: -10℃~50℃
Dimensions: 145×40×12mm(L×W×H)
Package Size: 148.5×46×19mm(L×W×H)
Product Weight: 50g±10g

Protection

Protection: non-waterproof

Others

Warranty periods: 5 years
Bind Scenes: Local Scene/DALI Scene

Certifications & ratings

Certification marks: CE, FCC, SRRC, RoHS, RED

Downloads

Datasheet1

B8 datasheetB8.pdf · 2026-08-08 edition PDF Download

FAQ

What is the Ltech B8?

The Ltech B8 is a Bluetooth 5.2 SIG Mesh LED controller designed for scene control. It operates on a 3Vdc CR2032 button battery and is compatible with the B5-3A driver.

How does the B8 control lighting?

It uses Scene Control functionality, supporting both Local Scene and DALI Scene binding. This allows for flexible management of lighting environments via Bluetooth.

Which drivers work with the B8?

The B8 is specifically compatible with the B5-3A driver. Ensure your system uses this driver for proper operation.

What are the dimensions and weight of the B8?

The unit measures 145×40×12mm (L×W×H) and weighs approximately 50g (±10g). Its compact size facilitates easy integration into various setups.

Is the B8 suitable for outdoor use?

No, the B8 is non-waterproof. It is intended for indoor use only, with an operating temperature range of -10℃ to 50℃.

What certifications does the B8 have?

The B8 carries CE, FCC, SRRC, RoHS, and RED certification marks, ensuring compliance with relevant regulatory standards.

What is the warranty period for the B8?

The Ltech B8 comes with a 5-year warranty period.
