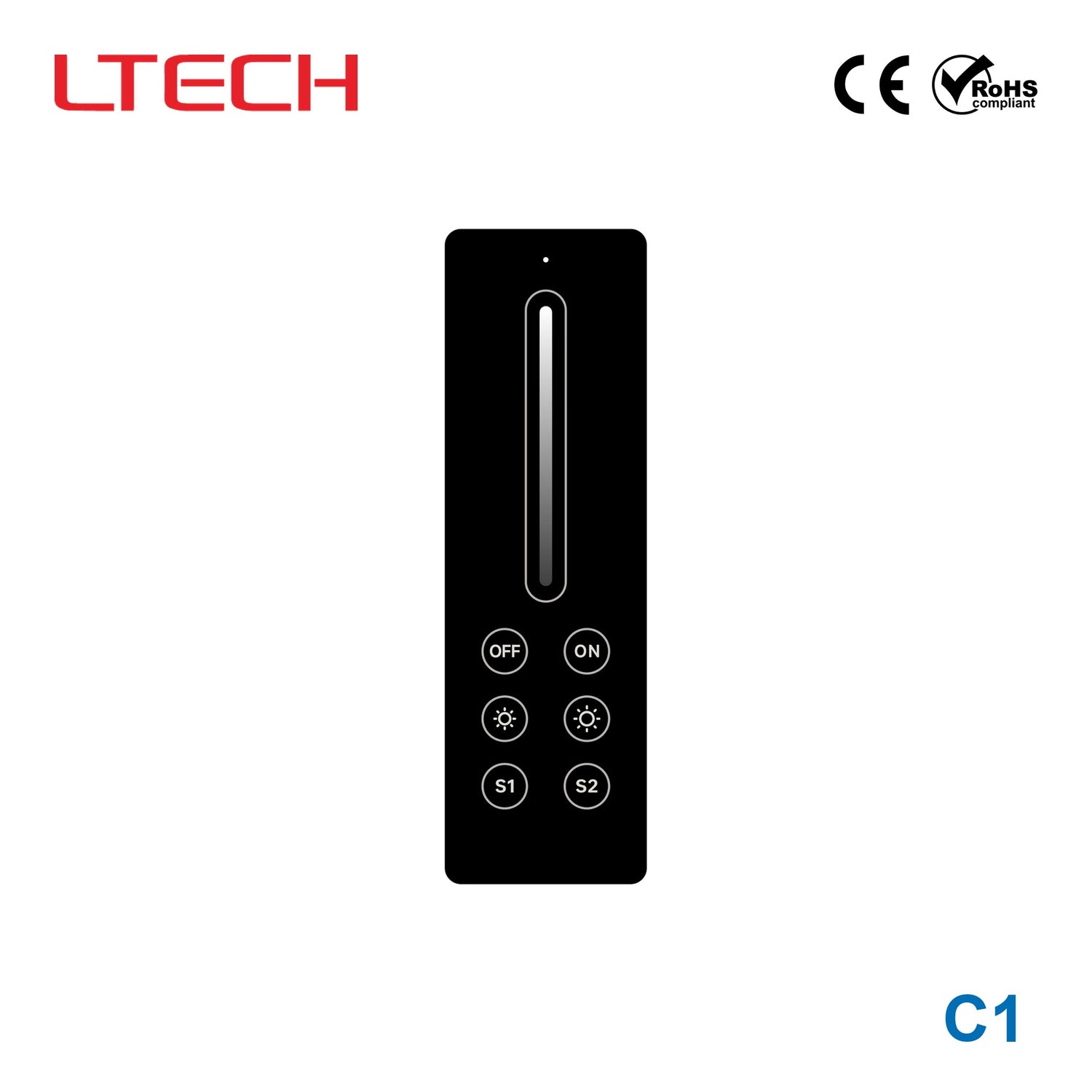

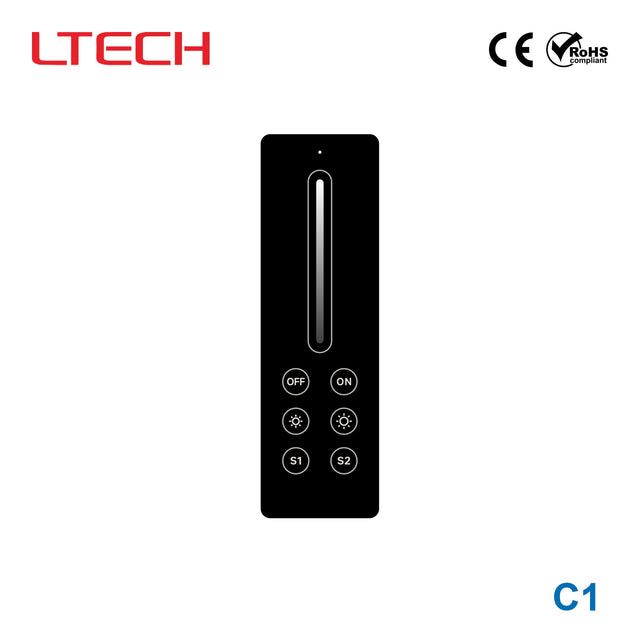

Ltech C1 LED Controller

LED controller

SKU C1

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

Features

Featuring a streamlined design and magnetic attachment, it is powered by two AAA batteries ;
Utilizes 2.4 GHz RF wireless transmission for stable signals and strong interference resistance;
Compatible with P-series and F-series controllers;
Equipped with a dedicated on/off button for one-touch lighting control;
Press the brightness button briefly to adjust the brightness across 11 levels; press and hold for continuous dimming;
Pre-programmed with 2 scene modes for quick access, and custom scenes can be saved by holding down the button;
A single controller can be paired with up to 10 remotes, and a single remote control can be used with multiple controllers;
Supports synchronized dimming for controller groups.

Specifications

C1Specifications from the official datasheetDownload datasheet PDF

Technical Specifications

Model: C1
Area Control: Single zone
Dimming Type: DIM
Wireless Type: RF 2.4GHz
Power Supply: 3Vdc (AAA batteries × 2)
Standby Current: ＜5uA
Compatible Controllers: P1 / P2 / P3 / P4 / P5/F4-3A / F4-5A / F4-DMX-5A / F5-DMX-4A
Operating Temperature: -25℃~50℃
Product Weight: Remote control: 62 g; Mount: 12 g
Dimensions: Remote control: L150 × W48 × H15.5 mm; Mount: L85 × W35 × H20 mm

Others

Warranty periods: 5 years

Certifications & ratings

Certification marks: CE, FCC, RoHS

Technical drawings

C1 For use with P-series controllers — For use with P-series controllers

C1 Use the Remote Controls Together — Use the Remote Controls Together

Downloads

Datasheet1

C1 datasheetC1.pdf PDF Download

FAQ

What is the Ltech C1 used for?

The C1 is a single-zone wireless remote controller for LED lighting systems.

Which controllers does the C1 work with?

It is compatible with P1, P2, P3, P4, P5, F4-3A, F4-5A, F4-DMX-5A, and F5-DMX-4A controllers.

How is the remote powered?

It operates on 3Vdc using two AAA batteries.

What wireless technology does it use?

The C1 uses RF 2.4GHz wireless communication.

What is the operating temperature range?

It functions in temperatures from -25°C to 50°C.

Does the C1 have safety certifications?

Yes, it carries CE, FCC, and RoHS certification marks.

What is the warranty period?

The product comes with a 5-year warranty.
