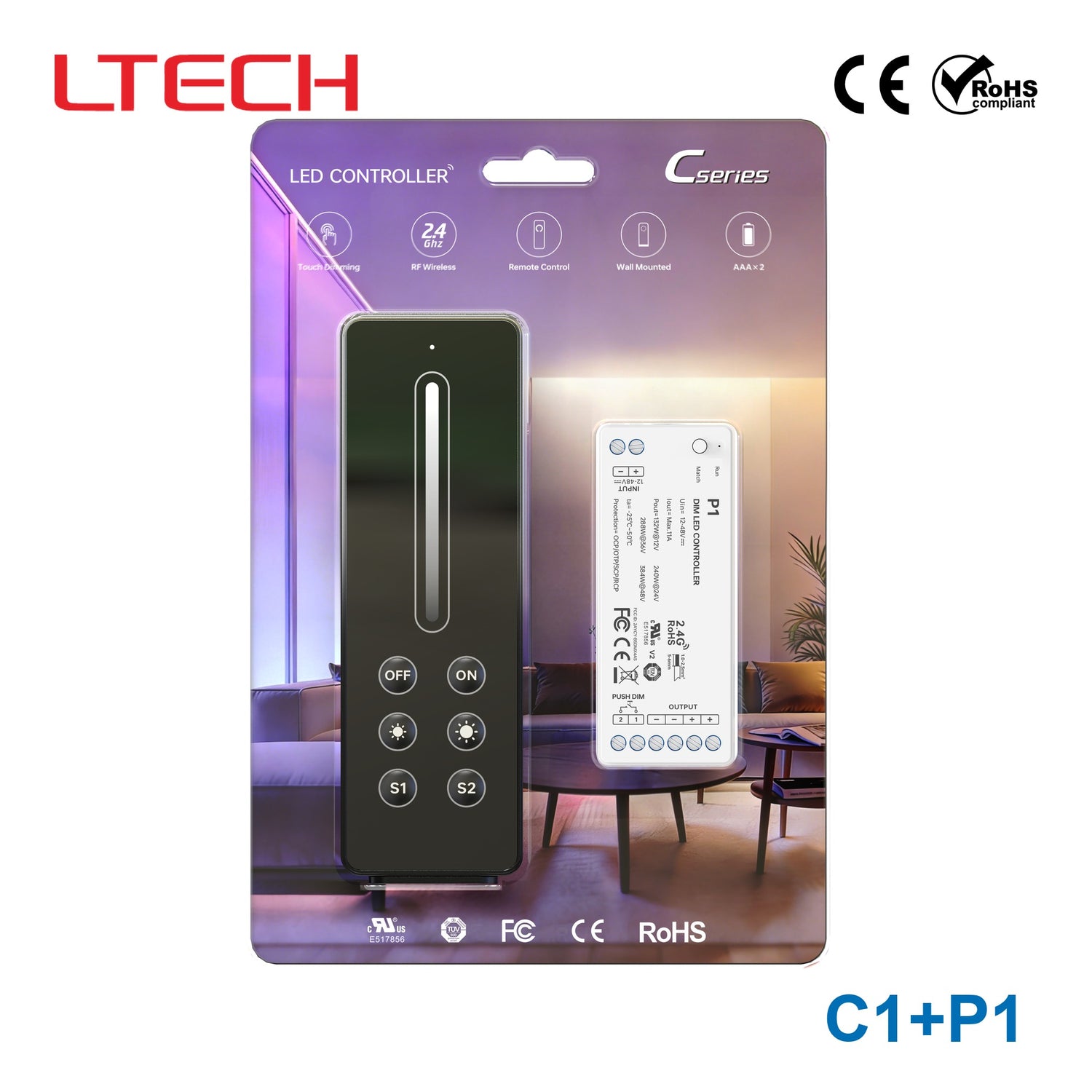

Ltech C1+P1 LED Controller

LED controller

SKU C1+P1

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

Features

Featuring a streamlined design and magnetic attachment, it is powered by two AAA batteries ;
Utilizes 2.4 GHz RF wireless transmission for stable signals and strong interference resistance;
Compatible with P-series and F-series controllers;
Equipped with a dedicated on/off button for one-touch lighting control;
Press the brightness button briefly to adjust the brightness across 11 levels; press and hold for continuous dimming;
Pre-programmed with 2 scene modes for quick access, and custom scenes can be saved by holding down the button;
A single controller can be paired with up to 10 remotes, and a single remote control can be used with multiple controllers;
Supports synchronized dimming for controller groups.

Specifications

C1+P1Specifications from the official datasheetDownload datasheet PDF

Technical Specifications

Model: C1
Area Control: Single zone
Dimming Type: DIM
Wireless Type: RF 2.4GHz
Power Supply: 3Vdc (AAA batteries × 2) Note: Batteries must be purchased separately.
Standby Current: ＜5uA
Compatible Controllers: P1 / P2 / P3 / P4 / P5/F4-3A / F4-5A / F4-DMX-5A / F5-DMX-4A
Operating Temperature: -25℃~50℃
Product Weight: Remote control: 62 g; Mount: 12 g
Dimensions: Remote control: L150 × W48 × H15.5 mm; Mount: L85 × W35 × H20 mm

Others

Warranty periods: 5 years

Certifications & ratings

Certification marks: CE, FCC, RoHS

Technical drawings

C1+P1 Button Functions — Button Functions

C1+P1 For use with P-series controllers — For use with P-series controllers

C1+P1 Use the Remote Controls Together — Use the Remote Controls Together

Downloads

Datasheet1

C1+P1 datasheetC1_P1.pdf PDF Download

FAQ

What is the C1+P1 kit?

The C1+P1 is a single-zone wireless LED controller kit. It includes the C1 remote control and the P1 receiver, allowing you to control LED lighting via RF 2.4GHz.

How is the remote powered?

The C1 remote operates on 3Vdc using two AAA batteries. Please note that batteries are not included and must be purchased separately.

Which controllers are compatible with the C1 remote?

The C1 remote is compatible with P1, P2, P3, P4, P5, F4-3A, F4-5A, F4-DMX-5A, and F5-DMX-4A controllers.

What is the operating temperature range?

The device is designed to operate in temperatures ranging from -25°C to 50°C.

Does the C1+P1 have safety certifications?

Yes, the C1+P1 kit carries CE, FCC, and RoHS certification marks.

What is the warranty period?

The C1+P1 kit comes with a 5-year warranty.
