Ltech

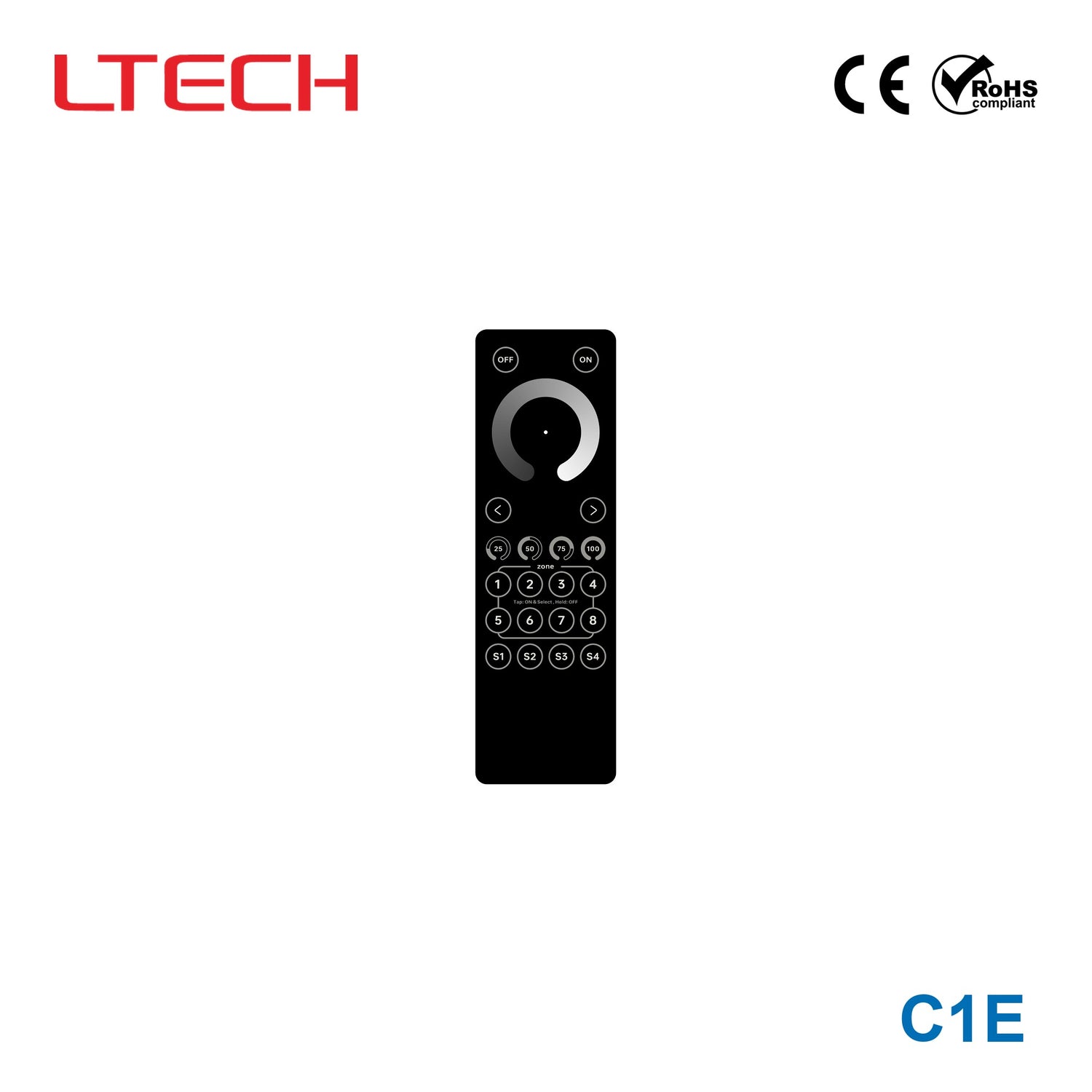

Ltech C1E LED Controller

LED controller
SKU C1E
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

Features

  • Featuring a streamlined design with magnetic attachment, it is powered by two AAA batteries;
  • Features 2.4 GHz RF wireless transmission with stable signals and strong anti-interference capabilities, supporting multi-zone synchronized dimming;
  • Compatible with P-series and F-series controllers;
  • Supports zone control with two options: 4-zone and 8-zone configurations;
  • Equipped with a dedicated on/off button for one-touch lighting control;
  • Adjust brightness by touching the color ring and brightness levels;
  • Comes with 4 preset scene modes that can be quickly accessed; you can also save custom scenes by holding down the button;
  • A single remote control can be used with multiple controllers of controllers, and a single controller can be paired with up to 10 remote controls;
  • Supports synchronized dimming across controller groups.

Specifications

C1ESpecifications from the official datasheetDownload datasheet PDF

Technical Specifications

Area Control
Zone 8
Dimming Type
DIM
Wireless Type
RF 2.4GHz
Power Supply
3Vdc (AAA batteryΓ—2)
Standby Current
＜5uA
Compatible Controllers
P1 / P2 / P3 / P4 / P5、F4-3A / F4-5A / F4-DMX-5A / F5-DMX-4A
Operating Temperature
-25℃~50℃
Product Weight
Remote control: 62 g; Mount: 12 g
Dimensions
Remote control: L150 Γ— W48 Γ— H15.5 mm; Mount: L85 Γ— W35 Γ— H20 mm

Certifications & ratings

Certification marks
CE, FCC, RoHS

Technical drawings

C1E Dimensions
Dimensions
C1E Button Functions
Button Functions
C1E 8-zone remote control
8-zone remote control
C1E Wiring Diagram for a 4-Zone Remote Control
Wiring Diagram for a 4-Zone Remote Control
C1E Wiring Diagram for a 4-Zone Remote Control
Wiring Diagram for a 4-Zone Remote Control
C1E For use with P-series controllers
For use with P-series controllers
C1E Use the Remote Controls Together
Use the Remote Controls Together

Downloads

FAQ

What is the C1E used for?

The C1E is a wireless remote control and mounting kit for Ltech LED controllers. It allows for zone control and dimming of compatible lighting systems.

Which controllers does the C1E work with?

It is compatible with P1, P2, P3, P4, P5, F4-3A, F4-5A, F4-DMX-5A, and F5-DMX-4A controllers.

How is the remote powered?

The remote control operates on 3Vdc using two AAA batteries. The standby current is less than 5uA.

What wireless technology does it use?

The C1E uses RF 2.4GHz wireless technology for communication with the controller.

What is the operating temperature range?

The device is rated for an operating temperature range of -25Β°C to 50Β°C.

What are the physical dimensions?

The remote control measures 150 x 48 x 15.5 mm and weighs 62 g. The mount measures 85 x 35 x 20 mm and weighs 12 g.

Does the C1E have any certifications?

Yes, the C1E carries CE, FCC, and RoHS certification marks.
