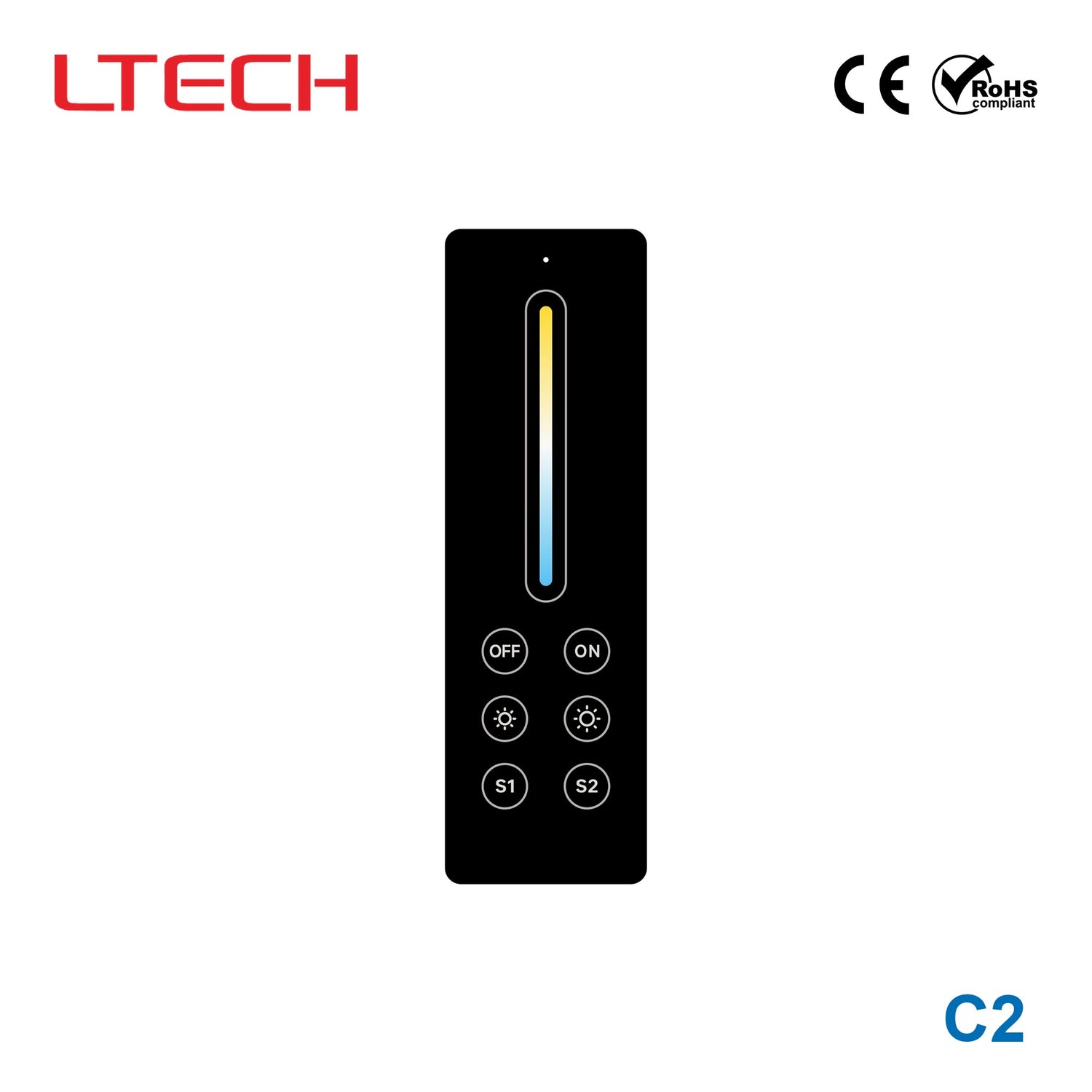

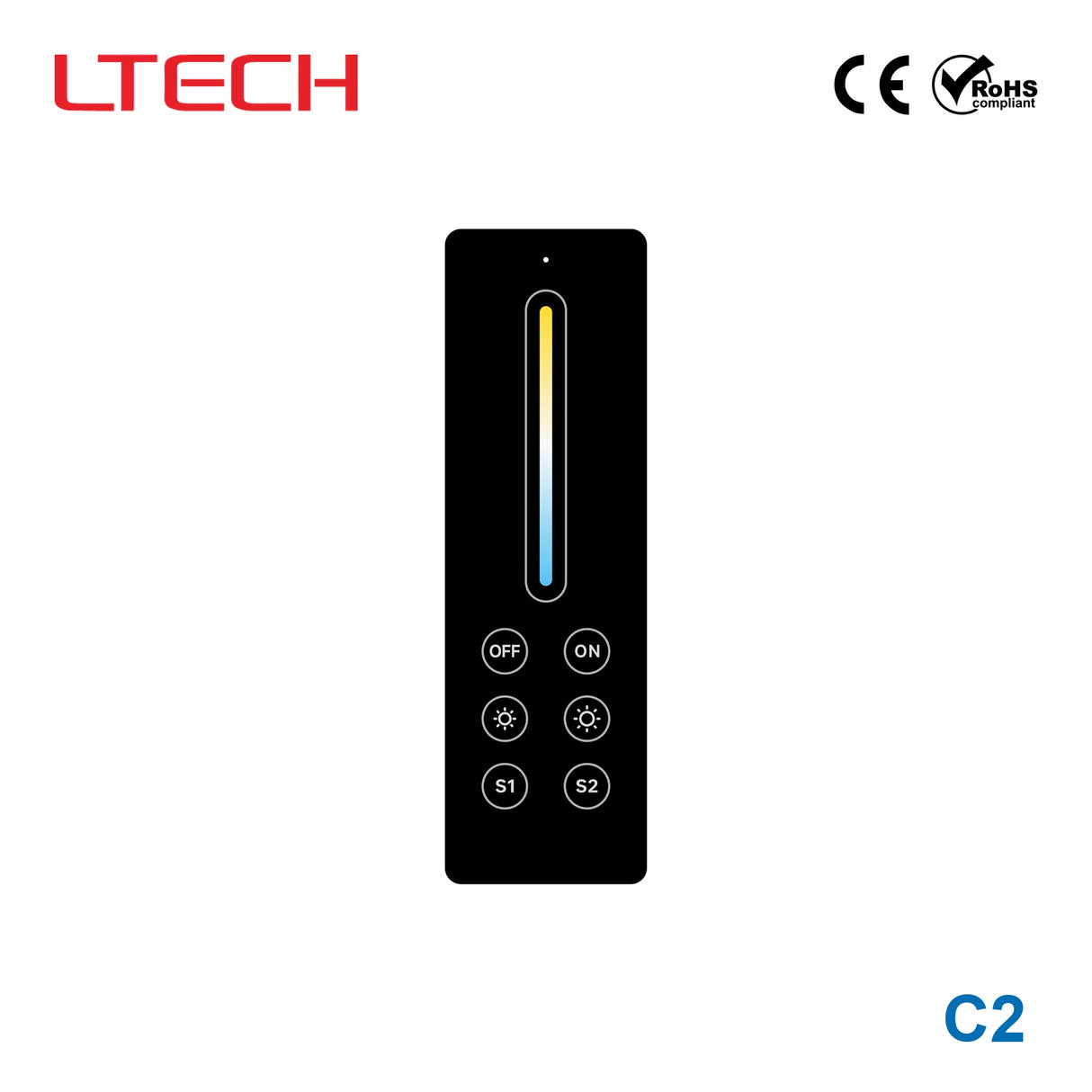

Ltech C2 LED Controller

LED controller

SKU C2

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

Features

Featuring a streamlined design and magnetic attachment, it is powered by two AAA batteries;
Utilizes 2.4 GHz RF wireless transmission for stable signals and strong interference resistance;
Compatible with P-series and F-series controllers;
Equipped with a dedicated on/off button for one-touch lighting control;
Quickly adjust the color temperature using the color temperature slider;
Press the brightness button briefly to adjust the brightness across 11 levels; press and hold for continuous dimming;
Pre-programmed with 2 scene modes for quick access, and custom scenes can be saved by holding down the button;
A single controller can be paired with up to 10 remotes, and a single remote control can be used with multiple controllers;
Supports synchronized dimming for controller groups.

Specifications

C2Specifications from the official datasheetDownload datasheet PDF

Technical Specifications

Model: C2
Area Control: Single zone
Dimming Type: CT
Wireless Type: RF 2.4GHz
Power Supply: 3Vdc (AAA batteries × 2) Note: Batteries must be purchased separately.
Standby Current: ＜5uA
Compatible Controllers: P2 / P3 / P4 / P5/F4-3A / F4-5A / F4-DMX-5A / F5-DMX-4A
Operating Temperature: -25℃~50℃
Product Weight: Remote control: 62 g; Mount: 12 g
Dimensions: Remote control: L150 × W48 × H15.5 mm; Mount: L85 × W35 × H20 mm

Others

Warranty periods: 5 years

Certifications & ratings

Certification marks: CE, FCC, RoHS

Technical drawings

C2 For use with P-series controllers — For use with P-series controllers

C2 Use the Remote Controls Together — Use the Remote Controls Together

Downloads

Datasheet1

C2 datasheetC2.pdf PDF Download

FAQ

What is the Ltech C2 used for?

The C2 is a single-zone wireless remote control for LED lighting systems. It allows you to control compatible Ltech controllers via RF 2.4GHz.

Which controllers does the C2 work with?

It is compatible with P2, P3, P4, P5/F4-3A, F4-5A, F4-DMX-5A, and F5-DMX-4A controllers.

What power source does the C2 require?

The remote operates on 3Vdc using two AAA batteries. Please note that batteries are not included and must be purchased separately.

What type of dimming does the C2 support?

The C2 supports CT (Color Temperature) dimming for single-zone applications.

What is the operating temperature range?

The device is designed to operate in temperatures ranging from -25°C to 50°C.

Is the C2 certified?

Yes, the C2 carries CE, FCC, and RoHS certification marks.

What is the warranty period?

The Ltech C2 comes with a 5-year warranty.
