Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Ltech

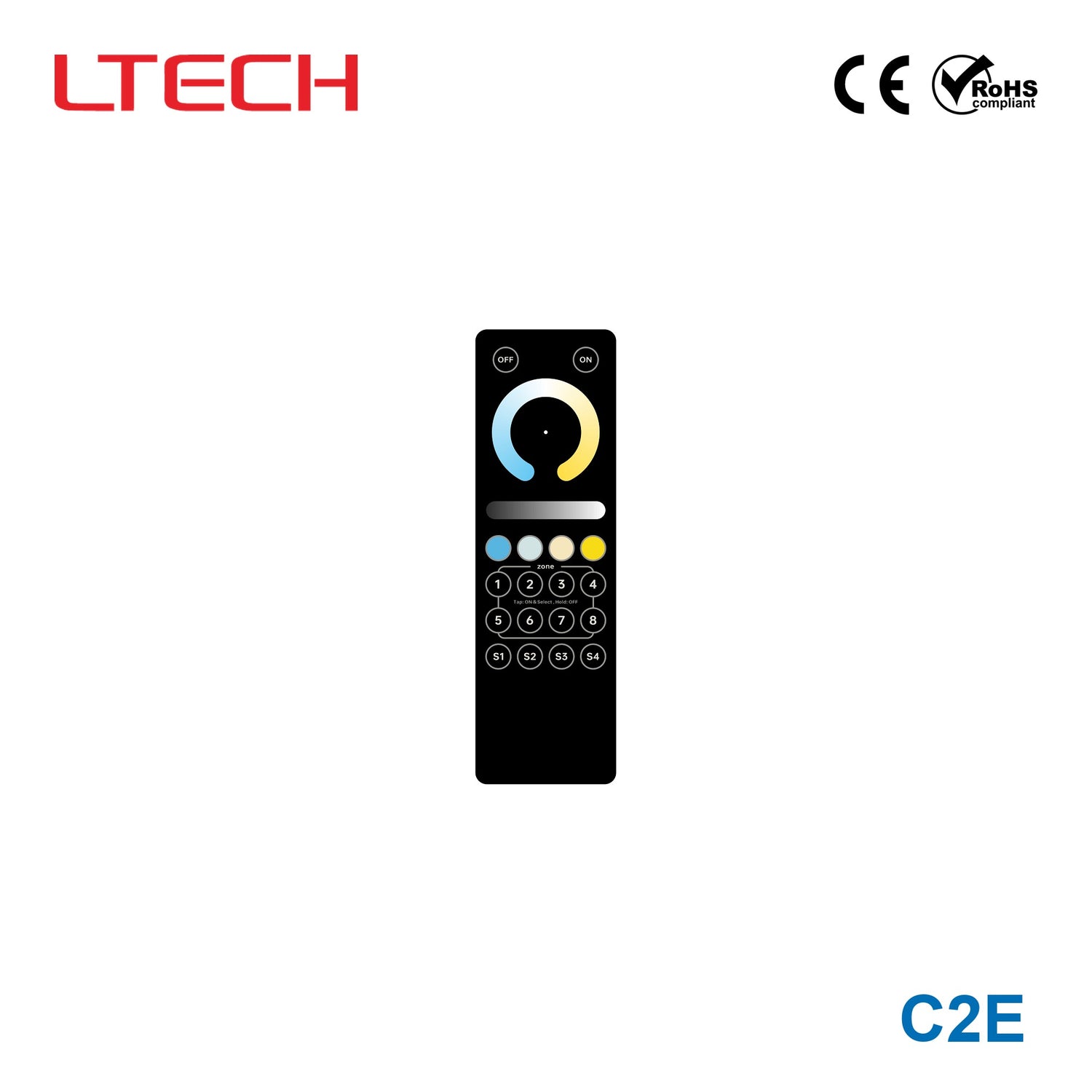

Ltech C2E LED Controller

LED controller
SKU C2E
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

Features

  • Featuring a streamlined design with magnetic attachment, it is powered by two AAA batteries;
  • Features 2.4 GHz RF wireless transmission with stable signals and strong anti-interference capabilities, supporting multi-zone synchronized dimming;
  • Compatible with P-series and F-series controllers;
  • Supports zone control with two options: 4-zone and 8-zone configurations;
  • Equipped with a dedicated on/off button for one-touch lighting control;
  • Adjust the color temperature by touching the color ring; features 4 preset color temperatures for quick access;
  • Comes with 4 preset scene modes that can be quickly accessed; you can also save custom scenes by holding down the button;
  • A single remote control can be used with multiple controllers of controllers, and a single controller can be paired with up to 10 remote controls;
  • Supports synchronized dimming across controller groups.

Specifications

C2ESpecifications from the official datasheetDownload datasheet PDF

Technical Specifications

Area Control
Zone 8
Dimming Type
CT
Wireless Type
RF 2.4GHz
Power Supply
3Vdc (AAA batteryΓ—2) Note: Batteries are sold separately.
Standby Current
＜5uA
Compatible Controllers
P2 / P3 / P4 / P5、F4-3A / F4-5A / F4-DMX-5A / F5-DMX-4A
Operating Temperature
-25℃~50℃
Product Weight
Remote control: 62 g; Mount: 12 g
Dimensions
Remote control: L150 Γ— W48 Γ— H15.5 mm; Mount: L85 Γ— W35 Γ— H20 mm

Certifications & ratings

Certification marks
CE, FCC, RoHS

Technical drawings

C2E Dimensions
Dimensions
C2E Button Functions
Button Functions
C2E 8-zone remote control
8-zone remote control
C2E Wiring Diagram for a 4-Zone Remote Control
Wiring Diagram for a 4-Zone Remote Control
C2E Wiring Diagram for a 8-Zone Remote Control
Wiring Diagram for a 8-Zone Remote Control
C2E For use with P-series controllers
For use with P-series controllers
C2E Use the Remote Controls Together
Use the Remote Controls Together

Downloads

FAQ

What is the Ltech C2E?

The C2E is a wireless remote control and mounting kit for Ltech LED controllers. It operates on 2.4GHz RF and uses two AAA batteries (sold separately).

Which controllers does the C2E work with?

It is compatible with P2, P3, P4, P5, F4-3A, F4-5A, F4-DMX-5A, and F5-DMX-4A controllers.

What type of dimming does it support?

The C2E supports Constant Temperature (CT) dimming control.

How is the remote powered?

It runs on 3Vdc using two AAA batteries. Batteries are not included.

What is the operating temperature range?

The device operates in temperatures from -25Β°C to 50Β°C.

Does the C2E have safety certifications?

Yes, it carries CE, FCC, and RoHS certification marks.

What are the dimensions and weight?

The remote is 150 x 48 x 15.5 mm and weighs 62 g. The mount is 85 x 35 x 20 mm and weighs 12 g.
