Ltech

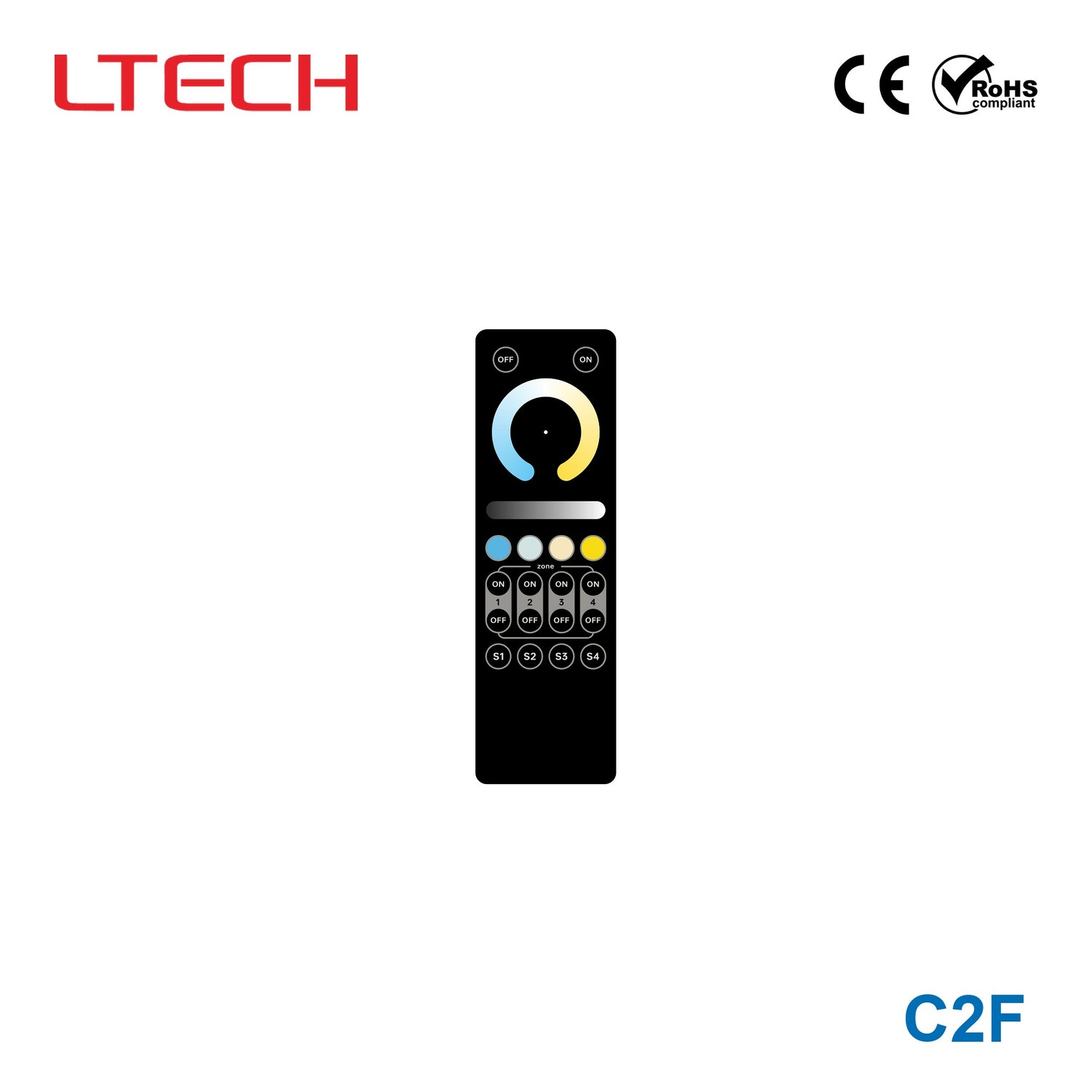

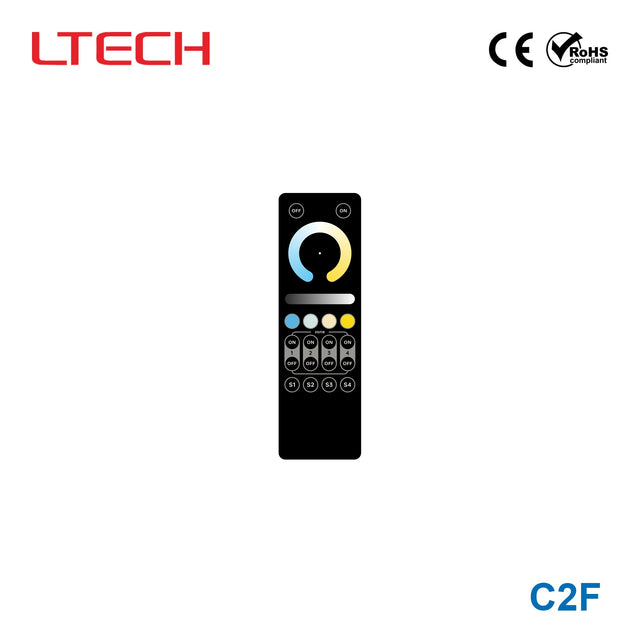

Ltech C2F LED Controller

LED controller
SKU C2F
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

Features

  • Featuring a streamlined design with magnetic attachment, it is powered by two AAA batteries;
  • Features 2.4 GHz RF wireless transmission with stable signals and strong anti-interference capabilities, supporting multi-zone synchronized dimming;
  • Compatible with P-series and F-series controllers;
  • Supports zone control with two options: 4-zone and 8-zone configurations;
  • Equipped with a dedicated on/off button for one-touch lighting control;
  • Adjust the color temperature by touching the color ring; features 4 preset color temperatures for quick access;
  • Comes with 4 preset scene modes that can be quickly accessed; you can also save custom scenes by holding down the button;
  • A single remote control can be used with multiple controllers of controllers, and a single controller can be paired with up to 10 remote controls;
  • Supports synchronized dimming across controller groups.

Specifications

C2FSpecifications from the official datasheetDownload datasheet PDF

Technical Specifications

Area Control
Zone 4
Dimming Type
CT
Wireless Type
RF 2.4GHz
Power Supply
3Vdc (AAA batteryΓ—2)
Standby Current
＜5uA
Compatible Controllers
P2 / P3 / P4 / P5、F4-3A / F4-5A / F4-DMX-5A / F5-DMX-4A
Operating Temperature
-25℃~50℃
Product Weight
Remote control: 62 g; Mount: 12 g
Dimensions
Remote control: L150 Γ— W48 Γ— H15.5 mm; Mount: L85 Γ— W35 Γ— H20 mm

Certifications & ratings

Certification marks
CE, FCC, RoHS

Technical drawings

C2F Dimensions
Dimensions
C2F Button Functions
Button Functions
C2F 8-zone remote control
8-zone remote control
C2F Wiring Diagram for a 4-Zone Remote Control
Wiring Diagram for a 4-Zone Remote Control
C2F Wiring Diagram for a 8-Zone Remote Control
Wiring Diagram for a 8-Zone Remote Control
C2F For use with P-series controllers
For use with P-series controllers
C2F Use the Remote Controls Together
Use the Remote Controls Together

Downloads

FAQ

What is the Ltech C2F used for?

It is a wireless remote control for LED lighting systems, allowing you to adjust settings for compatible controllers.

Which controllers does it work with?

It is compatible with P2, P3, P4, P5, F4-3A, F4-5A, F4-DMX-5A, and F5-DMX-4A controllers.

How is the remote powered?

It operates on 3Vdc using two AAA batteries.

What wireless technology does it use?

It uses RF 2.4GHz wireless technology for communication.

What is the operating temperature range?

The remote functions in temperatures from -25Β°C to 50Β°C.

Does it have any certifications?

Yes, it carries CE, FCC, and RoHS certification marks.
