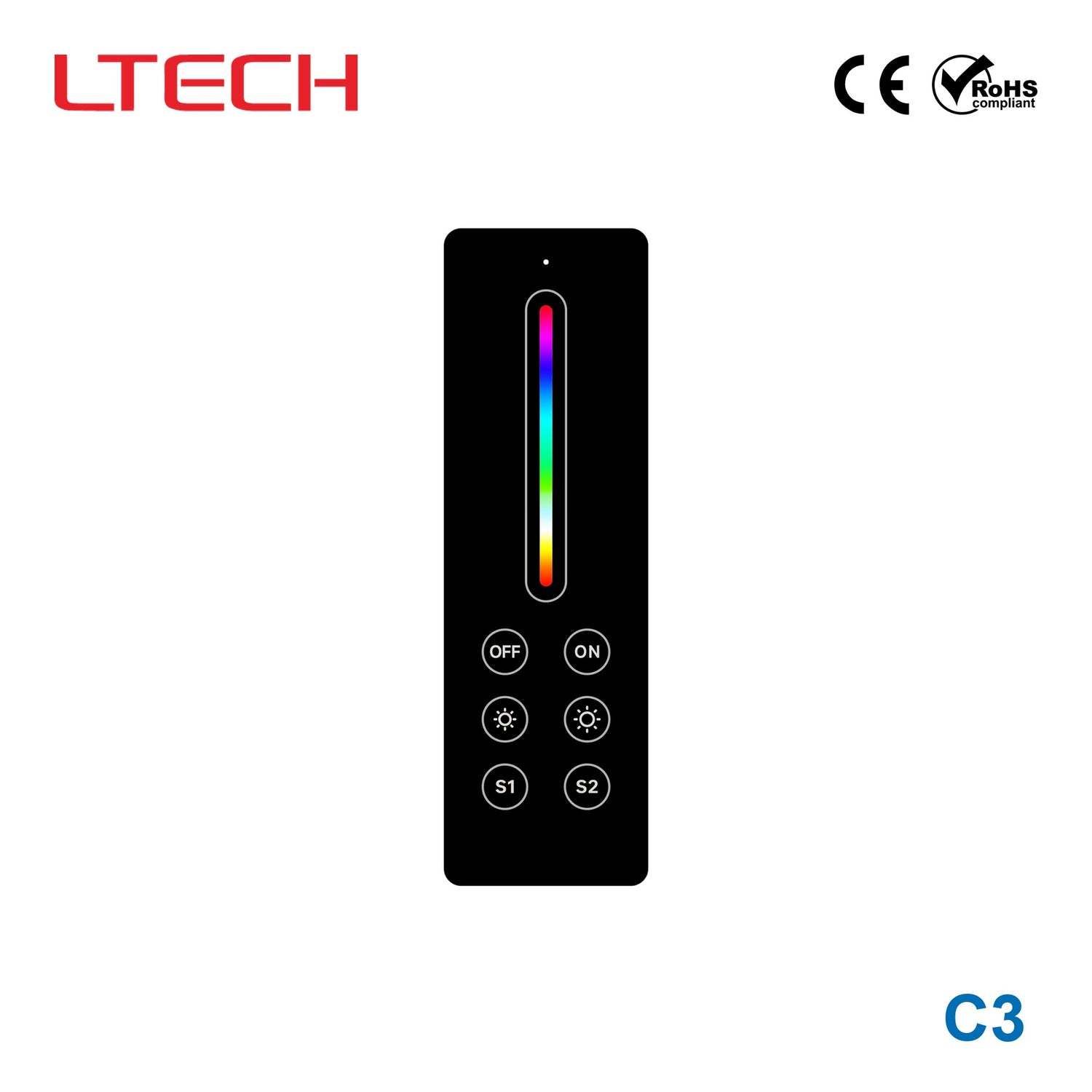

Ltech C3 LED Controller
Log in to see priceOverview
Features
- Featuring a streamlined design and magnetic attachment, it is powered by two AAA batteries ;
- Utilizes 2.4 GHz RF wireless transmission for stable signals and strong interference resistance;
- Compatible with P-series and F-series controllers;
- Equipped with a dedicated on/off button for one-touch lighting control;
- Quickly adjust color using the color temperature and color touch sliders;
- Press the brightness button briefly to adjust the brightness across 11 levels; press and hold for continuous dimming;
- Pre-programmed with 2 scene modes for quick access, and custom scenes can be saved by holding down the button;
- A single controller can be paired with up to 10 remotes, and a single remote control can be used with multiple controllers;
- Supports synchronized dimming for controller groups.
Specifications
Technical Specifications
- Model
- C3
- Area Control
- Single zone
- Dimming Type
- RGB
- Wireless Type
- RF 2.4GHz
- Power Supply
- 3Vdc (AAA batteries Γ 2)
- Standby Current
- οΌ5uA
- Compatible Controllers
- P3 / P4 / P5/F4-3A / F4-5A / F4-DMX-5A / F5-DMX-4A
- Operating Temperature
- -25β~50β
- Product Weight
- Remote control: 62 g; Mount: 12 g
- Dimensions
- Remote control: L150 Γ W48 Γ H15.5 mm; Mount: L85 Γ W35 Γ H20 mm
Protection
- Attentions
- Please use in a dry indoor environment; When installing the battery, please connect the positive and negative terminal correctly. If the remote will not be used for a long period, take the battery out; When the remote distance is shorten and or the remote doesnβt work frequently, please change the battery in time; Please carefully take it and put it down to prevent falls that cause damage; If a fault occurs, please do not attempt to fix products by yourself. If you have any question, please contact your suppliers.
Others
- Warranty periods
- 5 years
Certifications & ratings
- Certification marks
- CE, FCC, RoHS
Technical drawings
Downloads
Datasheet1
FAQ
What is the Ltech C3 used for?
The C3 is a single-zone wireless remote controller for RGB LED lighting. It allows you to control color and brightness via RF 2.4GHz signals.
Which controllers is the C3 compatible with?
It works with the P3, P4, P5, F4-3A, F4-5A, F4-DMX-5A, and F5-DMX-4A controllers.
How is the remote powered?
The remote operates on two AAA batteries (3Vdc). The standby current is less than 5uA.
Where can the C3 be used?
It is designed for dry indoor environments only. The operating temperature range is -25Β°C to 50Β°C.
How should I maintain the remote?
Remove the batteries if the remote will not be used for a long period. Replace the batteries if the remote distance shortens or it stops working frequently.
What certifications does the C3 have?
The C3 carries CE, FCC, and RoHS certification marks.
What is the warranty period?
The product comes with a 5-year warranty.
