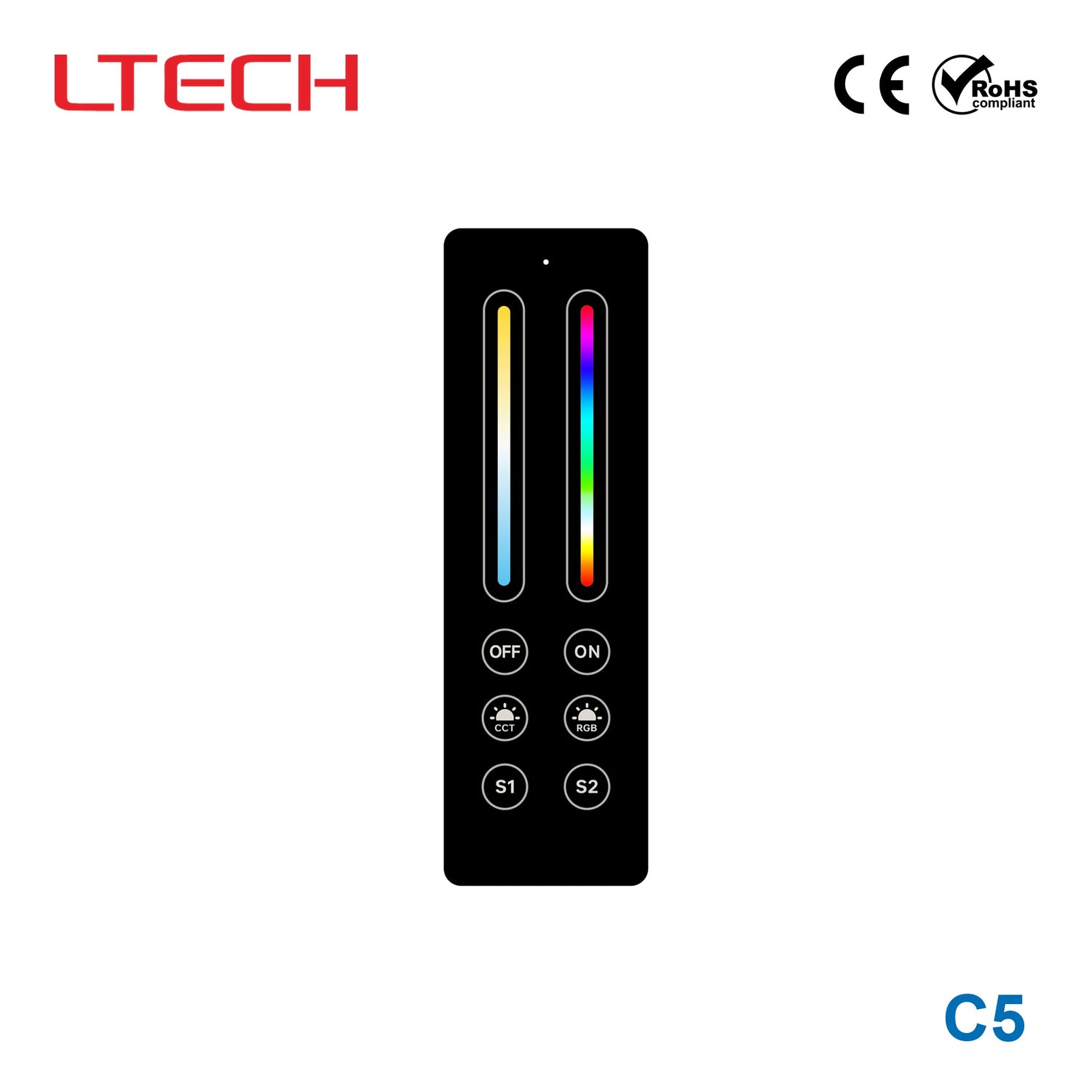

Ltech C5 LED Controller

LED controller

SKU C5

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

Features

Featuring a streamlined design and magnetic attachment, it is powered by two AAA batteries ;
Utilizes 2.4 GHz RF wireless transmission for stable signals and strong interference resistance;
Compatible with P-series and F-series controllers;
Equipped with a dedicated on/off button for one-touch lighting control;
Quickly adjust color temperature and color using the color temperature and color touch sliders;
CCT and RGB brightness are controlled via dedicated buttons, supporting short presses to toggle on/off and long presses to adjust, ensuring intuitive and convenient operation;
Pre-programmed with 2 scene modes for quick access, and custom scenes can be saved by holding down the button;
A single controller can be paired with up to 10 remotes, and a single remote control can be used with multiple controllers;
Supports synchronized dimming for controller groups.

Specifications

C5Specifications from the official datasheetDownload datasheet PDF

Technical Specifications

Model: C5
Area Control: Single zone
Dimming Type: RGBCW
Wireless Type: RF 2.4GHz
Power Supply: 3Vdc (AAA batteries × 2) Note: Batteries must be purchased separately.
Standby Current: ＜5uA
Compatible Controllers: P5 / F5-DMX-4A
Operating Temperature: -25℃~50℃
Product Weight: Remote control: 62 g; Mount: 12 g
Dimensions: Remote control: L150 × W48 × H15.5 mm; Mount: L85 × W35 × H20 mm

Others

Warranty periods: 5 years

Certifications & ratings

Certification marks: CE, FCC, RoHS

Technical drawings

C5 For use with P-series controllers — For use with P-series controllers

C5 Use the Remote Controls Together — Use the Remote Controls Together

Downloads

Datasheet1

C5 datasheetC5.pdf PDF Download

FAQ

What is the Ltech C5 used for?

The C5 is a single-zone wireless remote controller for RGBCW LED lighting systems. It allows you to control color and white channels via RF 2.4GHz.

Which controllers does the C5 work with?

The C5 is compatible with the P5 and F5-DMX-4A controllers.

How is the remote powered?

It operates on 3Vdc using two AAA batteries. Please note that batteries are not included and must be purchased separately.

What is the operating temperature range?

The remote is designed to operate in temperatures ranging from -25°C to 50°C.

Does the C5 have any certifications?

Yes, the C5 carries CE, FCC, and RoHS certification marks.

What is the warranty period?

The Ltech C5 comes with a 5-year warranty.
