Ltech

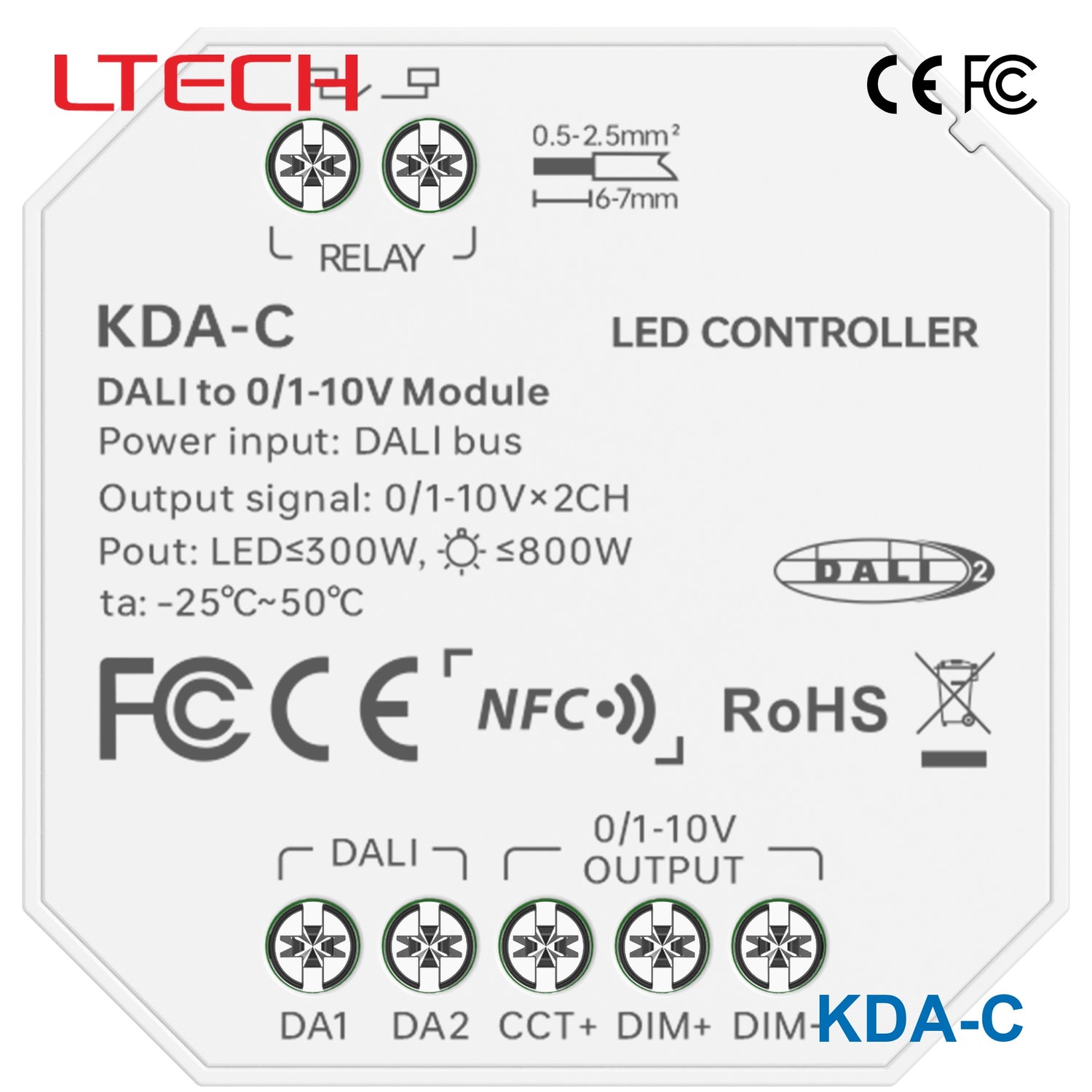

Ltech KDA-C 800W DALI-2 LED Controller

DALI-20-10VDC0.015A800W
SKU KDA-C
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Technical drawings

KDA-C Product Images
Product Images
KDA-C Product Size
Product Size
KDA-C Wiring Application
Wiring Application
KDA-C 0/1-10V dimmable loads powered by 100-240Vac…
0/1-10V dimmable loads powered by 100-240Vac…
KDA-C of 0/1-10V dimmable loads powered by 12-48Vdc…
of 0/1-10V dimmable loads powered by 12-48Vdc…
KDA-C of 0/1-10V dimmable loads powered by 100-240Vac…
of 0/1-10V dimmable loads powered by 100-240Vac…
KDA-C loads powered by 100-240Vac (single-address dual-channel…
loads powered by 100-240Vac (single-address dual-channel…
KDA-C powered by 100-240Vac (single-address, single-channel…
powered by 100-240Vac (single-address, single-channel…
KDA-C 7. Connect the relay output to control the switching of…
7. Connect the relay output to control the switching of…
KDA-C 8. Connect the relay output to control the switching of…
8. Connect the relay output to control the switching of…
KDA-C 9. External Contactor Connection Method.
9. External Contactor Connection Method.
KDA-C 1. Read the device
1. Read the device
KDA-C 2. Edit parameters
2. Edit parameters
KDA-C 3. Dimming interface Settings
3. Dimming interface Settings

Downloads

FAQ

What is the KDA-C used for?

The KDA-C is a DALI-2 LED controller that provides 0-10V dimming control and relay switching for lighting applications.

How is the controller powered?

It is powered directly by the DALI Bus, eliminating the need for a separate power supply.

What are the dimming output specifications?

It provides two channels of 0-10V dimming output with a maximum current of 15mA per channel.

What are the relay load ratings?

The relay supports a maximum load current of 5A. For resistive loads, it handles 800W at 230Vac, 400W at 110Vac, or 200W at 48Vdc. For capacitive loads, it handles 300W at 230Vac, 150W at 110Vac, or 100W at 48Vdc.

What is the operating temperature range?

The controller operates in temperatures ranging from -25Β°C to 50Β°C.

What are the physical dimensions?

The unit measures 45mm in length, 45.5mm in width, and 20.5mm in height, weighing 30g.

What is the warranty period?

The product comes with a 5-year warranty from the date of delivery.

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Other Ltech DALI Series Models

50 other models
ModelOutputsOutput TypeDimming
Ltech T3-CV Wireless RF Constant Voltage Controller - 3 Channel 3 RF Signal RF Signal View
Ltech T3 Wireless RF Single-zone Remote - RGB β€” RF Signal RF Signal View
ENVO SR-2701S-DT7 Relay On/Off Control, Configurable Single Address 1 β€” DALI,DALI2 View
Ltech M1+M3-3A Mini Controller with RF Remote - Dimming 3 RF Signal RF Signal View
Ltech T1 Wireless RF Multi-zone Remote - Dimming β€” RF Signal RF Signal View
Ltech M3+M3-3A Mini Controller with RF Remote - RGB 3 RF Signal RF Signal View
Ltech T4-CV Wireless RF Constant Voltage Controller - 4 Channel 4 RF Signal RF Signal View
Ltech LT-820-5A Constant Voltage Decoder - DMX 4 DMX Signal,PWM,RDM Signal DMX,RDM Signal View
Ltech EX8S Wireless RF/DMX512 Multi-zone Touch Panel - RGBW β€” DMX Signal DMX View
Ltech P5 5 Channel Receiver - 5 Channels 3A per Channel, 12-24V 1 PWM Dimmable View
Ltech T4 Wireless RF Multi-zone Remote - RGBW β€” RF Signal RF Signal View
ENVO SR-2701S-N Relay On/Off Control + SR-2701S-N to 0/1-10V Converter, Configurable Single Address 1 β€” 0-10V,1-10V,DALI View
Ltech M6+M3-3A Mini Controller with RF Remote - RGB 3 RF Signal RF Signal View
Ltech M4+M4-5A LED RF 4 Channel RGBW Wireless Remote & Controller Set - RGBW 4 RF Signal RF Signal View
Ltech M4+M4-3A Mini Controller with RF Remote - RGBW 4 RF Signal RF Signal View
Ltech T3M Wireless RF Multi-zone Remote - RGB β€” RF Signal RF Signal View
Ltech LT-404-5A Constant Voltage Controller - DALI/Push RGBW 4 PWM DALI,Push Dimming View
Ltech E610 Rotary Panel - 0-10V Dimmer 1 0-10V Signal 0-10V View
Ltech M4A Mini Remote - RGBW, Single Zone - White Finish 1 PWM Dimmable View
Ltech M2A Mini Remote - Tunable White, Single Zone - White Finish 1 PWM Dimmable View
Ltech M8+M4-3A Mini Controller with RF Remote - RGBW 4 RF Signal RF Signal View
Ltech E1 Single-zone Touch Panel - Dimming 2 PWM PWM View
ENVO Movement PIR Sensor with Probe, DC, Indoor β€” β€” Non Dimmable View
Ltech D4B Constant Voltage 4 Channel DMX/RDM Decoder, 12-48V, 24A, Screw Terminal, LED Display 4 DMX Signal Dimmable View
ENVO PRO SR-2309PRO-5C DT8 LED Controller RGBWW 5 CH 12-36VDC 5 β€” DALI View
Ltech M1A Mini Remote - Single Colour Dimming, Single Zone - White Finish 1 PWM Dimmable View
Mean Well DAP-04 DALI-PWM Signal Converter with ACT-HI function β€” PWM DALI View
ENVO SR-2303SAC-HP to Triac Dimmer, 1 Channel, 400W Max, Single Colour 1 β€” DALI View
Ltech M2+M4-5A Mini Controller with RF Remote - Colour Temperature 4 RF Signal RF Signal View
Ltech LT-704-5A Constant Voltage Controller - 0-10V/Push Dimmable 4 Normal 0-10V,10V PWM,1-10V,Push Dimming View
Ltech LT-3040-5A PWM Constant Voltage Repeater - RGBW 4 PWM Non Dimmable View
Ltech DMX/Bluetooth Constant Voltage Controller 5 β€” Dimmable by Bluetooth,DMX View
ENVO SR-2303AC 2 Channels AC Triac DALI Dimmer 1 β€” DALI,Push Dimming View
DALI Wall Plate Dimmer 1 DALI Signal DALI View
ENVO Zigbee to DALI + 0/1-10V 2-in-1 Converter 1 β€” 0-10V,1-10V,DALI,Zigbee View
ENVO Zigbee Ceiling Mounted PIR Sensor, 0-10V Dimming β€” β€” 0-10V,Zigbee View
Ltech M4C Mini Remote - RGBW, Multi-Zone - White Finish 1 PWM Dimmable View
Ltech M1B Mini Remote - Single Colour Dimming, Single Zone - Black Finish 1 PWM Dimmable View
ILLUMAX Door / Wave IR Sensor with Probe, DC, Indoor β€” β€” β€” View
ILLUMAX Long Probe Door / Wave IR Sensor, DC, Indoor β€” β€” β€” View
ENVO DALI2 Wall Panel, 8 Buttons, White β€” β€” DALI2,Push Dimming View
ENVO DALI2 Wall Panel, 6 Buttons, White β€” β€” DALI2,Push Dimming View
Ltech WIFI-RDM01 - RDM Master Controller β€” DMX Signal DMX View
Ltech V4 Wireless RF Single-zone Remote - RGBW β€” RF Signal RF Signal View
Ltech T3-5A Wireless RF Constant Voltage Controller - 3 Channel 3 RF Signal RF Signal View
Ltech Q4 RGBW Touch remote control β€” β€” β€” View
Ltech LT-8030 Constant Voltage Decoder - DMX 3 DMX Signal,PWM DMX,RDM Signal View
Ltech LT-701-12A Constant Voltage Controller - 0-10V/Push Dimmable 1 Normal 0-10V,10V PWM,1-10V,Push Dimming View
Ltech LT-3010-12A PWM Constant Voltage Repeater - Dimming 1 PWM Non Dimmable View
Ltech F5-DMX-4A Wireless RF Constant Voltage Controller - 5 Channel 5 DMX Signal DMX View
View all 330 Ltech DALI Series models
{ "id":15217336877422, "variants" :[{ "context":"default", "variant_id": 54703824961902, "sku":"KDA-C", "inventory_qty" : 0, "customer" :false, "custom_html" :"\u003ca class=\"text-current logged-out-price logged-out\" href=\"https:\/\/wellforces.co.nz\/customer_authentication\/redirect?locale=en\u0026region_country=NZ\"\u003e\n \u003cspan \u003ePlease \u003c\/span\u003e \u003cspan class=\"login-text\"\u003eLogin\u003c\/span\u003e \u003cspan\u003e for Pricing\u003c\/span\u003e\n \u003c\/a\u003e", "volume_html" :"\u003cvolume-pricing class=\"parent-display inside_product_form\" id=\"volume-pricing-main\" \u003e\u003c\/volume-pricing\u003e" } ] }
Ltech KDA-C 800W DALI-2 LED Controller
Ltech

Ltech KDA-C 800W DALI-2 LED Controller

Log in to see price

Features

  • Converts DALI signals to 0/1-10V signals, enabling adjustable brightness and color temperature
  • Built-in relay allows complete shutdown of 0/1-10V lighting output devices for enhanced stability and reliability
  • NFC programming facilitates easy configuration of DALI dimming interface, DALI address, dimming ramp time, and other parameters with simplified operation
  • The 0/1-10V output signal can be easily configured via NFC into multiple output modes to meet single-channel dimming, dual-channel independent dimming, and dual-channel dual-color temperature combination requirements
  • Features an integrated design combining power supply and communication modules for easier installation.
View product
