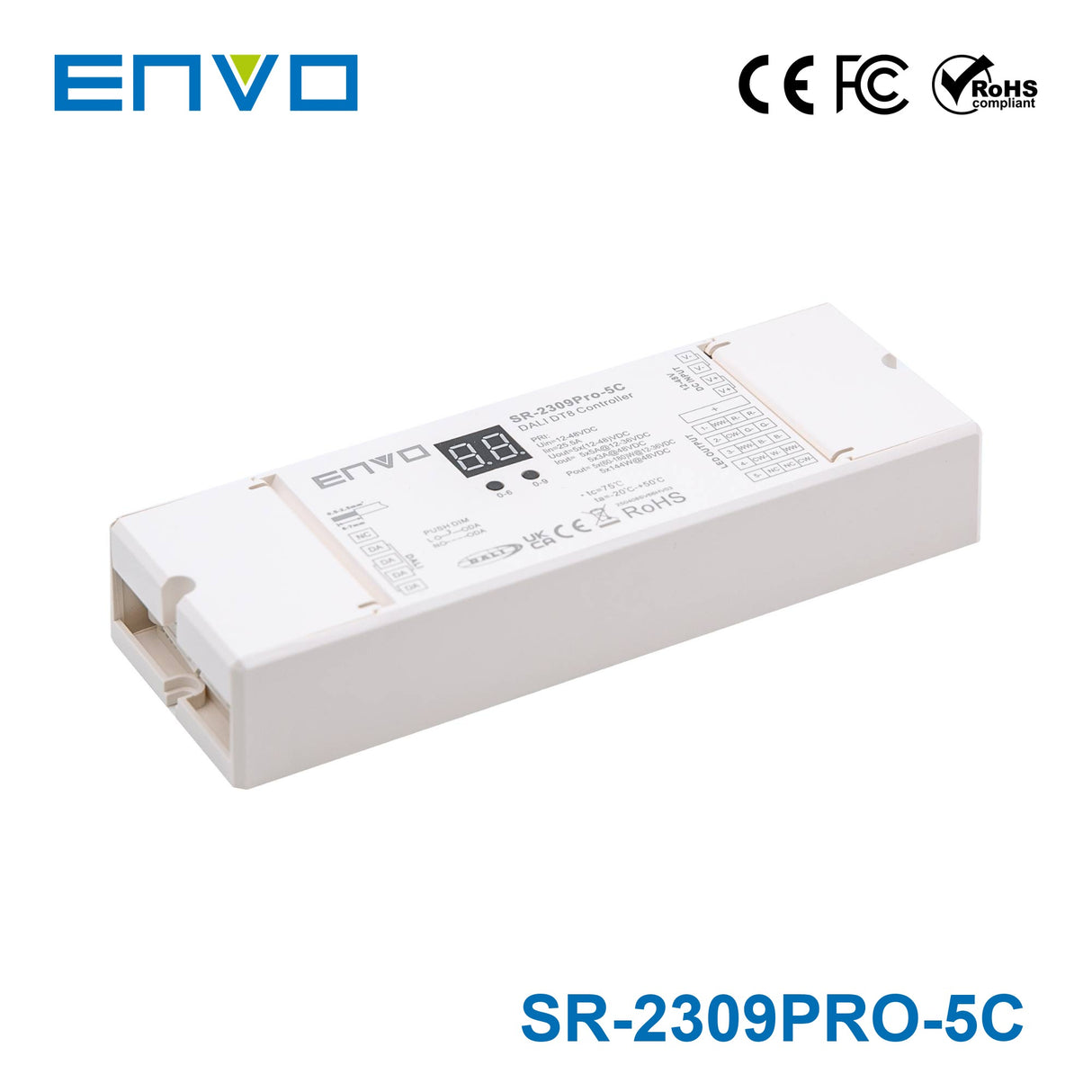

ENVO PRO SR-2309PRO-5C DT8 LED Controller RGBWW 5 CH 12-36VDC

multi-adressDALI address can be manually set through buttons

SKU SR-2309PRO-5C

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The SR-2309PRO-5C is a 240W ENVO AC-DC constant voltage LED driver (input: 12~36VDC, output: 12V, operating temperature: -20~+50°C).

Key Features

✓ Input voltage: 12~36VDC
✓ Output voltage: 12V
✓ Rated output current: 5A
✓ DALI dimmable
✓ Operating temperature: -20~+50°C
✓ Safety certifications: CE, FCC, RoHS
✓ 5 year warranty

Frequently Asked Questions

What lighting control types does the ENVO PRO DALI2 DT8 LED Controller support?

This model is a DALI-2 DT8 LED controller with 5 channels and supports multiple control modes in one unit. Its listed 7-in-1 functionality includes Tc, RGBWAF, XY, 2*Tc, XY+Tc, RGB+Tc, and XY+W (DT6), which makes it suitable for projects that need more than a single dimming format.

Is this controller a good fit for RGBWW lighting applications?

Yes. The product name identifies it as an RGBWW 5-channel controller, and the description also lists multi-functional color-control modes that align with advanced color-mixing applications. That makes it relevant for projects needing color and white-channel control from one DALI-2 DT8 device.

How is this model different from a basic DALI LED controller?

This controller stands out because it is a DALI-2 DT8 device with multi-addresses enabled control gear and multiple device-type options. It also combines several control modes into one product, which can reduce the need to choose separate controllers for different color-control requirements.

What are the key electrical specifications for this controller?

The listed specifications include a 240 W power rating and 5.0 A rated current. The product name identifies it as a 12-36VDC model, and it is built as a 5-channel LED controller for RGBWW applications.

Is this controller compatible with DALI-2 systems and standards-based projects?

Yes. The description states compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2, and IEC 62386-209:2011, and it includes a built-in DALI-2 interface. For buyers specifying standards-based commercial lighting controls, that compliance is one of this model's main differentiators.

What operating environment is this controller rated for?

The stated operating temperature range is -20 °C to 50 °C. The product also includes a 5-year warranty period, which is useful for buyers evaluating lifecycle expectations in professional installations.
