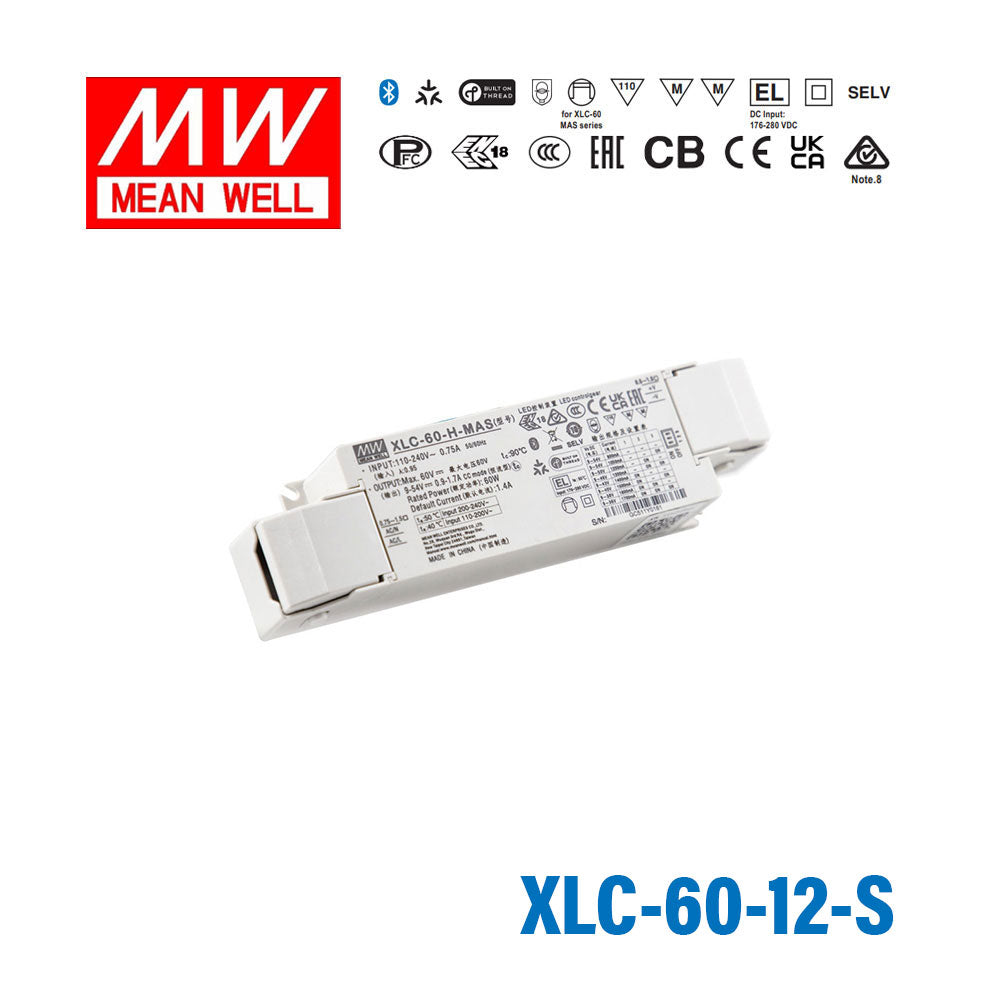

Mean Well XLC-60-12-S LED Driver 60W 12V with Strain-relief 5A
Log in to see priceThe Mean Well XLC-60-12-S is a 60W constant voltage LED driver with a regulated output of 12V DC at up to 5A. It is housed in an independent-type plastic housing supplied with a strain-relief cap, is Class II with no earth connection required, and has built-in active PFC with flicker-free output to the CE ErP directive.
Accepting 110~305VAC universal input, the XLC-60-12-S operates at a case temperature of -25°C to 90°C and carries CB, CCC, CE, EAC, ENEC and SELV approvals. It is a fixed-output, non-dimmable model. Suitable for emergency lighting (EL) installations on a 176~280VDC supply. Protected against short circuit and over temperature, and backed by a 5-year warranty.
Key Features
- ✓Constant voltage mode output (12V/24V/48V)
- ✓Plastic housing with class II/2 and PFC design
- ✓Flicker-free, complying with IEEE1789/ErP
- ✓Meet emergency lighting (EL) function application
- ✓5 years warranty
-
BrandMean Well
-
SeriesMean Well XLC Series
-
Power Rating60 Watt
-
Output Voltage12 Volt
-
Rated Current5 Ampere
-
Input Voltage110V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~90°C
-
Warranty5 Year
-
Length17.6 cm
-
Width4.5 cm
-
Height3.2 cm
-
Weight0.39 kg
::specification::
Frequently Asked Questions
Can I use the XLC-60-12-S to power 12V LED strips in a built-in furniture installation?
Yes. The XLC-60-12-S is rated for built-in use and provides 60W at 12V constant voltage, which is the standard voltage for most residential and commercial LED strip products. The strain-relief connector helps secure the cable inside tight cabinet or furniture cavities.
Is the XLC-60-12-S a suitable driver for 12V LED displays or backlit panels?
Yes. The flicker-free constant voltage output at 12V and 5A (60W) makes this driver a practical choice for backlit signage, menu boards, and display panels using 12V LED strips or modules. Verify that the total panel load stays within 60W.
Can the XLC-60-12-S power 12V LED strips in a suspended ceiling grid?
Yes. This driver supports installation inside enclosed fixtures or plenum boxes typical of suspended ceiling systems. Its flicker-free output at 12V is appropriate for linear or strip-style LED lighting in commercial ceilings. Confirm total strip wattage does not exceed 60W.
How many meters of 12V LED strip can the XLC-60-12-S drive?
The XLC-60-12-S delivers a maximum of 60W at 12V and 5A. A strip rated at 10W/m supports up to 6 meters; one rated at 14.4W/m supports approximately 4.1 meters. Check your strip's rated power per meter and keep total load at or below 60W.
Can the XLC-60-12-S be installed in a wet or outdoor location?
No. The XLC-60-12-S does not have an IP ingress protection rating and is intended for dry, enclosed, or indoor installations only. It must be protected from moisture, rain, and condensation. For wet or outdoor locations, select a driver rated IP65 or IP67 or higher.
What certifications does the XLC-60-12-S hold?
The XLC-60-12-S holds CB, CCC, CE, EAC, ENEC, and c_selv certifications. These cover major international markets including Europe (CE, ENEC), China (CCC), and Eurasian Economic Union (EAC). The c_selv rating confirms the output is a Safety Extra Low Voltage circuit.
