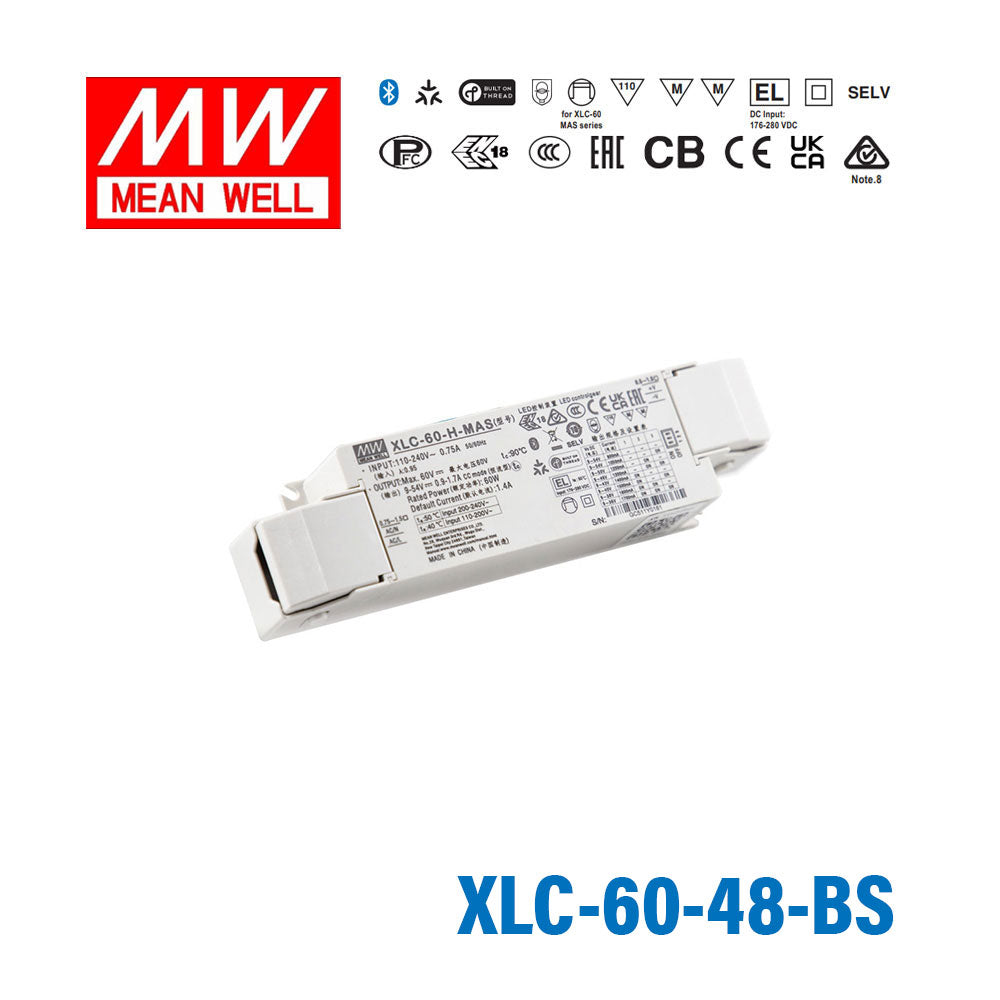

Mean Well XLC-60-48-BS 60W 48V, 3 in 1 Dimming, with Strain-relief
Please Login for Pricing
Description
Description
Key Features
- ✓Constant power mode output with multiple stages selectable by dip switch or NFC setting(H-type)
- ✓Constant voltage mode output (12V/24V/48V)
- ✓Plastic housing with class II/2 and PFC design
- ✓Flicker-free, complying with IEEE1789/ErP
- ✓Standby power consumption <0.5W
- ✓Meet emergency lighting (EL) function application
- ✓Minimum dimming level 0.1% (DALI-2 DT6)
- ✓Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-1 + Push dimming
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well XLC Series
-
Power Rating60 Watt
-
Output Voltage48 Volt
-
Rated Current1.25 Ampere
-
Input Voltage110V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~90°C
-
Warranty5 Year
-
Length17.6 cm
-
Width3.2 cm
-
Height4.5 cm
-
Weight0.32 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the output rating of the Mean Well XLC-60-48-BS?
The XLC-60-48-BS is rated for 60 W output power. It provides 48 V output with a rated current of 1.25 A.
Is the XLC-60-48-BS suitable for 48 V LED lighting applications?
Yes, this model is listed as a 48 V LED driver and is intended for LED power supply applications. Its 60 W power rating and 1.25 A rated output current should be matched against the requirements of the LED load.
What dimming controls does the XLC-60-48-BS support?
The listed dimming controls for this model are 0-10 V/PWM, 1-10 V, and resistance dimming. It is described as a 3-in-1 dimming LED driver with dim-to-off functionality.
Can the XLC-60-48-BS be used in damp or demanding environments?
This product is categorized as a waterproof power supply, making it relevant for LED driver applications where environmental protection is a buying consideration. Its listed operating temperature range is -25 °C to 90 °C.
Does the XLC-60-48-BS include power factor correction?
Yes, the product description lists a PFC design. It also notes a plastic housing with Class II/2 construction.
Is the XLC-60-48-BS designed for low-flicker lighting?
Yes, this model is described as flicker-free and compliant with IEEE1789/ErP. That makes it relevant for buyers who need an LED driver for lighting applications where flicker performance matters.
What warranty comes with the Mean Well XLC-60-48-BS?
The XLC-60-48-BS has a listed warranty period of 5 years. This is part of the product information provided for this specific model.
