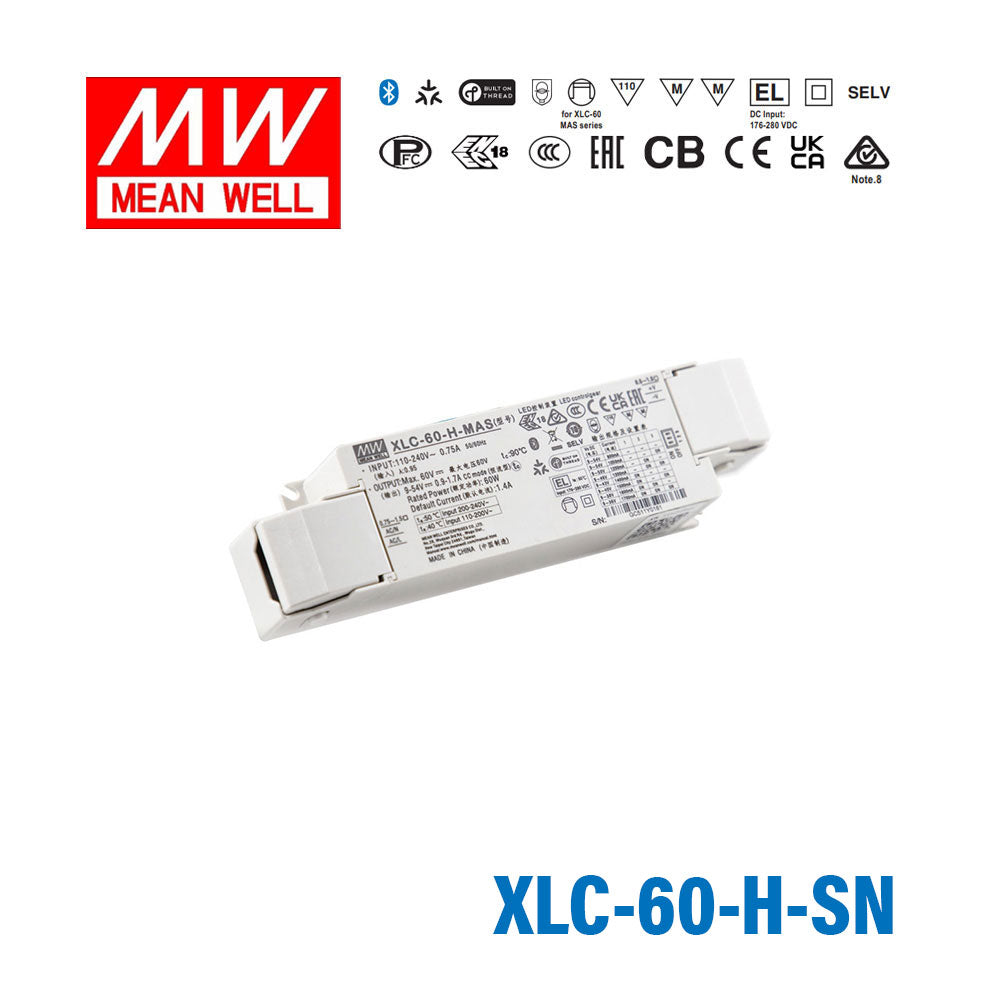

Mean Well XLC-60-H-SN LED Driver 60W 1400mA 9~54V Constant Power wi...
Log in to see priceThe Mean Well XLC-60-H-SN is a 60W multiple-stage constant power LED driver with a 9~54V constant current output region and an output current adjustable from 900mA to 1700mA (1400mA default) by DIP switch or NFC. It is the independent type — supplied with a strain-relief cap for remote or surface mounting — in a Class II plastic housing requiring no earth connection, and carries CB, CE, ENEC, EAC, CCC and UKCA approvals.
Accepting 100~305VAC universal input (155~400VDC) with active PFC ≥0.95 and THD <20%, the XLC-60-H-SN reaches up to 90% efficiency and operates at a case temperature of -25°C to +90°C under free air convection. It is flicker free to the CE ErP directive, protected against short circuit and over temperature, and suitable for emergency lighting installations on 176~280VDC.
Key Features
- ✓Multiple-stage constant power output — current adjustable 0.9~1.7A (1400mA default)
- ✓Constant current region 9~54V, 60W rated output
- ✓NFC current setting — configure without opening or powering the driver
- ✓Independent type with strain-relief cap for remote or surface mounting
- ✓Plastic housing with class II construction and built-in PFC
- ✓Wide input range 100~305VAC / 155~400VDC, 47~63Hz
- ✓High efficiency up to 90%; PF ≥0.95 at 115/230VAC; THD <20%
- ✓Flicker free, complying with the CE ErP directive (PstLM ≤1, SVM ≤0.4)
- ✓Meets emergency lighting (EL) application — DC input 176~280VDC
- ✓Protections: short circuit (hiccup mode) / over temperature
- ✓UL8750 Class P / Class 2 power unit; case temperature -25°C ~ +90°C
- ✓5 years warranty
-
BrandMean Well
-
SeriesMean Well XLC Series
-
Power Rating60 Watt
-
Output Voltage60 Volt
-
Rated Current1.4 Ampere
-
Input Voltage100V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Current
-
Operating Temperature-25°C~90°C
-
Warranty5 Year
-
Length17.6 cm
-
Width4.5 cm
-
Height3.2 cm
-
Weight0.39 kg
::specification::
Frequently Asked Questions
Can the XLC-60-H-SN be used to power LED downlights where the output current is adjusted via NFC from a mobile device?
Yes, the XLC-60-H-SN uses NFC current setting, allowing the output current to be configured within the 0.9–1.7A range using a compatible NFC reader or smartphone, without physical dip switches. This is useful for LED downlight installations where the driver is concealed inside a fixture.
Is the XLC-60-H-SN appropriate for flicker-sensitive LED applications in medical or broadcast environments?
The XLC-60-H-SN is rated flicker-free and provides stable constant current output at a configurable level between 0.9–1.7A, making it suitable for flicker-sensitive LED environments such as medical exam rooms or broadcast studios. The 9–54V CC range supports various LED array configurations.
Can the XLC-60-H-SN drive LED modules in architectural lighting installations that require individual current tuning per fixture?
NFC-based current adjustment on the XLC-60-H-SN allows per-driver current setting without removing the unit or accessing dip switches, which is practical for architectural LED installations where each fixture may need a different drive current. Output current is adjustable from 0.9 to 1.7A.
How many LEDs can the XLC-60-H-SN support in a series configuration?
The driver regulates constant current over a 9–54V output range; the number of LEDs that can be connected in series is determined by each LED's forward voltage, not a fixed number. Ensure the total series string voltage falls within 9–54V at the selected operating current.
What operating temperature range does the XLC-60-H-SN support, and can it be installed in tight ceiling cavities with limited airflow?
The XLC-60-H-SN is rated for -25°C to +90°C, accommodating high-temperature ceiling cavities. It is a Class II, 60W device; ensure the installation environment does not consistently exceed the 90°C case temperature limit in poorly ventilated cavities.
How does the XLC-60-H-SN differ from the XLC-60-H-N?
Both the XLC-60-H-SN and XLC-60-H-N are 60W, 1400mA NFC-programmable constant current drivers with a 9–54V CC range and identical certifications. The XLC-60-H-SN includes a built-in strain-relief fitting (the -S in the model name), while the XLC-60-H-N does not.
