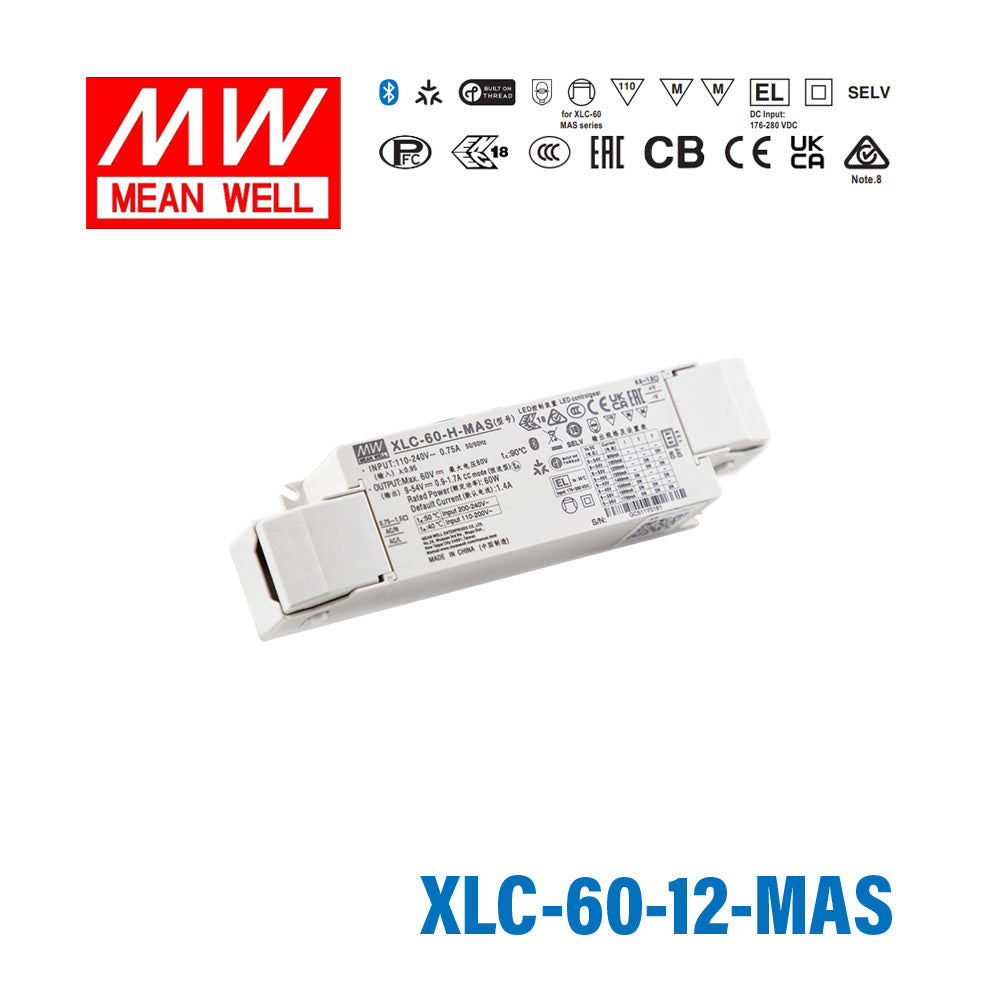

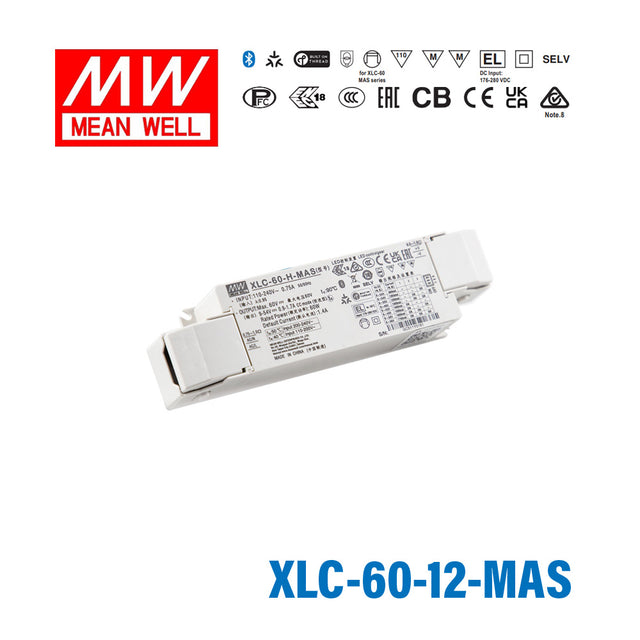

Mean Well XLC-60-12-MAS LED Driver 60W 12V Constant Voltage LED Dri...
Please Login for Pricing
Description
Description
Key Features
- ✓Constant power mode output with multiple stage selectable by DIP switch (H-type)
- ✓Constant voltage mode output (12/24/48V)
- ✓Plastic housing with class II and PFC design
- ✓Flicker free, complying with CE ErP directive
- ✓Standby power consumption <0.5W
- ✓Meet emergency lighting (EL) application
- ✓Minimum dimming level 0.1% (12/24/48V)
- ✓Minimum dimming level 0.5% (H-type)
- ✓Matter over thread, Matter 1.3 specification
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well XLC Series
-
Power Rating60 Watt
-
Output Voltage12 Volt
-
Rated Current0.00 Ampere
-
Input Voltage100V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~90°C
-
Warranty5 Year
-
Length17.6 cm
-
Width3.2 cm
-
Height4.5 cm
-
Weight0.39 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the XLC-60-12-MAS be used in a smart home 12V LED strip setup with Apple HomeKit?
Yes. The XLC-60-12-MAS implements the Matter 1.3 specification, which is compatible with Apple HomeKit, Google Home, Amazon Alexa, and other Matter ecosystems. You can dim connected 12V LED strips directly from these platforms without a separate dimmer module.
Is the XLC-60-12-MAS a good driver for accent or cove 12V LED strip lighting?
Yes. With a 60W constant voltage 12V output and a minimum dimming level of 0.1%, this driver supports smooth, full-range dimming well-suited to accent and cove lighting applications. The strain-relief connector also simplifies secure cable management in finished installations.
Can I use the XLC-60-12-MAS for 12V LED strips in a hospitality or restaurant environment?
Yes. The wide operating temperature range (-25°C to +90°C), 5-year warranty, and flicker-free Matter dimming make this driver suitable for demanding commercial interior lighting. Ensure the installation location is dry and enclosed, as the driver has no IP ingress protection rating.
How long a 12V LED strip run can the XLC-60-12-MAS support?
The driver delivers up to 60W at 12V. A strip rated at 10W/m allows up to 6 meters; a strip at 14.4W/m allows approximately 4.1 meters. Check your specific strip's rated power per meter and do not exceed the 60W total limit.
Does the XLC-60-12-MAS work on 110V mains as well as 230V?
Yes. The XLC-60-12-MAS accepts 100–305VAC, covering 110V and 230V mains supplies. The Matter CC dimming feature requires 115–230VAC to function. Both power and dimming work normally on typical North American 120V and European 230V supplies.
Is the XLC-60-12-MAS suitable for outdoor LED lighting installations?
No. The XLC-60-12-MAS does not carry an IP ingress protection rating and should only be installed in dry, enclosed locations protected from moisture. For outdoor applications, choose a driver rated IP65 or higher.
