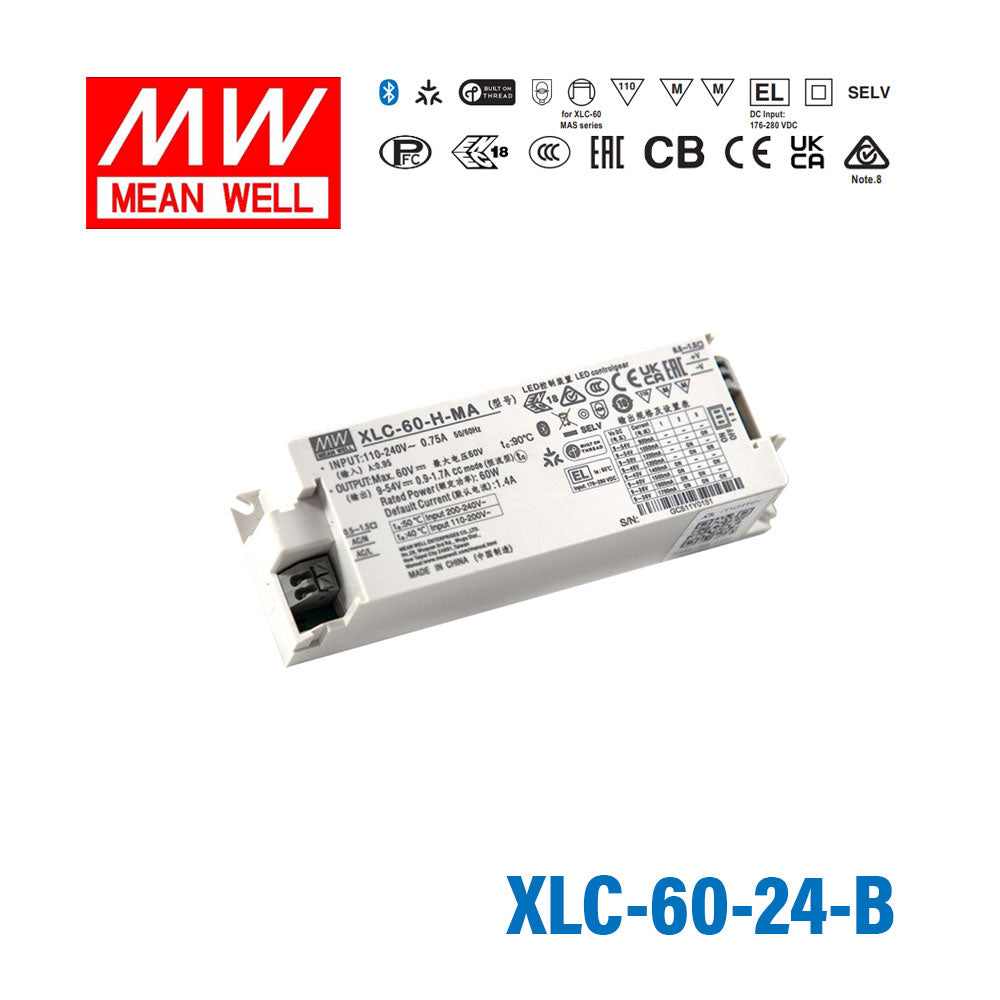

Mean Well XLC-60-24-B 60W 24V, 3 in 1 Dimming
Please Login for Pricing
Description
Description
Key Features
- ✓Constant power mode output with multiple stages selectable by dip switch or NFC setting(H-type)
- ✓Constant voltage mode output (12V/24V/48V)
- ✓Plastic housing with class II/2 and PFC design
- ✓Flicker-free, complying with IEEE1789/ErP
- ✓Standby power consumption <0.5W
- ✓Meet emergency lighting (EL) function application
- ✓Minimum dimming level 0.1% (DALI-2 DT6)
- ✓Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-1 + Push dimming
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well XLC Series
-
Power Rating60 Watt
-
Output Voltage24 Volt
-
Rated Current2.5 Ampere
-
Input Voltage110V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~90°C
-
Warranty5 Year
-
Length13.6 cm
-
Width3.2 cm
-
Height4.5 cm
-
Weight0.32 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What are the main output ratings of the Mean Well XLC-60-24-B?
The XLC-60-24-B is rated for 60W output power at 24V. Its rated output current is 2.5A, making it suitable for 24V LED driver applications within that load range.
What dimming control types does the XLC-60-24-B support?
This model supports 3-in-1 dimming control, including 0-10V/PWM, 1-10V, and resistance dimming. It also supports dim-to-off behavior as listed for this product family.
Is the XLC-60-24-B intended for LED lighting applications?
Yes. The XLC-60-24-B is categorized as a 24V LED driver and AC/DC power supply for B2B lighting applications. Its 60W rating and dimming support make it relevant for commercial LED lighting projects that require a 24V constant voltage driver.
Does the XLC-60-24-B have flicker-free performance?
The product description lists flicker-free performance with compliance to IEEE1789 and ErP. This is useful for LED lighting applications where visible flicker reduction is an important purchasing requirement.
What temperature range is specified for the XLC-60-24-B?
The listed temperature range for this model is -25°C to 90°C. Buyers should confirm that the final application stays within the specified environmental limits for the product.
What is the standby power consumption of the XLC-60-24-B?
The product description lists standby power consumption below 0.5W. This can be relevant for commercial lighting systems where low idle power is part of the project requirement.
How does the XLC-60-24-B differ from a non-dimmable 24V power supply?
Unlike a basic fixed-output 24V supply, the XLC-60-24-B includes 3-in-1 dimming support for compatible lighting control systems. It is also described with flicker-free performance, PFC design, and a 5-year warranty.
What warranty period is listed for the XLC-60-24-B?
The XLC-60-24-B is listed with a 5-year warranty. This warranty period is a key specification for B2B buyers comparing LED drivers for long-term lighting projects.
