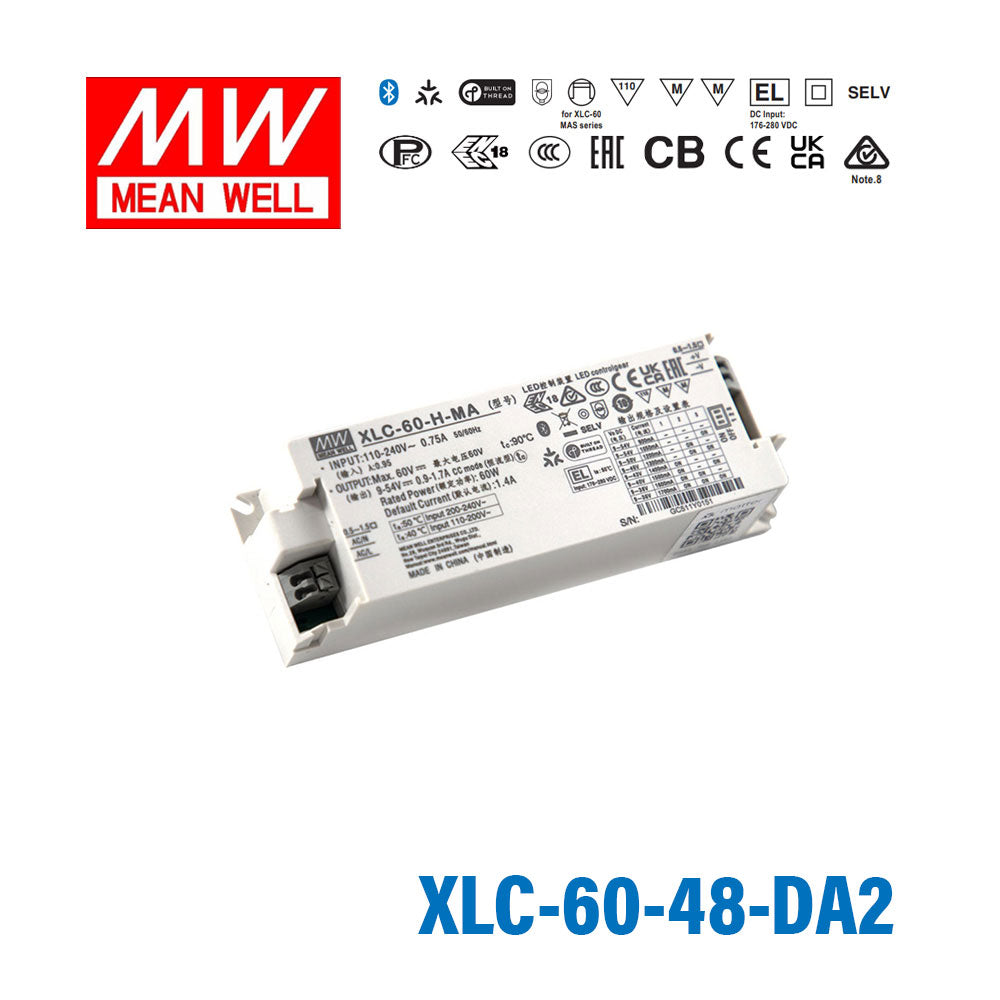

Mean Well XLC-60-48-DA2 60W 48V, DALI2 Dimmable 1.25A
Please Login for Pricing
Description
Description
Key Features
- ✓Constant power mode output with multiple stages selectable by dip switch or NFC setting(H-type)
- ✓Constant voltage mode output (12V/24V/48V)
- ✓Plastic housing with class II/2 and PFC design
- ✓Flicker-free, complying with IEEE1789/ErP
- ✓Standby power consumption <0.5W
- ✓Meet emergency lighting (EL) function application
- ✓Minimum dimming level 0.1% (DALI-2 DT6)
- ✓Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-1 + Push dimming
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well XLC Series
-
Power Rating60 Watt
-
Output Voltage48 Volt
-
Rated Current1.25 Ampere
-
Input Voltage110V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~90°C
-
Warranty5 Year
-
Length13.6 cm
-
Width3.2 cm
-
Height4.5 cm
-
Weight0.32 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What output does the Mean Well XLC-60-48-DA2 provide?
The XLC-60-48-DA2 is rated for 60W output at 48V constant voltage. Its rated output current is 1.25A, making it suitable for compatible 48V LED loads within that power range.
Is the XLC-60-48-DA2 compatible with DALI dimming systems?
Yes. This model supports DALI dimming and is described as DALI-2 DT6 capable, with a minimum dimming level of 0.1%. It also supports DALI-1 and push dimming functions according to the product description.
What applications is the XLC-60-48-DA2 typically used for?
This product is intended for 48V constant-voltage LED driver applications. It is a fit for buyers looking for a 60W Mean Well LED power supply with DALI dimming, flicker-free performance, and emergency lighting function support.
What operating temperature range does the XLC-60-48-DA2 support?
The listed temperature range for this model is -25°C to 90°C. Buyers should confirm that the product's thermal rating is appropriate for the intended enclosure, ambient conditions, and load profile.
Does the XLC-60-48-DA2 have low standby power consumption?
Yes. The product description lists standby power consumption as less than 0.5W. This can be useful for LED systems where low standby draw is a purchasing requirement.
How is the XLC-60-48-DA2 different from a non-dimmable 48V LED driver?
Unlike a basic non-dimmable 48V LED driver, the XLC-60-48-DA2 includes DALI dimming support and push dimming functions. It also lists flicker-free performance, PFC design, Class II/2 plastic housing, and a 5-year warranty.
What warranty is included with the Mean Well XLC-60-48-DA2?
The listed warranty period for the XLC-60-48-DA2 is 5 years. This is useful for commercial LED lighting projects where long-term component support is part of the purchasing criteria.
