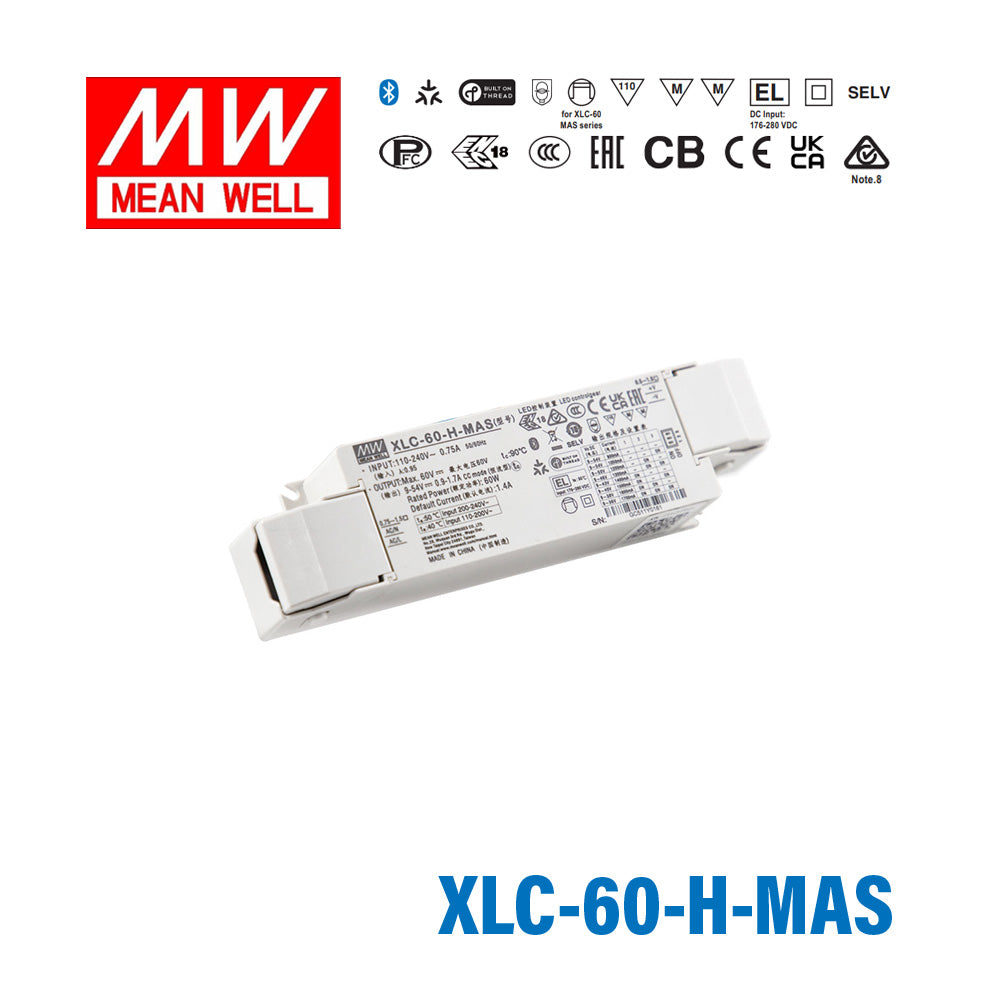

Mean Well XLC-60-H-MAS LED Driver 60W 1400mA 9~54V Constant Power, Current Setting by Dip Switch, Matter Wireless Dimming with Strain Relief

Yes, the XLC-60-H-MAS supports Matter 1.3 wireless dimming, enabling integration with Matter-compatible hubs and voice assistants for wireless control of LED downlight loads. The driver outputs 60W at 1400mA constant current with a 9–54V CC range.

The XLC-60-H-MAS includes an integrated strain-relief fitting, making it suited for new-construction or retrofit installations where cable strain management at the driver housing is required by local codes or installation practice. It provides 60W Matter-dimmable constant current output.

The XLC-60-H-MAS is rated flicker-free and supports Matter 1.3 wireless dimming with a current adjustment range of 0.9–1.7A, making it applicable for commercial environments with flicker-sensitivity requirements such as photography studios or healthcare facilities.

The driver's constant current output covers 9–54V; the number of series LEDs is determined by each LED's forward voltage and is not a fixed number. Select a series string whose total forward voltage stays within the 9–54V CC range at the desired operating current.

The XLC-60-H-MAS is rated for -25°C to +90°C operation, accommodating high-temperature luminaire cavities or installation environments. No IP rating is specified, so it requires a suitable enclosure in wet or outdoor locations.

Both models are 60W, 1400mA constant current drivers with Matter 1.3 wireless dimming and a 9–54V CC range. The XLC-60-H-MAS includes a strain-relief fitting and is 176mm long, while the XLC-60-H-MA lacks strain-relief and is 136mm long.
