Mean Well

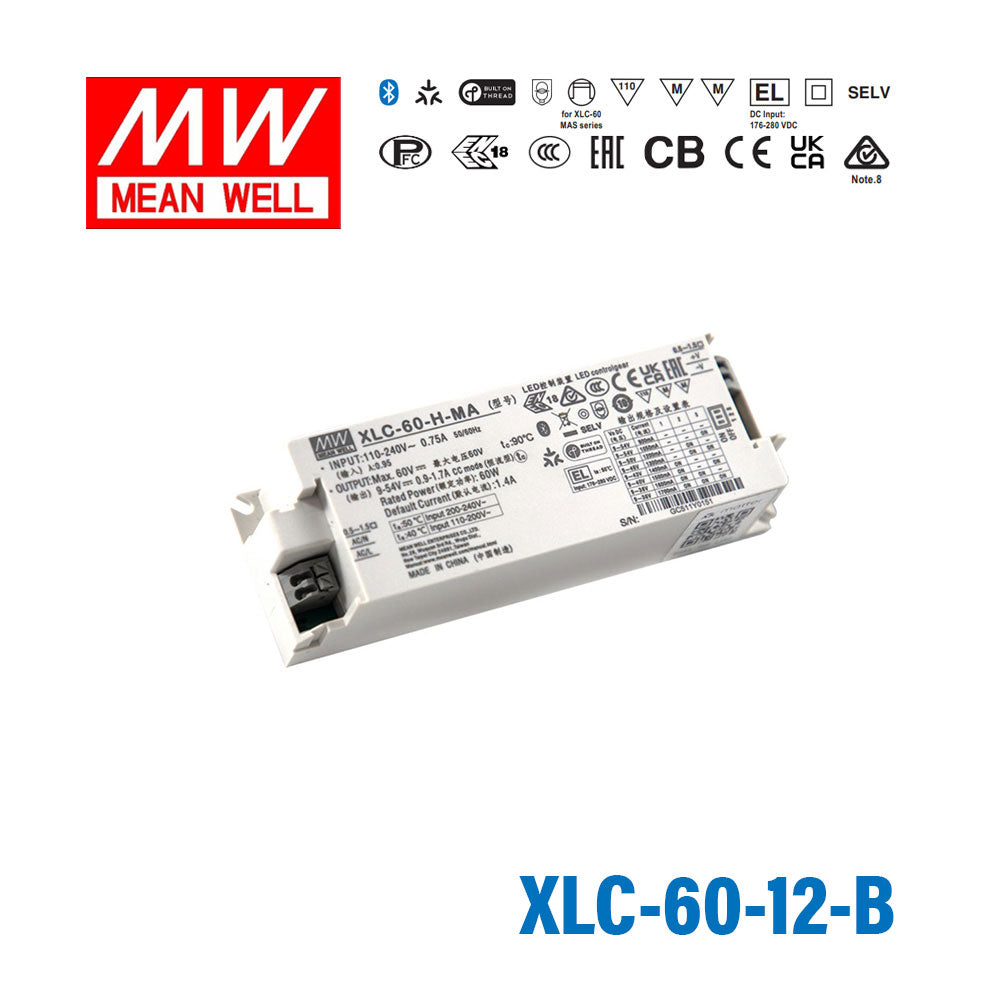

Mean Well XLC-60-12-B 60W 12V, 3 in 1 Dimming

constant voltageclass II and PFCflicker-freebuilt-in use
SKU XLC-60-12-B
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
|

The Mean Well XLC-60-12-B is a 60W constant voltage LED driver with a regulated output of 12V DC at up to 5A. It is housed in a built-in type plastic housing, is Class II with no earth connection required, and has built-in active PFC with flicker-free output to the CE ErP directive.

Accepting 110~305VAC universal input, the XLC-60-12-B operates at a case temperature of -25°C to 90°C and carries CB, CCC, CE, EAC, ENEC and SELV approvals. It supports 1-10V, 10V PWM and resistance (3-in-1) dimming. Protected against short circuit and over temperature, and backed by a 5-year warranty.

Key Features

  • ✓Constant voltage mode output (12V/24V/48V)
  • ✓Plastic housing with class II/2 and PFC design
  • ✓Flicker-free, complying with IEEE1789/ErP
  • ✓Standby power consumption <0.5W
  • ✓Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-1 + Push dimming
  • ✓5 years warranty

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Other XLC-60 Models

39 other models
ModelPowerVoltageCurrentIP Rating
Mean Well XLC-60-24-DA2S 60W 24V, DALI2 Dimmable, with Strain-relief 2.5A 60W 24V 2.5A Indoor View
Mean Well XLC-60-12-DA2S 60W 12V, DALI2 Dimmable, with Strain-relief 5A 60W 12V 5A Indoor View
Mean Well XLC-60-48-DA2S 60W 48V, DALI2 Dimmable, with Strain-relief 1.25A 60W 48V 1.25A Indoor View
Mean Well XLC-60-H-SN LED Driver 60W 1400mA 9~54V Constant Power with Strain-relief, NFC Current Setting 60W 60V 1.4A Indoor View
Mean Well XLC-60-H-KNS LED Driver 60W 9~54V Constant Power, Current Setting by Dip Switch, For KNX System, With Strain-Relief 60W 60V 0.9A Indoor View
Mean Well XLC-60-H-KN LED Driver 60W 9~54V Constant Power, Current Setting by Dip Switch, For KNX System 60W 60V 0.9A Indoor View
Mean Well XLC-60-H-MAS LED Driver 60W 1400mA 9~54V Constant Power, Current Setting by Dip Switch, Matter Wireless Dimming with Strain Relief 60W 60V 1.4A Indoor View
Mean Well XLC-60-H-MA LED Driver 60W 1400mA 9~54V Constant Power, Current Setting by Dip Switch, Matter Wireless Dimming 60W 60V 1.4A Indoor View
Mean Well XLC-60-48-MAS LED Driver 60W 48V Constant Voltage LED Driver, Matter Wireless Dimming with Strain Relief 1.25A 60W 48V 0.00A Indoor View
Mean Well XLC-60-48-MA LED Driver 60W 48V Constant Voltage LED Driver, Matter Wireless Dimming 1.25A 60W 48V 0.00A Indoor View
Mean Well XLC-60-24-MAS LED Driver 60W 24V Constant Voltage LED Driver, Matter Wireless Dimming with Strain Relief 2.5A 60W 24V 0.00A Indoor View
Mean Well XLC-60-24-MA LED Driver 60W 24V Constant Voltage LED Driver, Matter Wireless Dimming 2.5A 60W 24V 0.00A Indoor View
Mean Well XLC-60-12-MAS LED Driver 60W 12V Constant Voltage LED Driver, Matter Wireless Dimming with Strain Relief 5A 60W 12V 0.00A Indoor View
Mean Well XLC-60-12-MA LED Driver 60W 12V Constant Voltage LED Driver, Matter Wireless Dimming 5A 60W 12V 0.00A Indoor View
Mean Well XLC-60-48-DA2 60W 48V, DALI2 Dimmable 1.25A 60W 48V 1.25A Indoor View
Mean Well XLC-60-48-BS 60W 48V, 3 in 1 Dimming, with Strain-relief 60W 48V 1.25A Indoor View
Mean Well XLC-60-48-B 60W 48V, 3 in 1 Dimming 60W 48V 1.25A Indoor View
Mean Well XLC-60-24-DA2 60W 24V, DALI2 Dimmable 2.5A 60W 24V 2.5A Indoor View
Mean Well XLC-60-24-BS 60W 24V, 3 in 1 Dimming, with Strain-relief 60W 24V 2.5A Indoor View
Mean Well XLC-60-24-B 60W 24V, 3 in 1 Dimming 60W 24V 2.5A Indoor View
Mean Well XLC-60-12-DA2 60W 12V, DALI2 Dimmable 5A 60W 12V 5A Indoor View
Mean Well XLC-60-12-BS 60W 12V, 3 in 1 Dimming, with Strain-relief 60W 12V 5A Indoor View
Mean Well XLC-60-H-S LED Driver 60W 1400mA 9~54V Constant Power with Strain-relief, Current Setting by Dip Switch 60W 60V 1.4A Indoor View
Mean Well XLC-60-H-N LED Driver 60W 1400mA 9~54V Constant Power, NFC Current Setting 60W 60V 1.4A Indoor View
Mean Well XLC-60-H-DA2SN LED Driver 60W 1400mA 9~54V Constant Power, DALI2 + Push Dimming with Strain-relief, NFC Current Setting 60W 60V 1.4A Indoor View
Mean Well XLC-60-H-DA2S LED Driver 60W 1400mA 9~54V Constant Power, DALI2 + Push Dimming with Strain-relief, Current Setting by Dip Switch 60W 60V 1.4A Indoor View
Mean Well XLC-60-H-DA2N LED Driver 60W 1400mA 9~54V Constant Power, DALI2 + Push Dimming, NFC Current Setting 60W 60V 1.4A Indoor View
Mean Well XLC-60-H-DA2 LED Driver 60W 1400mA 9~54V Constant Power, DALI2 + Push Dimming, Current Setting by Dip Switch 60W 60V 1.4A Indoor View
Mean Well XLC-60-H-BSN LED Driver 60W 1400mA 9~54V Constant Power, 3 in 1 Dimming with Strain-relief, NFC Current Setting 60W 60V 1.4A Indoor View
Mean Well XLC-60-H-BS LED Driver 60W 1400mA 9~54V Constant Power, 3 in 1 Dimming with Strain-relief, Current Setting by Dip Switch 60W 60V 1.4A Indoor View
Mean Well XLC-60-H-BN LED Driver 60W 1400mA 9~54V Constant Power, 3 in 1 Dimming, NFC Current Setting 60W 60V 1.4A Indoor View
Mean Well XLC-60-H-B LED Driver 60W 1400mA 9~54V Constant Power, 3 in 1 Dimming, Current Setting by Dip Switch 60W 60V 1.4A Indoor View
Mean Well XLC-60-H LED Driver 60W 1400mA 9~54V Constant Power, Current Setting by Dip Switch 60W 60V 1.4A Indoor View
Mean Well XLC-60-48-S LED Driver 60W 48V with Strain-relief 1.25A 60W 48V 1.25A Indoor View
Mean Well XLC-60-48 LED Driver 60W 48V 1.25A 60W 48V 1.25A Indoor View
Mean Well XLC-60-24-S LED Driver 60W 24V with Strain-relief 2.5A 60W 24V 2.5A Indoor View
Mean Well XLC-60-24 LED Driver 60W 24V 2.5A 60W 24V 2.5A Indoor View
Mean Well XLC-60-12-S LED Driver 60W 12V with Strain-relief 5A 60W 12V 5A Indoor View
Mean Well XLC-60-12 LED Driver 60W 12V 5A 60W 12V 5A Indoor View
View all 80 Mean Well XLC Series models
