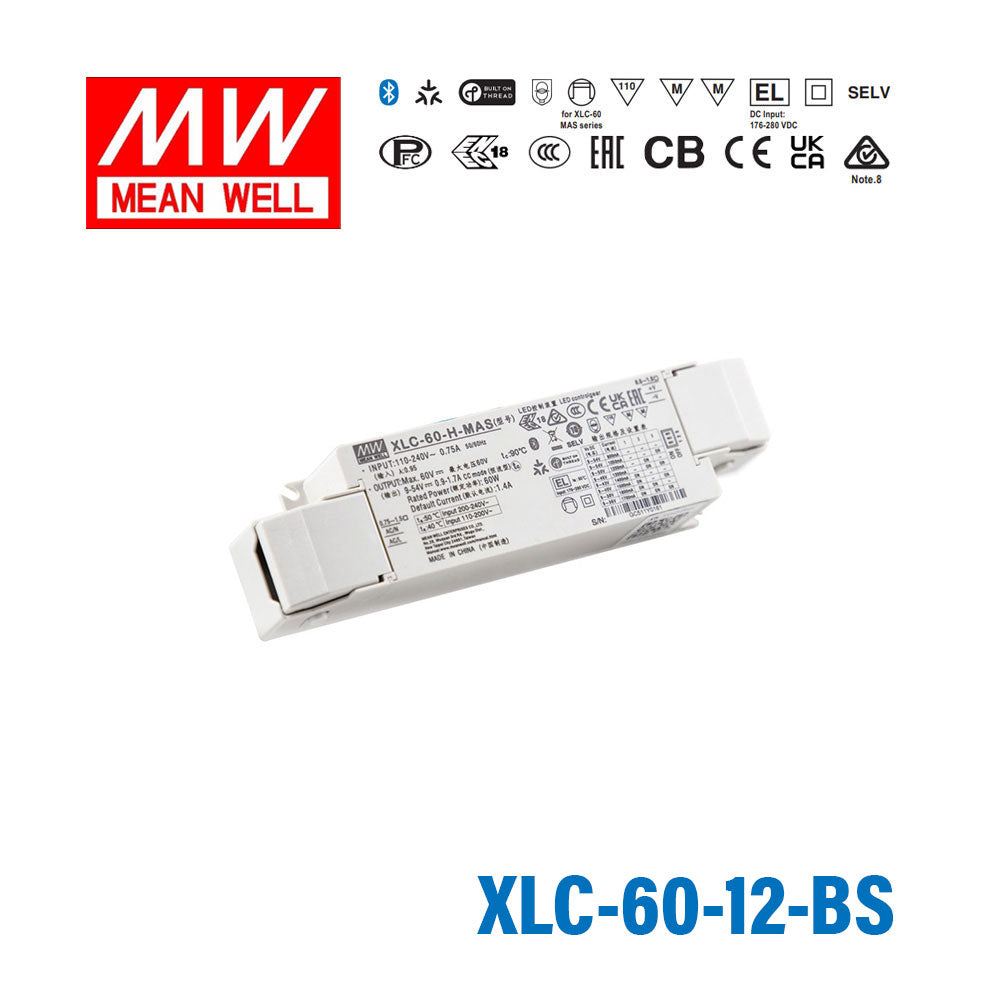

Mean Well XLC-60-12-BS 60W 12V, 3 in 1 Dimming, with Strain-relief

constant voltageclass II and PFCflicker-free

SKU XLC-60-12-BS

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

XLC-60-12-BS is the 12V output model of this series: rated power 60W, typical efficiency 86%.

XLC-60 Series is a 60W with constant power and constant voltage output LED driver . It can operate from 100 ~ 305VAC and output current ranging between 900 mA to 1700 mA selectable by DIP switch or NFC setting. Thanks to high efficiency up to 90%, it is able to operate for -25℃ ~90℃ case temperature under free air convection. XLC-60 is designed based on latest safety regulations with 3 in 1 and DALI-2 dimming. XLC-60 can also be adjusted for brightness with a push button as a simple way dimming, so it provides more flexibility for LED Lighting application.

Features

Constant power mode output with multiple stage selectable by DIP switch or NFC setting (H-type)
Constant voltage mode output(12/24/48V)
Plastic housing with class Ⅱ and PFC design
Meet UL8750 Class 2 / Class P power unit
Flicker free, complying with CE ErP directive
Standby power consumption <0.5W
Meet emergency lighting (EL) application
Minimum dimming level 0.1% (DALI-2 DT6)
Dimming functions: 3 in 1 dimming (Dim-to-off DALI-2 + Push dimming
5 years warranty

Specifications

XLC-60-12-BSSpecifications from the official datasheet (2025-01-24 edition)

OUTPUT

DC VOLTAGE: 12V
DEFAULT CURRENT: 5A
RATED POWER: 60W
SETUP, RISE TIME^{Note12 (H-type)}: 800ms,180ms/230VAC ,1000ms,180ms/115VAC

INPUT

VOLTAGE RANGE: 100 ~ 305VAC 155 ~400VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF≥0.95/115VAC, PF≥0.95/230VAC, PF≥0.9/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load ≥60%/230VAC; @load ≥75%/277VAC); THD<10%@load 100%/230VAC (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY(Typ.)^{Note11 (H-type: measured at 1050mA/54V output set by DIP switch)}: 86%
AC CURRENT: 0.75A/115VAC, 0.35A/230VAC, 0.3A/277VAC
INRUSH CURRENT: COLD START 15A(twidth=310μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. NO. of PSUs on 16A CIRCUIT BREAKER: 25 units (circuit breaker of type B) / 36 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
STANDBY POWER CONSUMPTION^Note5: Standby power consumption<0.5W (Dimming OFF, only for standard version B/DA2-type)

PROTECTION

OVERLOAD: 105~200% rated output power Protection type: Hiccup mode, recovers automatically after fault condition is removed.
SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 14~17V Shut down output voltage, re-power on to recover
OVER TEMPERATURE: Shut down output voltage, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.: Tcase=-25~90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=90℃
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP.,HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY&EMC

SAFETY STANDARDS: UL8750(Class P), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13(EL) appendix J suitable for emergency installations(DC input 176-280VDC); BS EN/EN62384 , BIS IS15885(Part2/Sec13)(NOTE 13), GB/T19510.1, GB/T19510.213, EAC TP TC 004 approved; Design refer to AS/NZS 61347-1, AS/NZS 61347-2-13
DALI STANDARDS: Comply with IEC62386-101, 102, 207
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC
ISOLATION RESISTANCE: I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55015(CISPR15) ,GB/T 17743
Radiated BS EN/EN55015(CISPR15) ,GB/T 17743
Harmonic Current BS EN/EN61000-3-2 , GB17625.1 Class C @load≥60%
Voltage Flicker BS EN/EN61000-3-3
EMC IMMUNITY: BS EN/EN61547

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
Radiated BS EN/EN61000-4-3 Level 2
EFT/Burst BS EN/EN61000-4-4 Level 2
Surge BS EN/EN61000-4-5 Level 3, 1KV/Line-Line
Conducted BS EN/EN61000-4-6 Level 2
Magnetic Field BS EN/EN61000-4-8 Level 2
Voltage Dips and Interruptions BS EN/EN61000-4-11 70% residual voltage for 10 period, 0% residual voltage for 0.5 periods

Parameter	Standard	Test Level
Conducted	BS EN/EN55015(CISPR15) ,GB/T 17743
Radiated	BS EN/EN55015(CISPR15) ,GB/T 17743
Harmonic Current	BS EN/EN61000-3-2 , GB17625.1	Class C @load≥60%
Voltage Flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
Radiated	BS EN/EN61000-4-3	Level 2
EFT/Burst	BS EN/EN61000-4-4	Level 2
Surge	BS EN/EN61000-4-5	Level 3, 1KV/Line-Line
Conducted	BS EN/EN61000-4-6	Level 2
Magnetic Field	BS EN/EN61000-4-8	Level 2
Voltage Dips and Interruptions	BS EN/EN61000-4-11	70% residual voltage for 10 period, 0% residual voltage for 0.5 periods

OTHERS

FLICKER^Note.9: PstLM ≤ 1, SVM ≤ 0.4
MTBF: 4130.5K hrs min. Telcordia SR-332 (Bellcore) 317.7Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 176*45*32mm , 136*45*32mm (L*W*H)
PACKING: 0.32Kg; 40pcs/13.8Kg/0.48CUFT(for XLC-60 Series); 0.39Kg; 40pcs/16.6Kg/0.61CUFT(for XLC-60-S Series);

Test conditions and notes13

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
3. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
4. Current ripple is measured 50%~100% of maximum voltage under rated power delivery.
5. Standby power consumption is measured at 230VAC.
6. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
8. To fulfill requirements of the latest ErP regulation for lighting fixture, this LED driver can only be used behind a switch without permanently connected to the mains.
9. Flicker is measured at full load with the light source provided by MEAN WELL.
10. For XLC-S series: RCM is on a voluntary basis. Non IC classification Independent LED control gear is not suitable for residential installations. For XLC(except -S) series: RCM is on a voluntary basis and meets relevant IEC or AS/NZS standards complying with AS/NZS 4417.1.
11. This series meets the typical life expectancy of 50000 hours of operation when Tcase,particularly tc point(or TMP,per DLC), is about 75℃ or less.
12. For more information, please contact with MEAN WELL sales.
13. Products sourced from the China regions and some models sourced from India may not have the BIS logo,please refer to BIS certificate for details and contact your MEAN WELL sales for more information.

Technical drawings

XLC-60-12-BS BLOCK DIAGRAM — BLOCK DIAGRAM

XLC-60-12-BS DRIVING METHODS OF LED MODULE — DRIVING METHODS OF LED MODULE

XLC-60-12-BS NFC Function Description — NFC Function Description

XLC-60-12-BS DIMMING OPERATION — DIMMING OPERATION

XLC-60-12-BS ◎ DA2 type (DALI-2 digital dimming function) — ◎ DA2 type (DALI-2 digital dimming function)

XLC-60-12-BS ※ For 12V/24V/48V PWM style output dimming — ※ For 12V/24V/48V PWM style output dimming

XLC-60-12-BS OUTPUT LOAD vs TEMPERATURE — OUTPUT LOAD vs TEMPERATURE

XLC-60-12-BS TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

XLC-60-12-BS POWER FACTOR (PF) CHARACTERISTIC — POWER FACTOR (PF) CHARACTERISTIC

XLC-60-12-BS EFFICIENCY vs LOAD — EFFICIENCY vs LOAD

XLC-60-12-BS MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

XLC-60-12-BS MECHANICAL SPECIFICATION (XLC-60-S — MECHANICAL SPECIFICATION (XLC-60-S

Typical applications

Downloads

Datasheet1

XLC-60-12-BS datasheetXLC_60_spec.pdf · 2025-01-24 edition PDF Download

FAQ

What type of LED applications is the Mean Well XLC-60-12-BS suited for?

The XLC-60-12-BS is a 60W, 12V LED driver for constant voltage LED loads within its 5A rated output. It is a good fit when the buyer needs 12V output, dimming support, flicker-free operation, and a compact driver with strain-relief.

Does the XLC-60-12-BS support dimming?

Yes. This model supports 3 in 1 dimming, including 0-10V, 1-10V, PWM, and resistance dimming control. The product data also notes dim-to-off support.

What are the main output specifications for the XLC-60-12-BS?

The XLC-60-12-BS is rated for 60W output power. It provides 12V output with a rated current of 5A. These specs make it a 12V constant voltage LED driver for loads within that power and current range.

Is the XLC-60-12-BS designed for flicker-sensitive lighting projects?

Yes. The product description states that the XLC-60-12-BS is flicker-free and complies with CE ErP directive. That makes it relevant for buyers who are comparing LED drivers for visual comfort and lighting quality.

What operating temperature range does this LED driver support?

The listed operating temperature range for the XLC-60-12-BS is -25°C to 90°C case temperature. Buyers should use this range when checking whether the model fits the expected ambient conditions for the project.

How does the XLC-60-12-BS differ from a non-dimming 12V LED driver?

Compared with a basic non-dimming 12V driver, the XLC-60-12-BS adds 3 in 1 dimming support and dim-to-off capability. It also includes features listed for this model such as class II plastic housing, PFC design, flicker-free performance, and standby power consumption below 0.5W.

What warranty is listed for the XLC-60-12-BS?

The XLC-60-12-BS has a listed warranty period of 5 years. This is useful for B2B buyers comparing LED drivers for longer-term lighting projects and maintenance planning.
