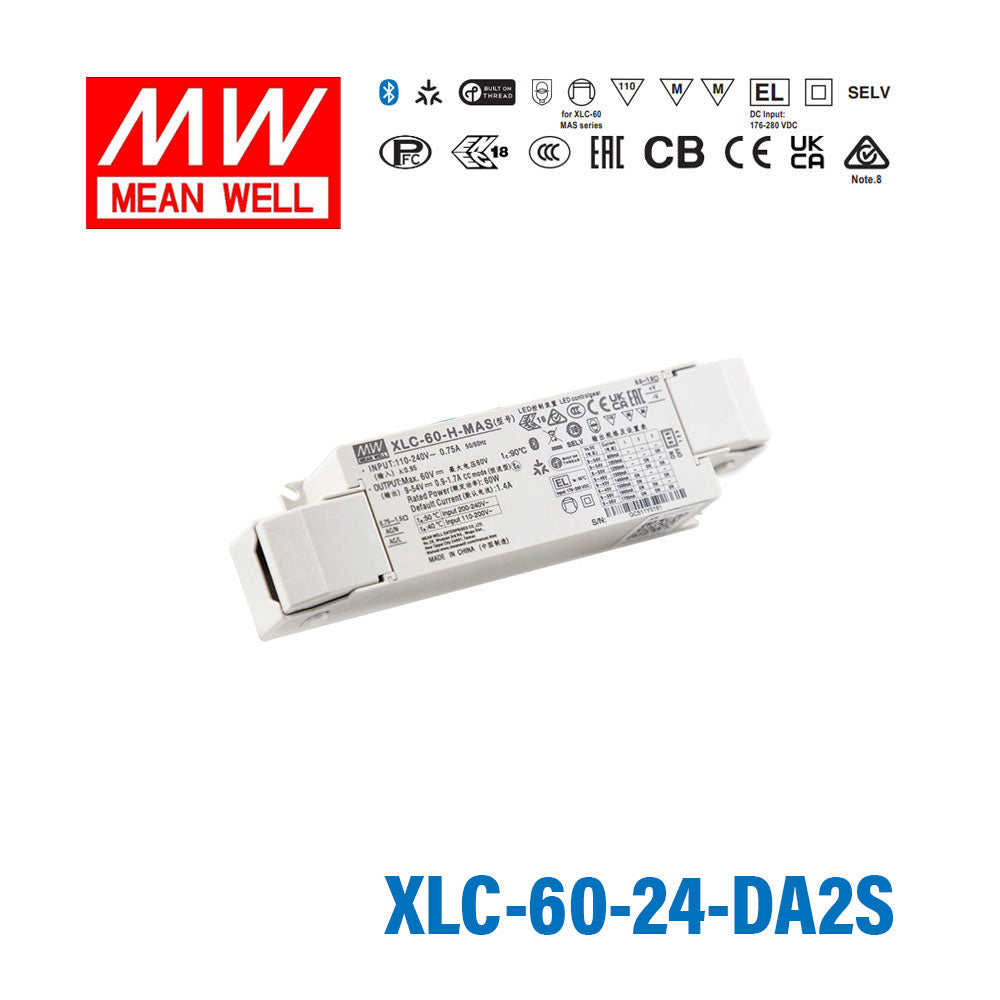

Mean Well XLC-60-24-DA2S 60W 24V, DALI2 Dimmable, with Strain-relie...
Please Login for Pricing
Description
Description
Key Features
- ✓Constant power mode output with multiple stages selectable by dip switch or NFC setting(H-type)
- ✓Constant voltage mode output (12V/24V/48V)
- ✓Plastic housing with class II/2 and PFC design
- ✓Flicker-free, complying with IEEE1789/ErP
- ✓Standby power consumption <0.5W
- ✓Meet emergency lighting (EL) function application
- ✓Minimum dimming level 0.1% (DALI-2 DT6)
- ✓Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-1 + Push dimming
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well XLC Series
-
Power Rating60 Watt
-
Output Voltage24 Volt
-
Rated Current2.5 Ampere
-
Input Voltage110V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~90°C
-
Warranty5 Year
-
Length17.6 cm
-
Width3.2 cm
-
Height4.5 cm
-
Weight0.32 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Mean Well XLC-60-24-DA2S used for?
The XLC-60-24-DA2S is a 60W constant voltage LED driver for 24V LED lighting systems. It is suited to commercial and B2B lighting applications that need DALI dimming control and a compact Class II plastic-housed power supply.
What output voltage and current does the XLC-60-24-DA2S provide?
This model provides a 24V DC output with a rated current of 2.5A. Its power rating is 60W, so it is intended for compatible 24V LED loads within that power range.
Does the XLC-60-24-DA2S support DALI dimming?
Yes. The XLC-60-24-DA2S is a DALI dimmable model and supports DALI-2 DT6 dimming with a minimum dimming level of 0.1%. The product description also lists DALI-1 and push dimming functionality.
Is the XLC-60-24-DA2S suitable for flicker-sensitive LED lighting?
Yes. The product description states that this LED driver is flicker-free and complies with IEEE1789 and ErP requirements. That makes it relevant for buyers looking to reduce visible flicker in compatible LED lighting applications.
What operating temperature range is specified for this model?
The listed temperature range for the XLC-60-24-DA2S is -25°C to 90°C. Buyers should confirm that the intended application stays within the specified environmental limits for this driver.
How does the XLC-60-24-DA2S differ from a basic non-dimmable 24V LED power supply?
Unlike a basic fixed-output 24V power supply, the XLC-60-24-DA2S includes DALI dimming functionality and supports very low dimming down to 0.1% under DALI-2 DT6. It also includes features such as PFC design, standby power consumption under 0.5W, and flicker-free operation as listed in the product description.
What warranty is provided with the XLC-60-24-DA2S?
The XLC-60-24-DA2S is listed with a 5-year warranty. This warranty period is useful for commercial buyers comparing lifecycle expectations across LED driver options.
